Specifications

Optical

• Light Source: 7 (15) Watt HEX RGBWA+UV LED
• Life Expectancy: 50,000 hrs
• Beam Angle: 5~55-degree
• Refresh Rate: 1.2KHz
• Pan Tilt Range: 630-degree (540 Optional) /Tilt 270-degree
• Colors: 64 built-in color macros
• Dimming: Electronic
• Zoom: Motorized 5°-55°
• Strobe: Electronic
• Dimmer Curves: 5 dimmer curves
• Operational Modes: 2 modes Program/ DMX
• Flicker Free

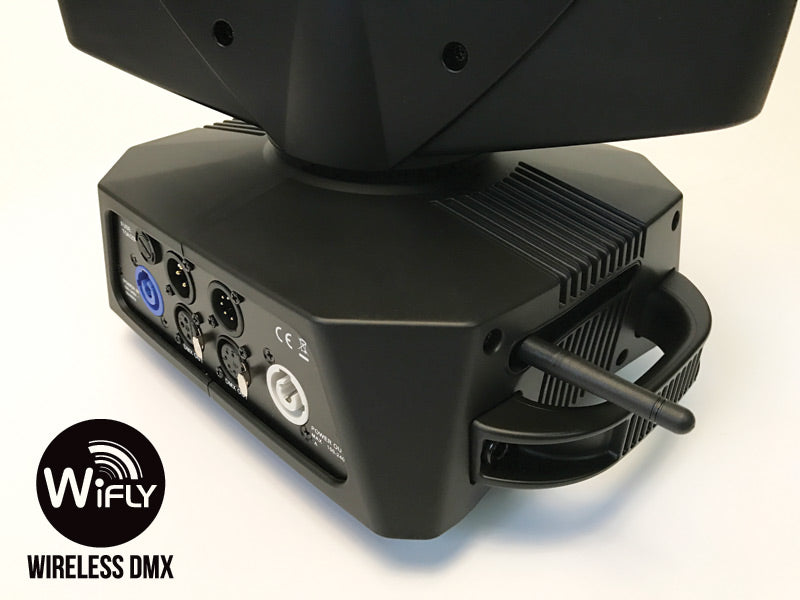

• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight). Also compatible with Aria X2 Transceivers for Wireless DMX control.
• Dimensions (LxWxH): 11.75” x 8 x15.75”/300x200 x 400mm
• Weight: 19 lbs./8.5 kgs

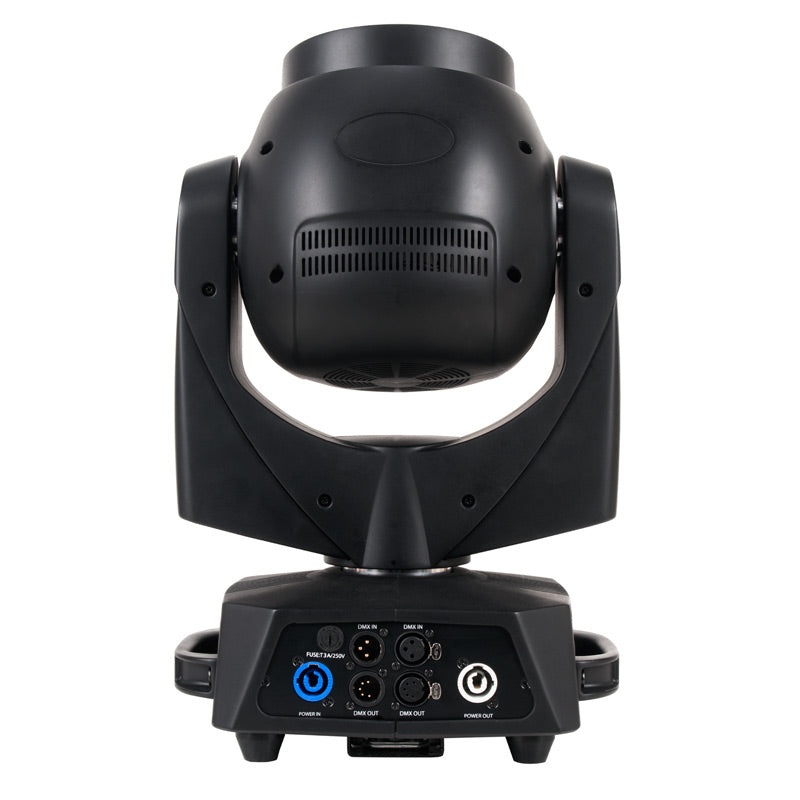

Connections

• Power Input: Locking power IN connection
• Power Pass through: Locking power OUT connection
• Data: 3 5-pin In/Out DMX
• With Wired Digital Communication Network

Control

• DMX Modes: 2, RDM (Remote Device Management)
• On Board: LCD menu 180 degree inverse
• 16 Selectable WiFLY Address Channels

Certifications

• ETL Approved, CE Certified

Electrical

• Input Voltage: 100~230 V, 50 Hz./60Hz
• Power draw @120V: 137W
• Power draw @ 220V:

Optional Road Cases:

• DRC MH: 2 Vizi Hex Wash7 fit in the DRC MH Road Case
• QRC MH: 4 Vizi Hex Wash7 fit in the QRC MH Road Case

Whats Included

• Omega bracket
• Locking power to Edison cable
• User Manual
