Specifications

Light Source:

OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)

Color temperature: 9000K (+/- 300K)

Features:

On-Board Wireless DMX

Motorized Focus + 16-bit fine focus

2-degree beam angle

Frost Filter to create wash effect

High quality glass lens

2 Rotating prisms:

0-100% smooth dimming

Various strobe speeds

OTA, wireless, firmware updates

Fan cooled

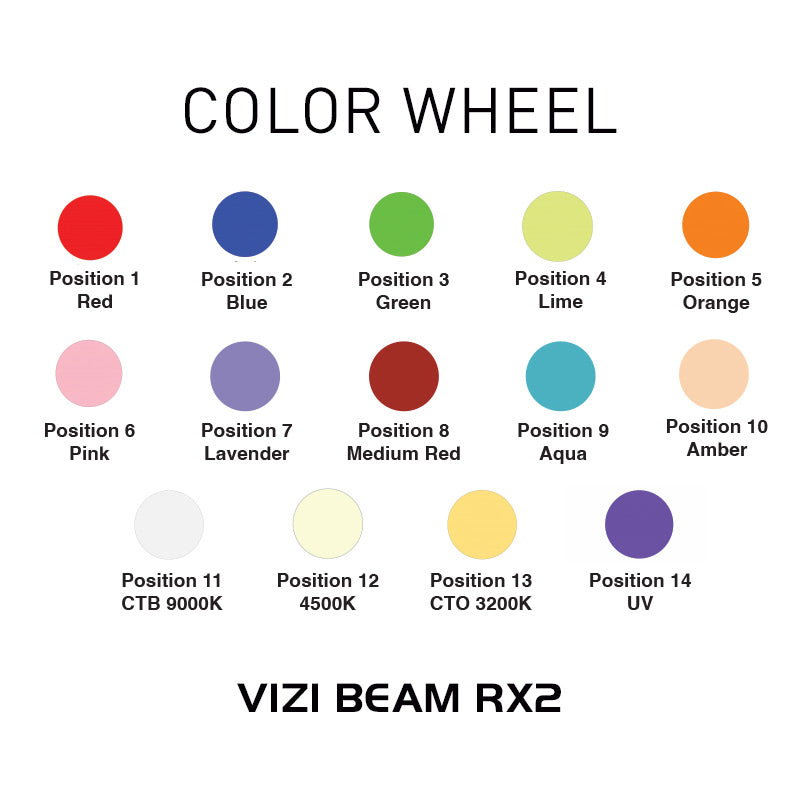

Color Wheel:

14 dichroic colors + white (Includes CTO (3200K), CTB (4500K 9000K) UV filters)

Indexable color wheel for split colors

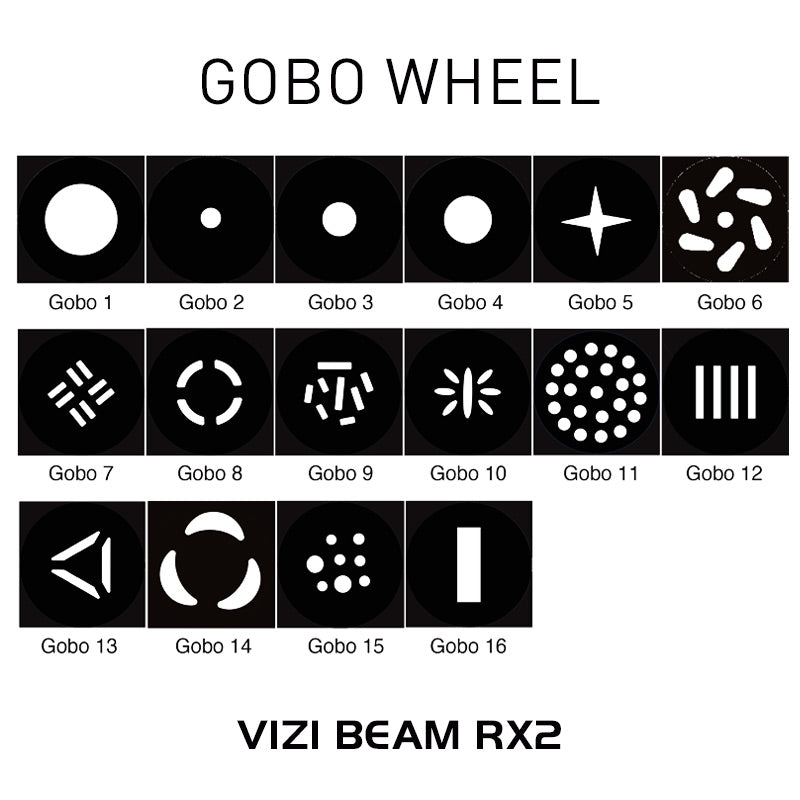

GOBO Wheel:

15 static GOBOs + open (3 GOBOs are beam reducers)

GOBO Shake Effect

Prism Wheels:

2 Rotating prisms

16- facet circular and 4-facet linear prisms

Control:

Protocols: DMX512 RDM

Control Mode: DMX512 Manual (On-board Controls)

2 DMX Channel Modes: 16/20 Channels

Aria X2 Wireless Management / DMX System

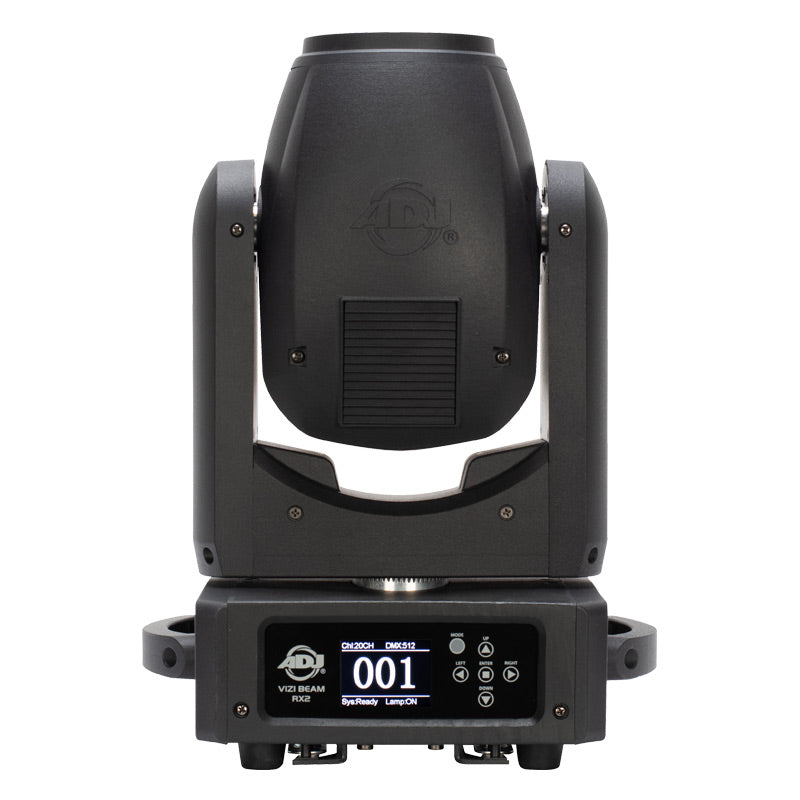

Color LCD display with 4-button function menu

0-100% smooth dimming

Various strobe speeds

With Wired Digital Communication Network

Pan/Tilt:

Pan: 540 degrees (plus 16-bit fine pan)

Tilt: 270 degrees (plus 16-bit fine tilt)

3-phase, High Speed, Pan/Tilt motors

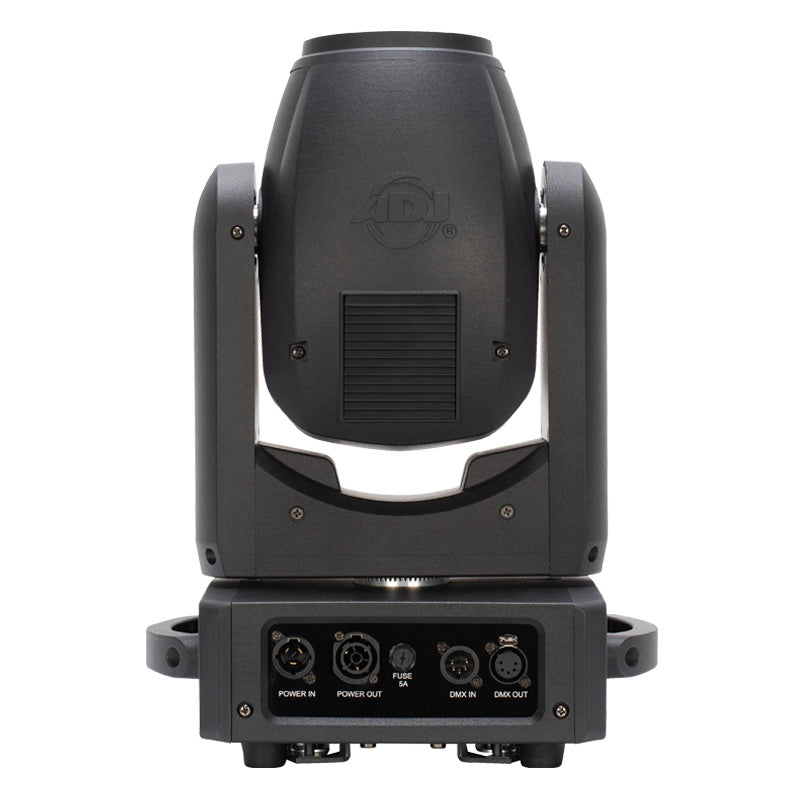

Connections:

DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)

Power Connections: Outdoor locking In/Out connections to daisy chain power

Electrical:

Multi-voltage operation: 100-240V, 50/60Hz

Max power consumption: 168W (@120V), 157W (@230V)

Fuse Protected: 3.15A

Dimensions Weight:

Dimension: 9” (L) x 12” (W) x 16.4” (H) (230 x 304 x 416mm)

Weight: 21.8 lbs. / 9.9 kg.

Approvals / Ratings

CE

cETLus (Control # 5028947)

FCC

What’s Included:

2x Omega Brackets (107 Type)

2M, outdoor locking 14AWG power cord

Road Cases:

QRC MH: Quad Road Case

DRC MH: Dual Road Case

Specifications are subject to change without notice.
