Specifications

Light Source:

OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)

Color temperature: 7850K (+/- 500K)

CRI: 86 (+/- 5)

Features:

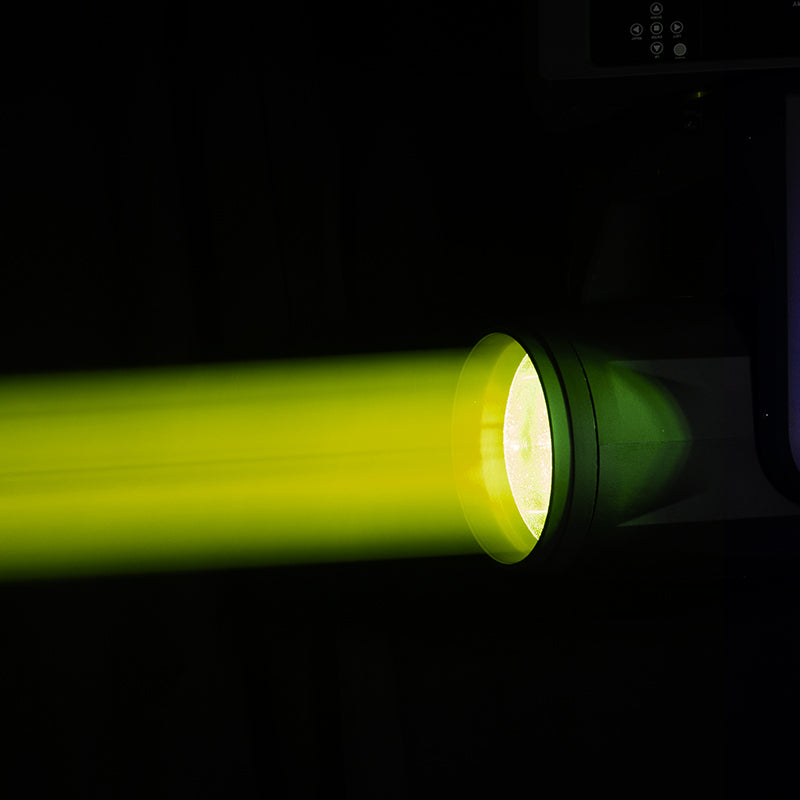

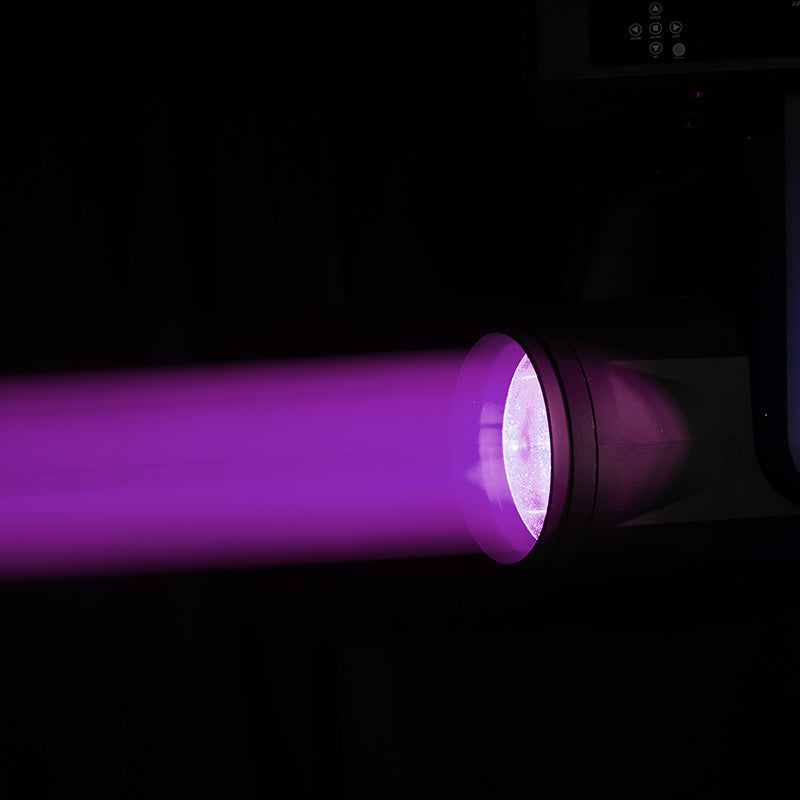

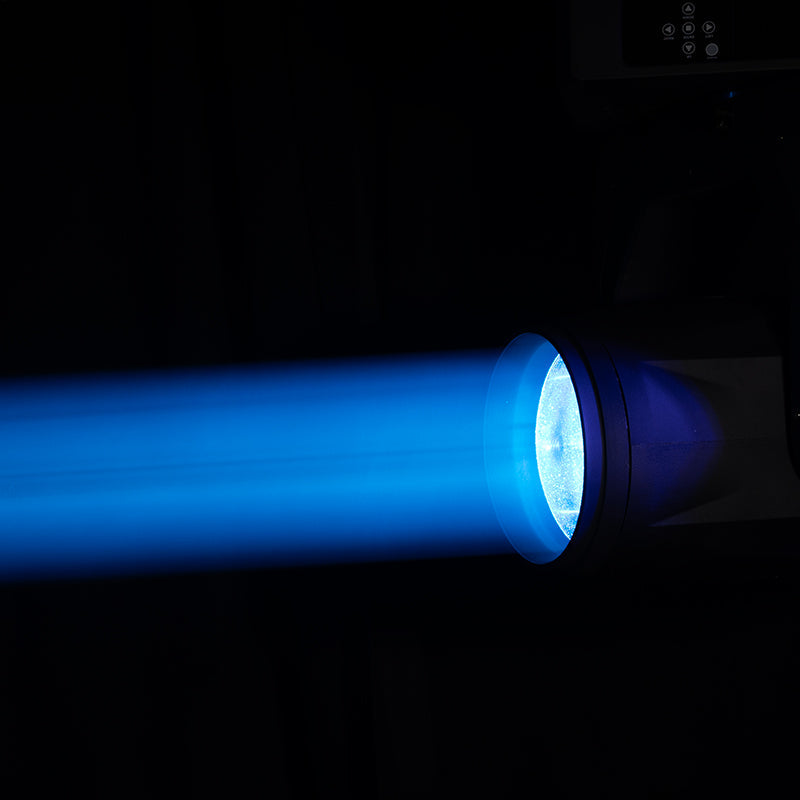

CMY Color Mixing

On-Board Wireless DMX

Motorized Focus + 16-bit fine focus

2-degree beam angle

Frost Filter to create wash effect

High quality glass lens

2 Rotating prisms:

0-100% smooth dimming

Pan/Tilt locks

Various strobe speeds

OTA, wireless, firmware updates

Fan cooled

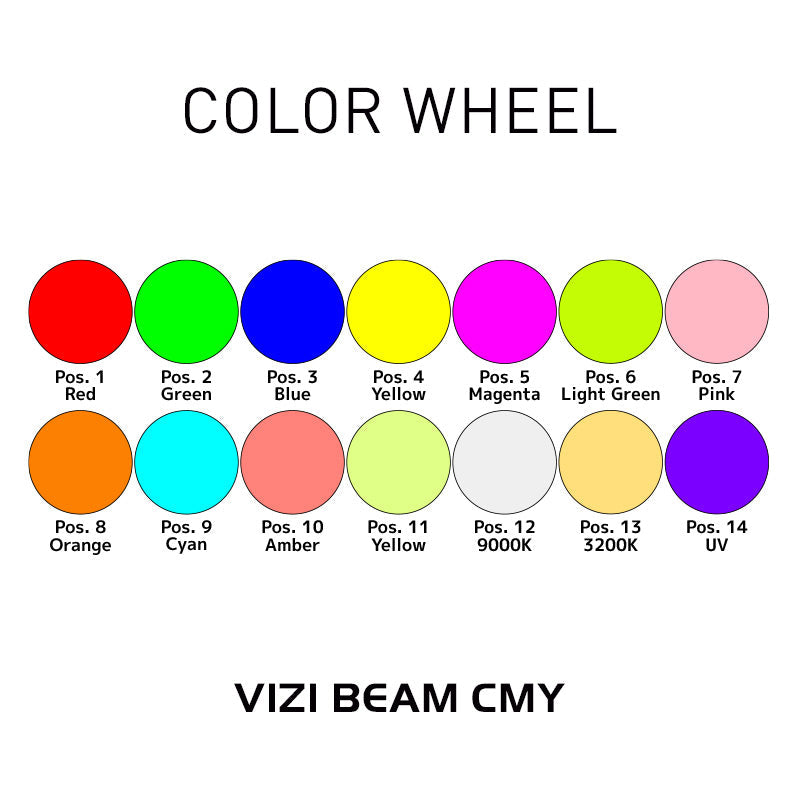

Color Wheel:

14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) UV)

Indexable color wheel for split colors

Separate Multi-Color Effect

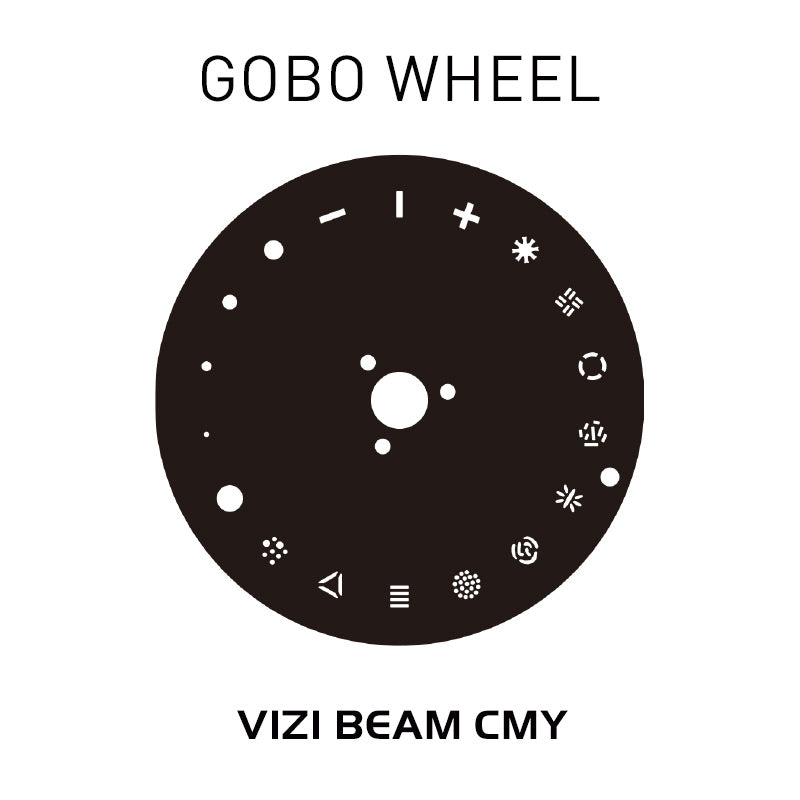

GOBO Wheel:

17 static GOBOs + open (4 GOBOs are beam reducers)

GOBO Shake Effect

Prism Wheels:

2 Rotating prisms

16 facet circular and 6 facet linear prisms

Prisms Overlay

Control:

Protocols: DMX512 RDM

Control Mode: DMX512 Manual (On-board Controls)

2 DMX Channel Modes: 20/24 Channels

Aria X2 Wireless Management / DMX System

Color LCD display with 4-button function menu

0-100% smooth dimming

Various strobe speeds

With Wired Digital Communication Network

Pan/Tilt:

Pan: 540 degrees (plus 16-bit fine pan)

Tilt: 270 degrees (plus 16-bit fine tilt)

3-phase, High Speed, Pan/Tilt motors

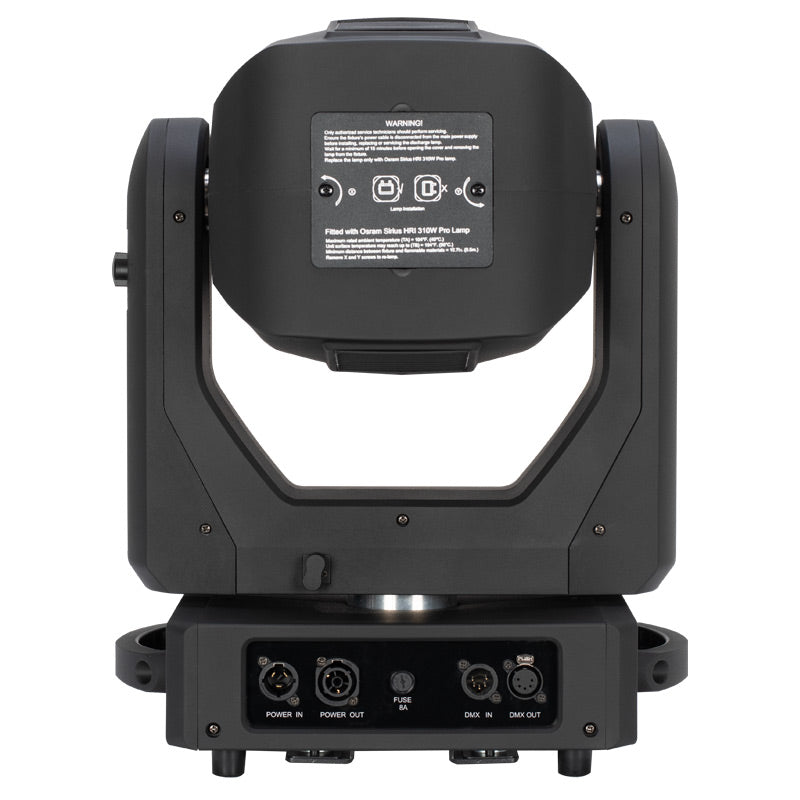

Connections:

DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)

Power Connections: Outdoor locking In/Out connections to daisy chain power

Electrical:

Multi-voltage operation: 100-240V, 50/60Hz

Max power consumption: 410W (@120V), 390W (@230V)

Fuze Protected: 6.5A

Dimensions Weight:

Dimension: 9.8” (L) x 14.3” (W) x 21.1” (H) / 248 x 364 x 536mm

Weight: 41.2 lbs. / 18.7 kg.

Approvals / Ratings

CE

cETLus (Control # 5028947)

FCC

What’s Included:

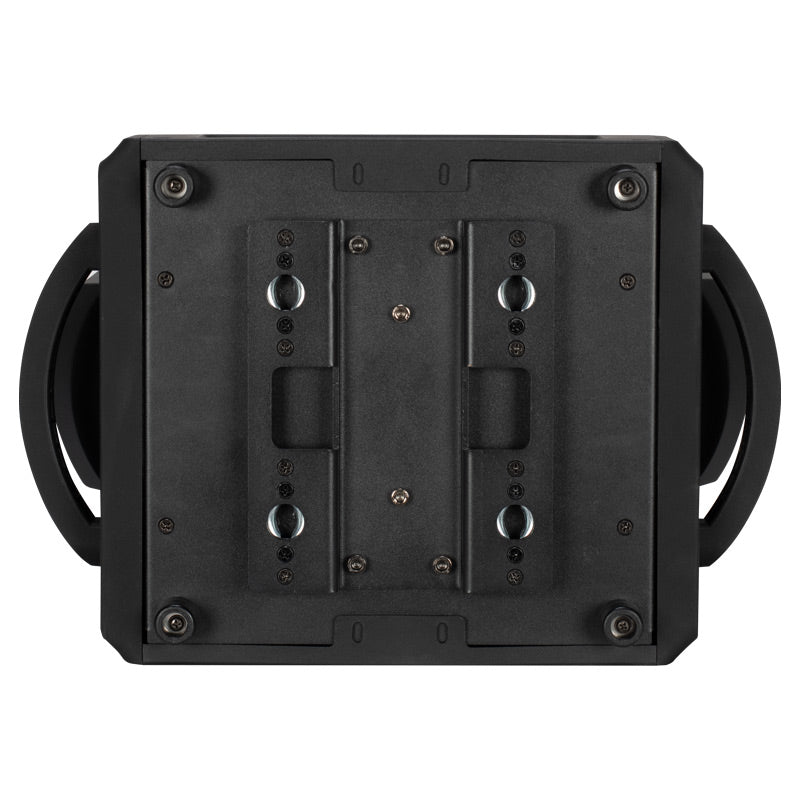

2x Omega Brackets (107 Type)

2M, outdoor locking 14AWG power cord

Accessories (Sold Separately):

DRC MHX - Dual Moving Head Road Case

Quick Rig Clamp

Quick Rig Clamp BLK

Pro-Clamp

Accu-Cable Tour Link 5P15 - 15ft. 5-pin male/female professional grade DMX Cable

SIP152 - 16ft., IP65-Rated male to female locking power cord

Specifications are subject to change without notice.
