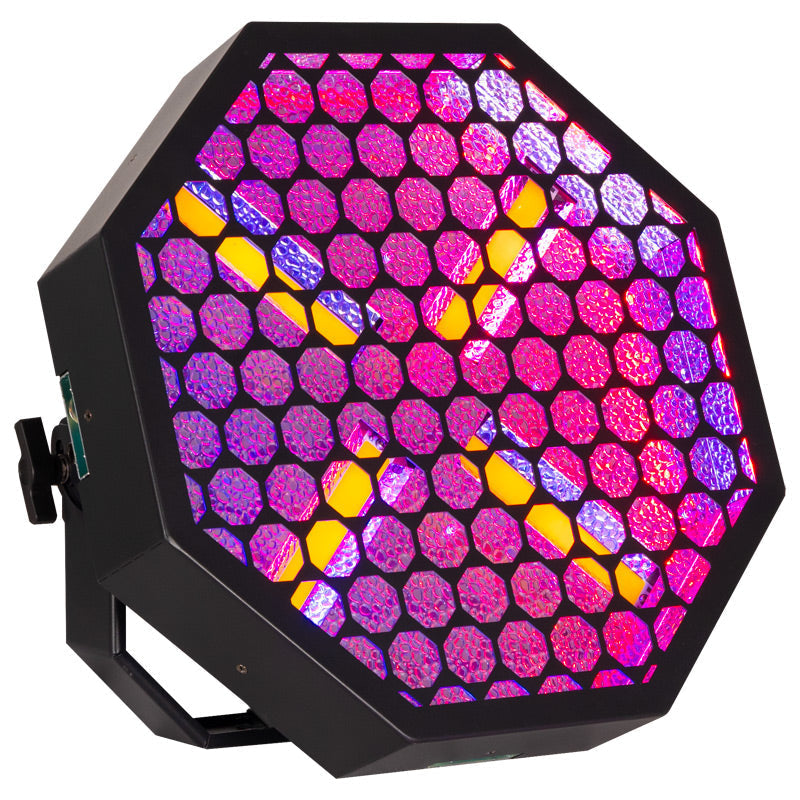

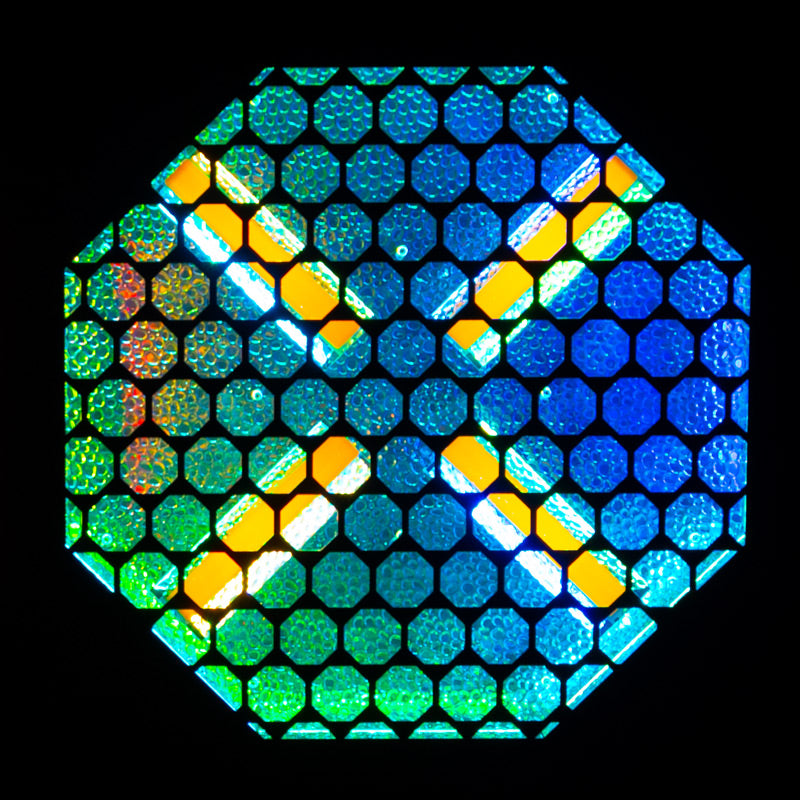

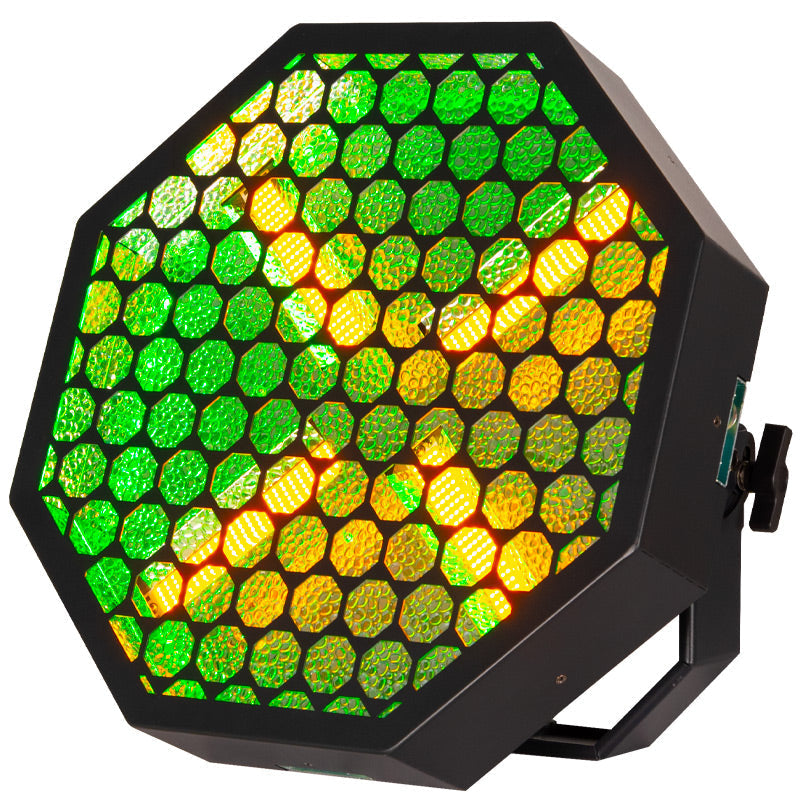

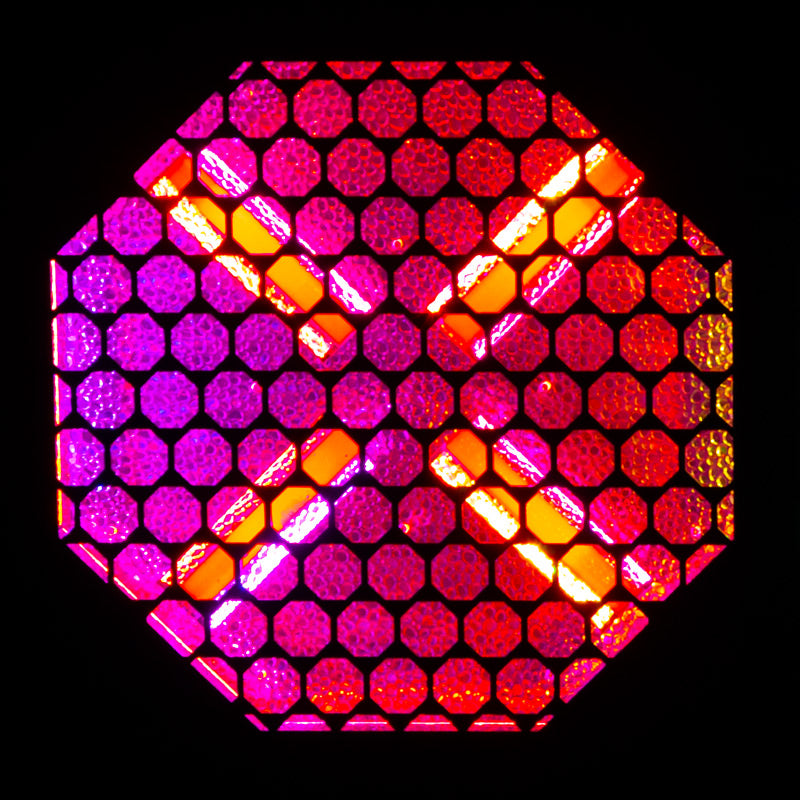

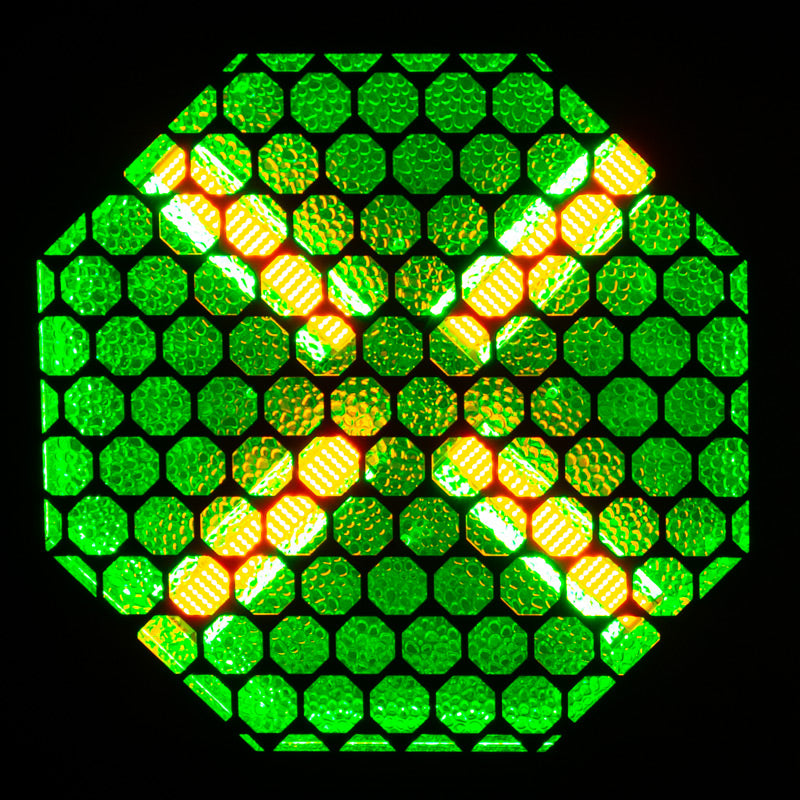

Vintage X combines retro amber blinder effects (2000K) with vibrant background RGB LEDs, offering rich multi-color eye candy effects and smooth dimming. With advanced controllability, built-in lightshows, and versatile connectivity, it’s perfect for creative stage and event lighting setups.

Specifications

Features:

4 Foreground Amber LEDs

64 Background RGB LEDs

All LED's are Individually Controllable via DMX

Built-In Foreground LED Programs

Built-In Background LED Programs

Variable White Color Temperature Control (2,700K ~ 10,000K) (RGB LEDs)

User Selectable LED Refresh Rates (900Hz ~ 25K)

6 User Selectable Dim Modes

4 User Selectable Dim Curves

Electronic Strobe (0.1Hz ~ 20Hz)

Electronic Dimming

Source:

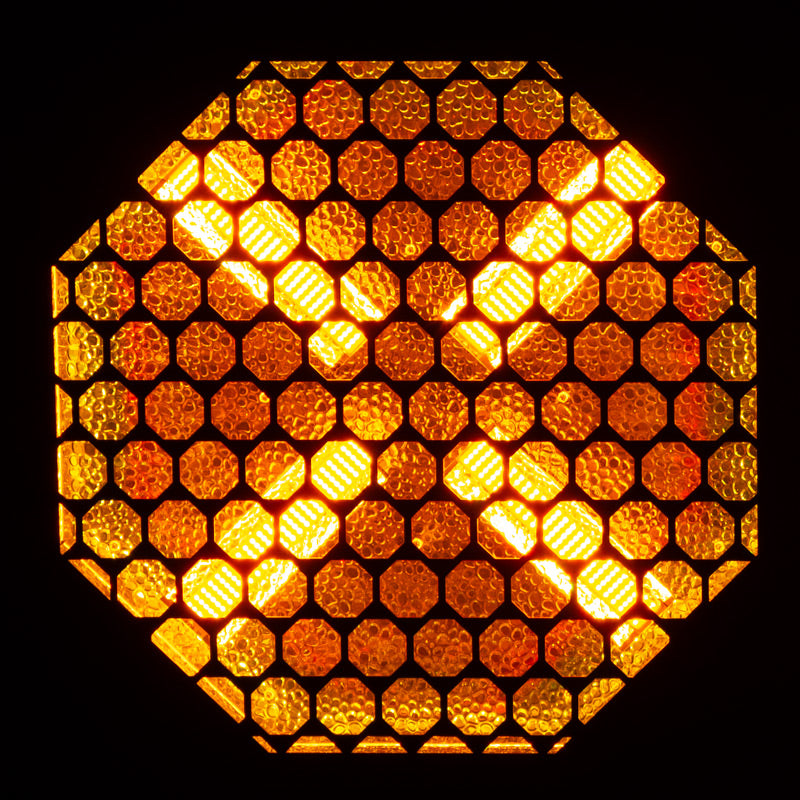

(4) 60W, 2000K, Amber Foreground LEDs

(64) 3W RGB Background LEDs

50,000 Hour Average Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical:

Amber: 2000K (+/- 50K)

RGB: 2,700K ~ 10,000K White Color Temperature Range

Output: 220 Lux, 7000 to 8000 Lumens

140° Beam Angle

150° Field Angle

Physical:

IP20, Metal Housing

Safety Eyelet

Digital Display

Coffin Lock System to Interlock up to 8 Vintage X units

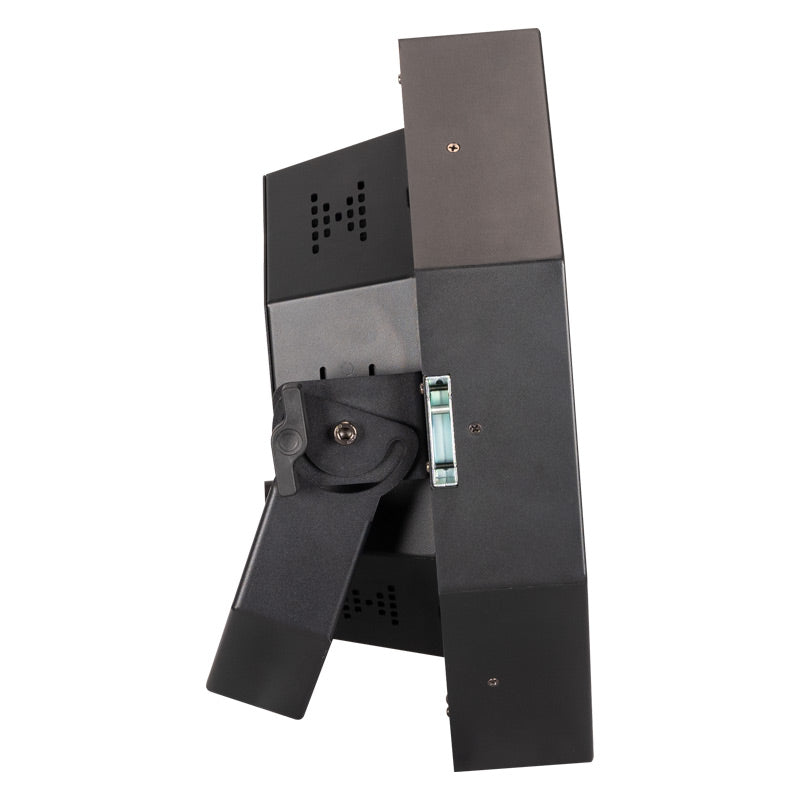

Adjustable Hanging Bracket

Omega Clamp Receivers (Omega Clamp Sold Separately

Control:

DMX512

Aria X2 Wireless Management / DMX System

Bluetooth

RDM and RDM Net Compatible

(10) DMX Channel Modes (10, 16, 25, 42, 47, 196, 203, 210, 214, and 218 Channel modes)

On-board Manual Control Mode

Primary / Secondary Mode

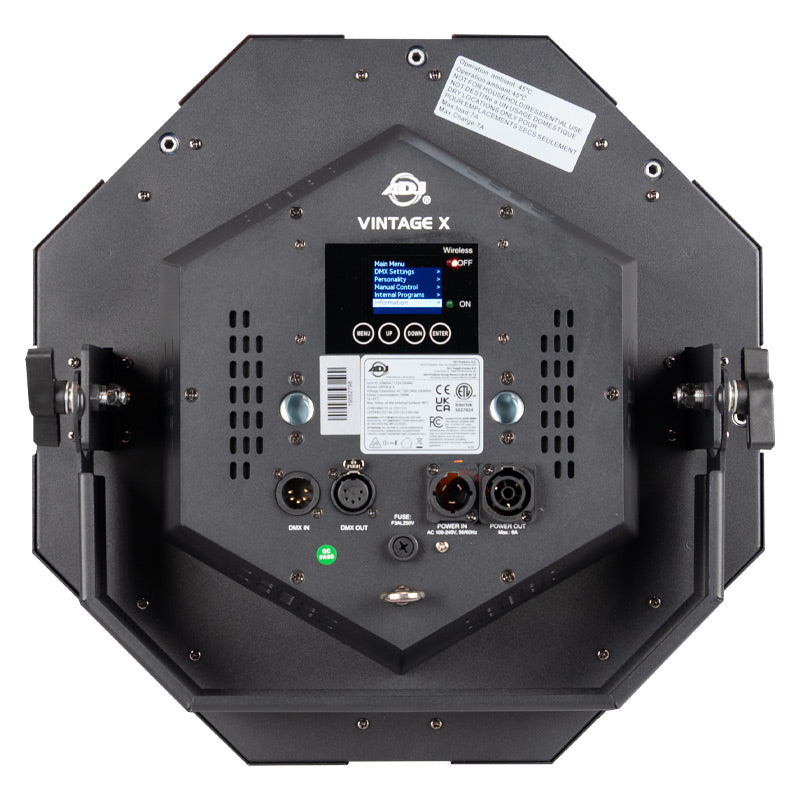

Connections:

5-pin XLR DMX In/Out Sockets

IP65 Locking Power In & Thru Sockets

Dimensions & Weight:

Length: 15.7" (398mm) Width: 11.0" (280mm) Height: 15.7" (398mm)

Weight: 20 lbs. (9.1 kg)

Power:

AC100-240V/50Hz-60Hz Input

200W Power Consumption

Link 2 pieces @120VAC or 4 pieces @ 230VAC

Thermal:

Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)

Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

CE

cETLus (Control # 5027824)

FCC

IP20

Included Accessories:

(1) IP65 Locking Power Cable

Optional Accessories:

Omega Clamp (107mm)

Specifications and documentation subject to change without notice.
