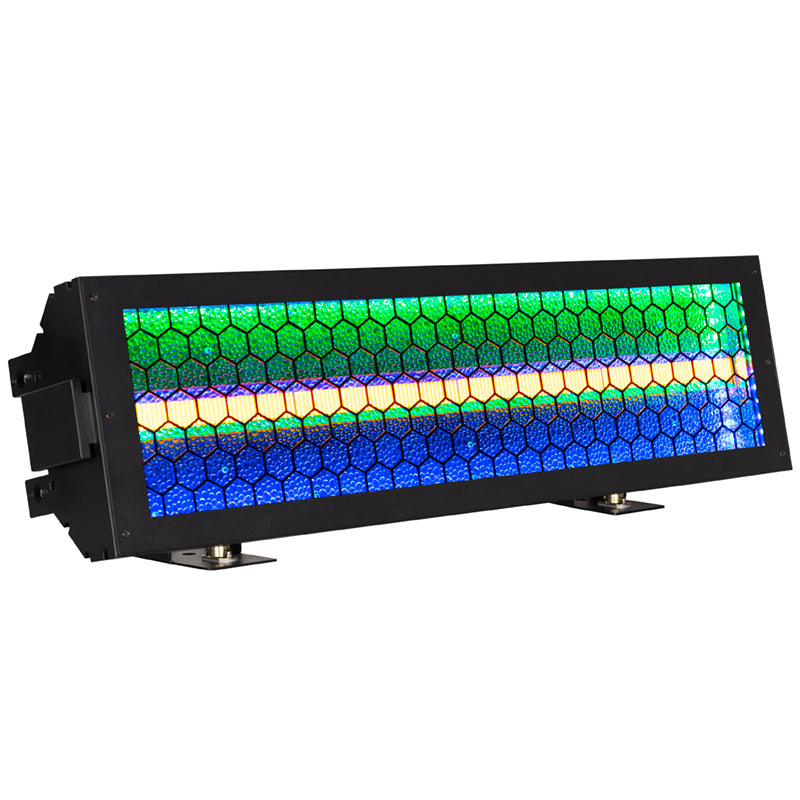

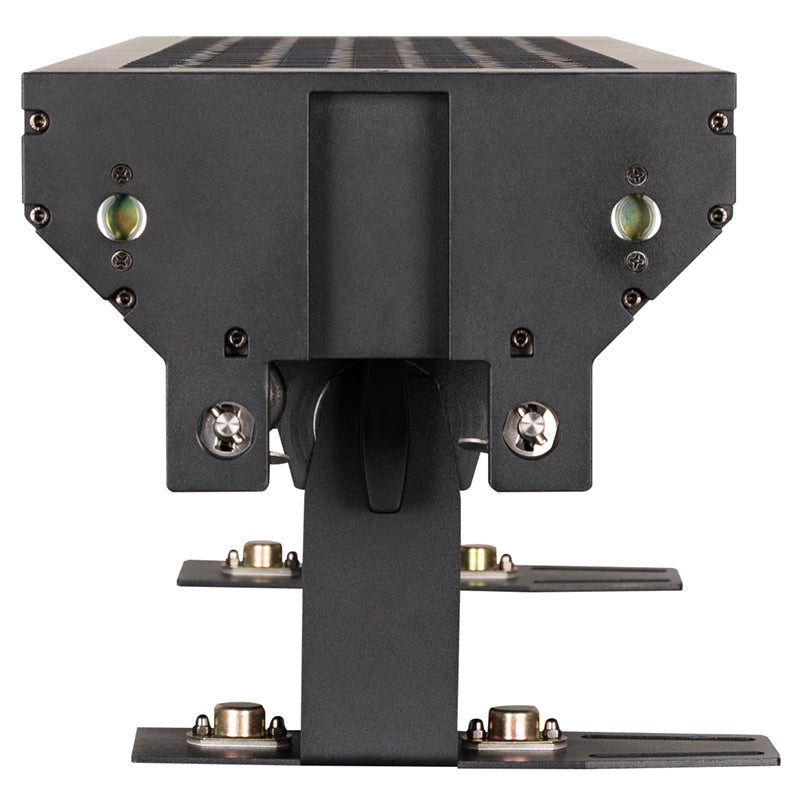

Vintage Bar combines a retro amber blinder effect with vibrant RGBL background LEDs, offering rich multi-color eye candy effects and smooth dimming. With advanced strobe, pixel control, and versatile connectivity, it’s perfect for creative stage and event lighting setups.

Specifications

Main Technical Parameters:

Primary Light Source:

4 pcs high-power 150W COB amber LED

CCT: 2000K

Lumens: > 27,000

Lux: 647 @ 5 meters

CRI: 70

Field Angle: 160°

Background Light Source:

120 pcs SMD 5050 RGBL LEDs (0.8W each)

Configured into 20 pixel groups (6 LEDs per group)

Dimmer:

0-100% linear dimming system

Special Effects:

Powerful strobe, 0.5 to 33Hz

Unique retro RGBL background effect

Silent operation with low noise

Additional Features:

Aria X2 Management System

Flicker-free

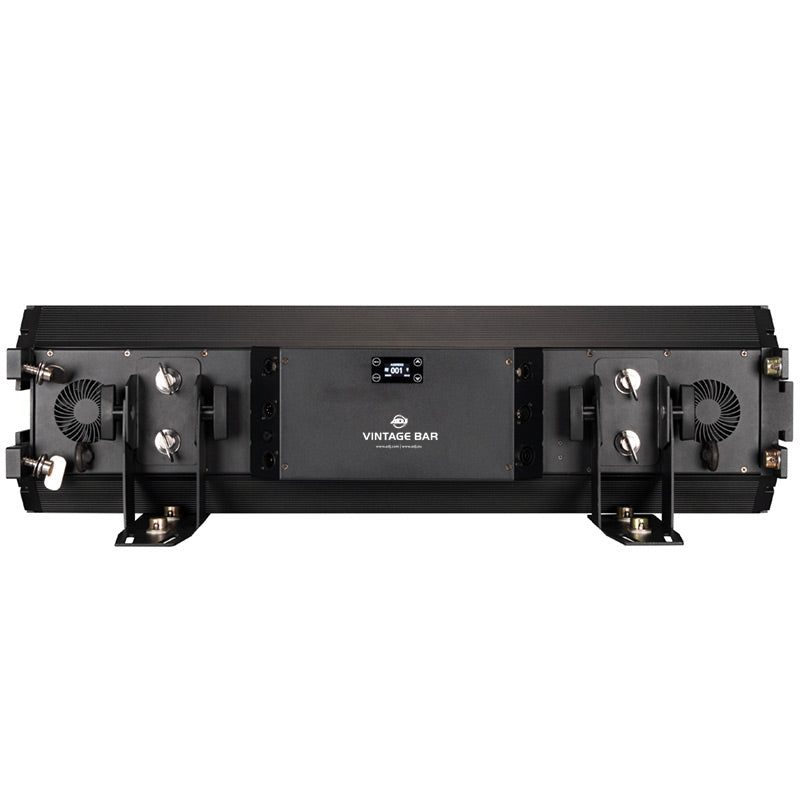

OLED display with a 4-button touch menu

Capable of interlocking multiple units together

Control Modes:

Primary/Secondary synchronization

Stand-alone mode

DMX512 control mode

10 DMX Channel Modes (5/6/8/14/17/18/84/88/90/97 channels)

DMX, RDM, sACN and Art-NET protocol support

Connections:

IP20 indoor 5-pin DMX Input and Thru

IP20 indoor RJ45 Ethernet

IP65 outdoor power locking Input and Thru

Dimensions Weight:

Dimensions (LxWxH):

35.75x11.50x10.6” / 908x392x269mm

Weight: 41.89lbs. (19kg)

Power:

Input: AC100-230V/50Hz-60Hz

Power Consumption: 780W @120V, 750W @ 230V

Power Link: 1 piece @120V or 2 pieces @ 230V

Included Accessories:

2x Adjustable feet with 108mm omega clamp receivers

2x 108mm Omega clamps

1x IP65 Locking power cable

Optional Accessories:

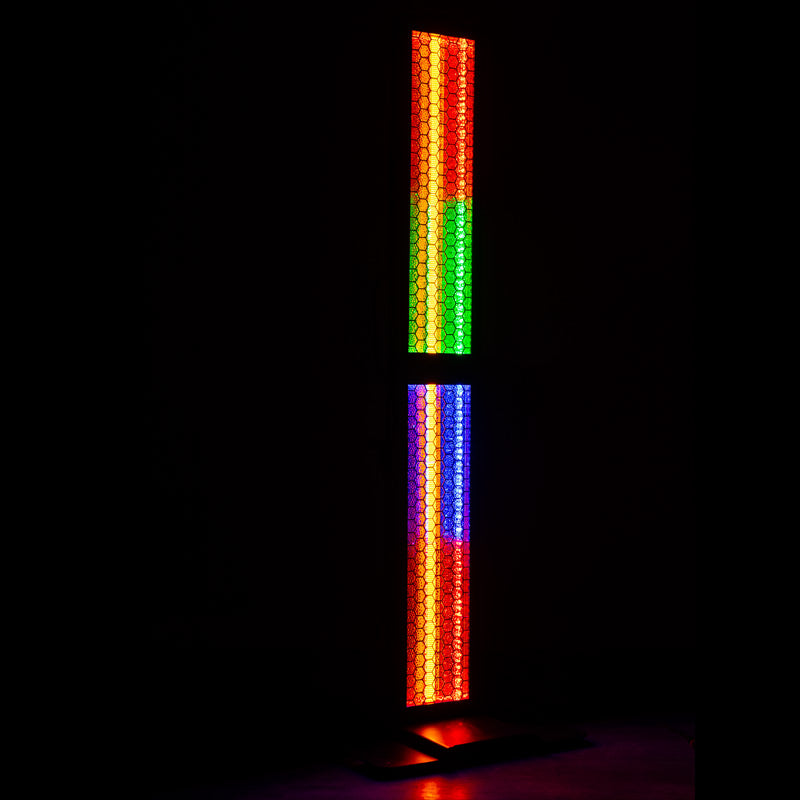

VFB1 (Floor Base for vertical stand)

VFB1-VBA (Adapter to adapt Vintage Bar to VFB1 Floor Base. One adapter is required per floor base)

180mm Omega Bracket

Approvals / Protection Rating:

cETLus (Control # 5028947)

CE Certified

FCC

IP20 (Indoor Only)

Specifications are subject to change without notice.
