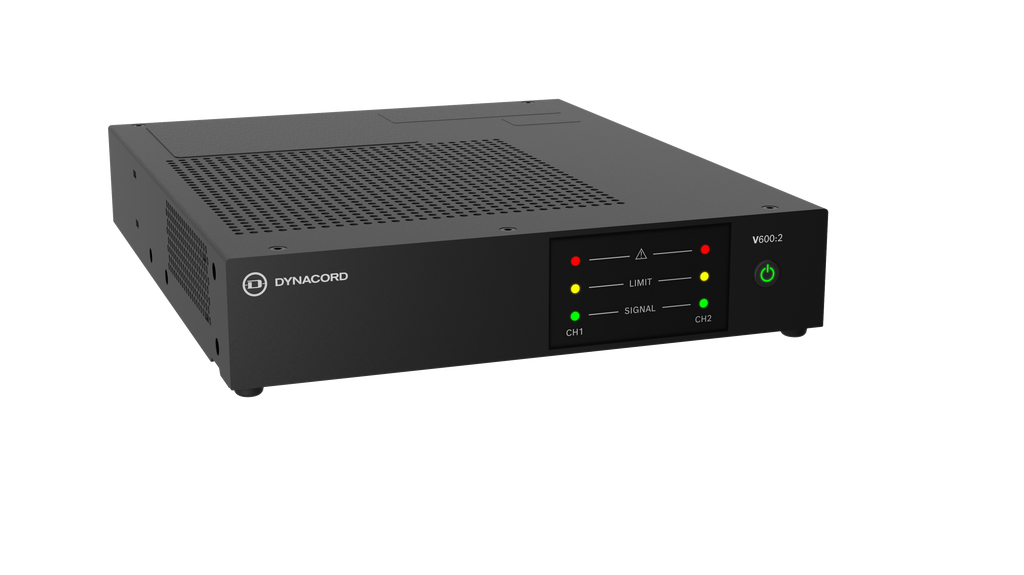

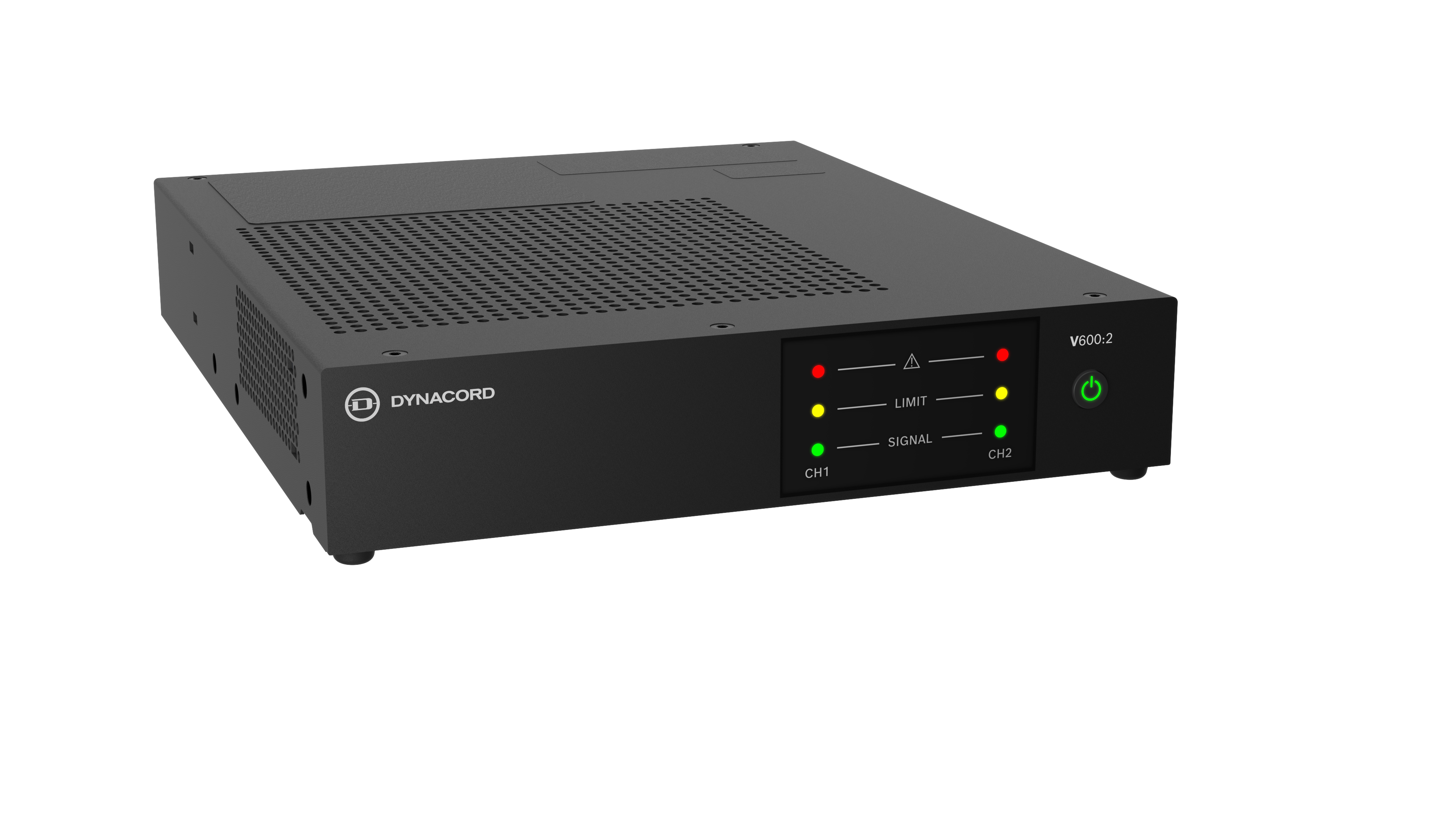

Name: Dynacord V600:2-US – 2-channel power amplifier for commercial installations
Brand: Dynacord
SKU: V600:2-US
Price: 939.00 USD
Availability: InStock

Dynacord V600:2-US – 2-channel power amplifier for commercial installations

$939.00

$939.00 $1,177.00

Dynacord

V600:2-US – 2-channel power amplifier for commercial installations

Overview

2-channel power amplifier for commercial installations

Highlights

✓Versatile, lightweight two-channel power amplifier at an attractive price point, ideal for background music and announcements in small to mid-sized commercial installations
✓Unique Dynacord technologies for reduced cost of ownership, with low energy consumption and flexible power-load allocation
✓Easy handling and trouble-free amplifier operation – even under demanding power conditions – all with a compact form factor of just one RU high and half a rack width wide

Specifications

ELECTRICAL Total rated output power 1	600 W
Number of channels	2
Rated output power 1	2 x 300 W
Output power	4 Ω / 8 Ω / 70 V / 100 V
Maximum output power per channel (power sharing)	500 W / 600 W / 500 W / 600 W
Specifications AMPLIFIER	4 Ω / 8 Ω / 70 V / 100 V
Nominal Gain (+6 dBu input sensitivity, LEVEL 0 dB)	27.0 dB / 30.0 dB / 33.2 dB / 36.2 dB
Signal to Noise Ratio (A‑weighted, ref. to rated output power, LEVEL 0 dB)	> -100 dB / > 102 dB / > 101 dB / > 103 dB
THD+N (1/8 RATED OUTPUT POWER, 1 KHZ)	< 0.1 %

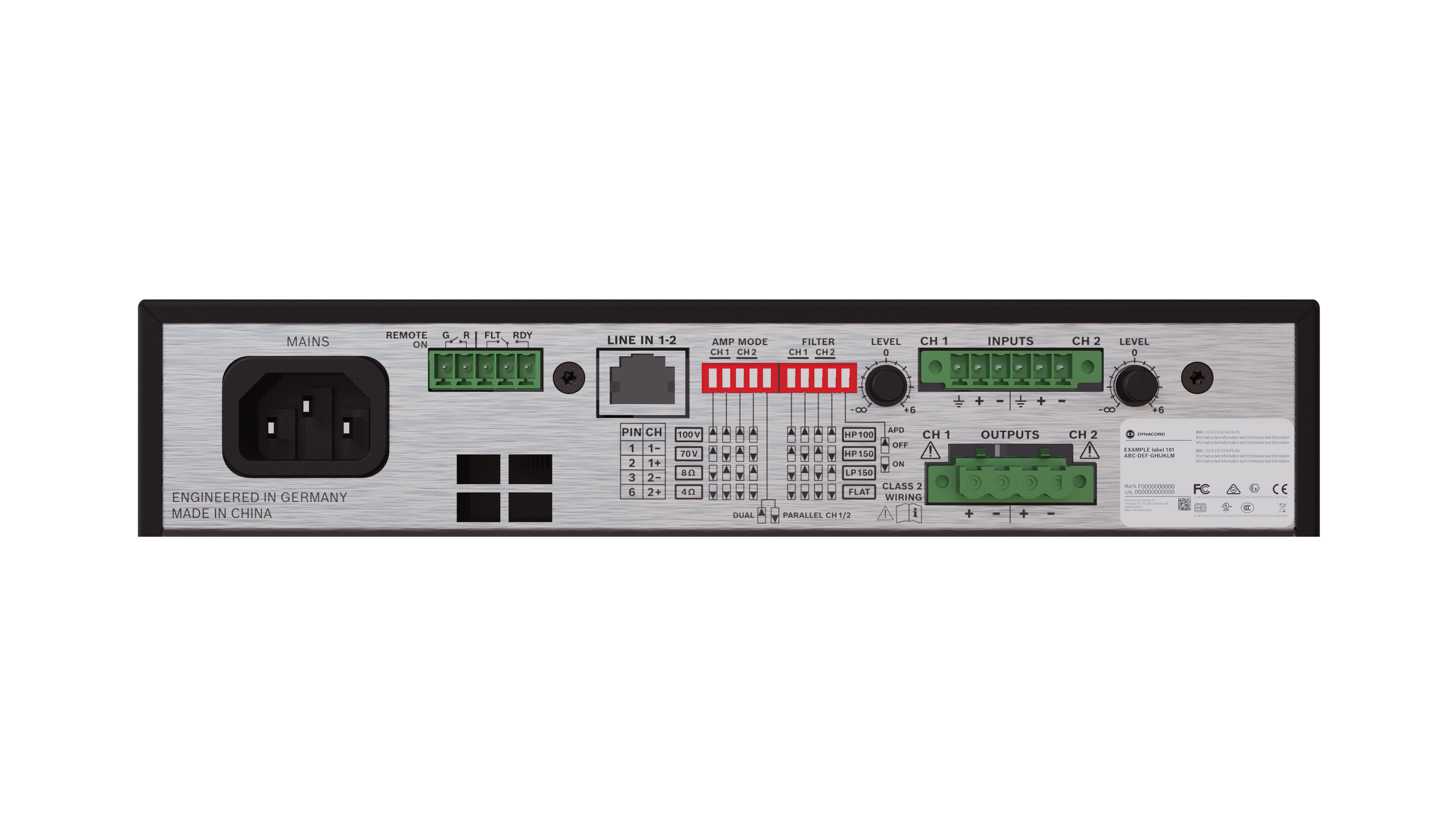

CONNECTIVITY Type	1 x 6-pin Euroblock, 3.81 mm, male, parallel 1x RJ45 (AES72-1E)
Loudspeaker output	2 x 4-pin Euroblock, 5.08 mm, female
Control port type	1 x 5-pin Euroblock, 3.81 mm, male
GENERAL Signal processing	Input Routing, Filter (24 dB/Oct.), Hi-pass 30/50/100/150 Hz, Lo-pass 150 Hz, Peak Limiter
Power requirements	100 V to 240 V, 50 Hz to 60 Hz AC
Power consumption: Idle mode (ecoRAIL with no input signal)	< 12 W
Consumption at 1/8 rated output power	115 W
Standby mode (APD active)	< 1 W
Protections	Audio limiters, high temperature, DC, HF, short circuit, back-EMF, peak current limiters, inrush current limiters, mains over/under voltage protection
