Specifications

Light Source:

1x 100W C.O.B. Ultraviolet LED

120° Beam Angle

Wavelength: 390-399nm

30,000 Hour Average LED Life

Features:

Aria X2 Wireless Management System

Control Protocol: DMX RDM

DMX Modes: 4 (1, 2, 3, 6 Channel Modes)

Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre Stage 2)

Dim Curves: 4 Presets (Square, Linear, Inv. Curve S-Curve)

Dim Speed control (0.1~10 Seconds)

Dimming: 0 - 100%

Linear, Pulse and Random Strobe control

Adjustable LED Refresh Rates (900~25k Hz)

With Wired Digital Communication Network

Display: OLED display with 4-button touch menu

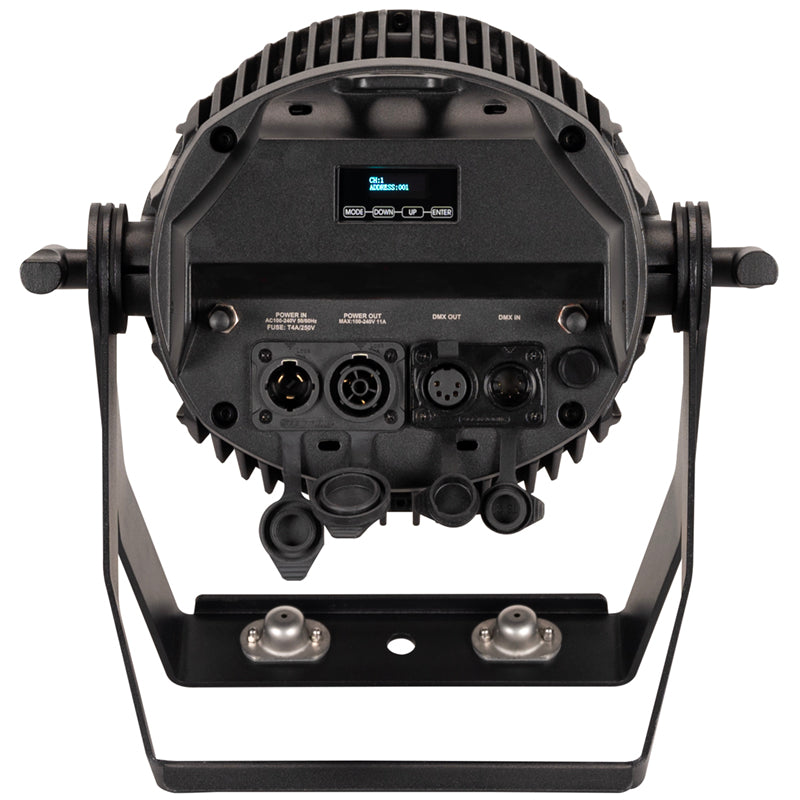

Connections:

Data Input: IP65 rated 5pin DMX In/Out

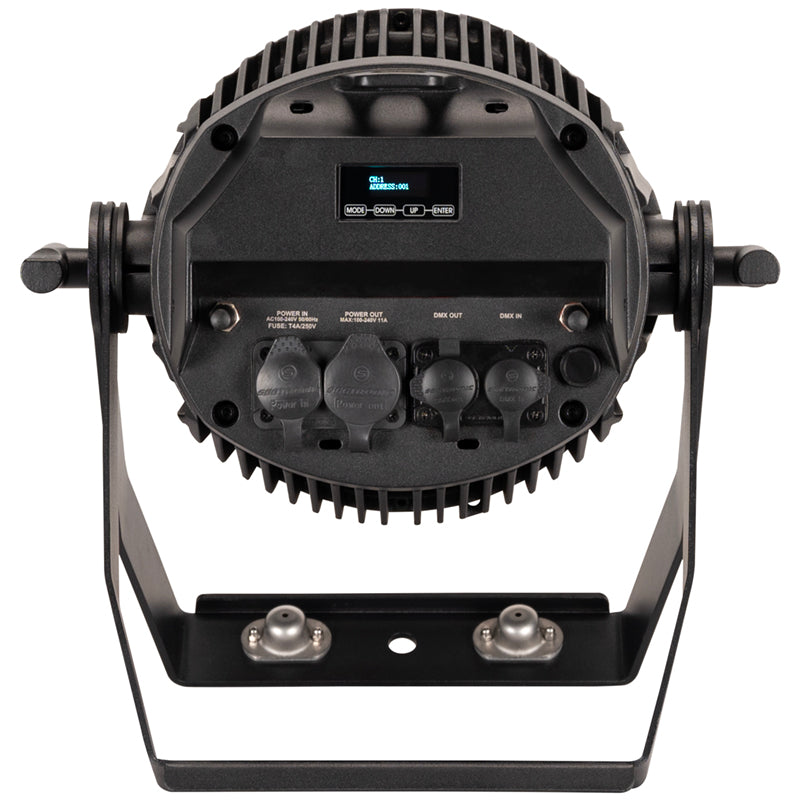

Power Input: IP65 power locking In/Out (with protective rubber caps)

Electrical:

100-240V 50Hz/60Hz (Auto Sensing)

Max Power Consumption: ?W

Physical:

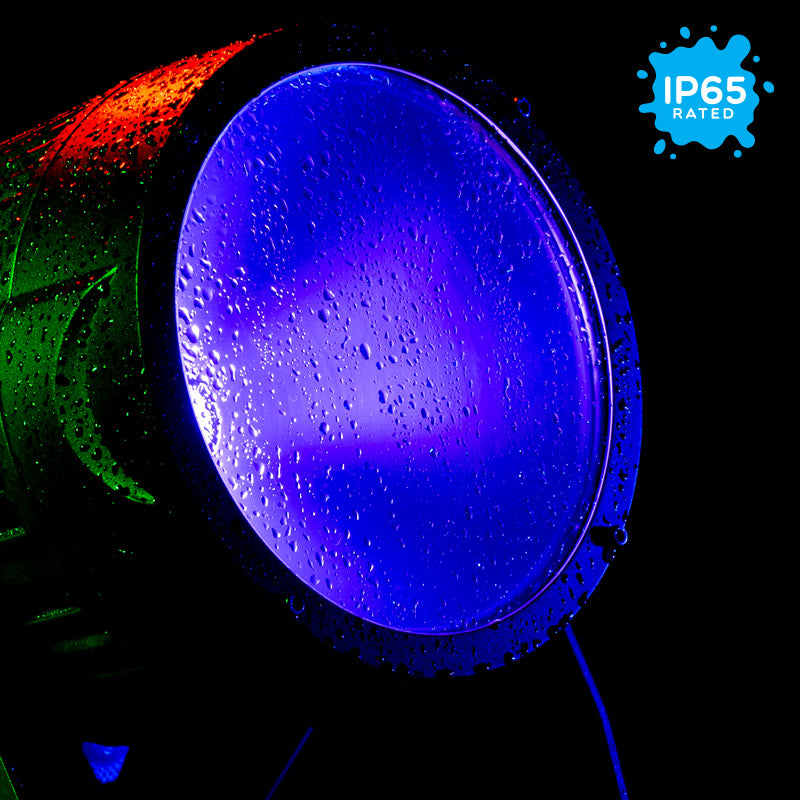

Outdoor Rated, IP65: protects from dust, sand, moisture, liquid. 6 (Protection against Dust); 5 (Protection against Water)

Please note: you must use IP65 data and power cables in order for this fixture to be IP65 outdoor rated.

Safety Cable Loop

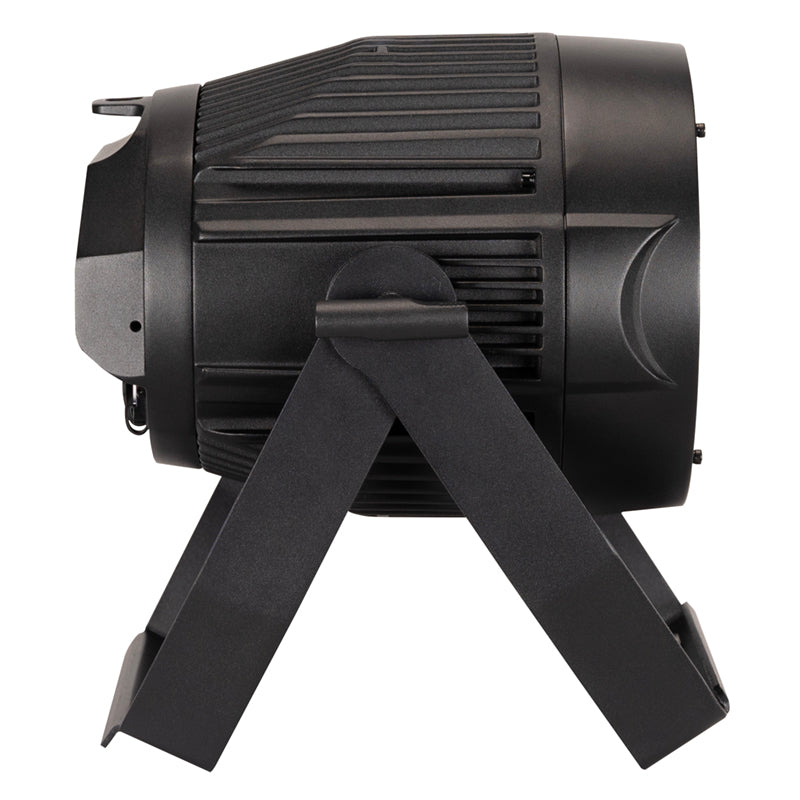

Scissor yoke with Omega bracket receivers (Omega Bracket sold separately)

Dimensions / Weight:

Length: 14.4” (367mm)

Width: 12.4” (316mm)

Height: 8.7” (111mm)

Weight: 14.11lbs. (6.4kg)

What’s Included:

1x IP65, 6' locking power cable (1.83m)

Approvals:

cETLus (Control # 4010765)

CE Compliant

FCC Compliant

Specifications are subject to change without notice.
