Specifications

Light Source:

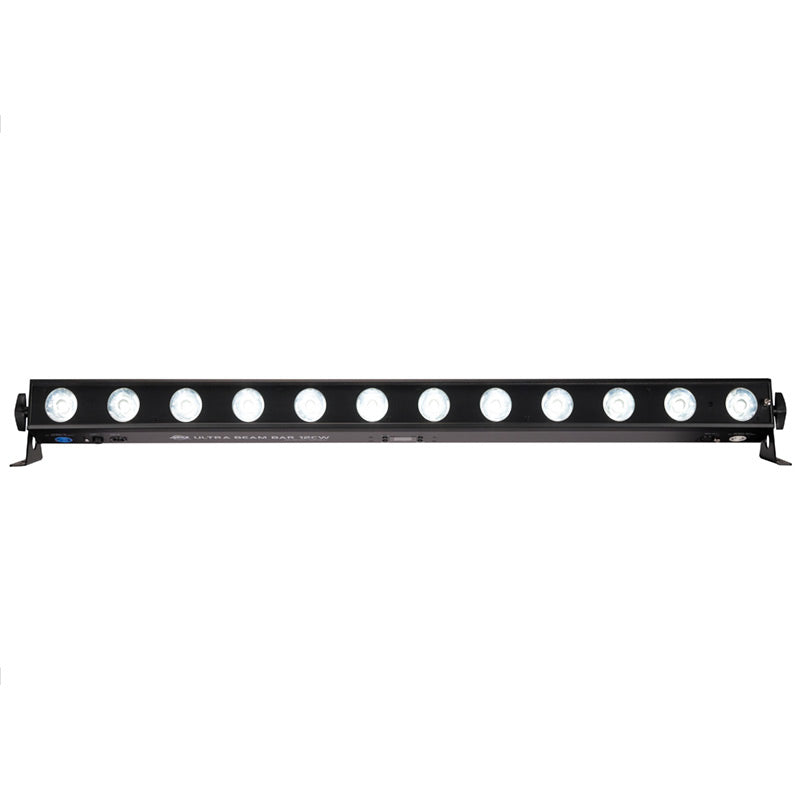

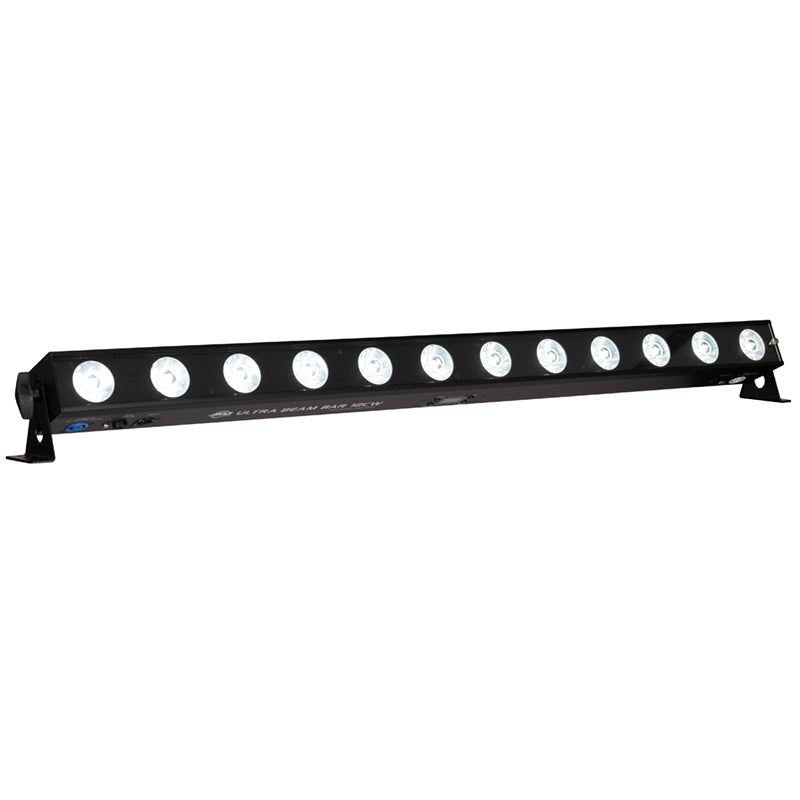

• 12 x 20W Ultra bright (6200K, Cool White) LEDs
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• 1340 Lumens
• 5° beam angle (Per pixel)
• Pixel Pitch: 85.5mm

Features:

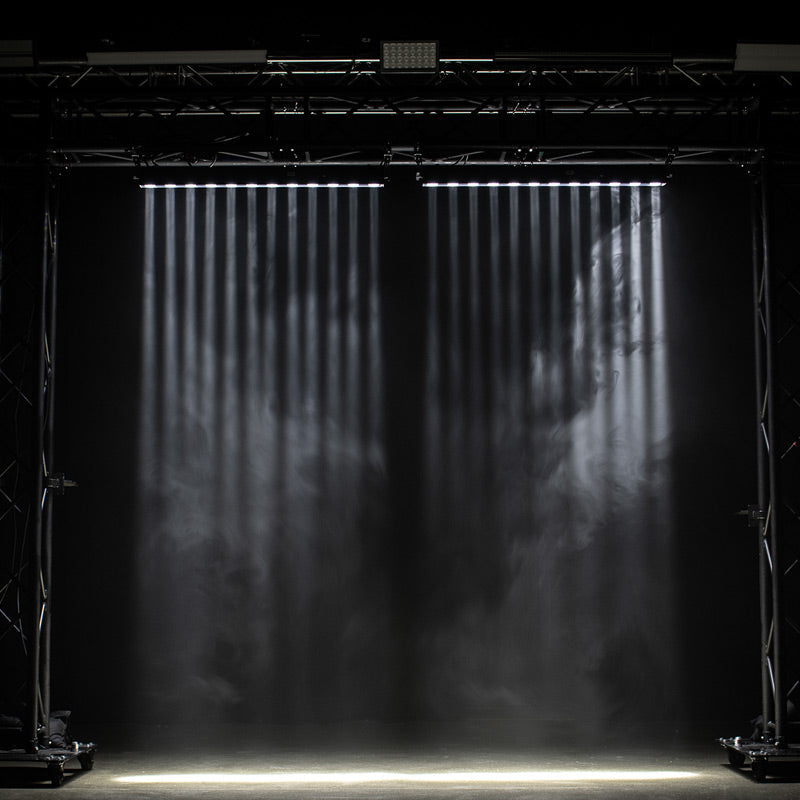

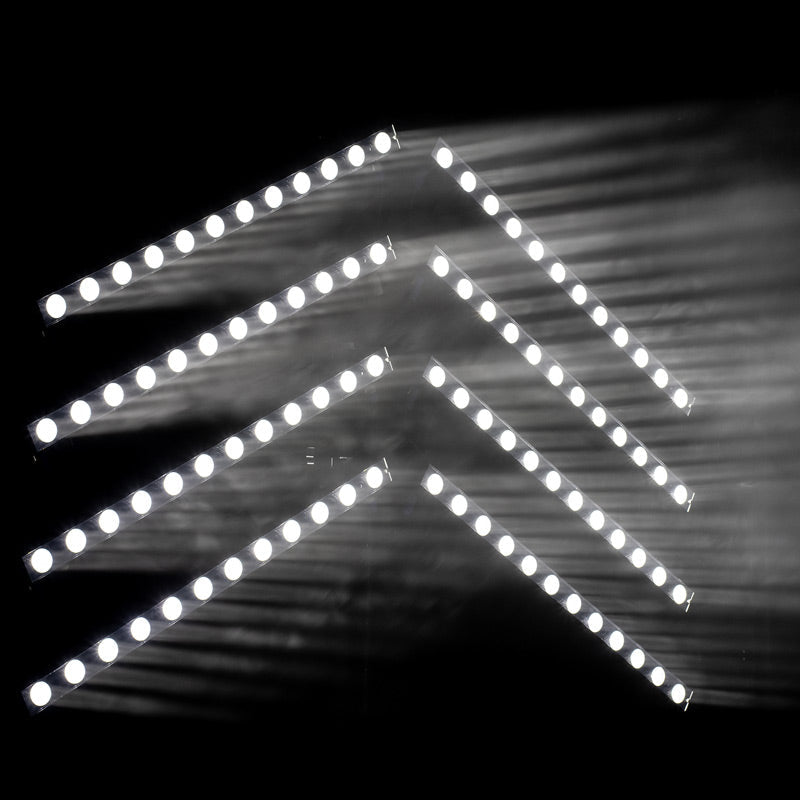

12 Sharp Beams

• Primary / Secondary stand alone control mode
• 13 Built-In Programs
• Compatible with the ADJ UC-IR remote. Operates at a distance of up to 32.8 feet (10 meters). UC-IR included.

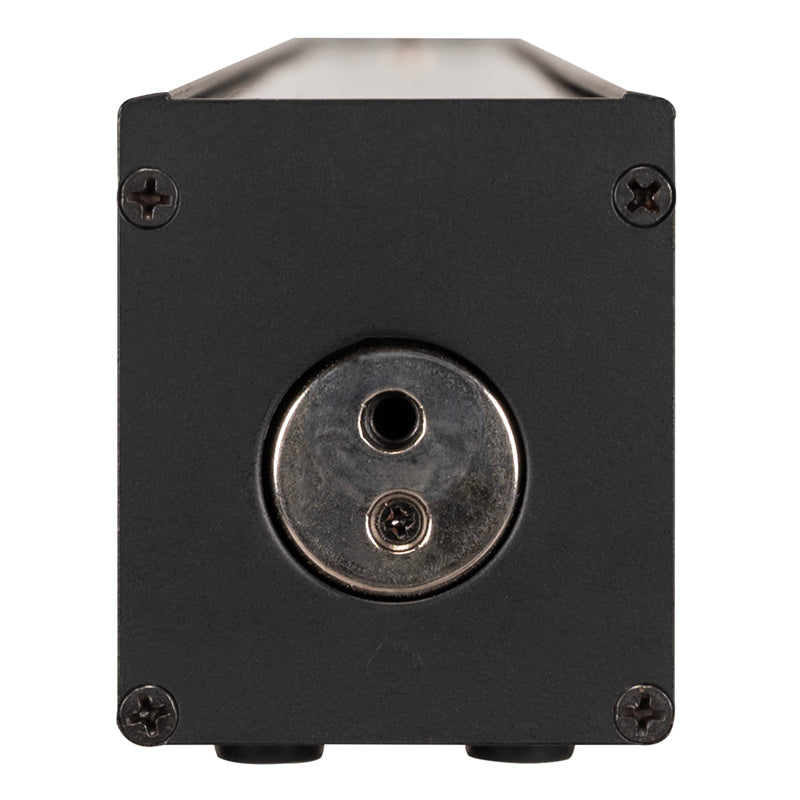

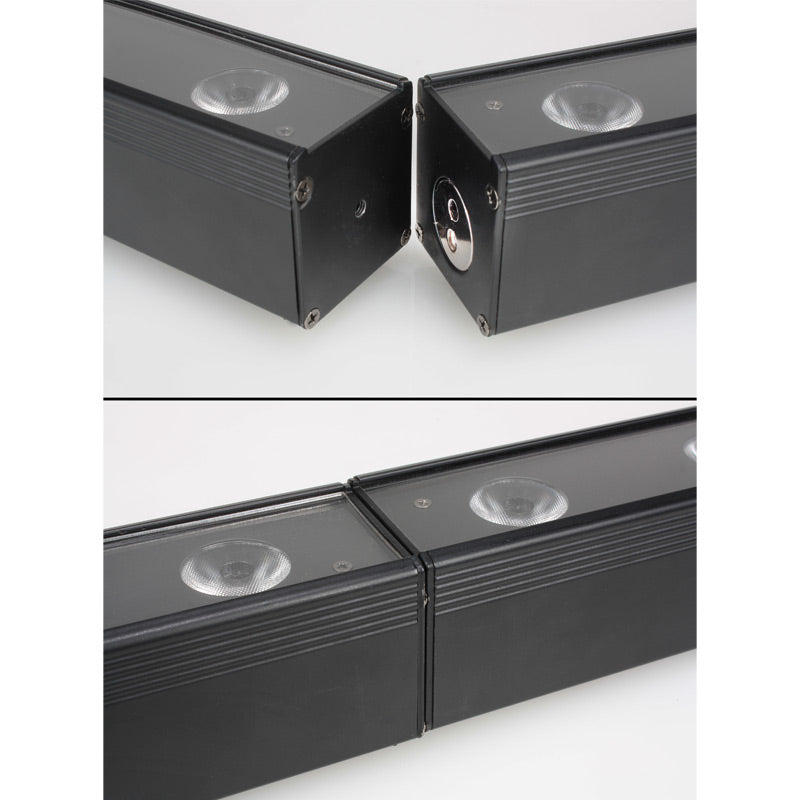

• Horizontal Magnetic Alignment feature (Built-In)
• DMX, RDM and RDM NET Compliant
• Pixel Flip mode

Control:

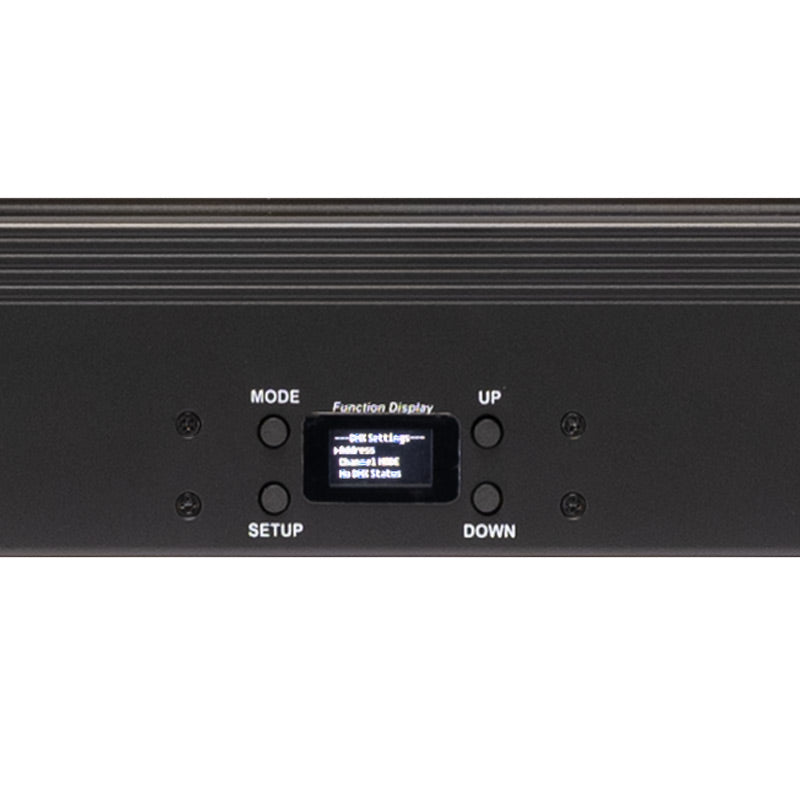

• OLED Display with 4-buttons
• 5 DMX Channel Modes: 1, 3, 12, 14, 19 Channels
• Individual pixel controllable in 12, 14 and 19 channel DMX modes
• 5 operational modes: Manual Pixel, Manual Program, Program Sound Trigger, and DMX-512 Modes
• LED Refresh Rate: 1.9KHz
• 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre Stage 2)
• 4 selectable Dim Curves (Square, Linear, Inv. Square S. Curve)
• Built-In Microphone for sound trigger
• Synchronized, pulse and random strobing
• Electronic Dimming: 0-100%

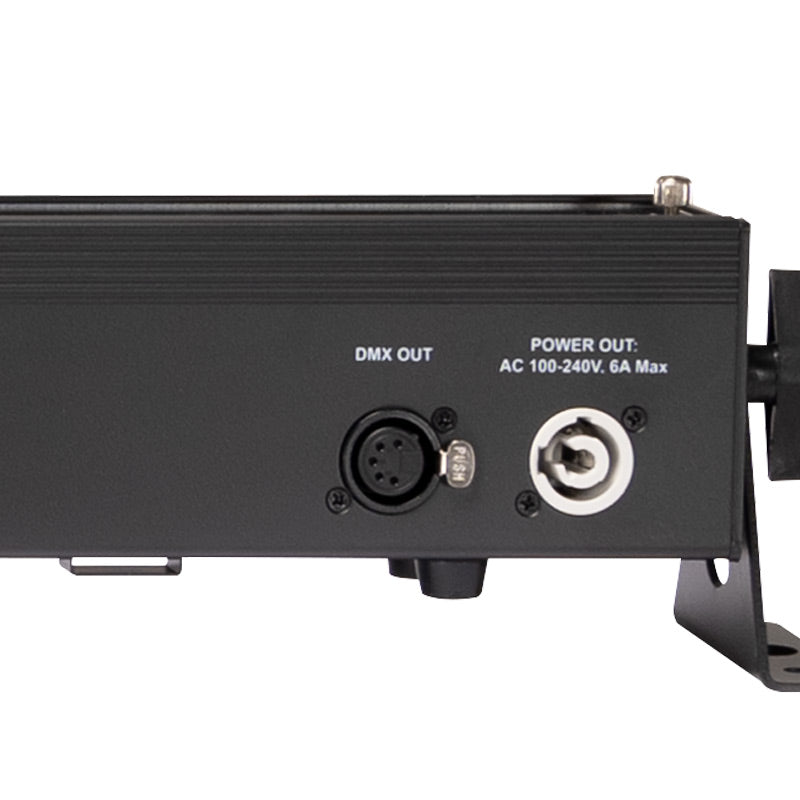

Connections:

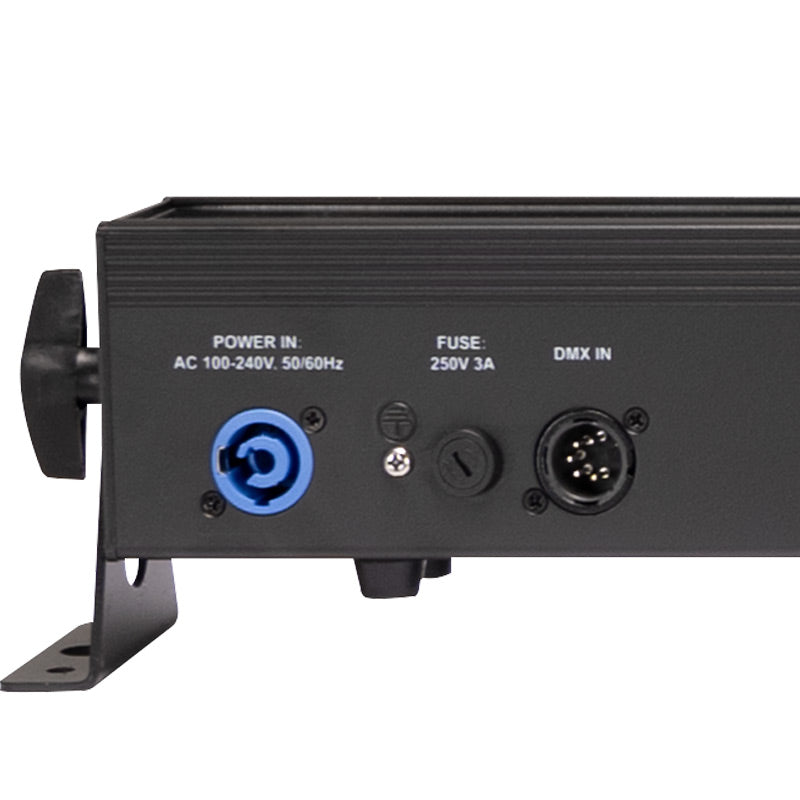

• Linkable: DMX via 5-pin XLR cable
• Indoor Locking power In/Out to daisy chain power
• Safety Loop

Electrical:

• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power Draw: 60W
• Daisy-chain power link (Up to 17 Ultra Beam Bar 12CW's can be linked @120V and up to 32 can be linked @230V)

Dimensions / Weight:

• Dimensions (LxWxH): 2.96" x 42.60" x 4.2" (75x1082x106.7mm)
• Weight: 7.50 lbs./ 3.4kg.

Certifications / IP Rating:

• cETLus (Control # 4002034)
• CE
• IP20

Environment:

Operational Temperature Range: -1°F ~ 113°F (-20°C ~ 45°C)

Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)

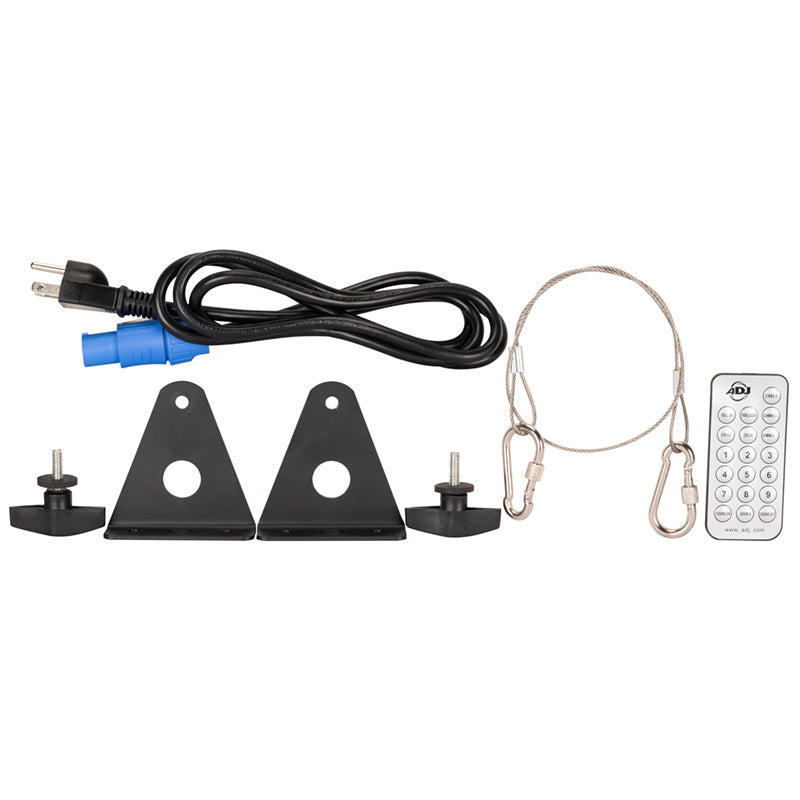

What's Included:

• (1) Indoor Locking Power Cord
• (1) UC-IR
• (1) 5° Beam Filter
• (1) Safety Cable

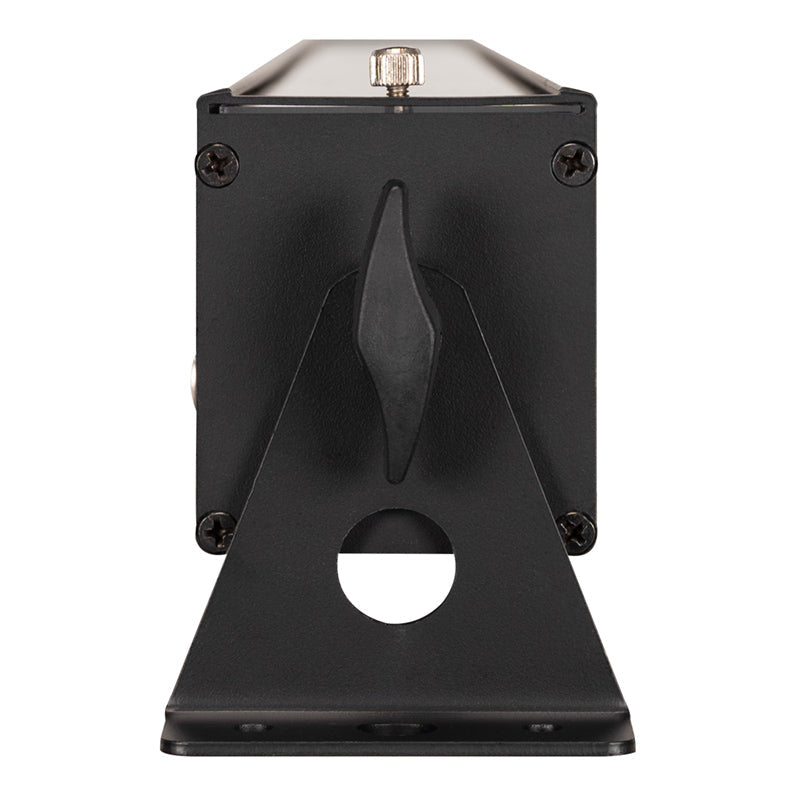

• Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting

Optional Accessories:

• (1) 1x40° Linear Diffusion Lens (SKU: UBL912)

Note: Specifications are subject to change without notice.
