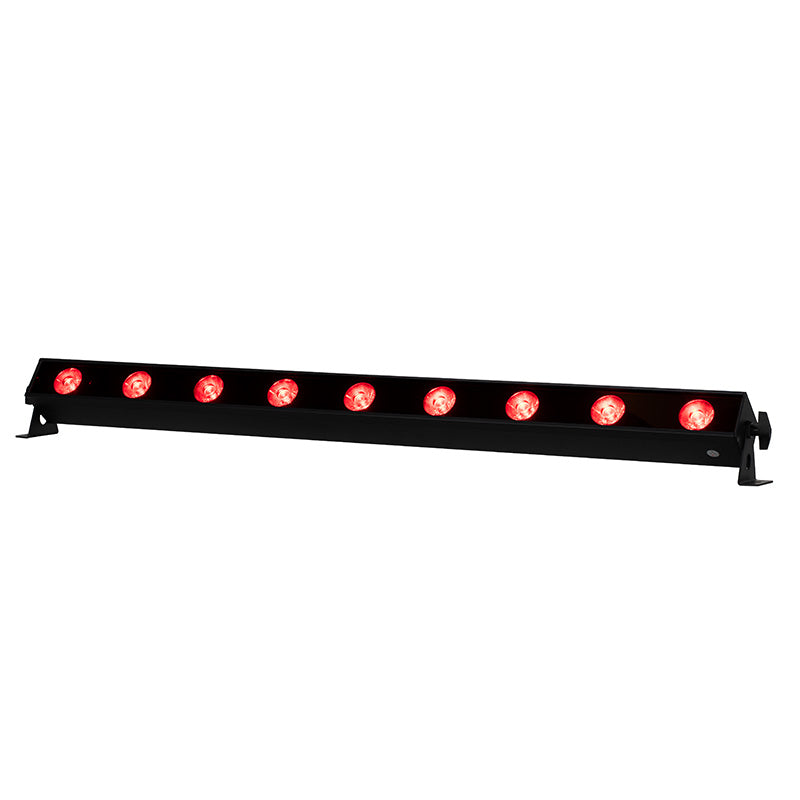

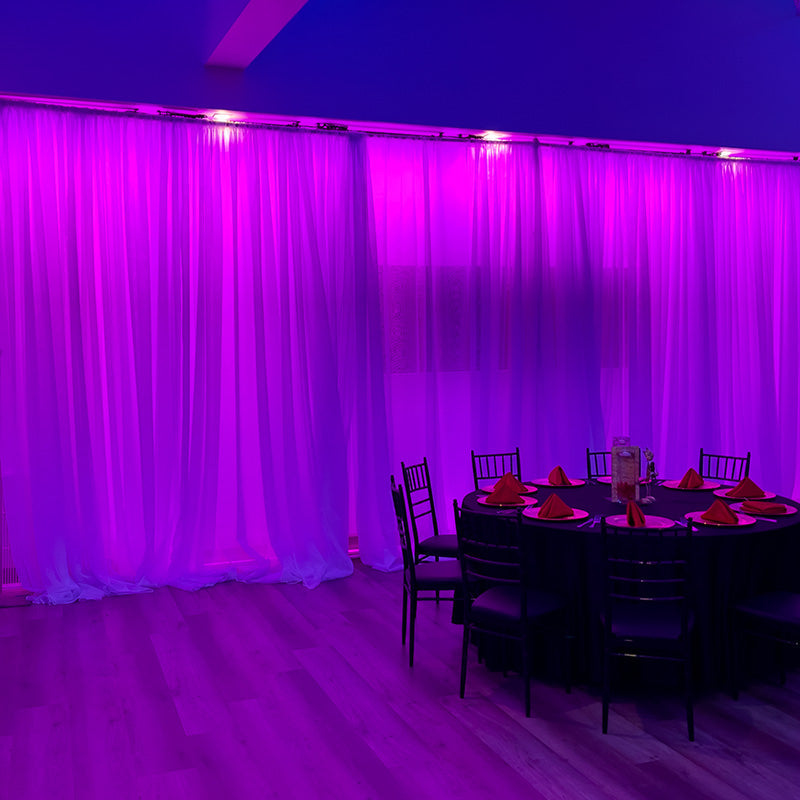

The ADJ Ultra Series has long provided lighting designers and event producers the creativity to create event linear wash lighting for walls, floors and ceilings. The UBL9H incorporates a lime-infused HEX LED with nine (9) 20-Watt (Red, Green, Blue, Amber, Lime and UV) LEDs. The added lime chip offers a higher caliber of color indexing with a high CRI of over 90 along with tunable white light control from 2,300K to 9,900K.

Specifications

Light Source:

• 9 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
• Long Life LEDs (Rated at approximately 50,000 hrs.)

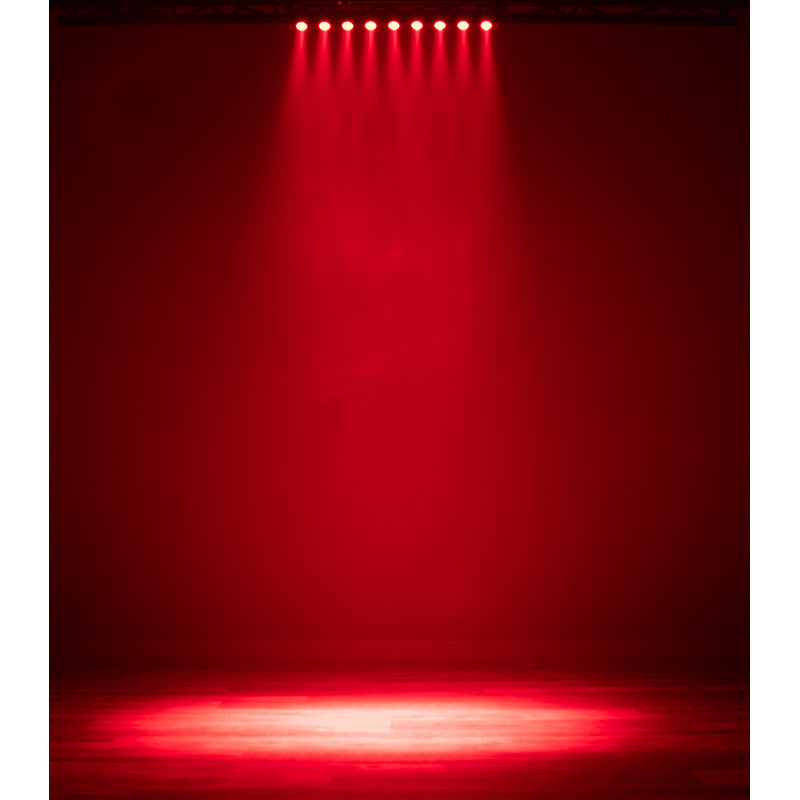

• 17° beam angle
• CRI >90
• Pixel Pitch: 113mm

Features:

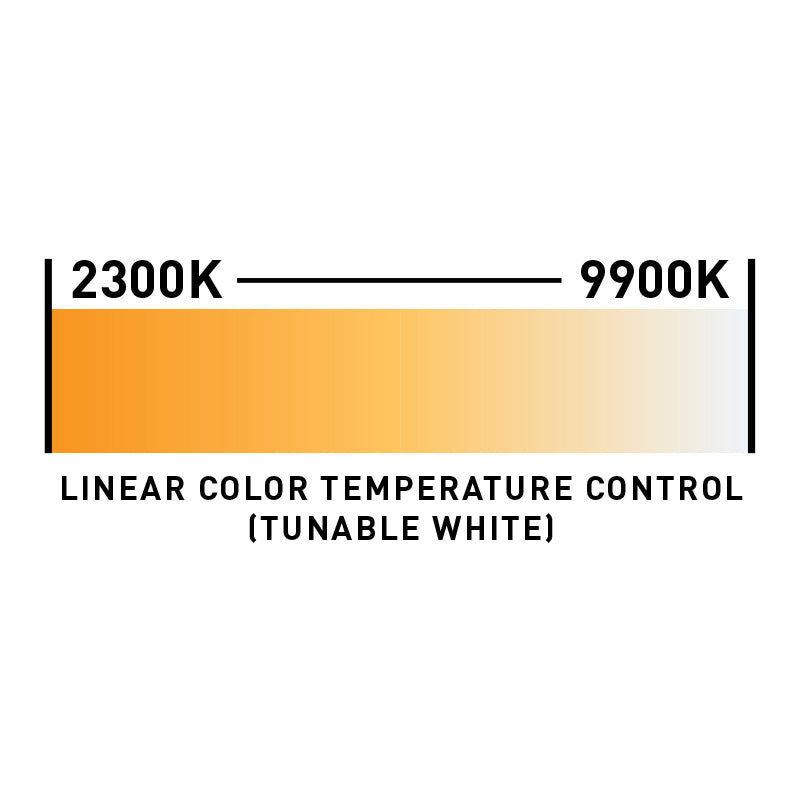

• Linear Color Temperature Control (2,300K to 9,900K)
• Smooth RGBAL+UV color mixing

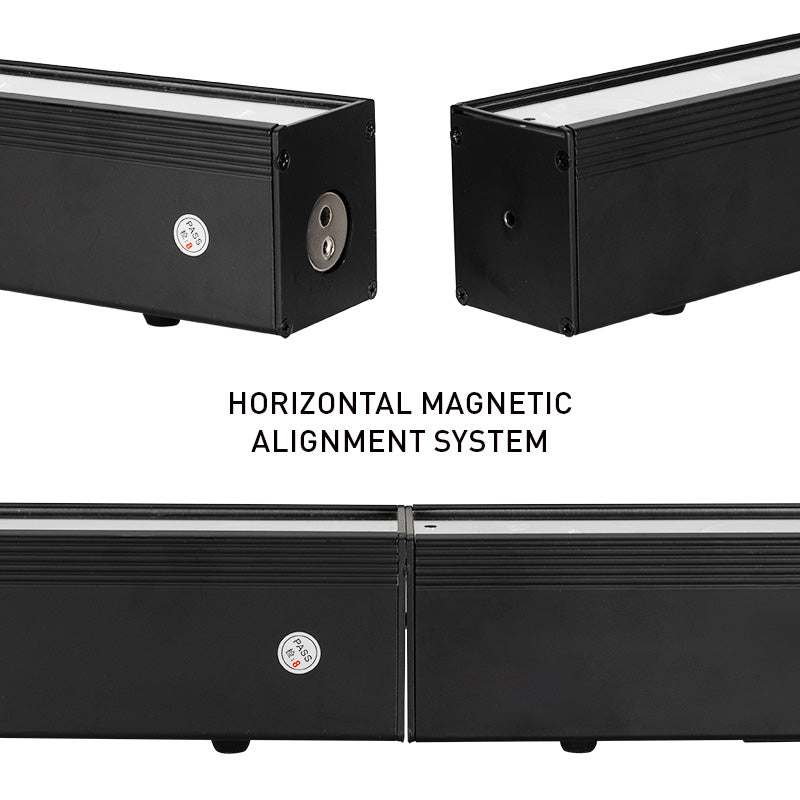

• Horizontal Magnetic Alignment feature (Built-In)
• Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
• RDM Compatible

Control:

• Linear Color Temperature Control (2,300K to 9,900K)
• OLED Display with 4-buttons
• 7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, 28 Channels

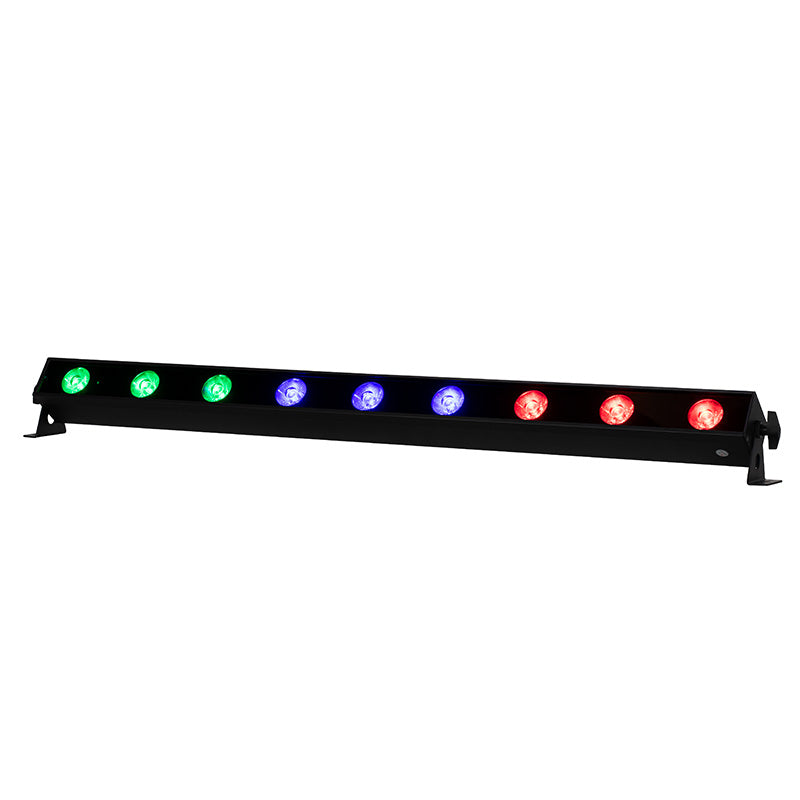

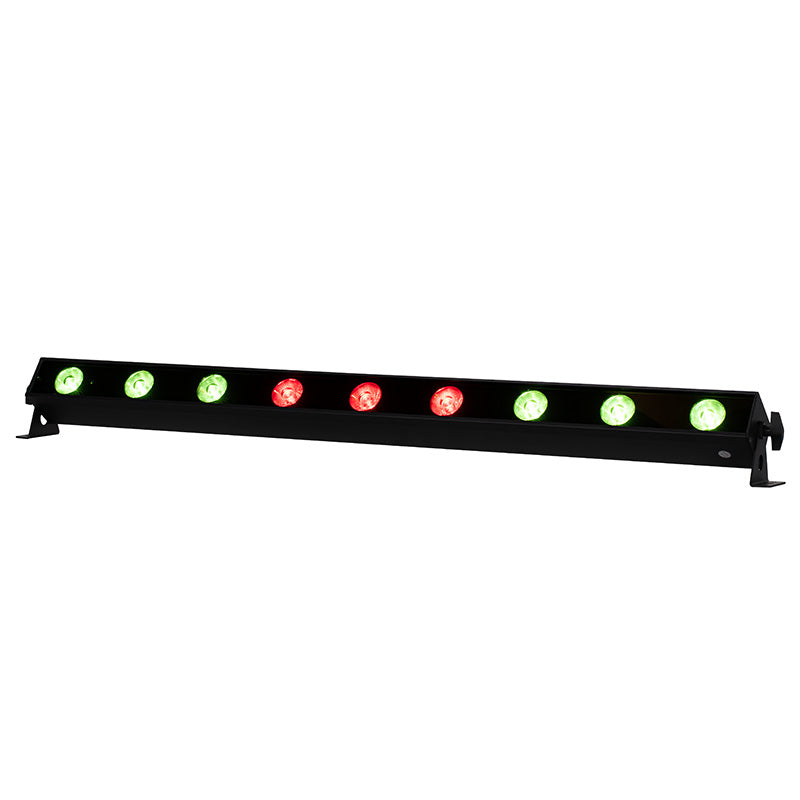

• 3 Groups x3 RGBAL+UV LED pixels controllable via DMX in 18, 25 28 channel modes
• 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
• LED Refresh Rate: 1.9KHz
• 64 built-in Color Macros
• 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre Stage 2)
• 4 selectable Dim Curves (Square, Linear, Inv. Square S. Curve)
• Built-In Microphone for sound trigger
• LED pulse and strobe effect
• Electronic Dimming: 0-100

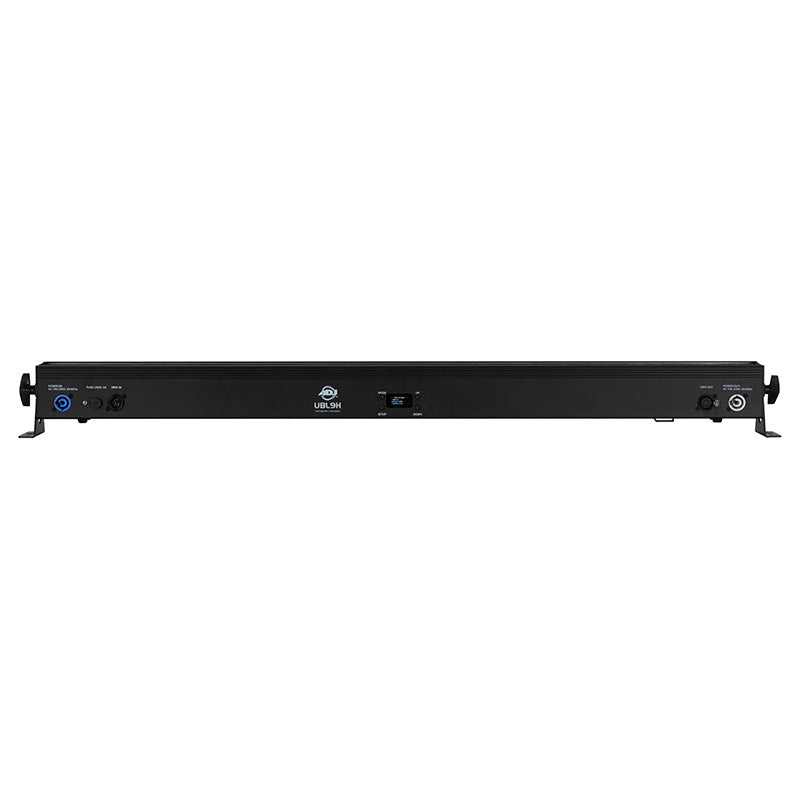

Connections:

• Linkable: DMX via 5-pin XLR cable
• Locking power In/Out to daisy chain power

Electrical:

• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power Draw: 54W
• Daisy-chain power link (Up to 22 UBL9H's can be linked @120V and up to 40 UBL9H's can be linked @230V)

Dimensions / Weight:

• Dimensions (LxWxH): 2.96" x 42.60" x 4.2" (75x1082x106.7mm)
• Weight: 7.28 lbs./ 3.3kg.

Certifications / IP Rating:

• cETLus (Control # 4002034)
• CE
• FCC
• IP20

Environment:

Operational Temperature Range: -4°F ~ 113°F (-20°C ~ 45°C)

Storage Temperature: -22°F ~ 113°F (-30°C ~ 45°C)

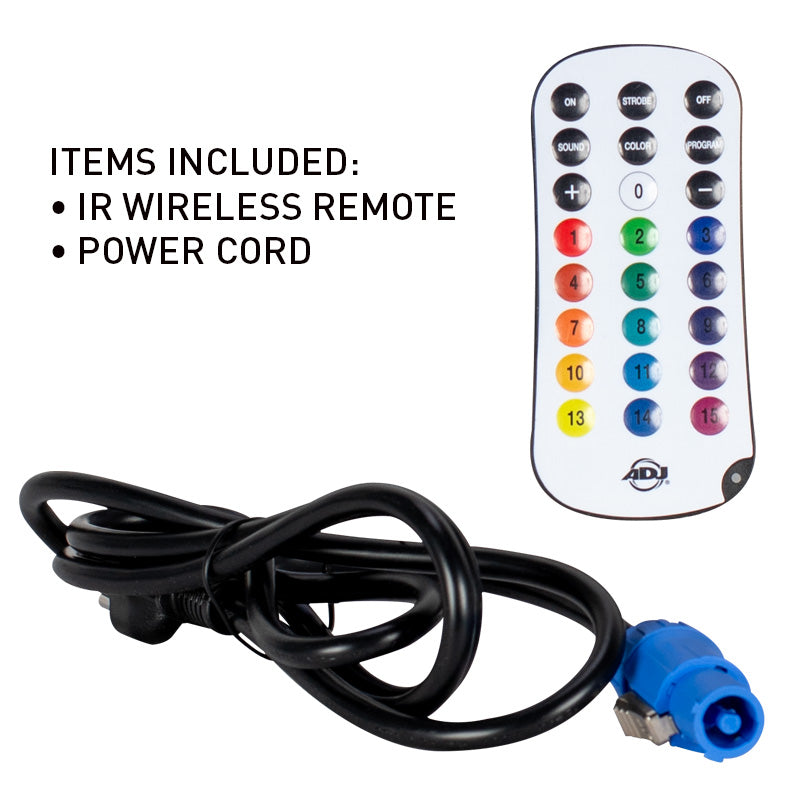

What's Included:

• (1) Indoor Locking Power Cord
• (1) UC-IR24

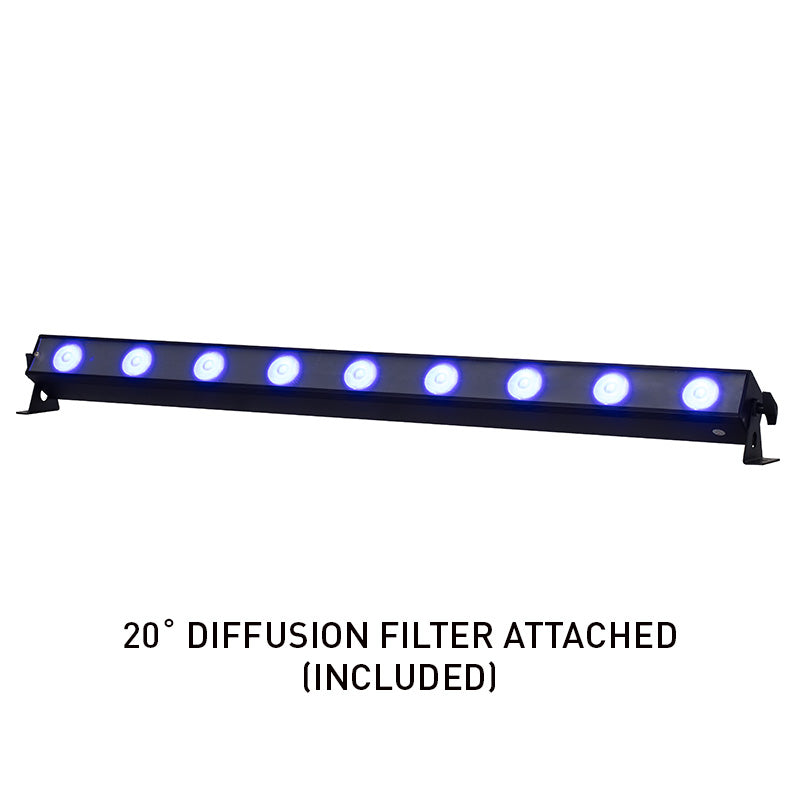

• (1) 20° Diffusion Filter
• Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting

Optional Accessories:

• 1x40° Linear Diffusion Lens (SKU: UBL912)
• 40° Linear Diffusion Lens (SKU: UBL140)
• 60° Linear Diffusion Lens (SKU: UBL160)

Note: Specifications are subject to change without notice.
