Dynacord

U60:1M-US

Overview

Mixer amplifier 60W, 1 channel

Highlights

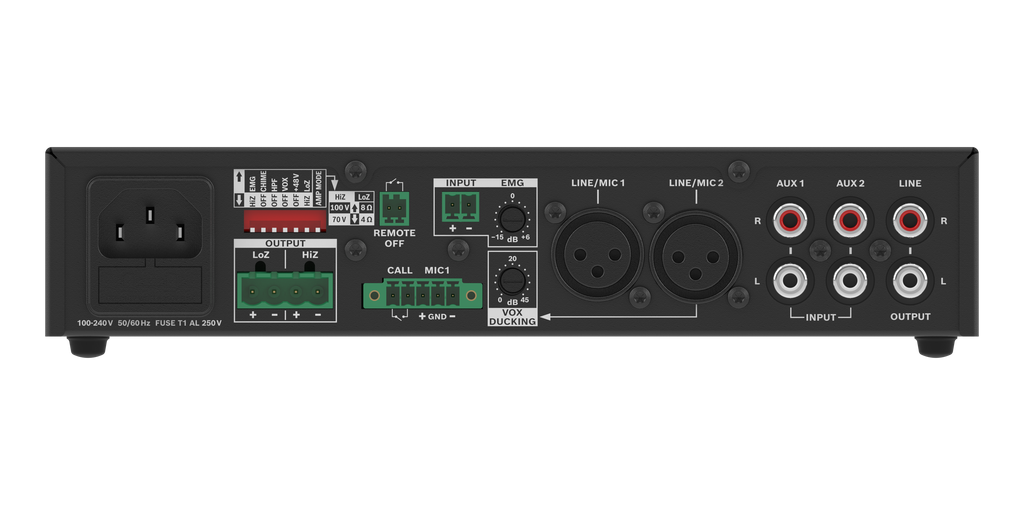

  • ✓Versatile inputs: 4 inputs, 2 mic/line options with phantom power support
  • ✓Full power output supporting 4Ω, 8Ω, 70 V and 100 V
  • ✓EMG override input, ensuring critical messages are heard clearly
  • ✓Contact override with 2-tone chime for attention-grabbing alerts
  • ✓70 Hz and 120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise

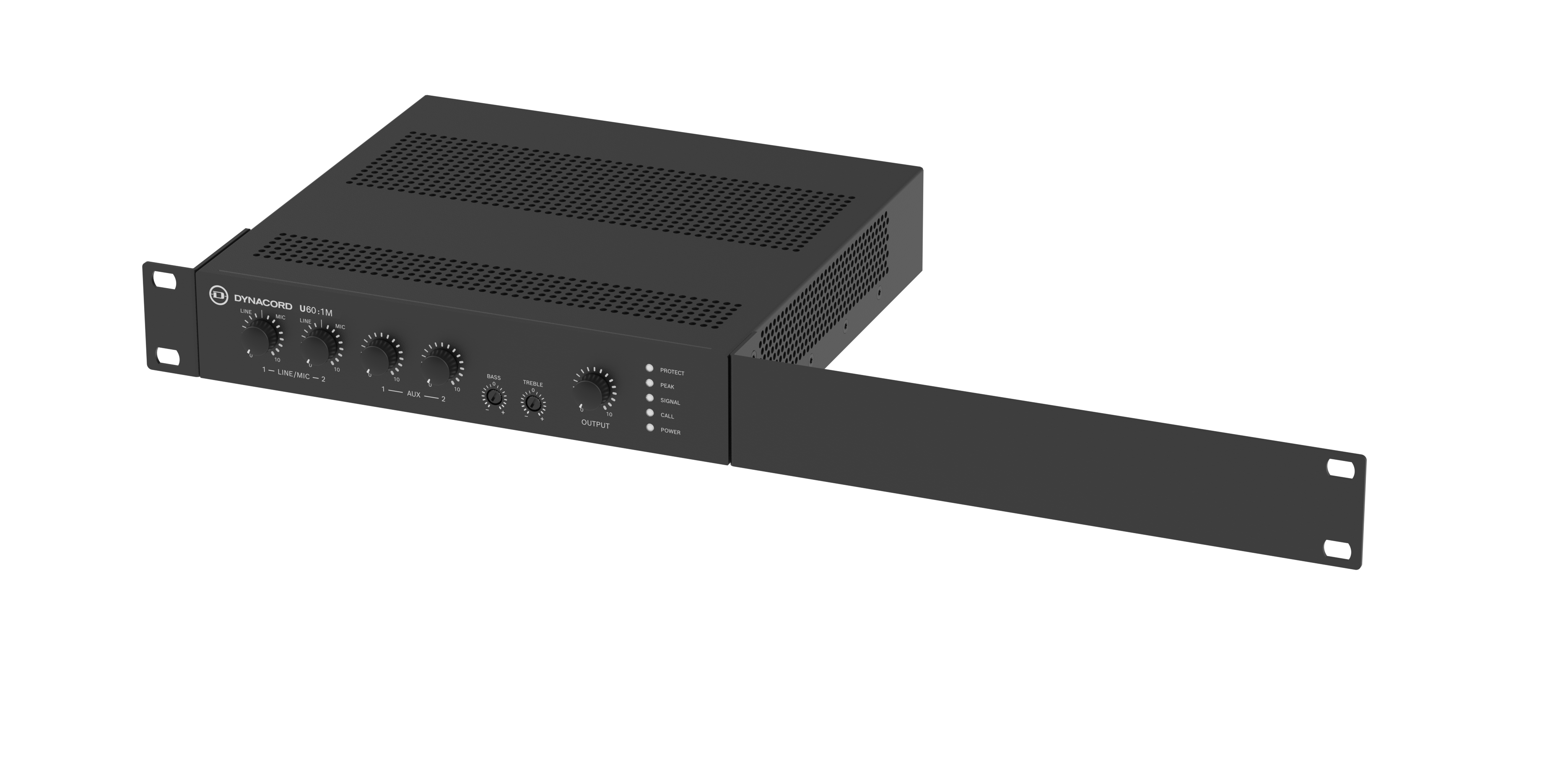

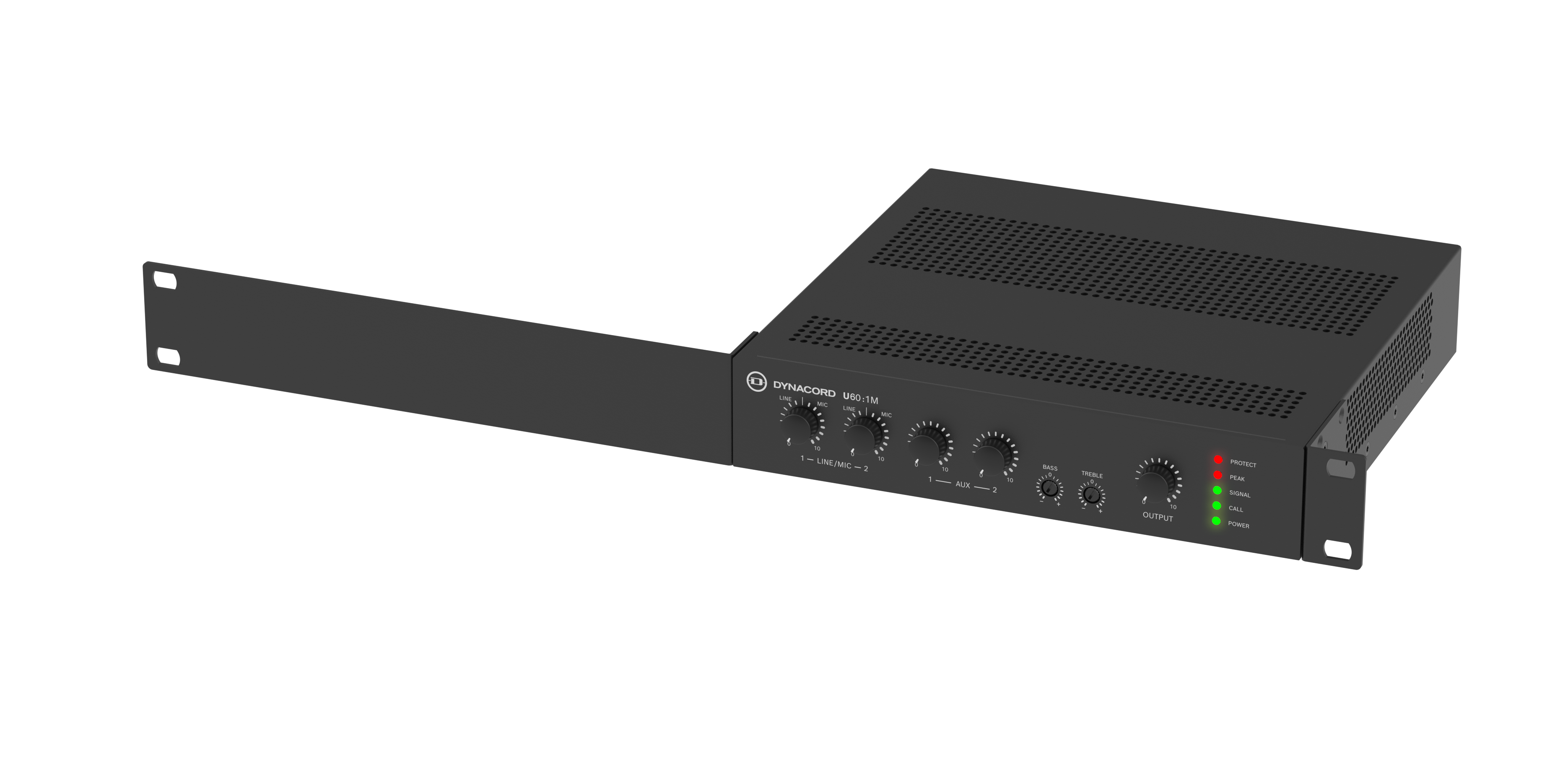

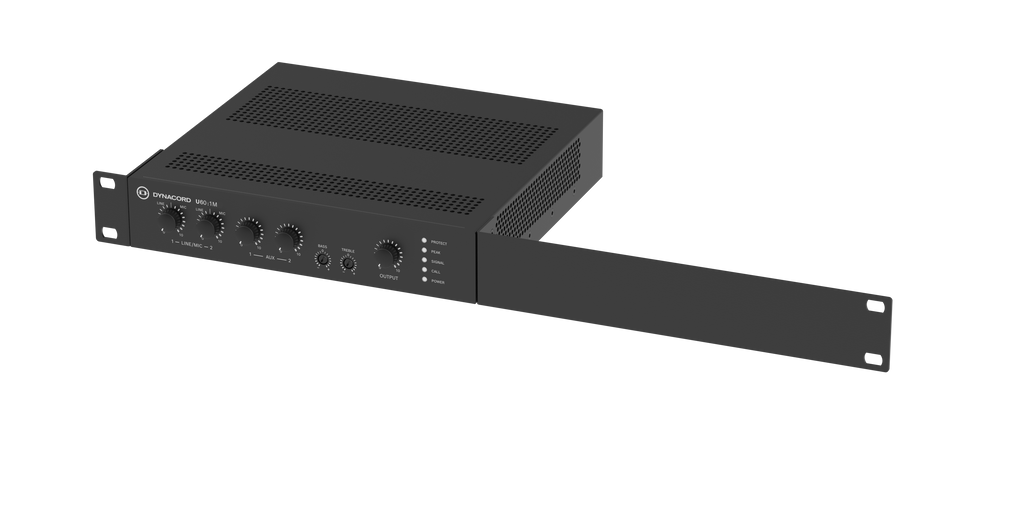

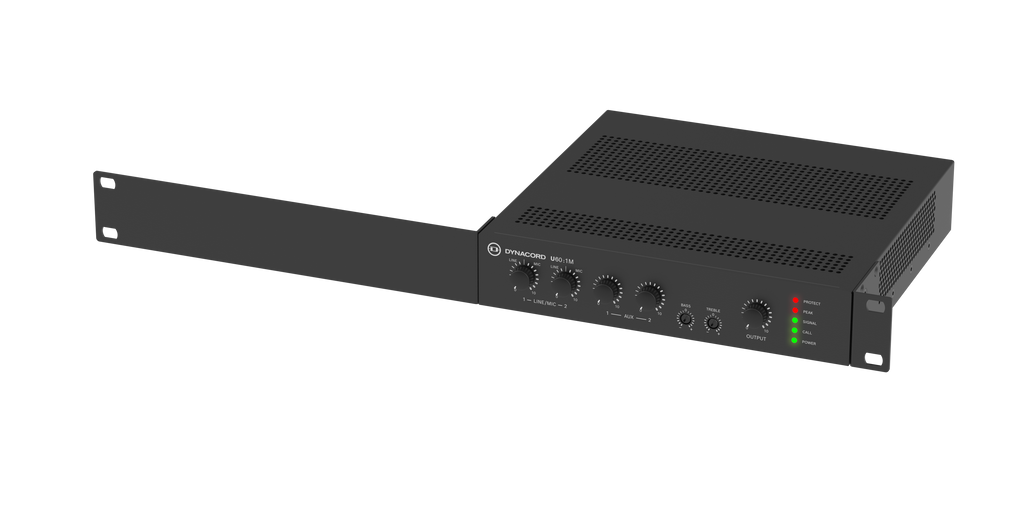

  • ✓Space-saving compact ½ rack design, providing versatility without compromising performance
  • ✓VOX Ducking that automatically adjusts background music volume for clear voice communication
  • ✓Remote activation of standby mode with Remote OFF (Stand by), enhancing energy efficiency

Specifications

Electrical Mains power supply Voltage 100 VAC - 240 VAC, 50/60 Hz
Power 100 VA
Consumption Standby (Remote OFF active) 0.60 W Idle mode 6 W / 6 W
Remote power (ON/OFF Stand by) 2-pin, Eurostyle, contact closure
Performance Frequency response, -3 dB ref. 1 kHz Any input to output 70 Hz — 22 kHz
Any input to LINE output <10 Hz — 65 kHz
Distortion <1% @rated output power, 1 kHz
Output stage topology Class D
Equalization Bass shelving ±12 dB / 150 Hz — 3 dB (100 Hz)
Treble shelving ±12 dB / 5 kHz — 3 dB (10 kHz)
Filter LO-CUT permanently f=70 Hz, 12 dB/oct.
LO-CUT switchable, can be activated f=120 Hz, 12 dB/oct.

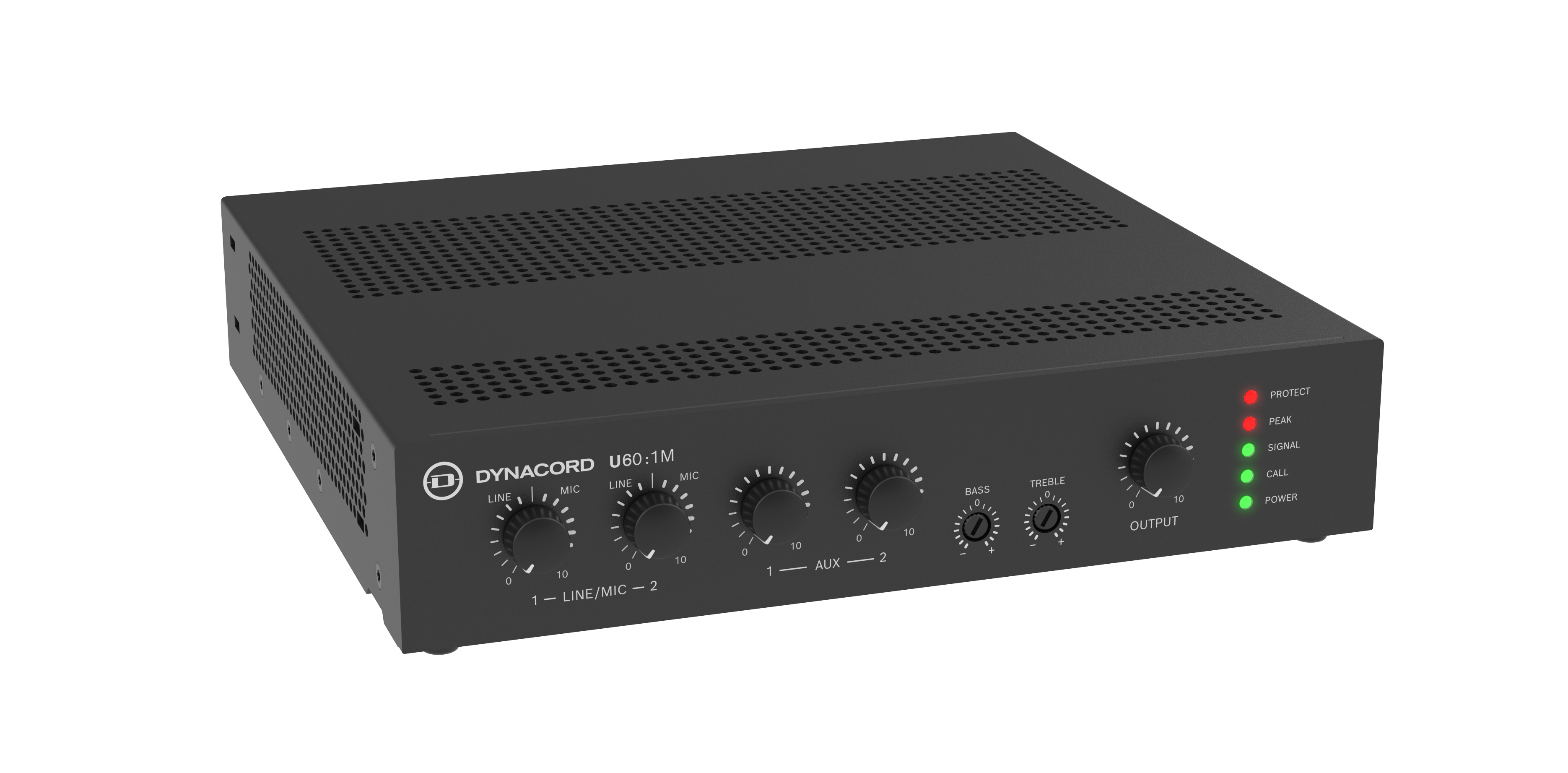

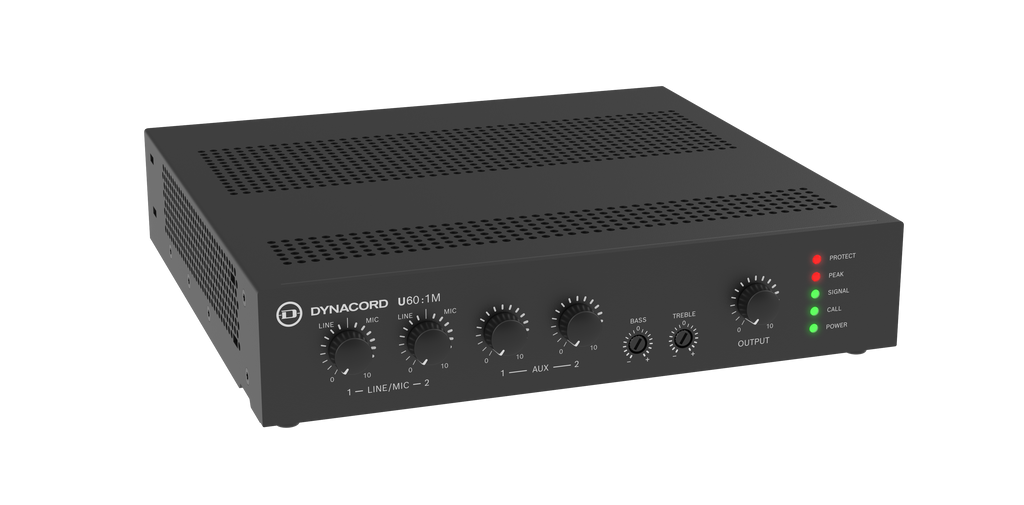

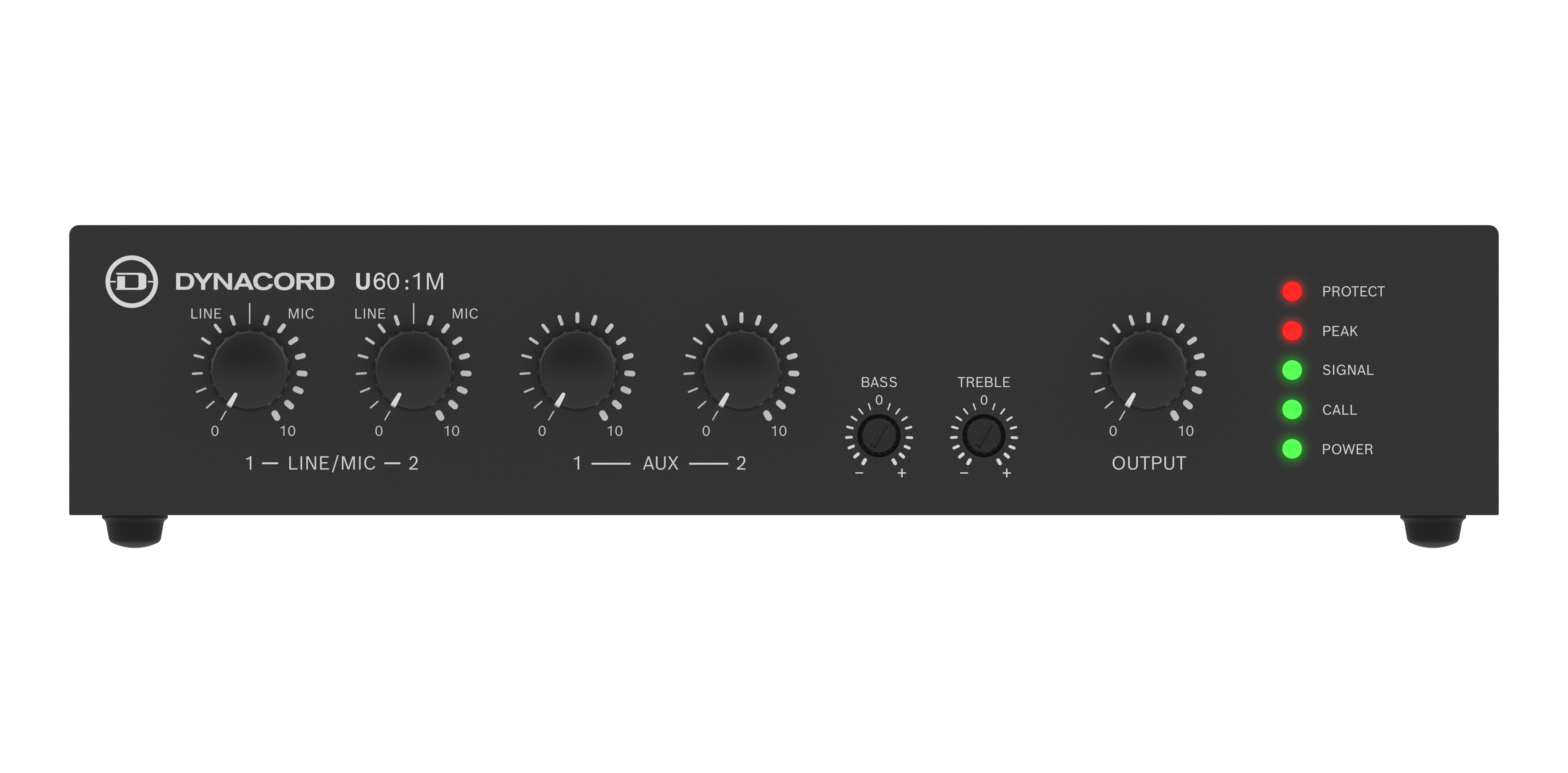

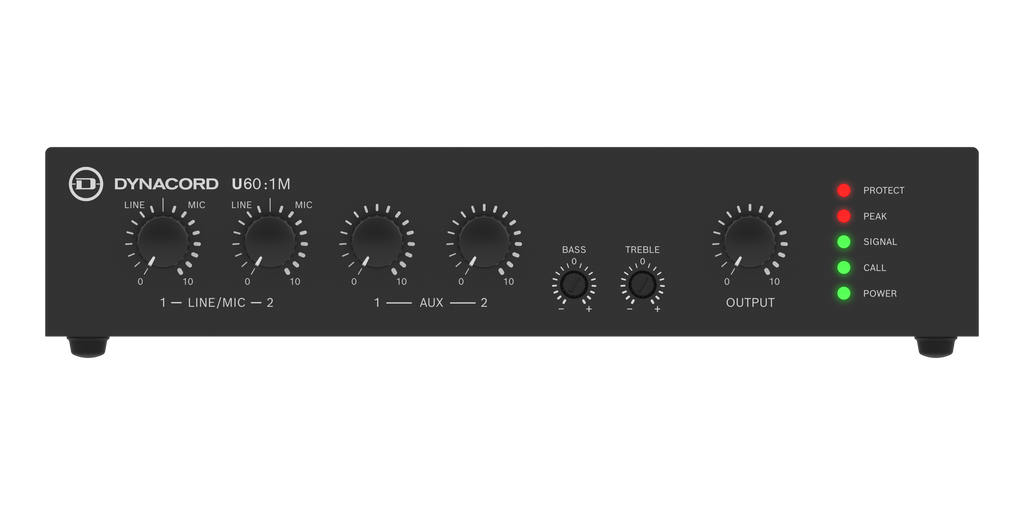

Specifications General Front status LEDs Protect (Red) Protection, short circuit
Peak (Red) 1 dB before clip (input and output)
Signal (Green) Input and output signal
Call (Green) EMG / priority trigger / Vox input active
Power (Green) Power on condition

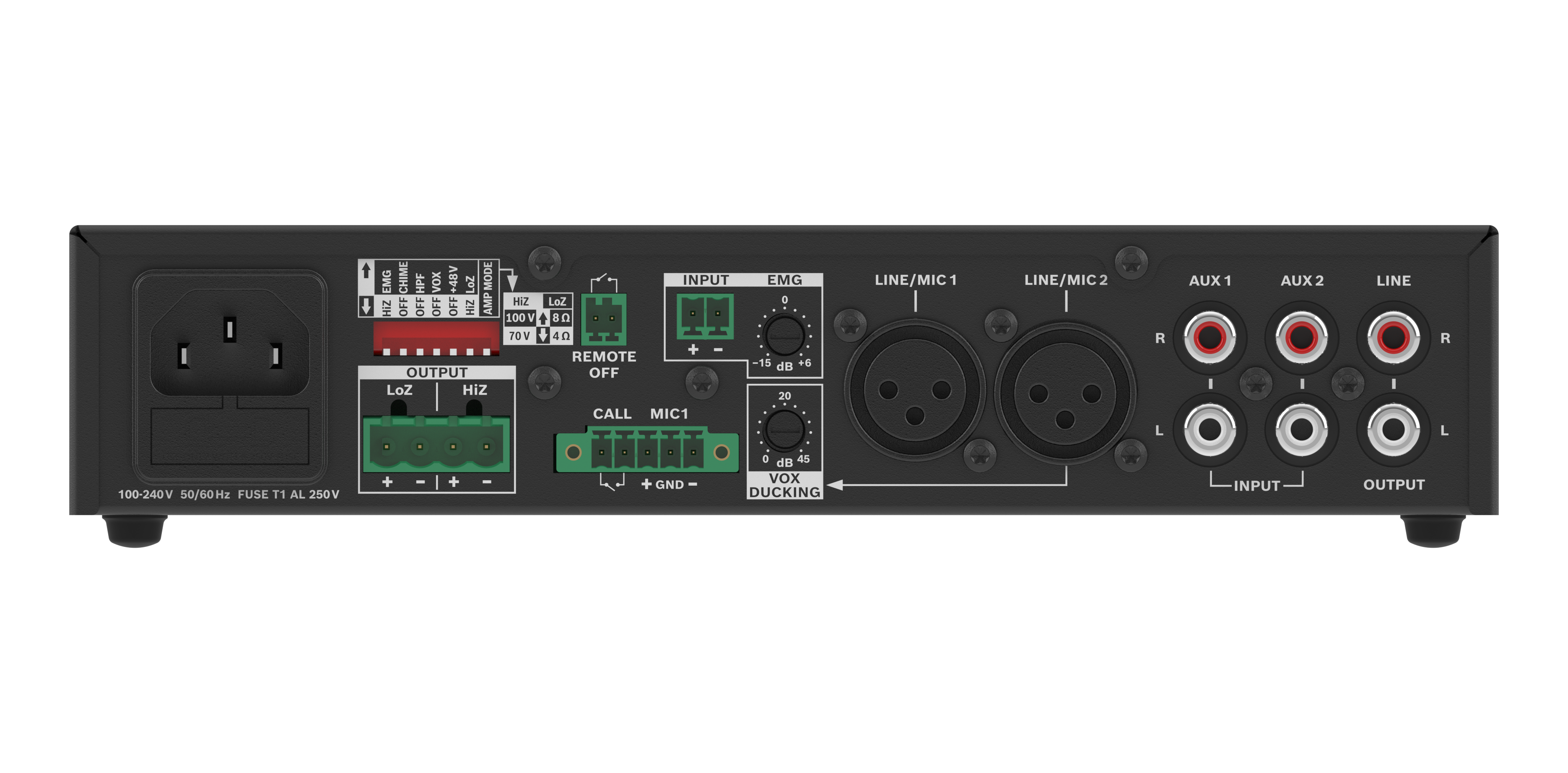

DIP switches EMG (HiZ/LowZ), Two-tone Chime (ON/OFF), HPF (120 Hz), VOX (ON/OFF), Phantom power (+48 V/OFF) Output (HiZ/LowZ), Amp mode (70 V/100 V; 4Ω/8Ω)
Protections Amplifier Audio limiters, high temperature, DC, HF, short circuit, over current protection
Switching mode power supply (µPC controlled) Mains over/under voltage protection, inrush current limiter, mains over current, high temperature

Product identifiers

SKU U60:1M-US
