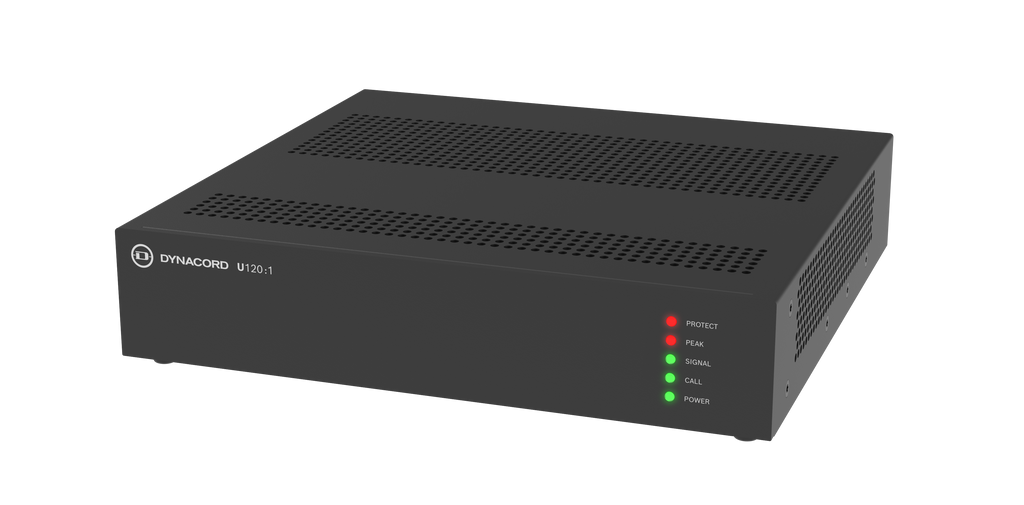

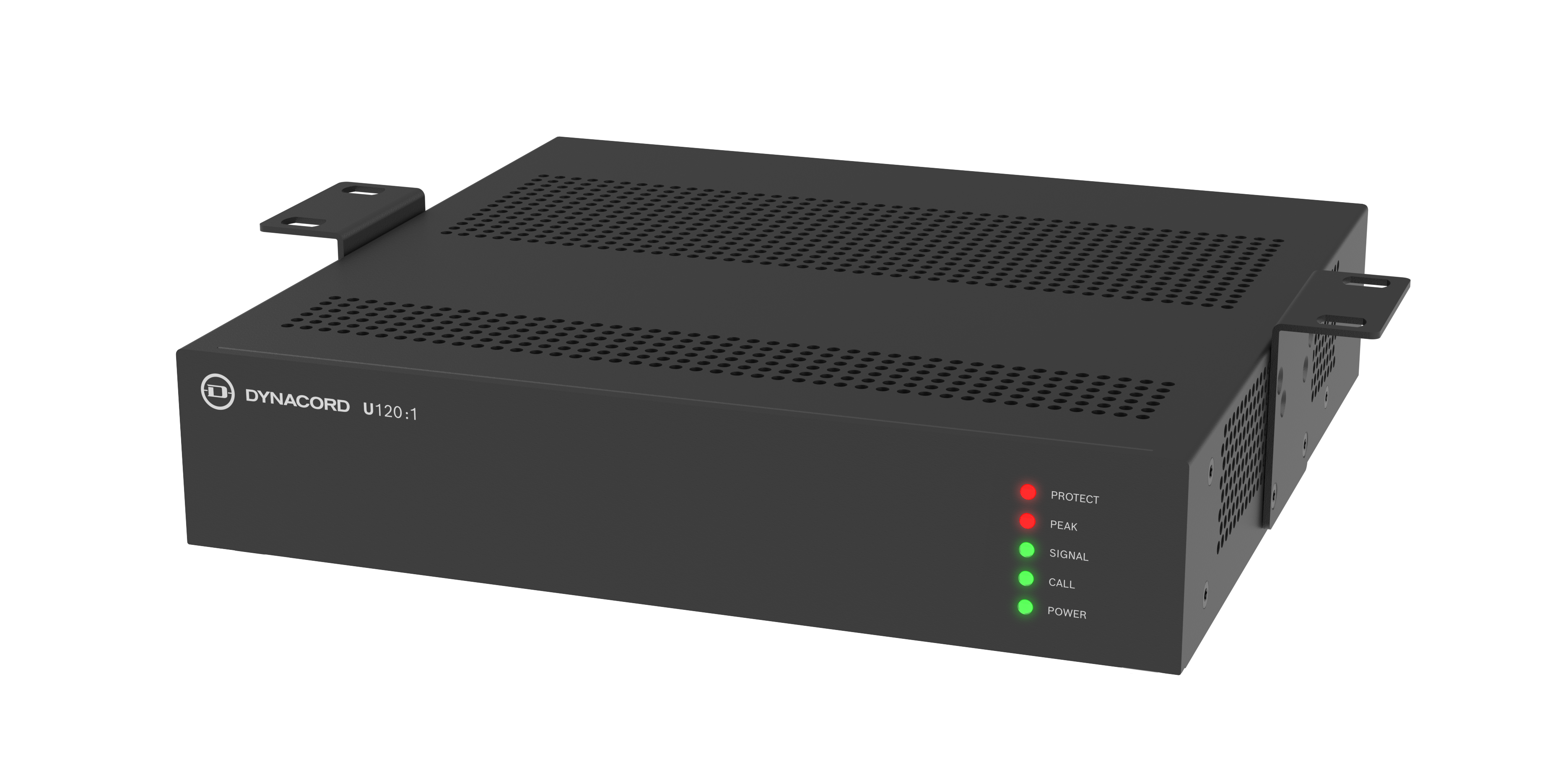

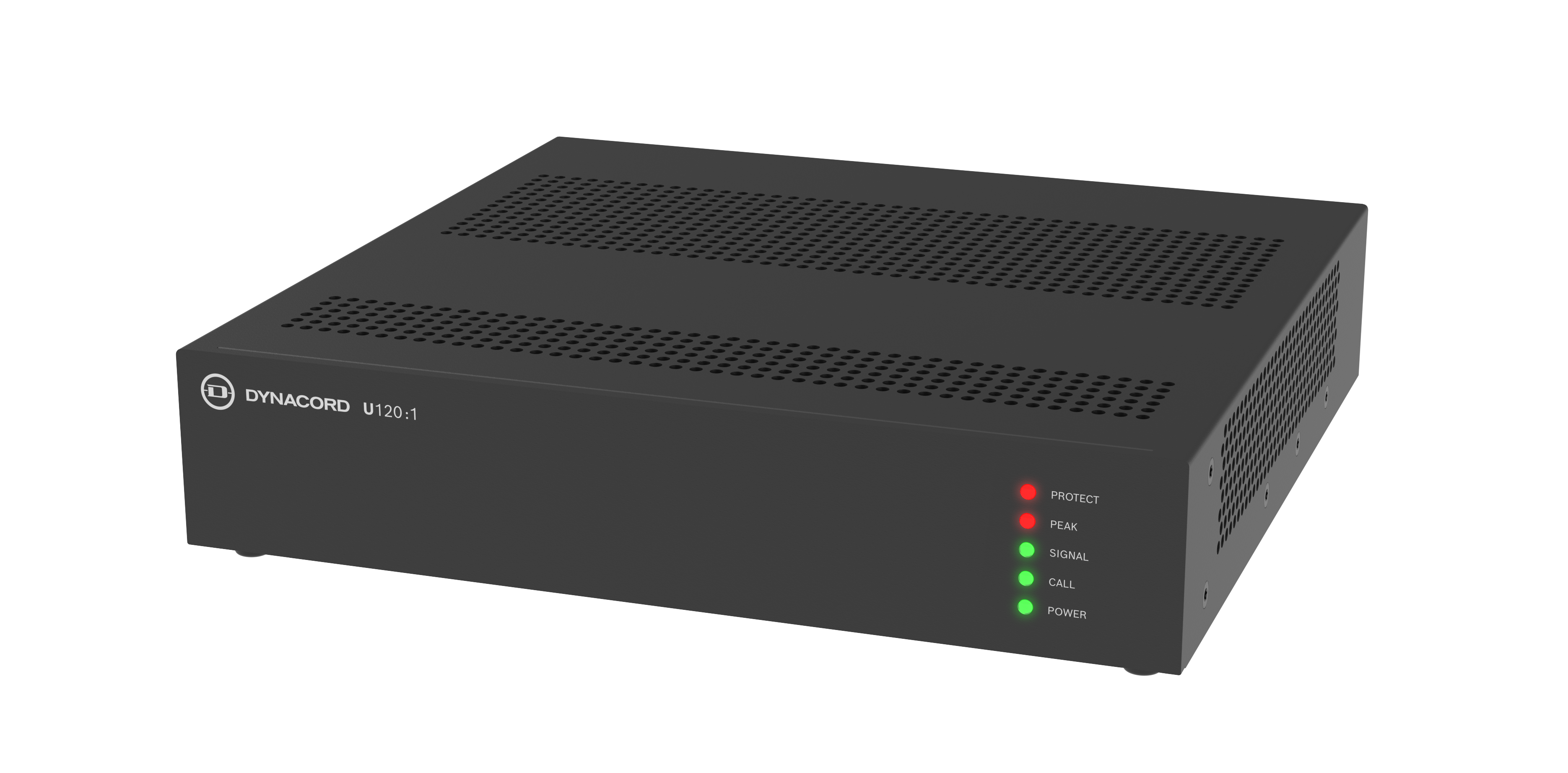

Name: Dynacord U120:1-US
Brand: Dynacord
SKU: U120:1-US
Price: 399.00 USD
Availability: InStock

$399.00

$399.00 $496.00

Dynacord

U120:1-US

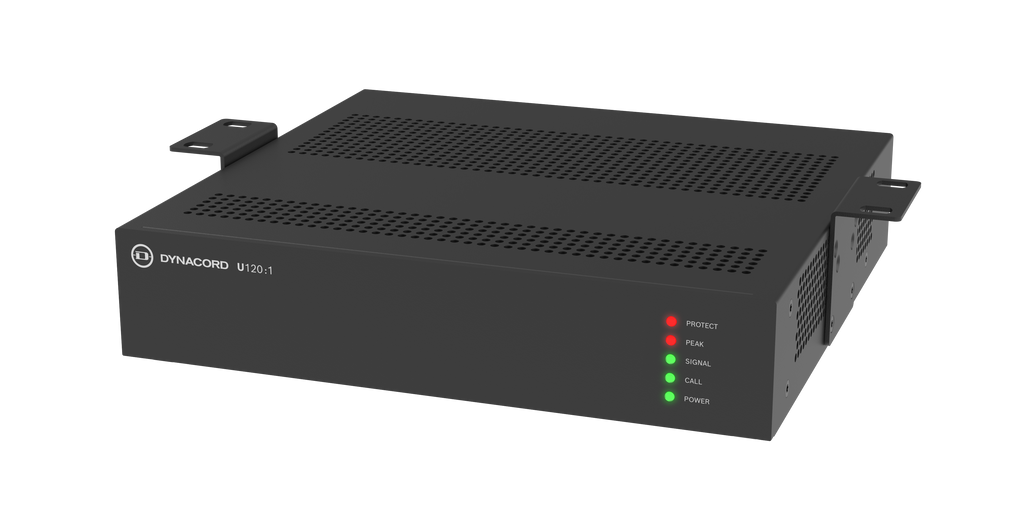

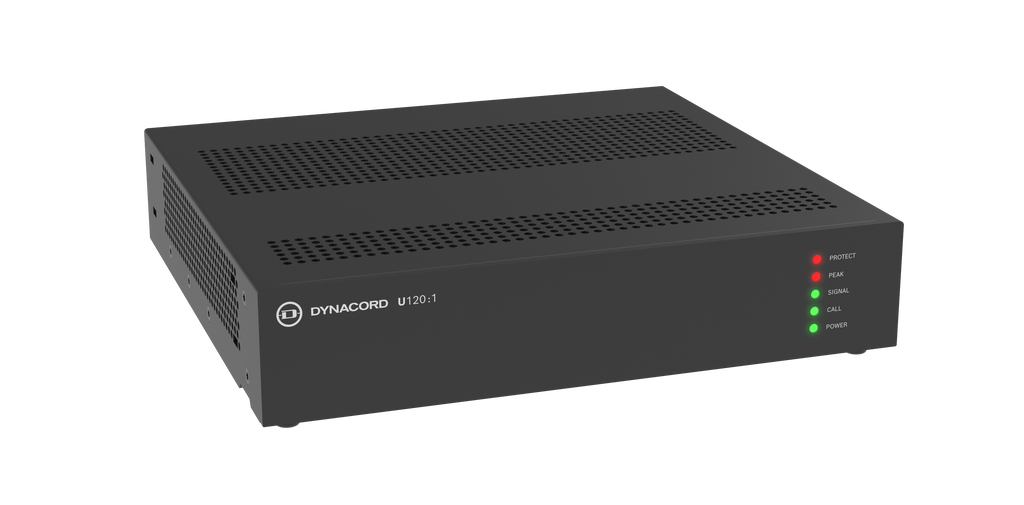

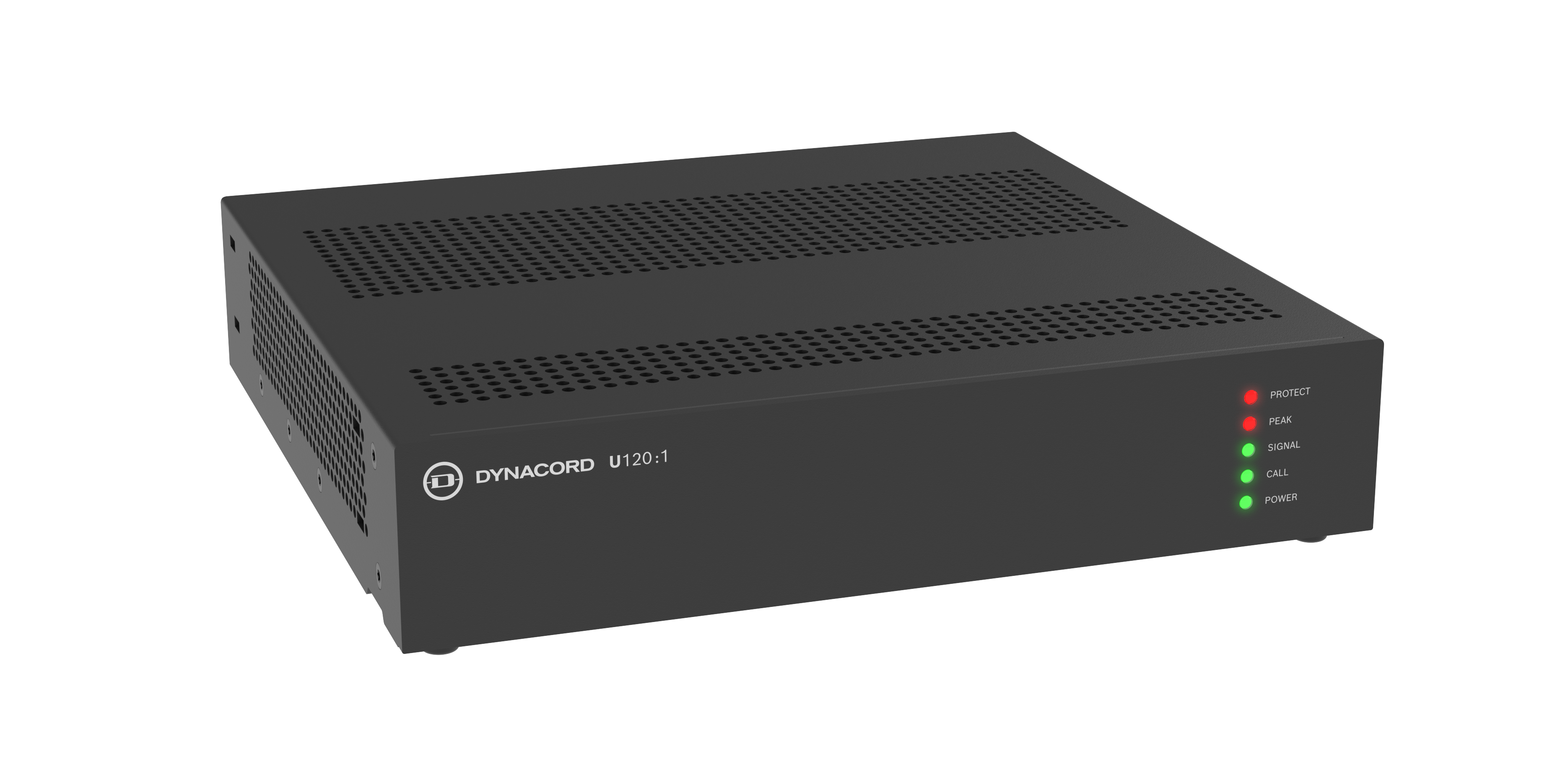

Power amplifier 120W, 1 channel

✓Full power output supporting 4Ω, 8Ω, 70 V and 100 V
✓EMG override input, ensuring critical messages are heard clearly
✓Contact override with 2-tone chime for attention-grabbing alerts
✓120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise

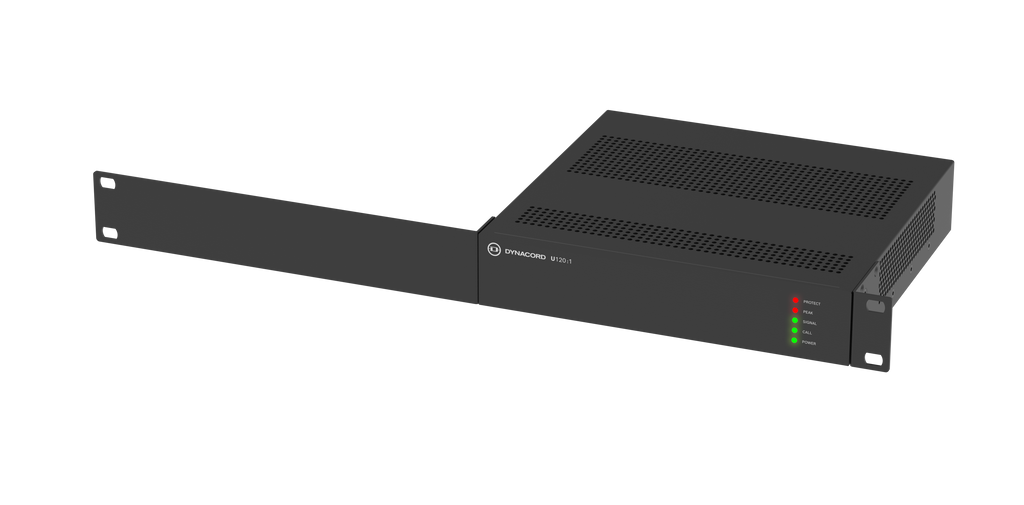

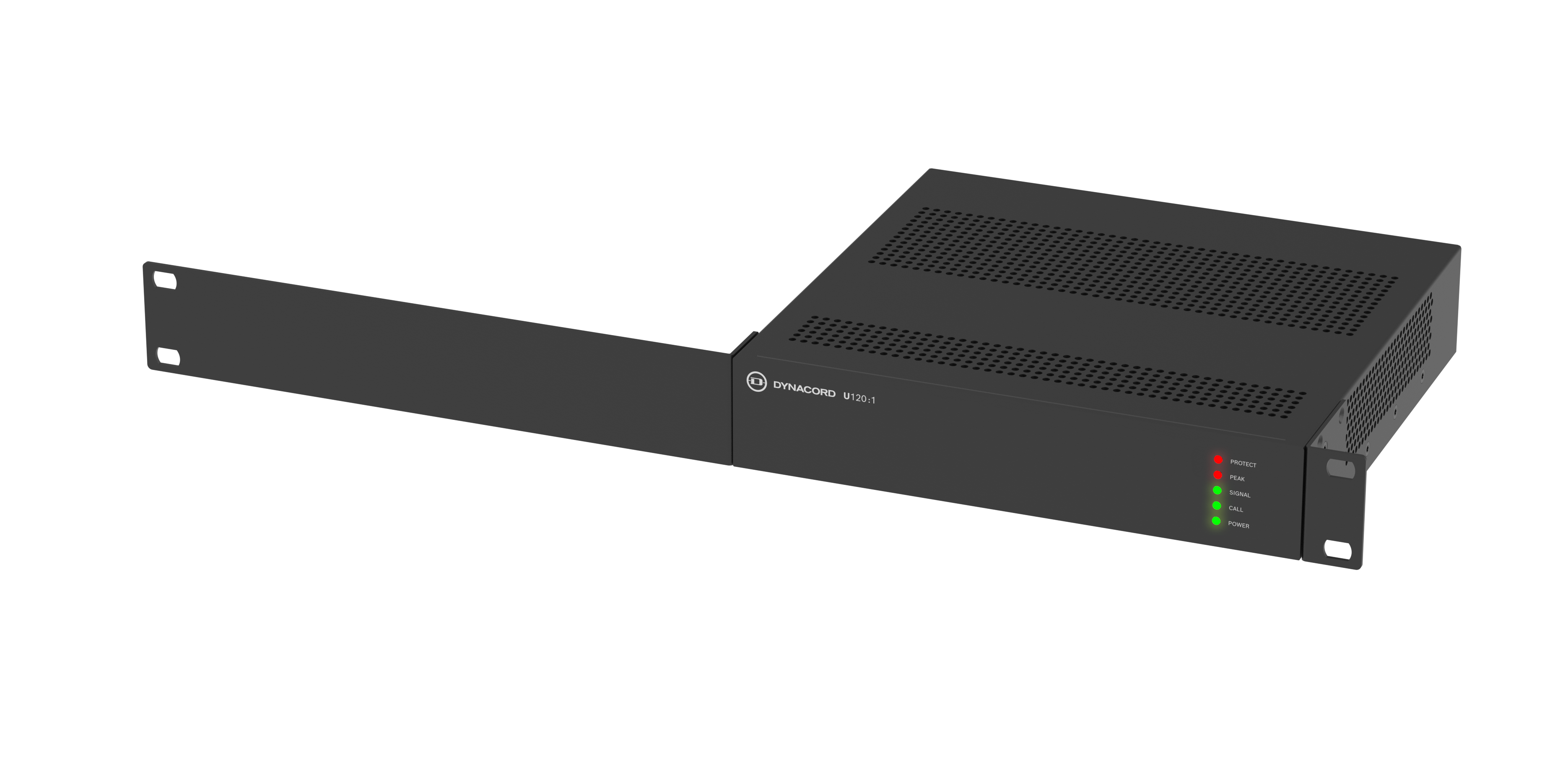

✓Space-saving compact ½ rack design, providing versatility without compromising performance
✓Remote activation of standby mode with Remote OFF (Stand by), enhancing energy efficiency

Electrical Mains power supply Voltage	100 VAC - 240 VAC, 50/60 Hz
Power	400 VA
Consumption	Standby (Remote OFF active) 1.25 W Idle mode 9 W / 11 W
Remote power (ON/OFF Stand by)	2-pin, Eurostyle, contact closure
Performance Frequency response, -3 dB ref. 1 kHz Any input to output	<10 Hz — 22 kHz
Distortion	<1% @rated output power, 1 kHz
Output stage topology	Class D
Equalization Bass shelving	±12 dB / 150 Hz — 3 dB (100 Hz)
Treble shelving	±12 dB / 5 kHz — 3 dB (10 kHz)
Filter LO-CUT permanently	f=20 Hz, 12 dB/oct.
LO-CUT switchable, can be activated	f=120 Hz, 12 dB/oct.

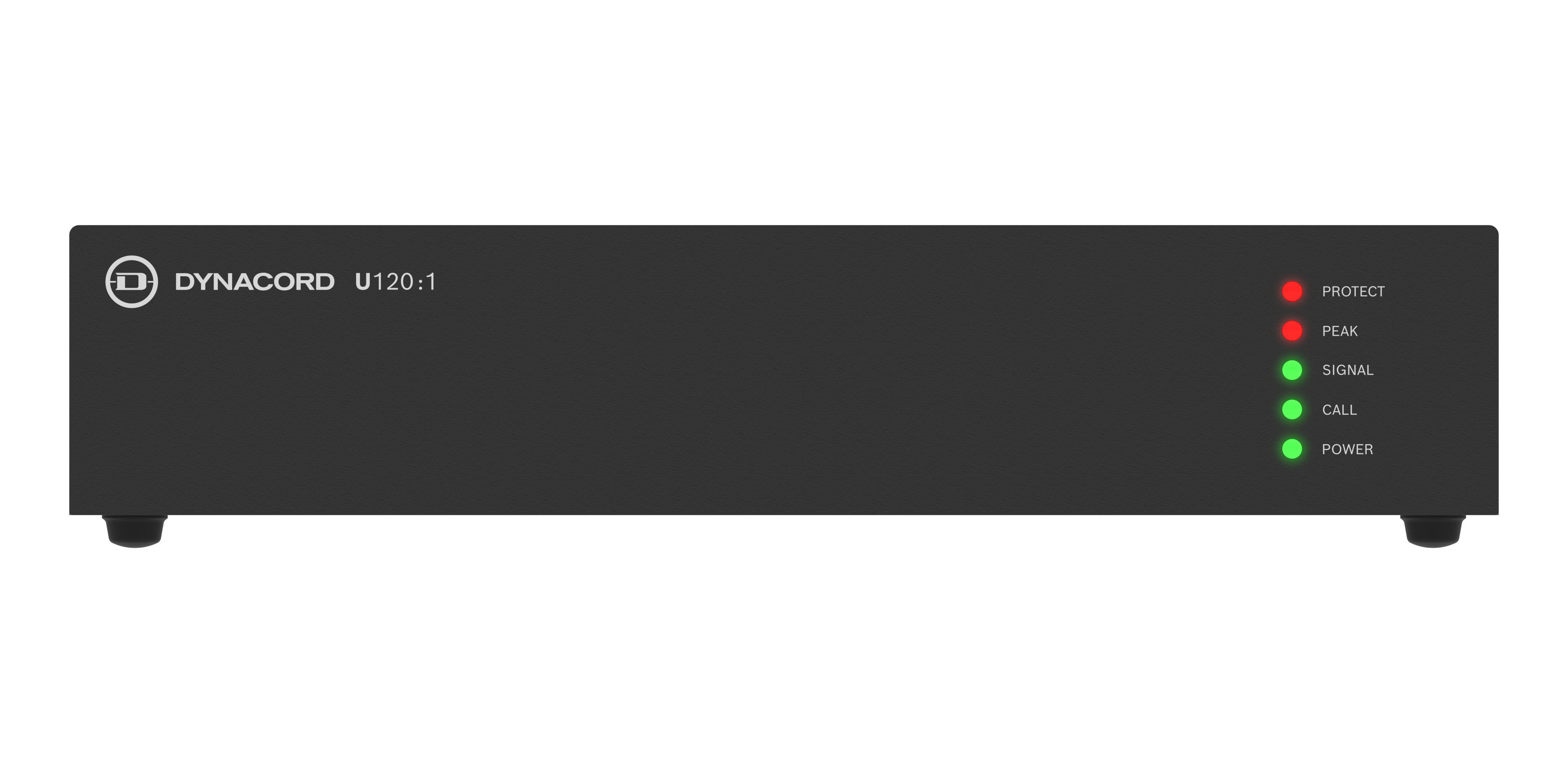

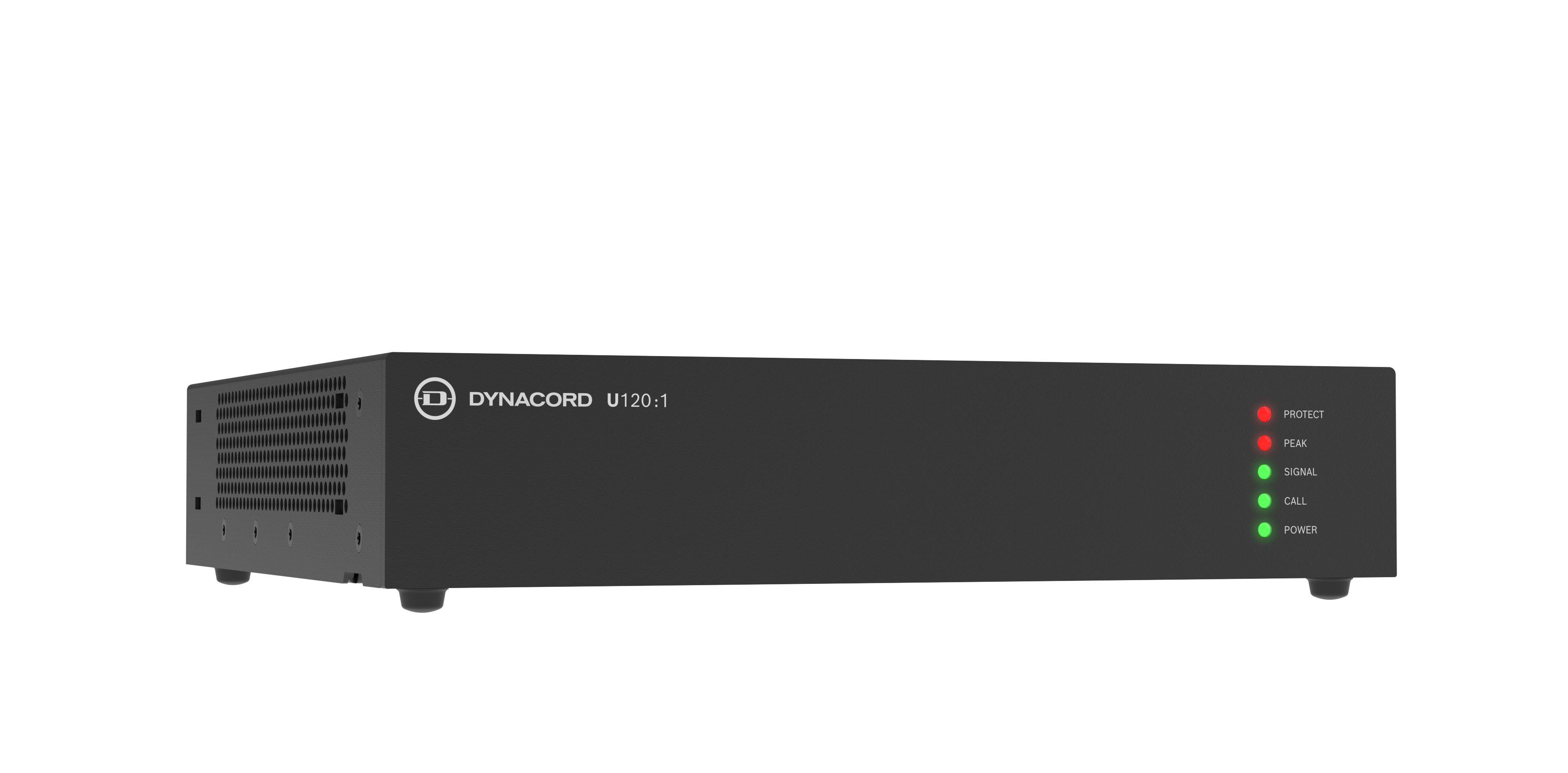

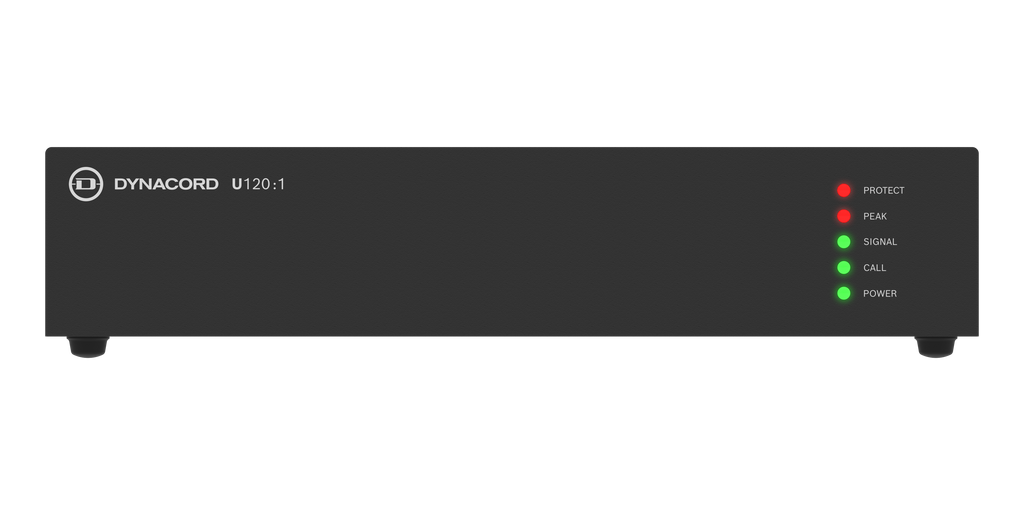

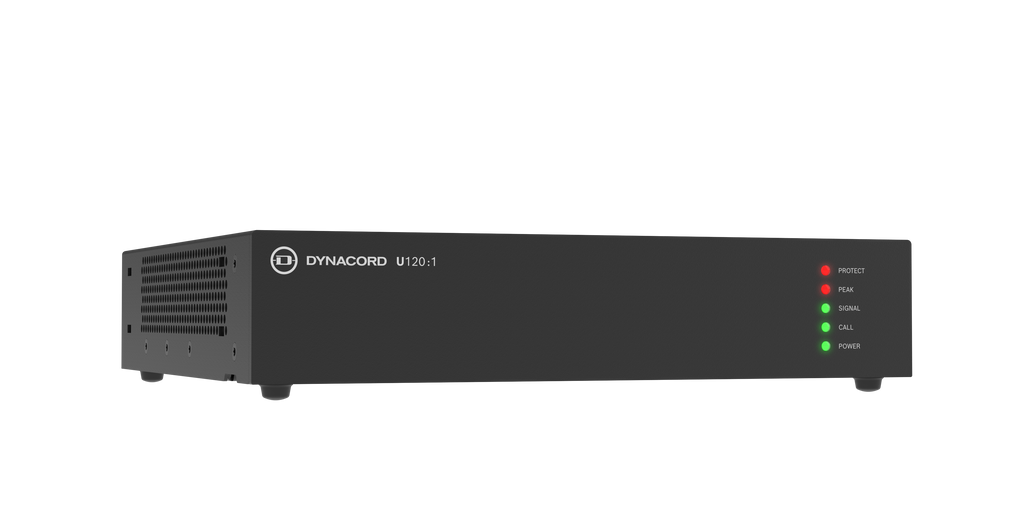

Specifications General Front status LEDs Protect (Red)	Protection, short circuit
Peak (Red)	1 dB before clip (input and output)
Signal (Green)	Input and output signal
Call (Green)	EMG
Power (Green)	Power on condition

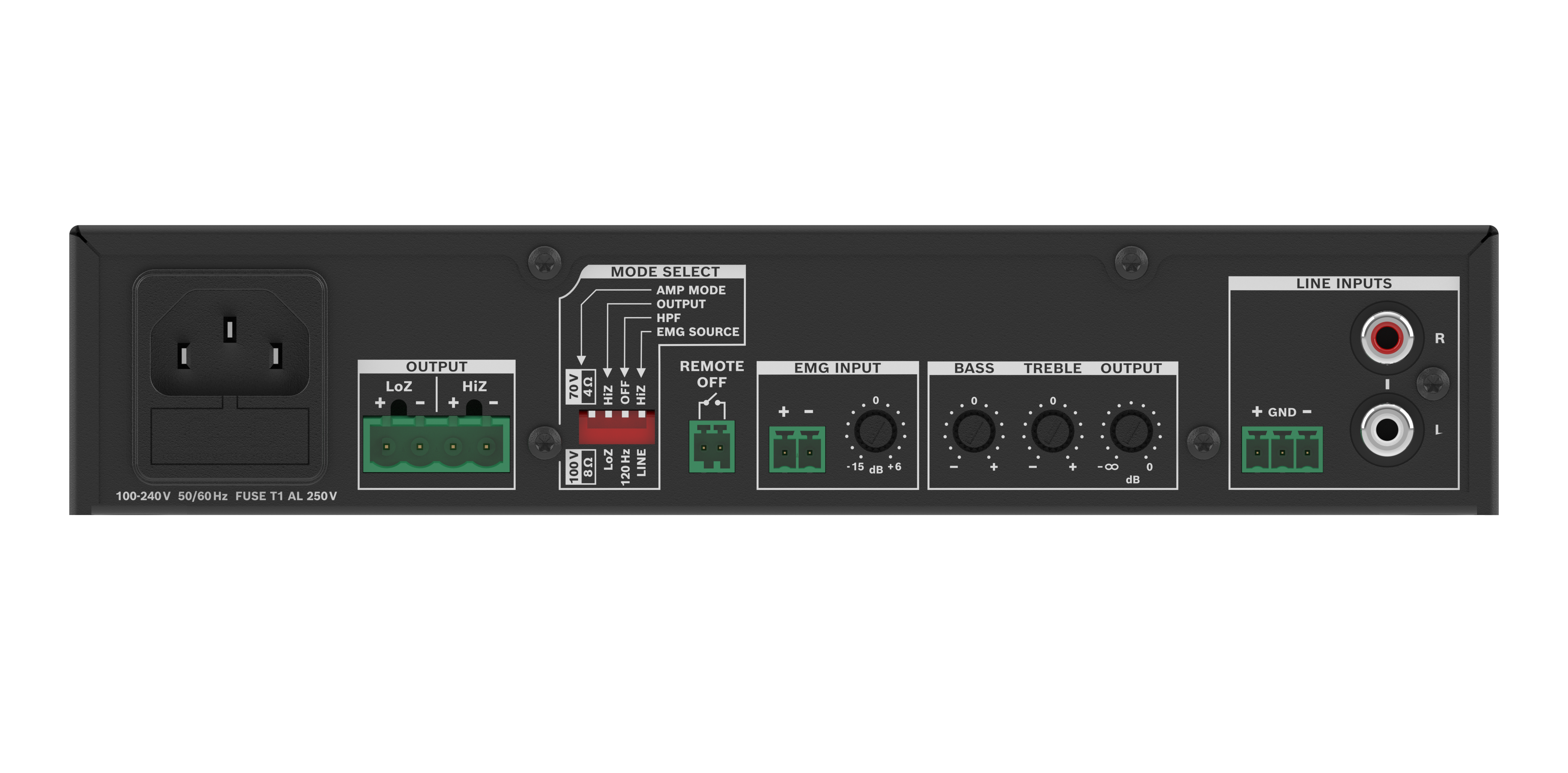

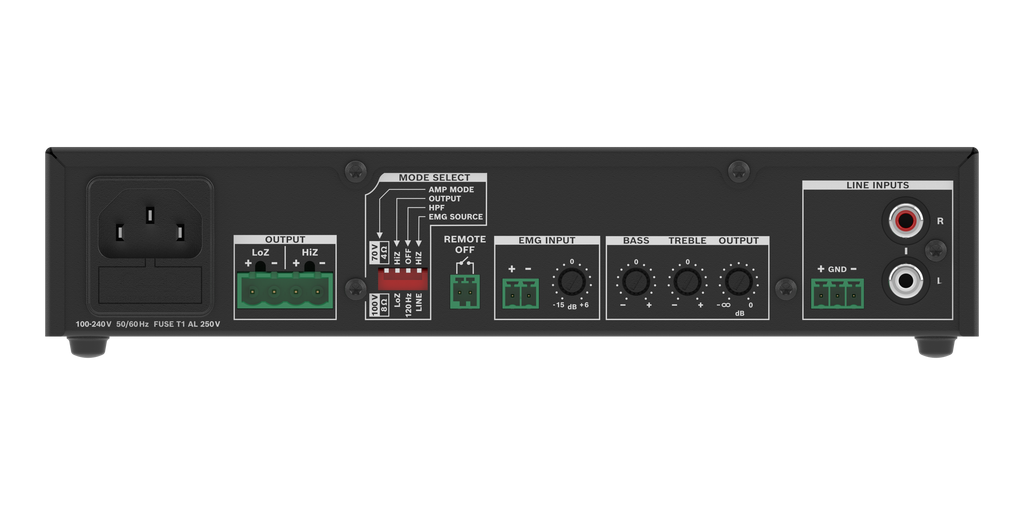

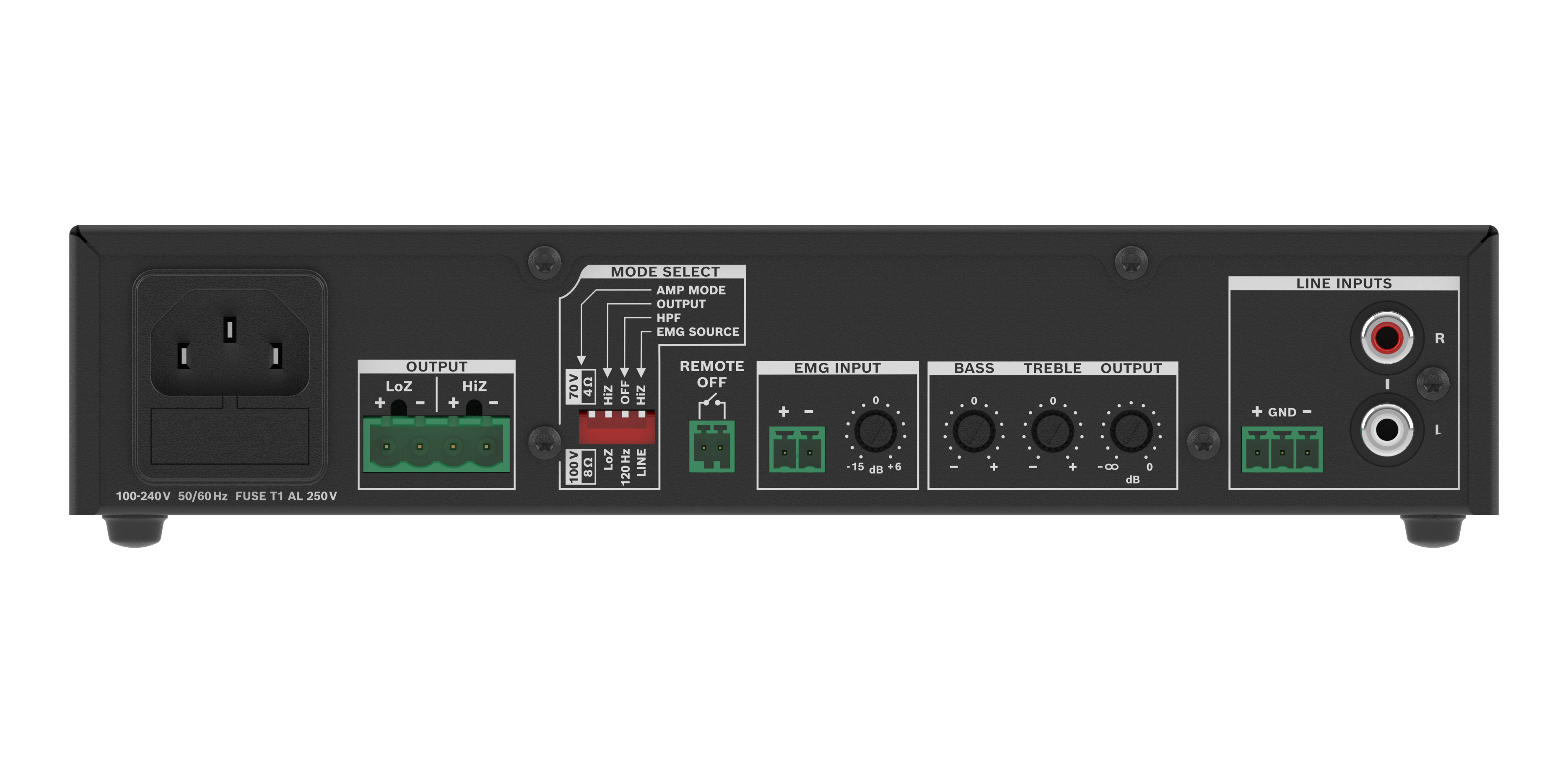

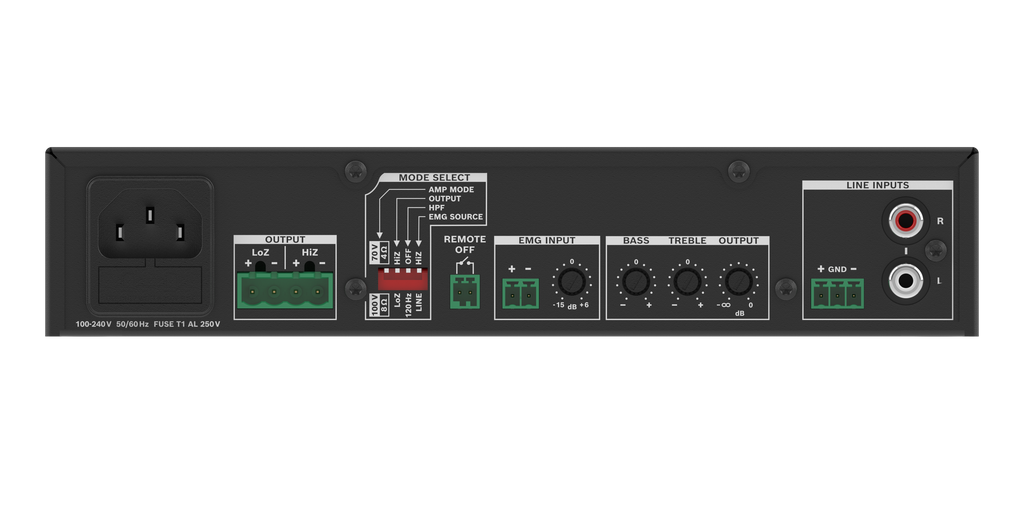

DIP switches	EMG (HiZ/Line level), HPF (120 Hz), Output (HiZ/LowZ), Amp mode (70 V/100 V; 4Ω/8Ω)
Protections Amplifier	Audio limiters, high temperature, DC, HF, short circuit, over current protection
Switching mode power supply (µPC controlled)	Mains over/under voltage protection, inrush current limiter, mains over current, high temperature
Remote power OFF	Contact closure

SKU	U120:1-US
