Specifications

Product Structure Characteristics

Product Specification:

Conductor Specification: 4×2×0.22 mm² / 24 AWG

Conductor Structure: OFC 7/0.20BC (Oxygen-Free Copper)

Insulation Material: FPE (Foamed Polyethylene)

Insulation Color Outer Diameter:

BU / BU-WH (Blue / Blue-White)

OG / OG-WH (Orange / Orange-White)

GN / GN-WH (Green / Green-White)

BN / BN-WH (Brown / Brown-White)

Insulation Outer Diameter**: 1.00 mm

Shield Structure: 16/10/0.10TC (Tinned Copper) with 92% coverage

Outer Jacket Material: TPU (Thermoplastic Polyurethane)

Outer Jacket Color: Black (BK)

Outer Diameter: 6.6 ± 0.4 mm

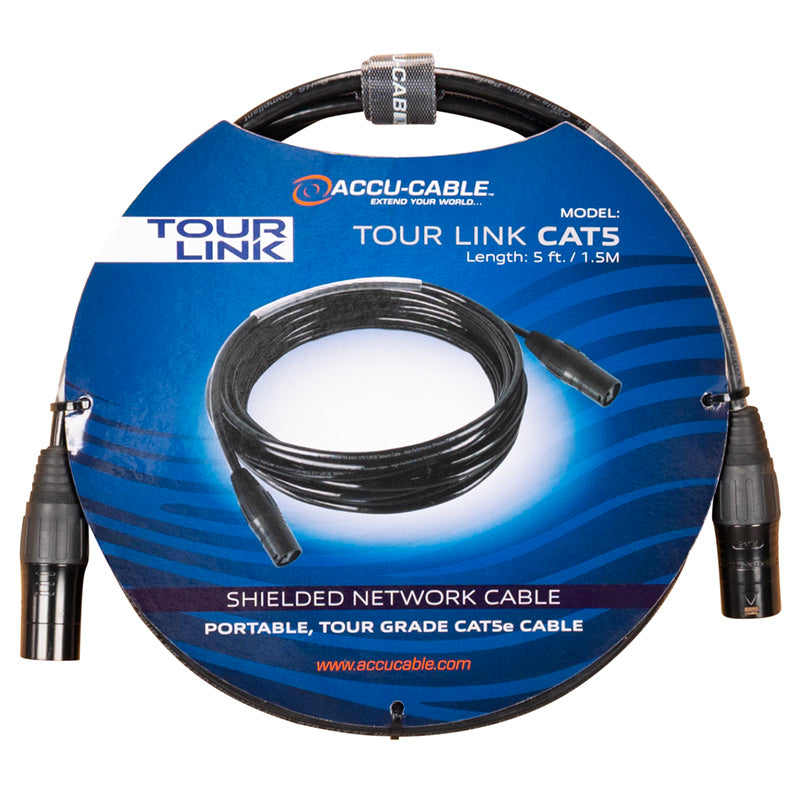

Cable Printing: TOUR LINK 4X2X0.22mm (24 AWG) STP CAT.SE Network Cable - High Performance Shielded Cable - RoHS Compliant

Electrical and Mechanical Characteristics

Withstand Voltage: 0.5 kV

Conductor Resistance (max. at 20°C): 93.8 Ω/km

Capacitance between Conductors: 60 pF/m

Impedance: 100 Ω

Temperature Range: -20°C to +60°C

Specifications are subject to change without notice.
