Specifications

Conductor:

• Type: 2x2x0.34mm²/22AWG Oxygen-Free Copper (OFC)
• Configuration: 19 strands of 0.15mm Tinned Copper (TC)

Conductor Insulation:

• Material: High-Density Polyethylene (HDPE)
• Thickness: 1.25mm

Braided Shield:

• Material: Oxygen-Free Copper (OFC) and Aluminum (AL) combination
• Structure: 16 strands of 0.10mm Tinned Copper (TC) and 100% Aluminum coverage

Jacket:

• Material: Thermoplastic Polyurethane (TPU)
• Outer Diameter: 6.4mm
• TPU jacket ensures durability, flexibility, and protection against physical stress.

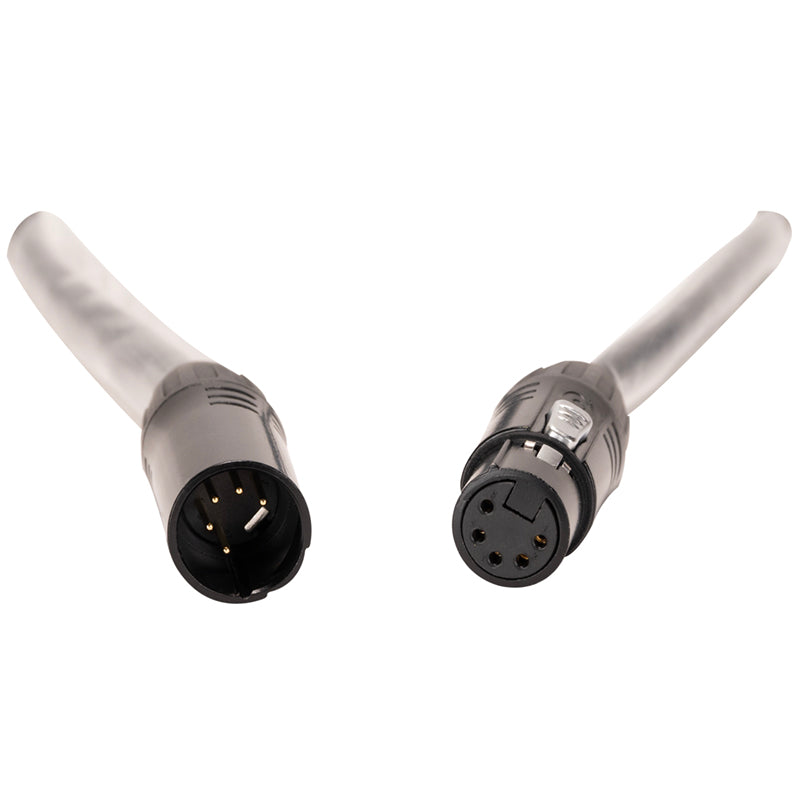

Connector:

• Type: SCMM5-BG (ACCU) at one end- Type: SCMF5-BG (ACCU) at the other end
• These connectors are precision-engineered to guarantee a secure and interference-free connection.

Additional Features:

• Each end is equipped with a 3.5" clear heat shrink tube, offering strain relief and added protection to the connectors.
• The cable is neatly packaged with a paper card for easy identification and comes with a Velcro strap for convenient cable management.

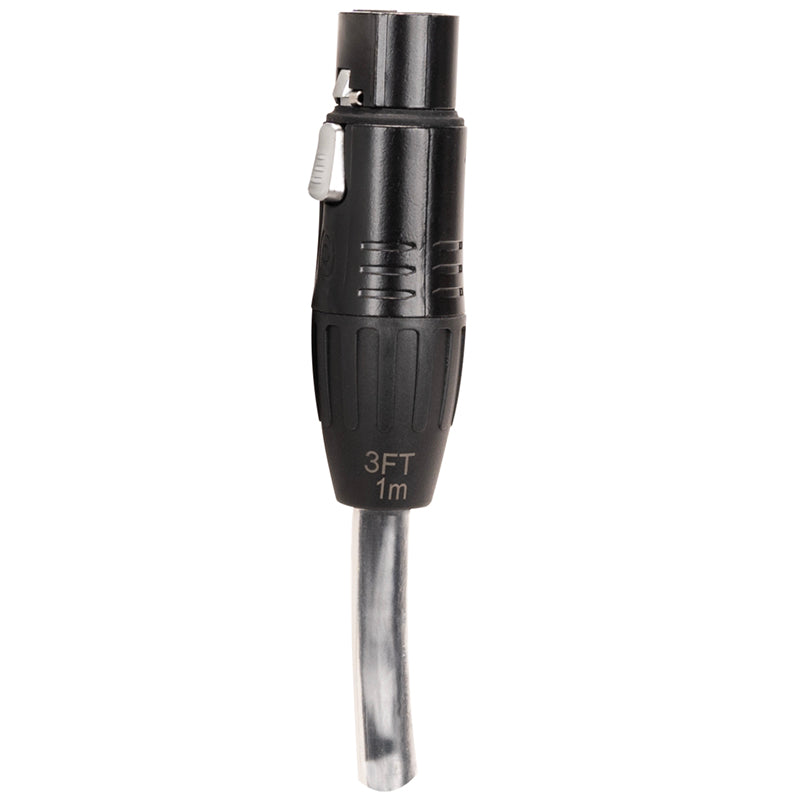

• Laser engraved with 3FT / 1M on the connectors to easily identify the length of the cable.

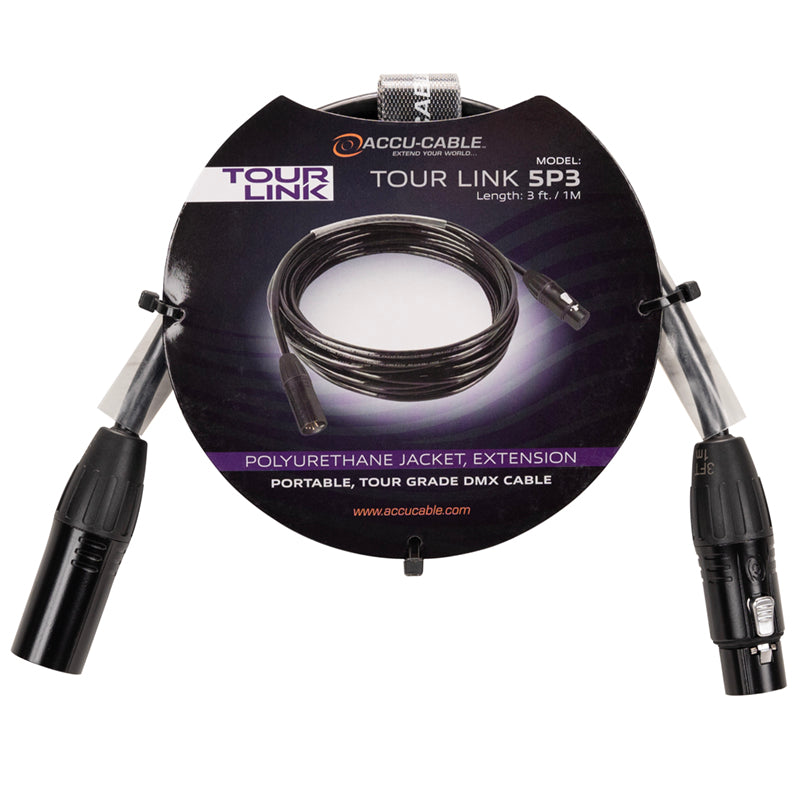

Packaging:

• Your DMX cable is elegantly presented with a paper card for quick and easy identification.
• The included Velcro strap makes it a breeze to organize and store your cable when not in use.

Specifications Subject to change without notice
