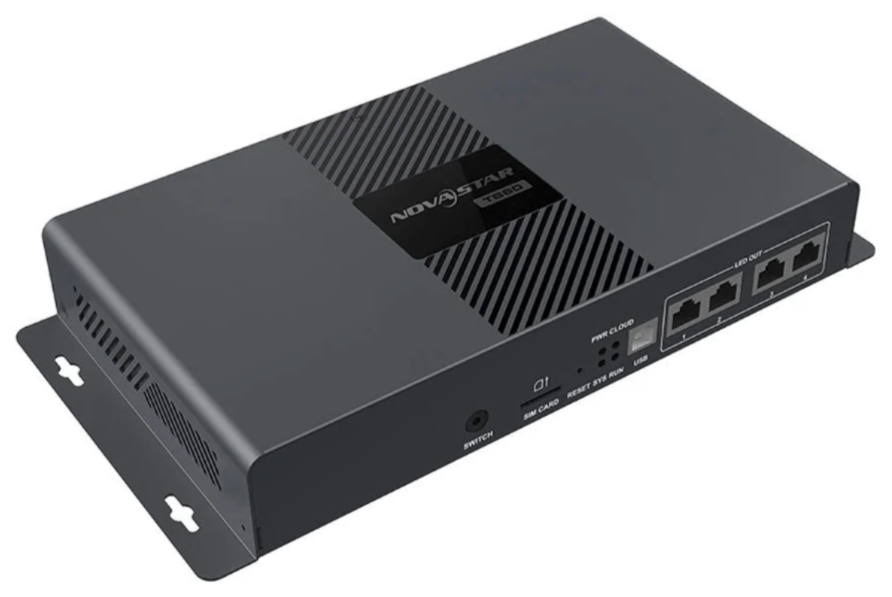

The NovaStar TB30 is a third-generation multimedia player and LED controller designed for full-color LED displays. It integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with NovaStar's cloud-based publishing and monitoring platforms, the TB30 enables users to manage LED displays from an Internet-connected device anywhere, anytime .​

Specifications

Processor:

Quad-core ARM Cortex-A55 CPU

Memory:

2GB RAM

Storage:

16GB eMMC internal storage

Operating System:

Android-based system

Control Methods:

LAN, Wi-Fi

Video Outputs:

2x Gigabit Ethernet ports for LED screen control

Loading Capacity:

Up to 650,000 pixels (maximum width 4096 pixels, maximum height 1920 pixels)

Supported Media:

Images, videos, audio files, text, and office documents

Synchronization:

Frame synchronization supported for multiple players

Content Management:

Remote publishing and monitoring via NovaStar VMP software or cloud platform

Interfaces:

1x HDMI output (for real-time monitoring)

2x USB 2.0 ports

1x Audio output (3.5mm jack)

Intelligent Features:

Scheduled content publishing

Device monitoring and reporting

Operating Temperature:

• 20°C to +60°C

Power Supply:

DC 12V

Certifications:

CE, FCC, RoHS

Specifications are subject to change without notice.
