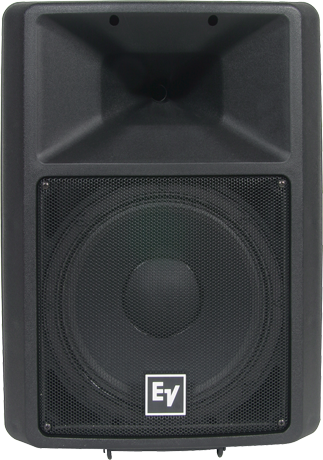

Electro-Voice SX100+E

Electro-Voice SX100+E – 12" passive loudspeaker

Electro-Voice SX100+E – 12" passive loudspeaker

$949.00

$949.00 $1,241.00

Electro-Voice

SX100+E – 12" passive loudspeaker

Overview

12" passive loudspeaker

Highlights

✓Compact, portable sound reinforcement
✓Ideal for live sound, speech, DJ, AV, institutional use
✓1.25-inch DH3/2010A titanium HF compression driver
✓65º x 65º Constant-directivity Varipath horn
✓High efficiency, 127 db maximum SPL
✓Power handling: 200 W continuous, 800 W peak
✓Ring-Mode Decoupling (RMD) for increased intelligibility
✓Trapezoidal black or white copolymer enclosure

Specifications

Freq. Response (-10 dB)	60 Hz - 25 kHz
Sensitivity	98 dB
Max SPL	127 dB
Specifications Impedance	8 ohms Nominal, 5.6 ohms Min.
Horizontal Coverage	65°
Vertical Coverage	65°
Power Handling	200W Continuous, 800W Peak
LF Transducer	"12" (300mm)"
HF Transducer	"1" (25mm) exit DH3 Comp. Driver"
Connectors	Neutrik Speakon ®
Enclosure Material	Copolymer
Grille	Powder Coated Steel
Dim (H x W x D)	23.1" x 16.9" x 12.3" (586 x 429 x 312mm)
Net Weight	32 lbs (14.5 kg)
Shipping Weight	35 lbs (15.9 kg)

Product identifiers

SKU	SX100+E
