Specifications

Light Source:

• 6 x 40-Watt Quad (RGBW) LEDs

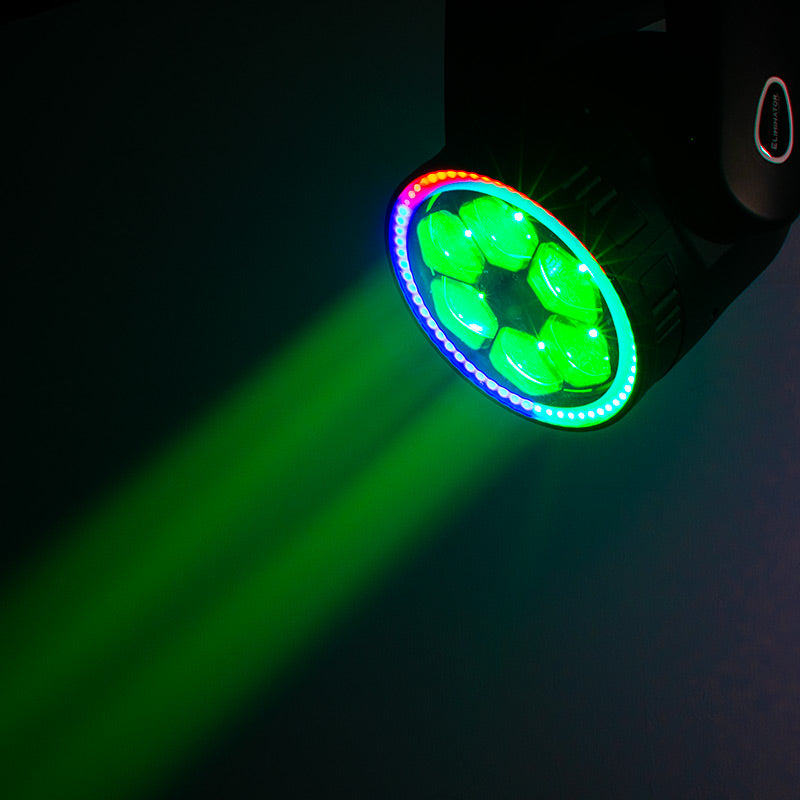

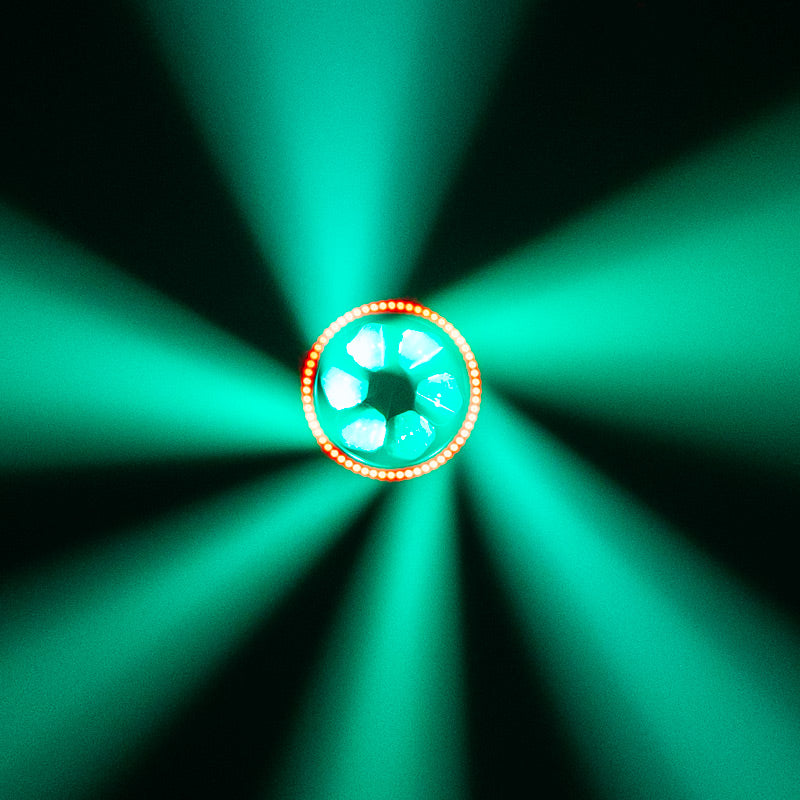

• LED Ring: 60 x .5-Watt RGB LEDs

Features:

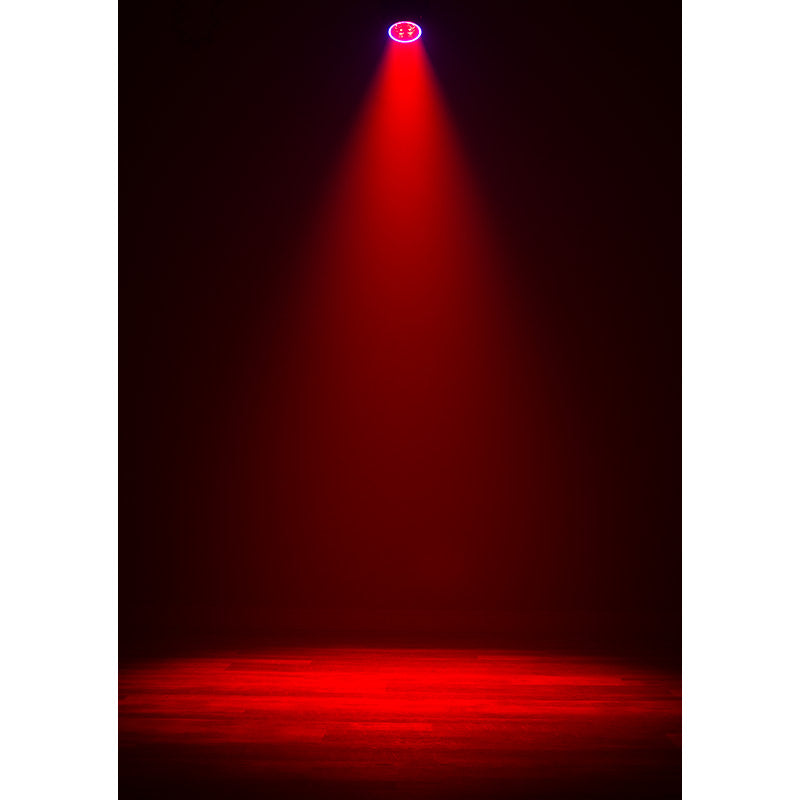

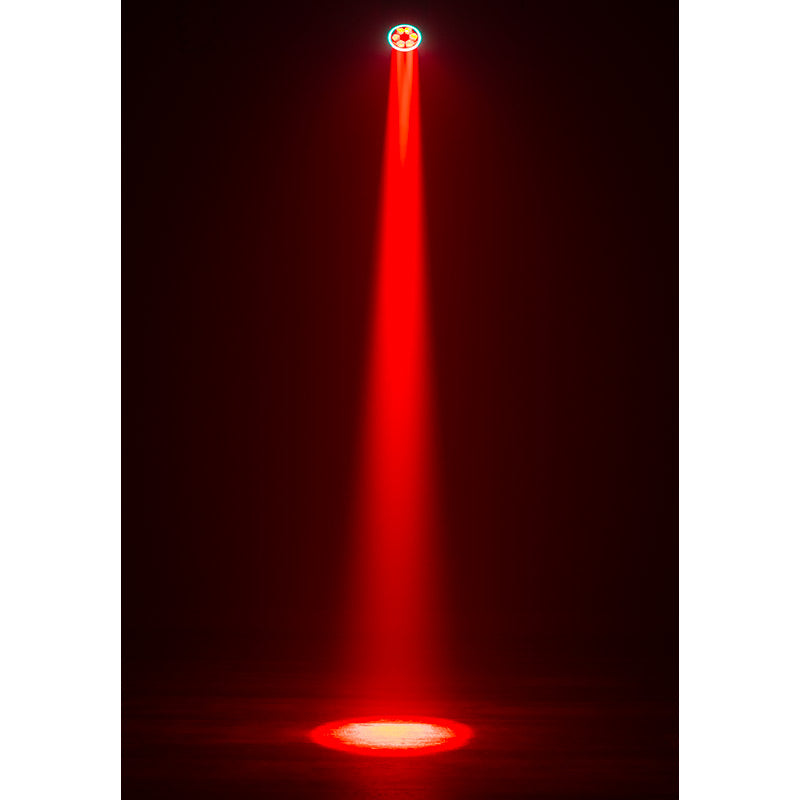

• Motorized Zoom: 4 ~ 55-degrees
• Create eye candy effects with LED Ring

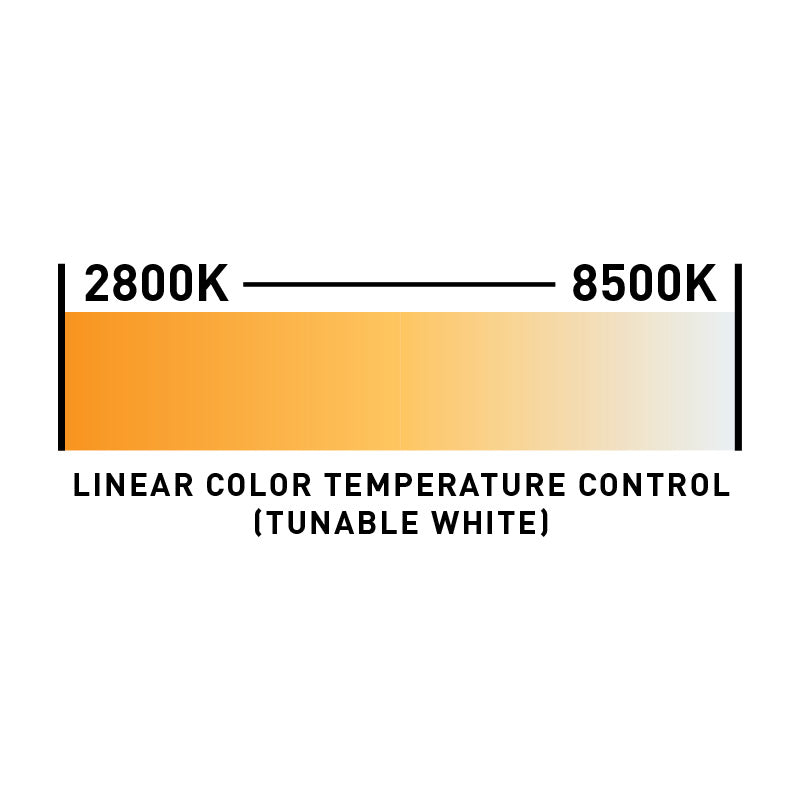

• Variable White Color Temperatures: 2800K – 8500K
• Built-in Color Macros Effects
• 0-100% smooth dimming
• Variable speed strobe effect
• Fast, precise, pan tilt movements

Control:

• DMX Channel Modes: 20 or 26 channels
• Operational Modes: DMX512 / Primary-Secondary / Auto Run / Sound / RDM
• LCD Menu Display

Connections:

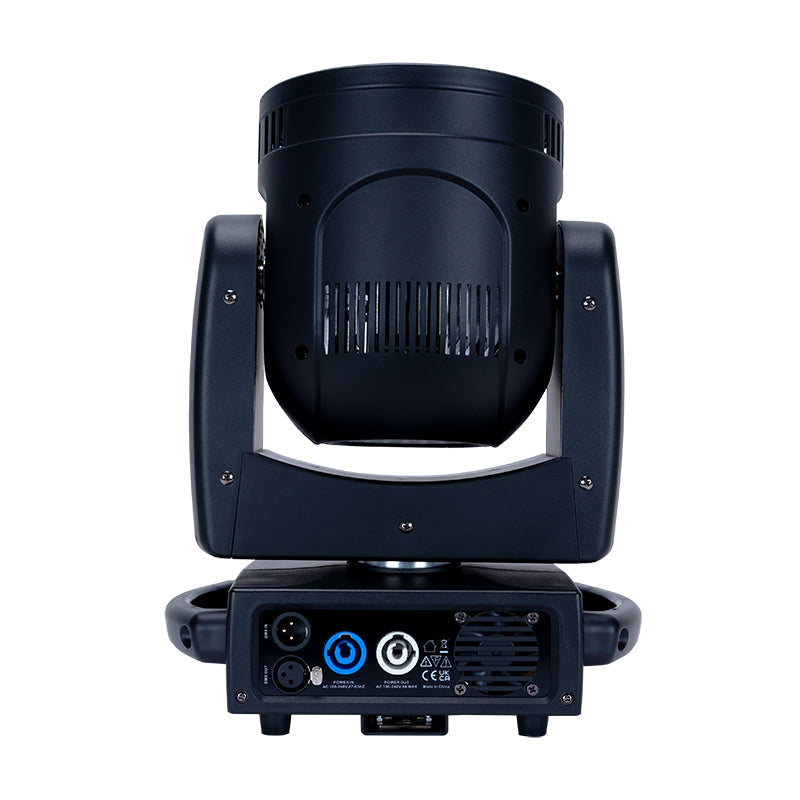

• 3-pin DMX In/Out
• Locking Input Output connections to daisy chain power

Pan/Tilt:

• Pan: 540°
• Tilt: 190°
• 16-bit Fine Pan
• 16-bit Fine Tilt

Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz
• Maximum power draw: 260-Watts

Dimensions Weight:

• Dimensions (LxWxH): 7.1” x 11.5” x 14.5” / 1805x292x369mm
• Center-to-Center Spacing: 13.5" / 342mm
• Weight: 16.5 lbs. / 7.5 kg.

Approvals / IP Rating:

• CE
• cETLus (Control # 5027824)
• IP20
• FCC

Specifications are subject to change without notice.
