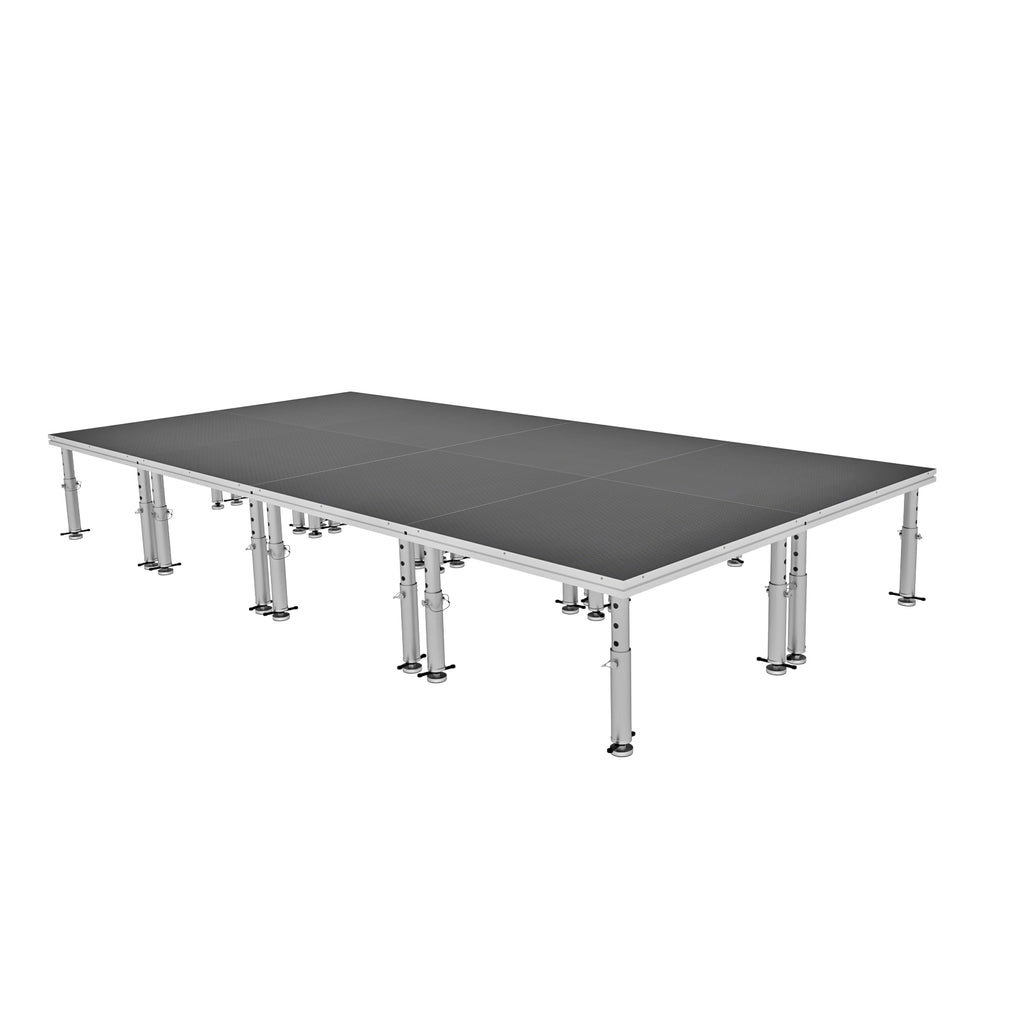

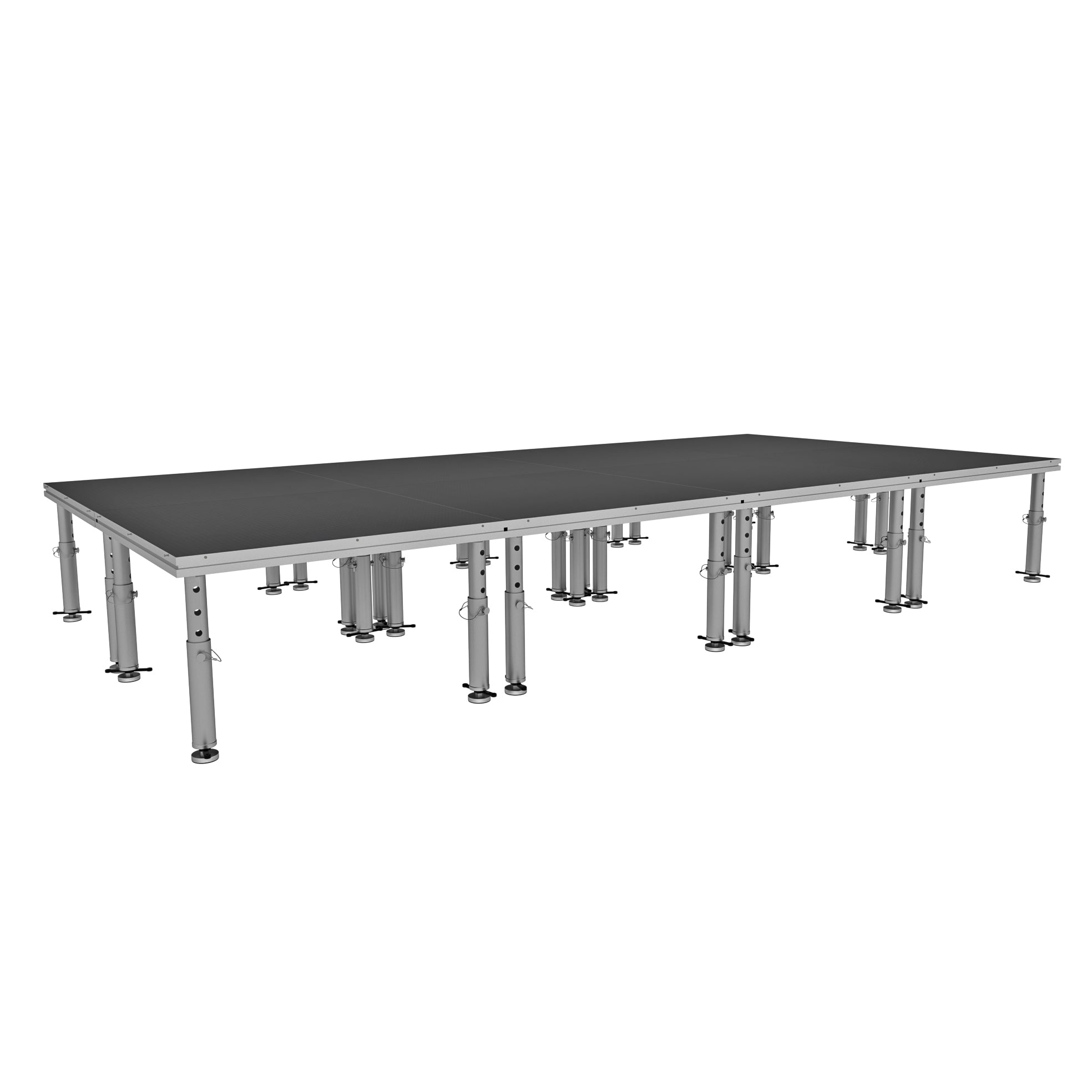

The ProX StageOne™ XSU-8X16PKG is a complete single-stage platform designed for durability and long-term use. This package includes 8 StageOne™ 4 ft x 4 ft decks, forming an 8 ft x 16 ft stage & comes complete with 6 Adjustable, 16–22 inch legs per stage deck. These platforms are ideal for Mobile DJs, Small Clubs, Party Rentals, Churches, Schools, and more.

Portable and Versatile
Designed for adaptability, these stage platforms are a practical solution for small venues and both indoor and outdoor events. Telescoping legs adjust from 16" to 22" in height and feature an integrated security pin and cable system to lock each leg firmly in place. Each leg also includes a twist-adjustable foot, adding up to 2 extra inches of height—reaching a total elevation of 24". The extended foot design provides enhanced stability on uneven surfaces, making these stages ideal for mobile, modular, or temporary setups.

Signature Protection
ProX stage platforms feature the Signature Honeycomb Digital™ Surface, constructed with a rugged, hexagonal-patterned High-Pressure Laminate (HPL) top that delivers superior grip and durability. Built for both indoor and outdoor environments, each unit is supported by adjustable telescoping legs secured with a locking pin system. Precision leveling rubber feet allow for micro-adjustments on uneven terrain, ensuring a secure and level stage every time.

Specifications
- 47.25" x 47.25" Modular Section
- 5/8" (16 mm) Plywood (Zero Voids)
- Support 800 lbs. per 4' x 4' , evenly distributed

Package includes
(8) StageOne XSU-4X4 Stage Deck Unit(s)
(32) StageOne 16-22" Telescoping Legs
(16) StageOne Stage Security Clamps
(8) Deck Leveling Clip

• Package Includes:
  8 StageOne™ 4' x 4' platforms with telescoping legs

• Stage Size:
  Total assembled size: 8 ft. x 16 ft.

• Platform Material:
  High-Pressure Phenolic Laminate (HPL) over honeycomb core

• Legs:
  Adjustable telescoping legs, 16"–22" height range (24" fully extended)

• Deck Surface:
  15mm exterior-rated plywood with virtually zero voids

• Surface Finish:
  Non-slip, black textured HPL laminate top

• Frame Construction:
  Aluminum frame with reinforced corners and cross profiles

• Locking System:
  Clamp and leveler create a monolithic, flush stage surface

• Support System:
  Four-corner leg support for fast and secure setup

• Tool-Free Assembly:
  Quick and easy setup by one person. No tools required

• Riser Expansion:
  Compatible with additional leg systems for taller risers (sold separately)

• Warranty:
  Covered by ProX One-Year Limited Warranty
