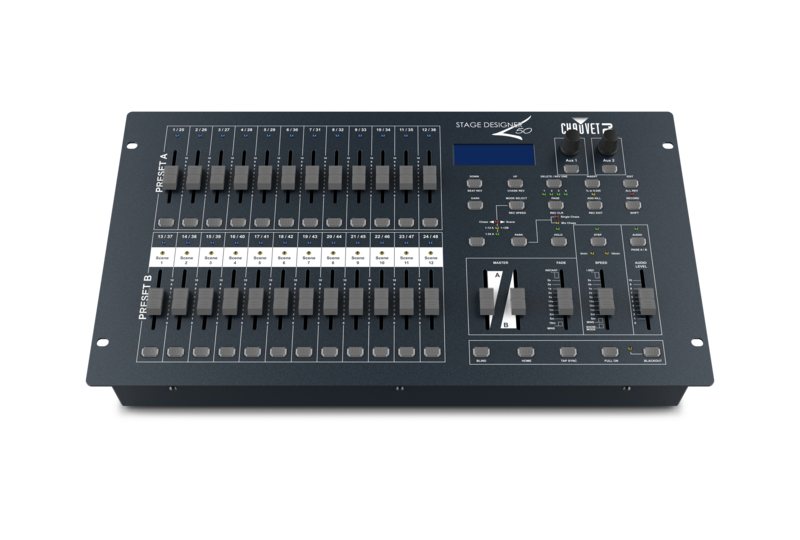

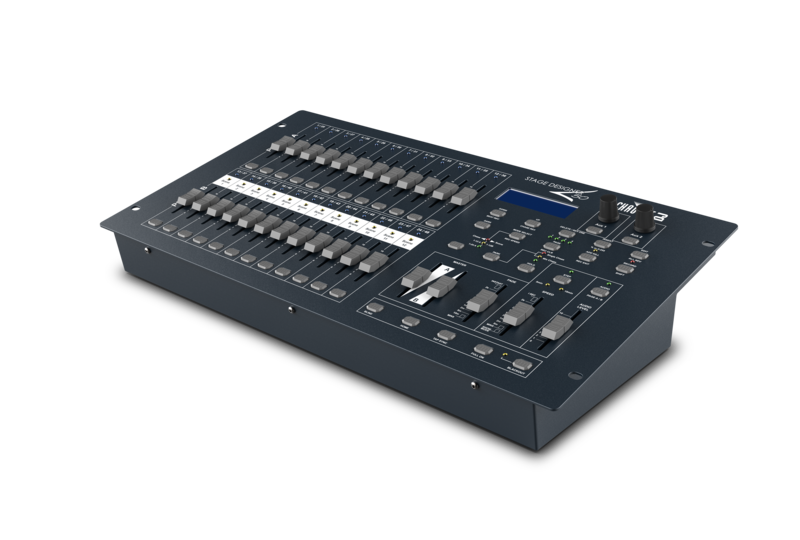

Stage Designer 50
The Stage Designer 50 takes the size of a 24-channel dimming console and the functionality of a 48-channel console and combines the two into one powerful…
Product Overview
The Stage Designer 50 takes the size of a 24-channel dimming console and the functionality of a 48-channel console and combines the two into one powerful dimming unit. The Stage Designer 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.
Product Features
- Theater-style, DMX controller designed to control LED Par fixtures as well as relay and dimmer packs
- Saves desk space by squeezing 48 channels into a 24-channel console
- Achieve smooth transitioning between live stage looks with built-in, two-scene cross faders
- Increase programming and playback versatility with two programmable auxiliaries
- Simplify programming by using DMX channel patching to reassign channels
- Increase flexibility with built-in MIDI support for remote dimming and scene triggering
- Coordinate your light shows to music using the direct audio input connector or built-in microphone
- Ability to stack scenes for simultaneous or sequential playback
Specifications
DMX Channels
48
DMX Connectors
3- and 5-pin XLR
Input Voltage
9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
Weight
9.9 lb (4.5 kg)
Size
19 x 10.5 x 3.5 in (483 x 267 x 89 mm)
Approvals
CE
Rackmount
6U
What's Included
Power cord
User manual
Warranty card
External power supply
