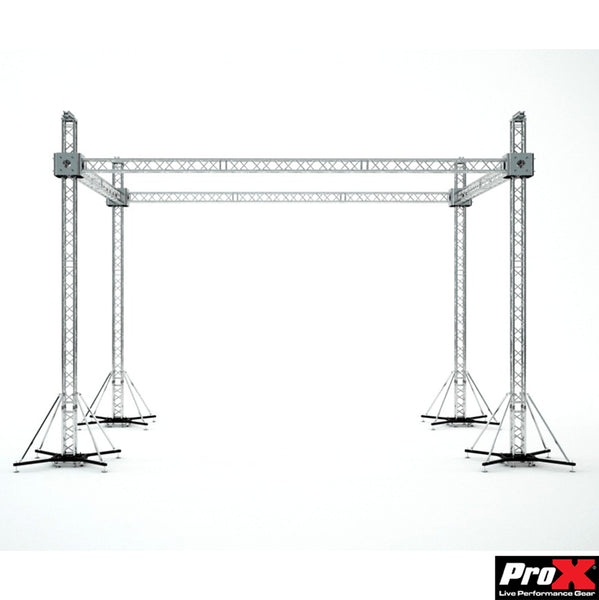

Stage Flat Roofing System Package With 4 Chain Hoists | 30 Ft W x 20 Ft L x 23 Ft H

• 18 Pcs  XT-SQ984  9.84 Ft Truss Segment
• 4 Pcs  XT-SQ328  3.28 Ft Truss Segment
• 4 Pcs  XT-GSB MK2  Rigger Base, with extending legs
• 16 Pcs XT-GSOUT3  3' Outrigger Brace Tubes  with clamps
• 4 Pcs  XT-BLOCK  Sleeve Block 4-Way Junction box
• 4 Pcs  XT-TOPCM  Truss Top with I-Beam mount with chain Pulley wheels
• 16 Pcs  XT-HINGE   Hinge block set
• 2 Sets XT-MCH1TX2-30FT  Pair of 1 Ton Manual Chain Hoists W/30 Ft (9 M) Chain

ProX XT-SQ series trussing is a rugged and durable trussing package solution.  Perfect for live outdoor or indoor productions, exhibitions,  as well as nightclubs, and other permanent installations. ProX Live Performance Gear® offers a wide variety of single tubes, mounting plates, clamps and accessories that allow limitless design configurations to suit your needs.  Always consult an engineer for complex designs!

ProX XT-SQF34 2MM SERIES DIMENSIONS:

• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb/9,5kg per 3.28 ft / 1 meter
• Main Tube: 2in / 50mm
• Wall Thickness:  .08in / 2mm
• Braces: .75in / 20mm

IMPORTANT:  Always know your load weight for your equipment: XT-SQ Truss Loading Chart

WARNING: All ProX products are made with the highest safety standards with TUV certified welding. For the safety of your people, event, and equipment, it is crucial to have a professional rigger install and verify the truss loading chart before use. Improper installation may result in damage or injury. The ballast and the guy wire assembly must be installed per the engineering drawings to meet certification requirements. ProX is not responsible for damages caused by misuse or improper installation. Don't compromise on safety, hire a professional rigger.

• Manufactured to Exacting Specifications in our Own Factory!
• Tolerance Free Standard Conical Connectors
• Truss Main Tube Wall Thickness of .08in / 2mm
• Load Capacity is 1 Ton (2000 lbs) per corner lift unit (4 tons total weight including truss)
• Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
• TUV Certified Aluminium/Steel Welding

TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX Truss products utilize industry standard dimensions to be compatible to connect to/ and work with many other manufacturers' F34 trussing products with conical connectors.
