SIP20MPC

$35.00 $31.50

Moulded Locking IP20 fixture side connector to 120V, IP20 male Edison plug. Specifications Contacts: 2+PE Rated Current: 15A Rated Voltage: 250V AC Contact Resistance: ≤5mΩ Dielectric Strength: 4000V DC Insulation Resistance: >1000MΩ Sevice Life: >1000 Mating Cycles Shell: PA Contacts: Cu Alloy Contact Surface Ag Ingress Protection: IP20 Flame-retardant Grade"...

Product Description

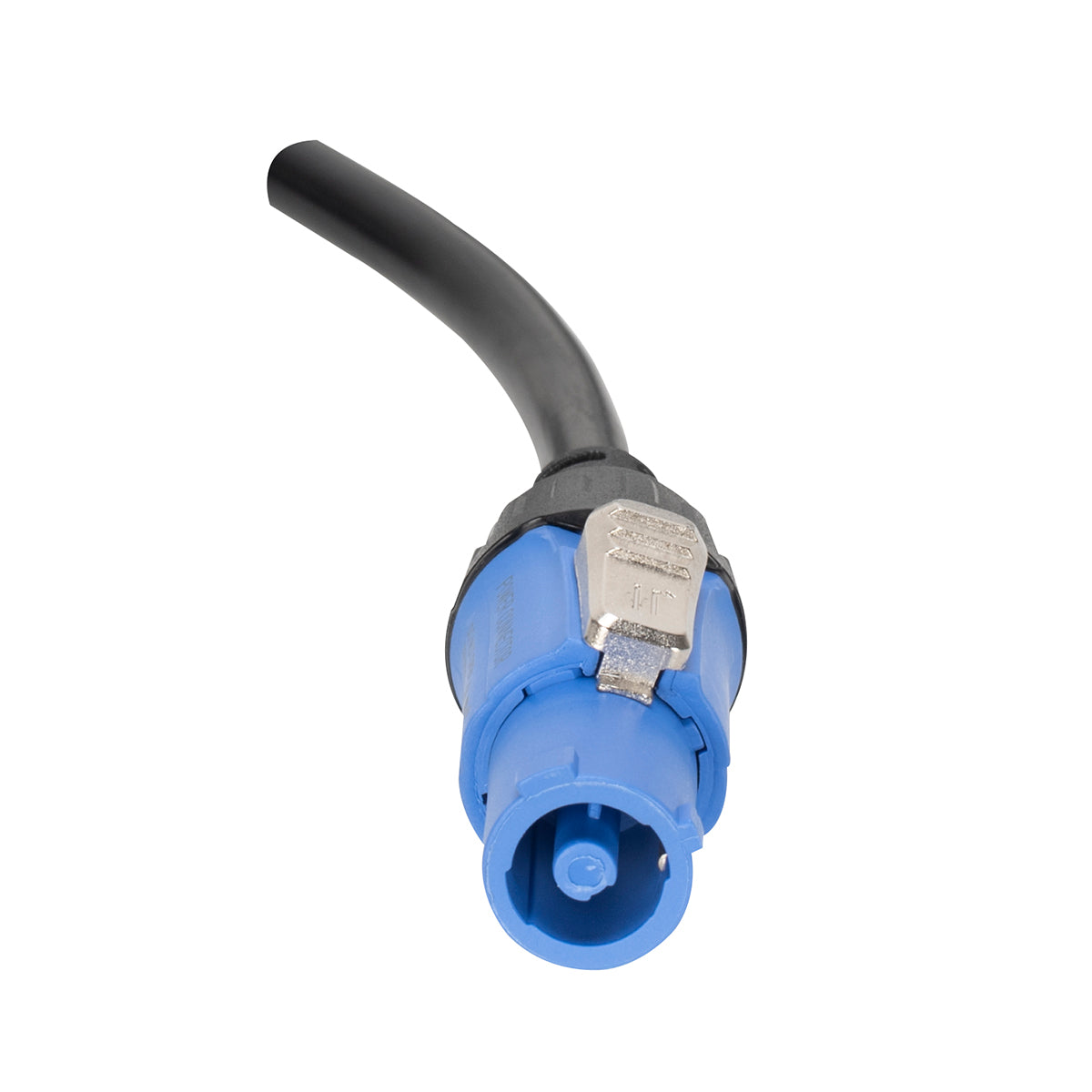

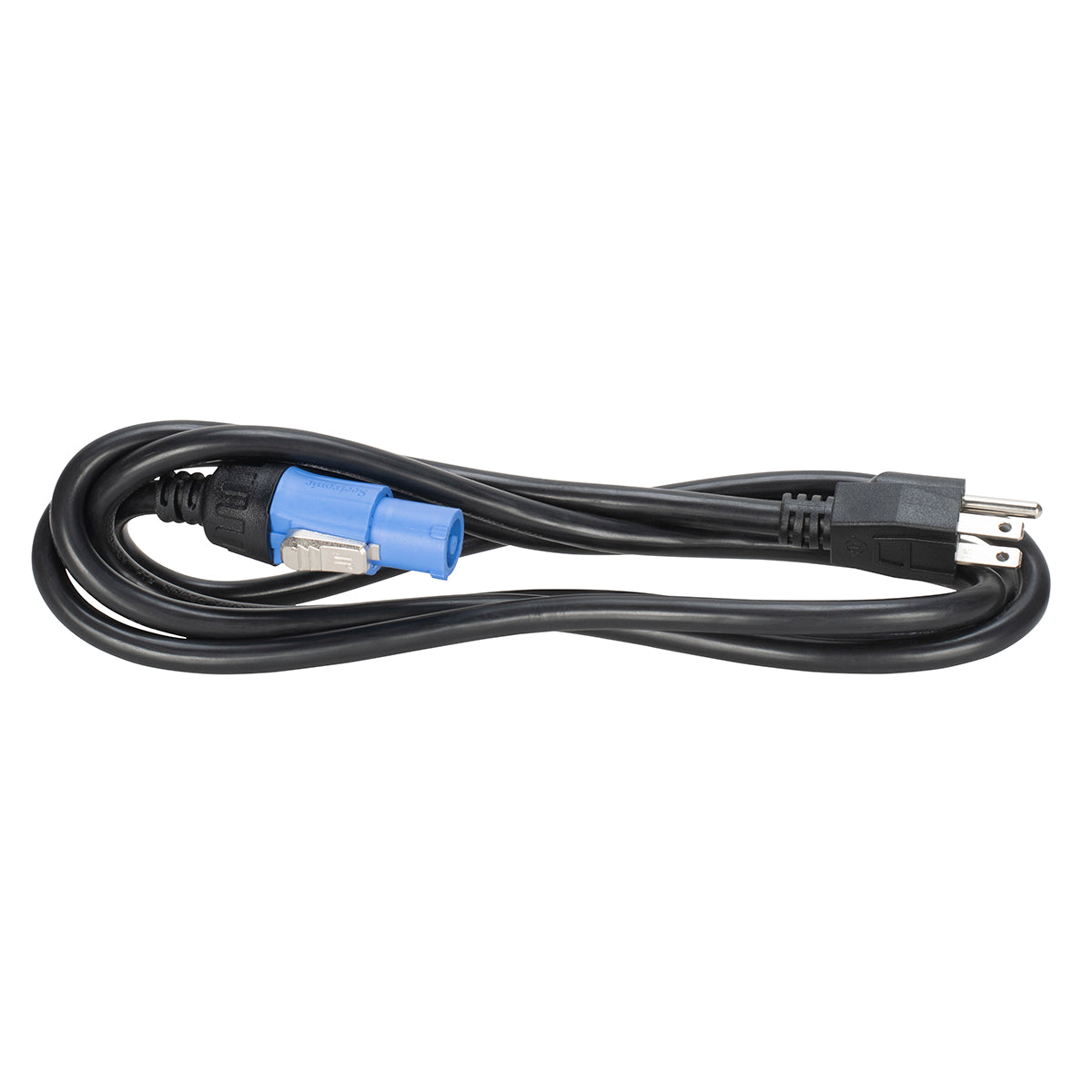

Moulded Locking IP20 fixture side connector to 120V, IP20 male Edison plug.

Specifications

Contacts: 2+PE

Rated Current: 15A

Rated Voltage: 250V AC

Contact Resistance: ≤5mΩ

Dielectric Strength: 4000V DC

Insulation Resistance: >1000MΩ

Sevice Life: >1000 Mating Cycles

Shell: PA

Contacts: Cu Alloy

Contact Surface Ag

Ingress Protection: IP20

Flame-retardant Grade" UL94-V0

Temperature Range: -22F to 176F (-30C to +80C)

Standard: IEC61984
