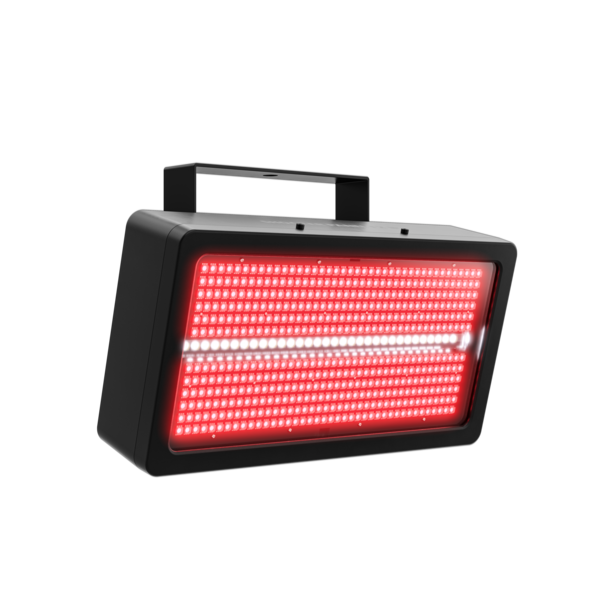

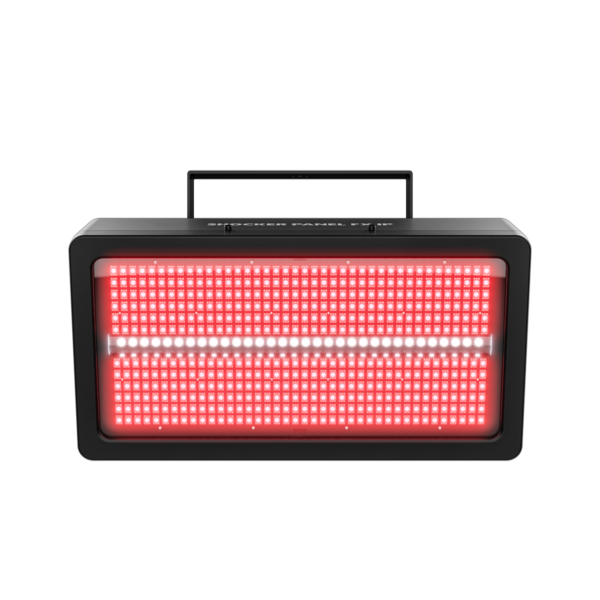

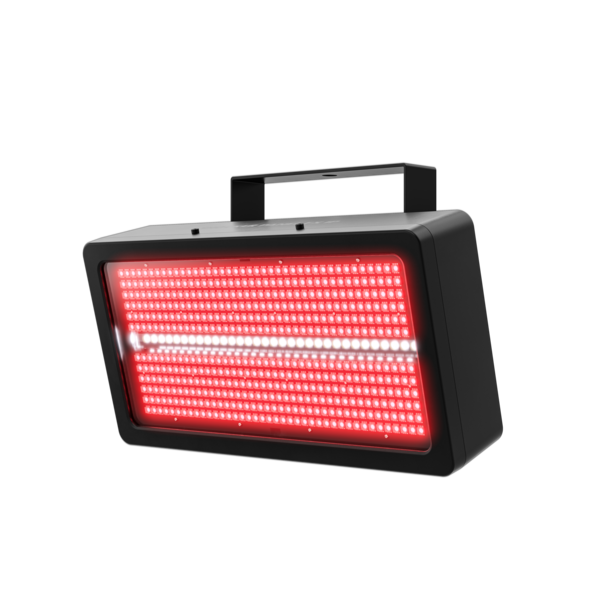

Shocker Panel FX IP

Shocker Panel FX IP is an outdoor-rated blinder, wash, and strobe light built for high-impact visual effects in demanding event environments. With compelling eye-candy effects, rugged IP66 protection, and flexible section control, this fixture is ideal for outdoor stages, mobile productions, festivals, attractions, and event lighting setups that need powerful strobe and wash looks.

Sixteen controllable sections, including 8 RGB sections and 8 cool white sections, give programmers creative flexibility for dynamic chases, blinder hits, strobe looks, and built-in macros. Neutrik TRUE1 power input and output connections help save setup time while maintaining water resistance, and the robust housing is designed to repel the elements in outdoor situations.

Highlights

• Outdoor-rated versatile blinder, wash, and strobe light with eye-catching effects
• IP66-rated housing helps protect the fixture in outdoor environments
• 16 controllable sections: 8 RGB sections and 8 cool white sections
• Neutrik TRUE1 power input and output connections help save setup time while maintaining water resistance

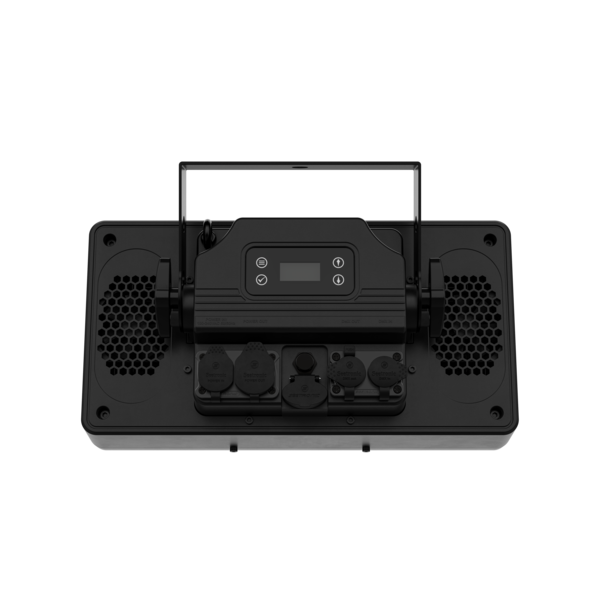

• Password-protected, touch-sensitive digital display
• Built-in macros can be triggered from the display or via DMX
• Integrated GORE valve allows the fixture to breathe and helps prevent internal humidity build-up
• Fits in the optional CHS-25 VIP gear bag for easier transport

Specifications

• DMX Channels: 8, 18, 34, or 47
• DMX Connectors: 3-pin XLR
• Light Source: 480 tri-color RGB LEDs, 2 W, 50,000 hours life expectancy
• Light Source: 32 cool white LEDs, 1.8 W, 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 119°
• Field Angle: 158°
• Illuminance: 1,131 lux @ 2 m
• Lumens: 13,626
• IP Rating: IP66
• Startup Temperature: -4°F to 113°F / -20°C to 45°C
• Operating Temperature: -22°F to 113°F / -30°C to 45°C
• Cable Length: 5 ft / 1.5 m
• Power and Current: 238 W, 2 A @ 120 V, 60 Hz
• Power and Current: 231 W, 1 A @ 230 V, 50 Hz
• Power Linking: 6 units @ 120 V; 11 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz, auto-ranging
• Weight: 10.4 lb / 4.7 kg
• Size: 12.9 x 5.1 x 6.8 in / 330 x 130 x 173 mm
• Approvals: CE, RoHS, MET
