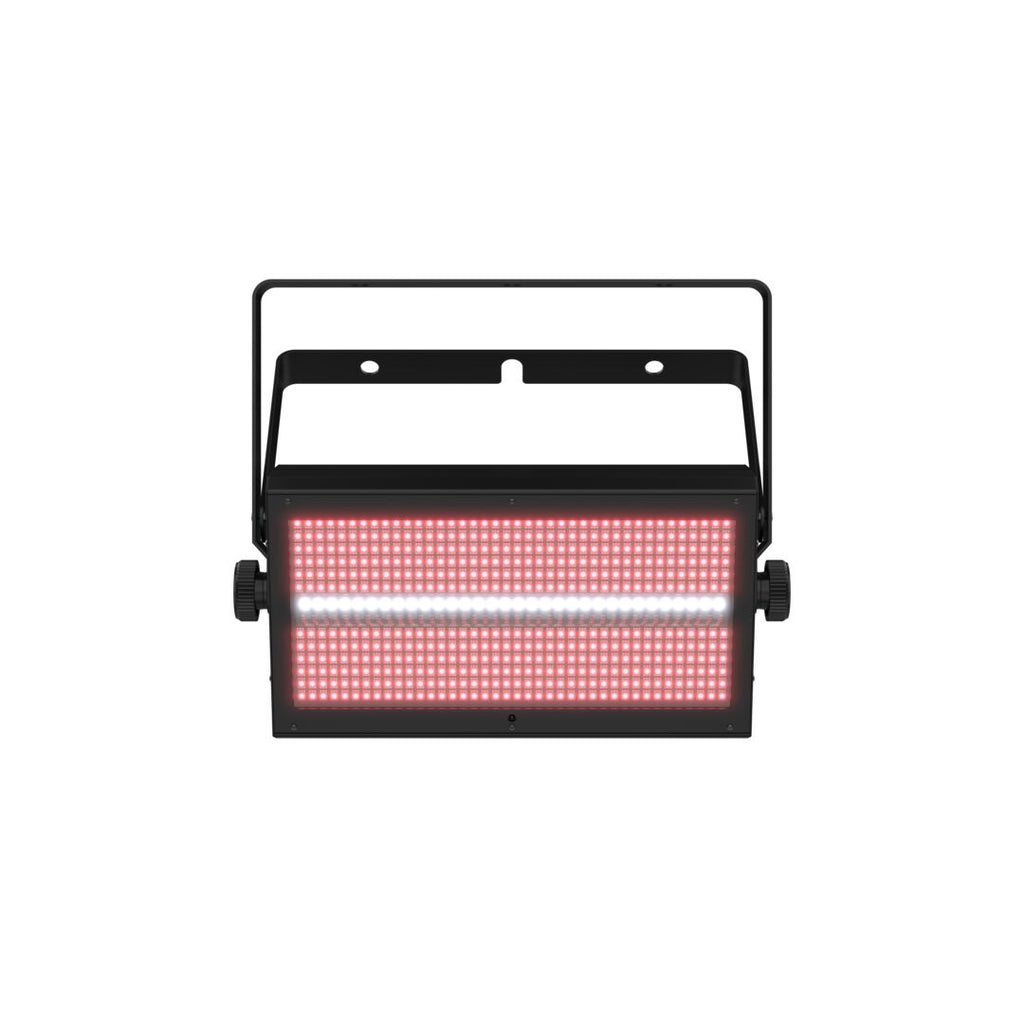

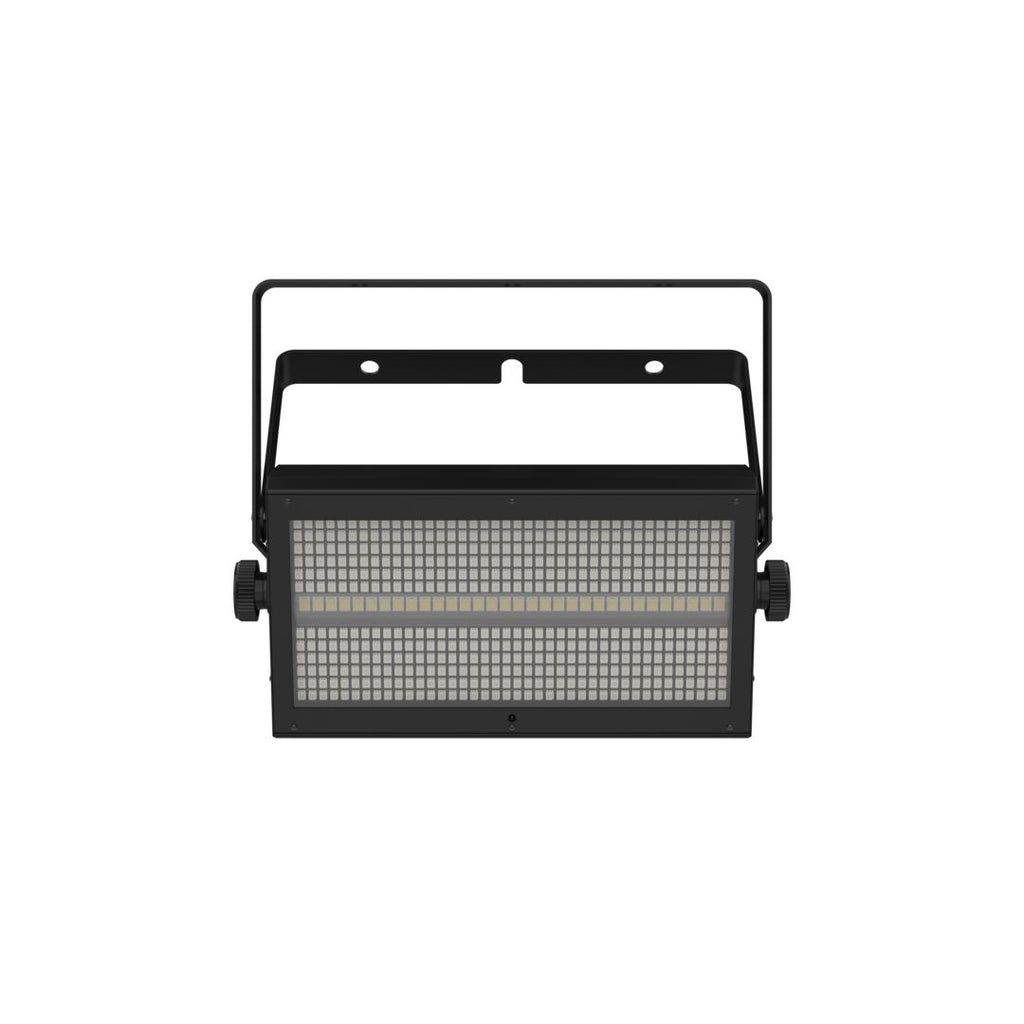

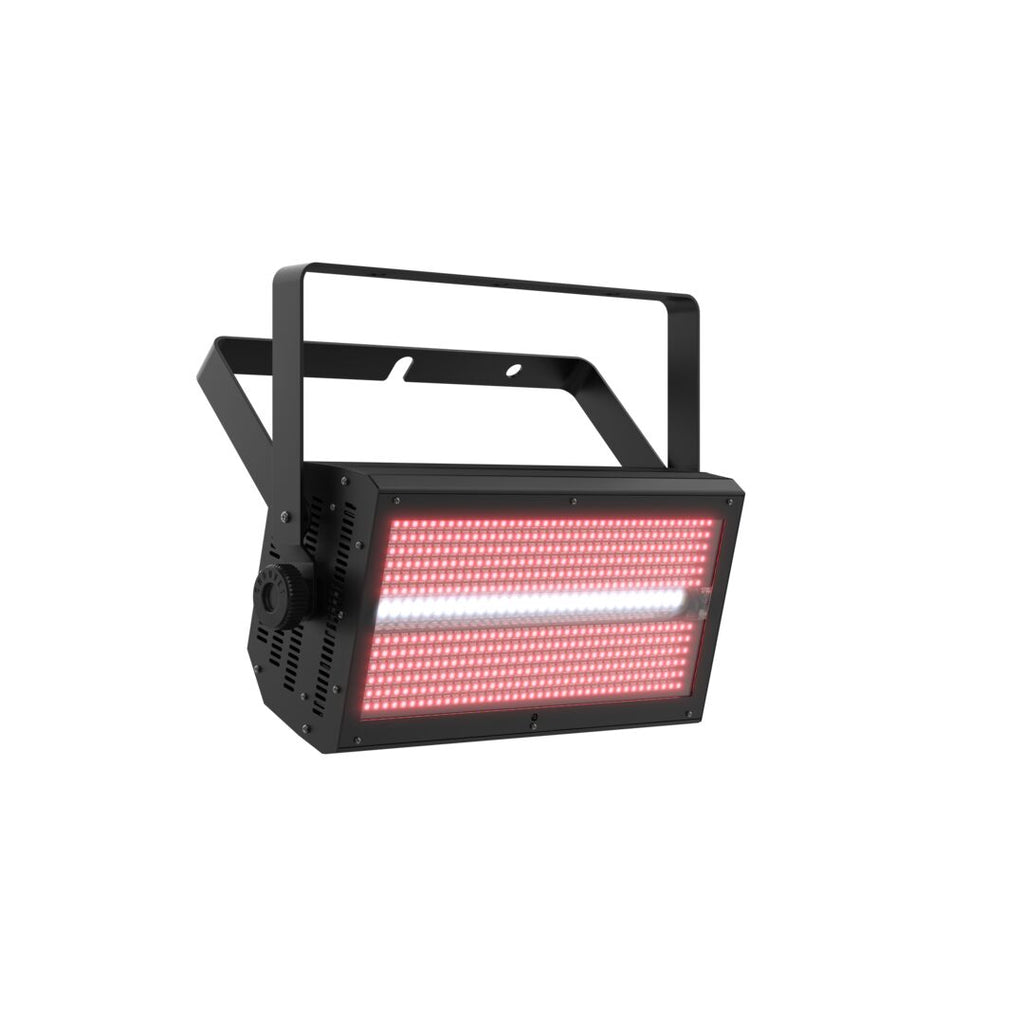

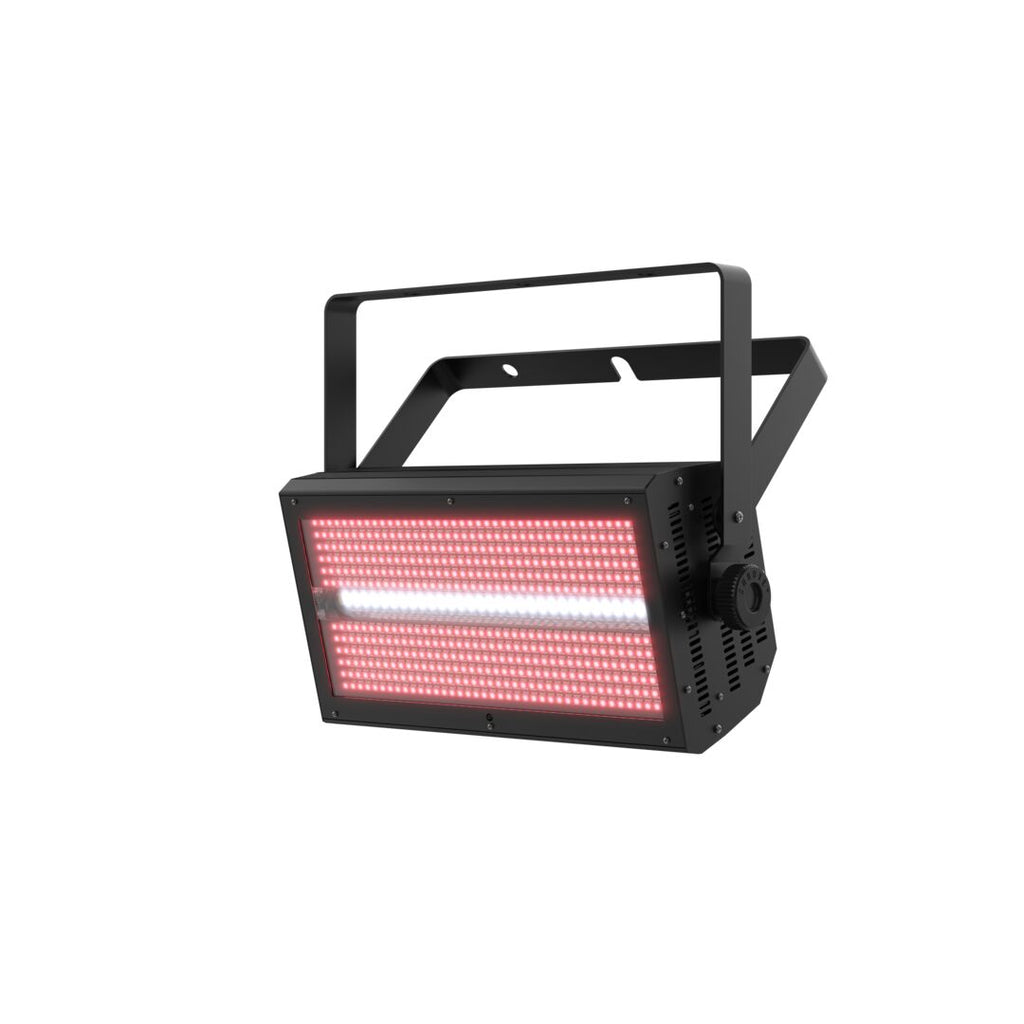

Shocker Panel FX

Shocker Panel FX is a versatile blinder, wash, and strobe light designed to deliver brilliant eye-candy effects for mobile DJs, event productions, stages, clubs, parties, and performance spaces. With 16 controllable sections, rugged all-metal construction, and flexible DMX control, it gives lighting users a powerful fixture for dynamic chases, blinder hits, colorful washes, and high-energy strobe effects.

Eight RGB sections and eight cool white sections allow for creative programming flexibility, while built-in macros can be triggered directly from the display or via DMX. powerCON-compatible power input and output connections support power linking, helping speed up setup when using multiple fixtures.

Highlights

• Versatile blinder, wash, and strobe light with brilliant eye-candy effects
• 16 controllable sections: 8 RGB sections and 8 cool white sections

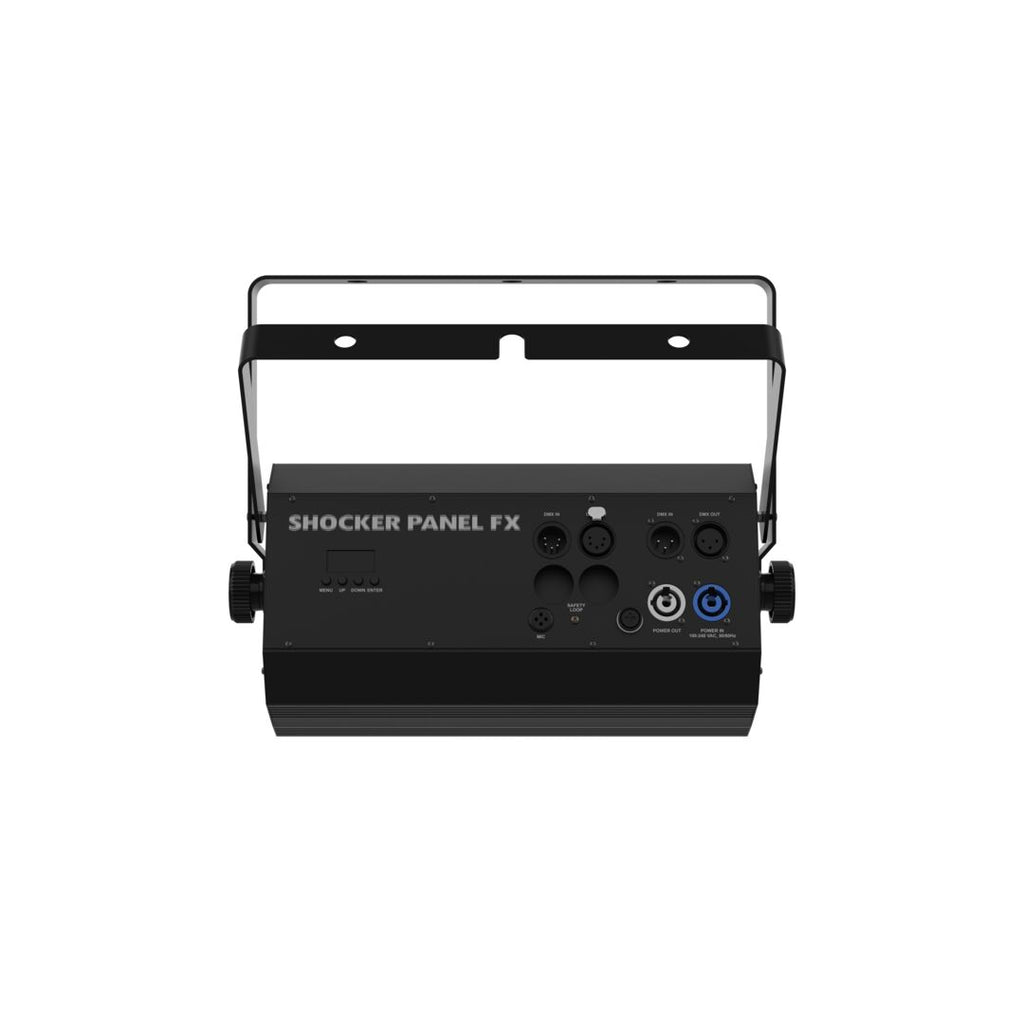

• 3-pin and 5-pin DMX connectors for flexible control integration
• Rugged all-metal housing makes it ideal for mobile applications
• Built-in macros can be triggered from the display or via DMX
• powerCON-compatible power input and output connections for power linking
• Fits in the optional CHS-25 VIP gear bag for easier transport

Specifications

• DMX Channels: 4, 7, 18, 34, or 47
• DMX Connectors: 3-pin and 5-pin XLR
• Light Source: 480 tri-color RGB LEDs, 2 W, 50,000 hours life expectancy
• Light Source: 32 cool white LEDs, 1.1 W, 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 119°
• Field Angle: 158°
• Illuminance: 1,131 lux @ 2 m
• Lumens: 13,626
• Power Linking: 5 units @ 120 V; 10 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz, auto-ranging
• Power and Current: 296 W, 2.5 A @ 120 V, 60 Hz
• Power and Current: 281 W, 1.3 A @ 230 V, 50 Hz
• Weight: 8.6 lb / 3.9 kg
• Size: 12.63 x 4.3 x 6.7 in / 310 x 110 x 170 mm
• Approvals: CE, UKCA, RoHS
