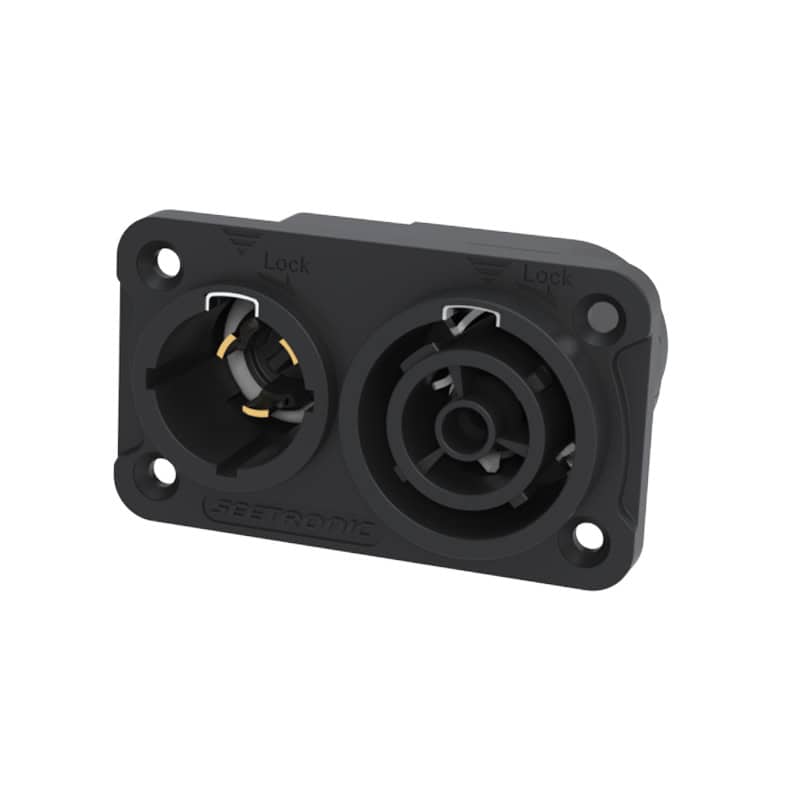

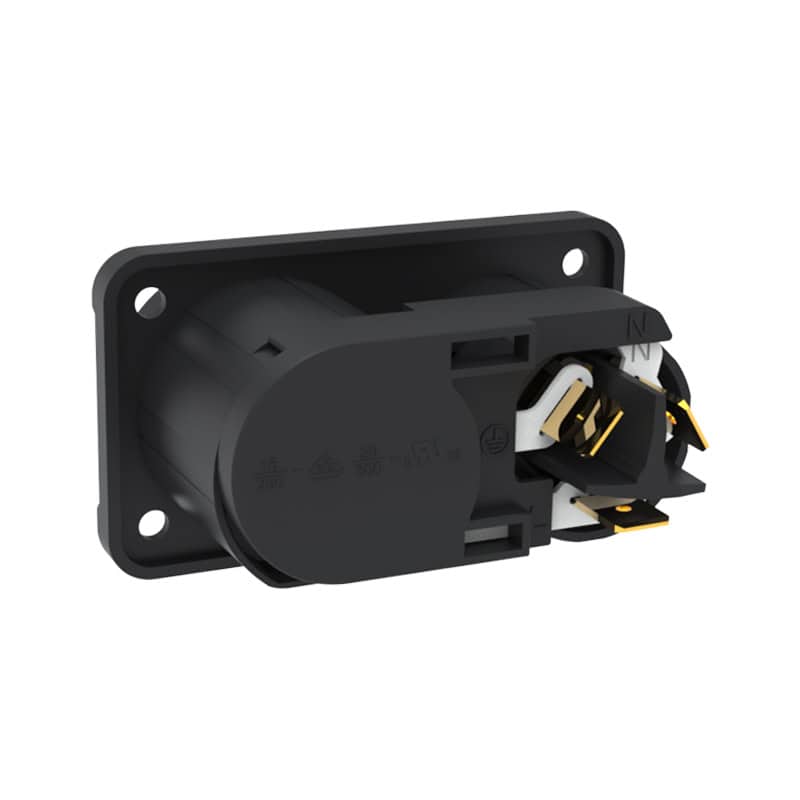

The ProX SAC3PX Seetronic Lockable 3-Core Power Connector (Power-In & Power-Out) is a high-quality, versatile IP65 waterproof combined power socket designed to meet rigorous standards and safety requirements. This innovative product combines power-in and power-out socket connectivity within a single, lockable three-core device, which includes contacts for linear, neutral, and pre-adapted safety grounding. It is an optimal choice for applications requiring a secure and efficient power connection, while also conserving space and enhancing the overall appearance of the equipment.

• Compact Combination: Integrates SAC3MPX and SAC3FPX models, combining both power-in and power-out functions in one unit, saving space and providing a tidy installation.
• High Protection Grades: The socket is rated IP65 for water resistance and IP67 for terminal equipment protection, ensuring reliable performance even in challenging environments.
• Certified Standards: The SAC3PX adheres to UL, TUV RH, and CQC standards for safety and performance.
• Durability: Offers a service life of over 1000 mating cycles and supports cables up to 2.5 mm² (12 AWG).
• Build Quality: Constructed with a robust PA housing and Cu alloy contacts with Au plating, the socket meets UL 94-V0 flame-retardant grade specifications.
• Operating Temperature Range: Can withstand temperatures from -30°C to +80°C, ensuring functionality in various climatic conditions.

• Lockable three-core device combined power-in and power-out socket connector with contacts for linear, neutral and pre-adapted safety grounding
• The combination of SAC3MPXand SAC3FPX which saves space for chain connections while making the equipment looks more nice
• Waterproof grade IP65 and protection class IP67 for terminal equipment
• Certified UL, TUV RH, CQC standards
• The protective rubber cover with model number CNAC-PX is included
