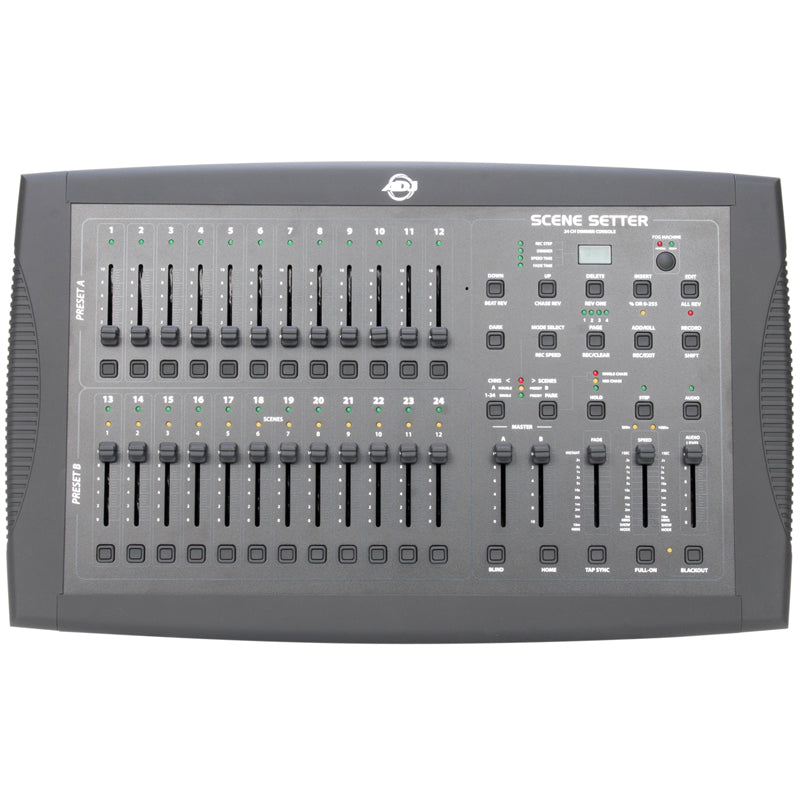

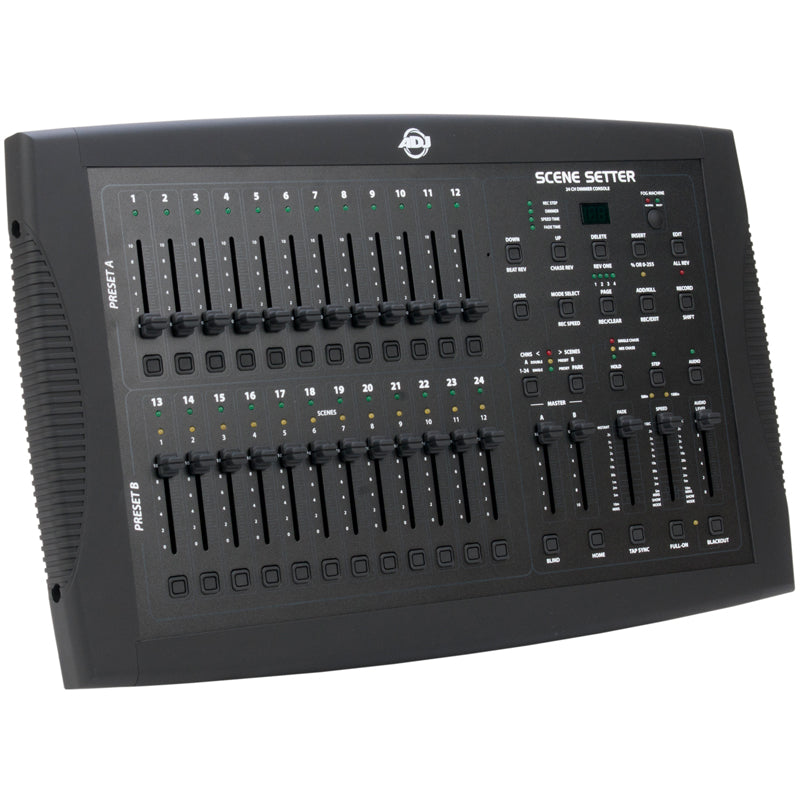

The Scene Setter is a Dimming Console for controlling your DMX light entertainment system. With inputs for audio, fog machine and a built in microphone you can manage your entire entertainment system from a single controller.

Specifications

24 channel conventional dimming console

Two scene operation (A/B faders)

11,000 programmable scenes- password protected

48 programmable chases (stacks)- password protected

Up to 1,000 scenes (steps) per chase

12 x 4 Pages = 48 total chases

Solo Pile On chase operation

Blind Dark functions

24 individual channel faders

24 bump buttons

Tap Sync button for chase speed / fade override

Independent speed fade control

Full-On button for 100% momentary output to all 24 channels

Bright LCD display

Use in conjunction with the ADJ or Elation: DP-DMX20L, CYBER PAK, UNI PAK-II, UNI BAR, DP-415, DP-640, RMD620 RMD1210

Line level audio input and built in microphone for music sync operation

Audio level fader

Fog Machine input and trigger button- compatible with ADJ Vaporizer, MB-1000, Stallion, Vapor- Flow, Fog Storm-1200 1700

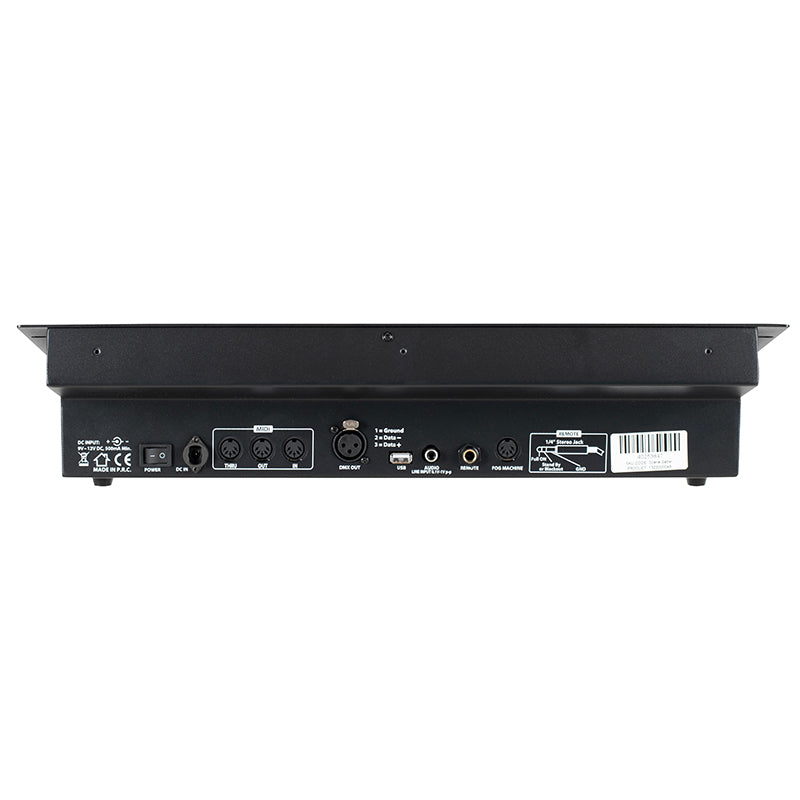

DMX Polarity switch (2-, 3+, / 2+, 3-)

Midi In, Out Thru connectors

Power: 120V / 12V DC, 500mA. (Included) *Also available in 220V

Dimensions: 13”L x 21”W x 5”H (330mm x 533mm x 127mm)

Weight: 10 lbs. (4.5kg)
