Specifications

Optical

• Light Source: 15-Watt Warm White LED
• LED Life Expectancy: 10,000 Hrs
• Beam Angle: 4-degrees
• Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
• Refresh Rate: 3.6KHz

Technical Features

• 4-button Digital Display for easy navigation
• Electronic Dimming 0 – 100%
• Flicker Free
• Includes a scissor yoke to be hung or set on the ground

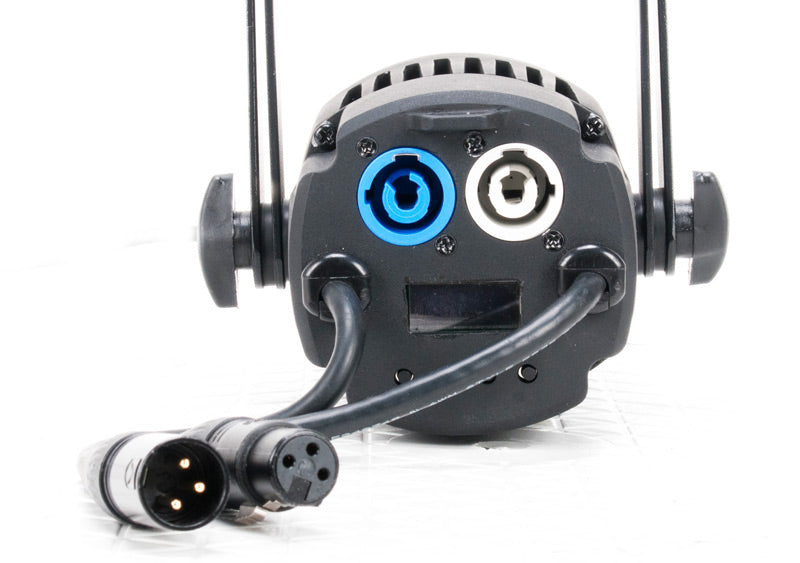

Connections

• Power Input: locking connection
• Power Pass through: locking connection
• Control: 3 Pin DMX In/Out pigtails
• With Wired Digital Communication Network

Control

• 2 DMX Channel Modes: 1 or 2
• RDM (Remote Device Management)
• IR (IR Remote Control)

Electrical

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 15W, 0.13 Amps
• Power draw 220V 50Hz: 15W, 0.07 Amps

Physical

• Dimensions (LxWxH): 3.5” x 6.75” x 3.5” / 88 x 170 x 87mm
• Weight: 2.6 lbs / 1.2 kg.
• Metal Black Housing

Certifications

• ETL Approved, UL, CE
• IP 20: Dry area, No liquids

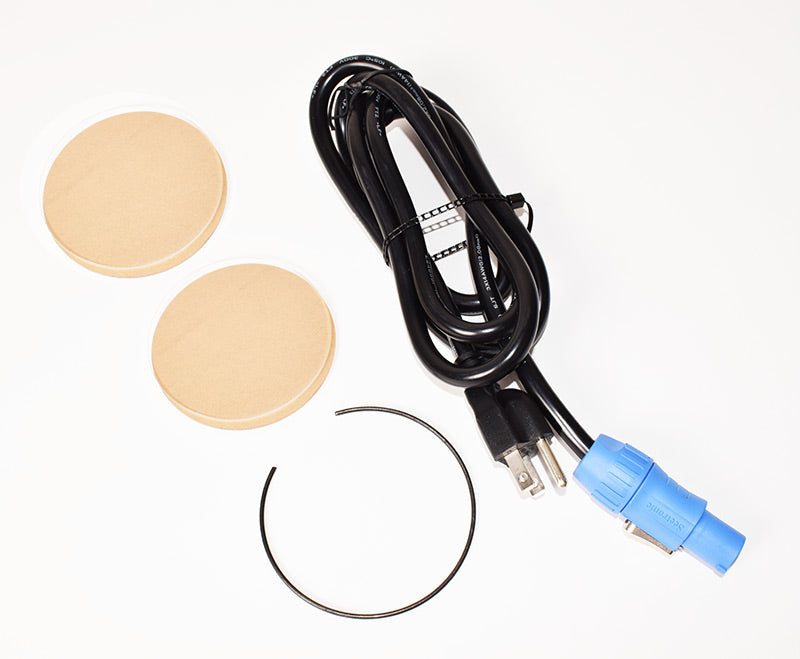

What’s Included

• Manual
• Locking power cord

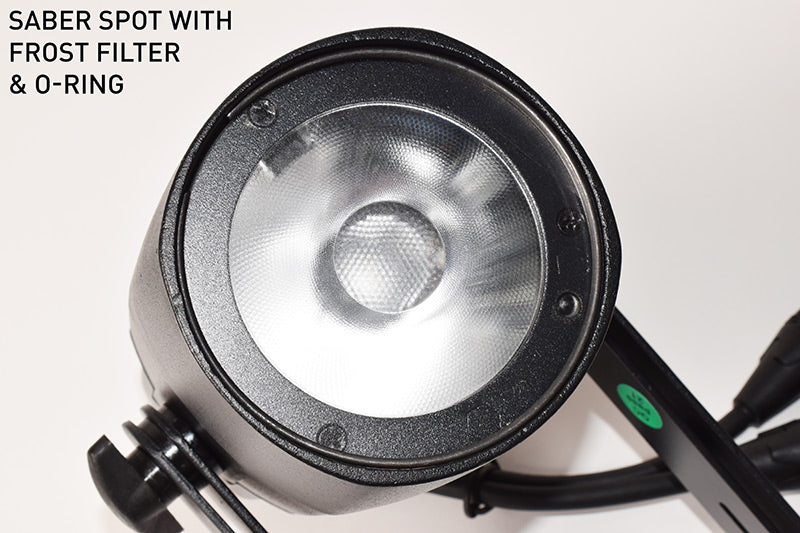

• 2 frost filter lens (10-degree & 45-degree)
• O-ring for frost filter lens

Optional Accessories

• PLC 3,PLC 6, PLC 10 (powerCON passthrough cables)
• UC IR (IR Remote Controller)

Specifications are subject to change without notice.
