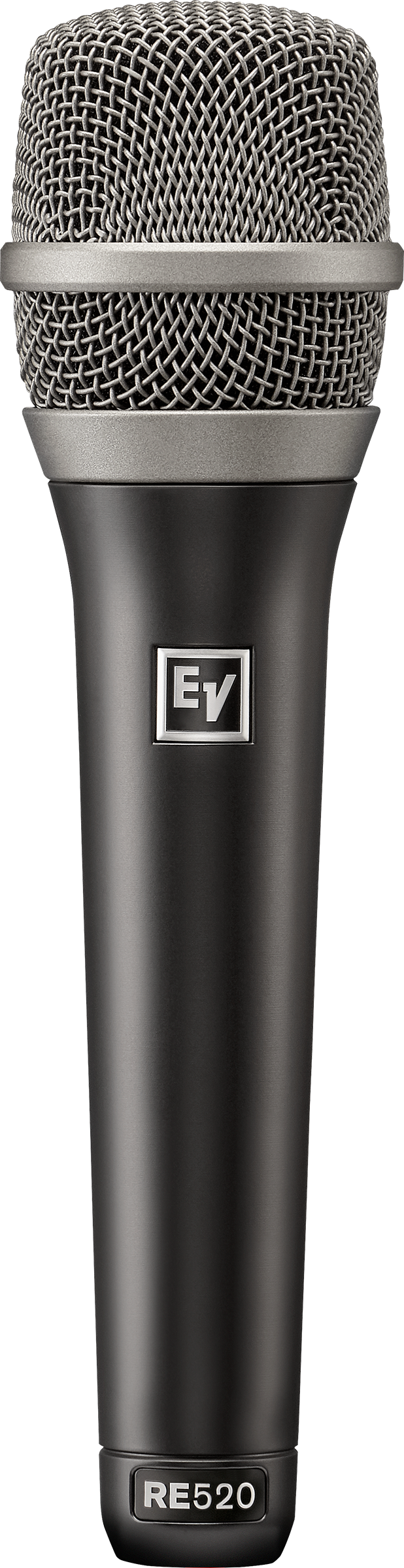

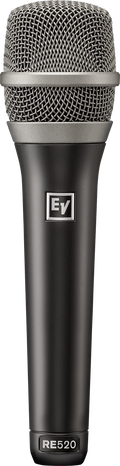

Name: Electro-Voice RE520 – Condenser supercardioid vocal microphone
Brand: Electro-Voice
SKU: RE520
Price: 369.00 USD
Availability: InStock

Electro-Voice RE520 – Condenser supercardioid vocal microphone

$369.00

$369.00 $411.00

Electro-Voice

RE520 – Condenser supercardioid vocal microphone

Overview

Condenser supercardioid vocal microphone

Highlights

✓Premium condenser element delivers a highlydetailed, full, and vivid sound
✓Supercardioid polar pattern provides excellent acoustic isolation and feedback control
✓Multi-stage pop filter minimizes breath blasts and plosives
✓Selectable high-pass filter reduces undesirable low frequency content when engaged
✓Vibration-absorbing internal shock mount minimizes handling noise

Specifications

Element type	Self-biased condenser
Frequency response	40 Hz-20 kHz
Polar pattern	Supercardioid
Specifications Sensitivity, open circuitvoltage @ 1 kHz	5.6 mV/Pascal (-45 dBV/Pa)
Clipping (max SPL)	150 dB SPL (1% THD)
Self noise	17 dB SPL "A" weighed (0 dB=20 μPa)
Dynamic range	133 dB
Signal-to-Noise ratio	77 dB
Output impedance	200 ohms
Power requirements	48 VDC phantom power
Polarity	Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Electrical contact	3-pin, XLR-type
Finish	Black polyurethane paint
Materials	Zinc die cast, steel wire cloth grille
Dimensions, length diameter shank	7.6 in. (192 mm) 1.95 in. (49.5 mm) 0.96 in. (24.3 mm)
Net weight	11.7 oz (332 g)
Shipping weight	1 lb 5.1 oz (598 g)
