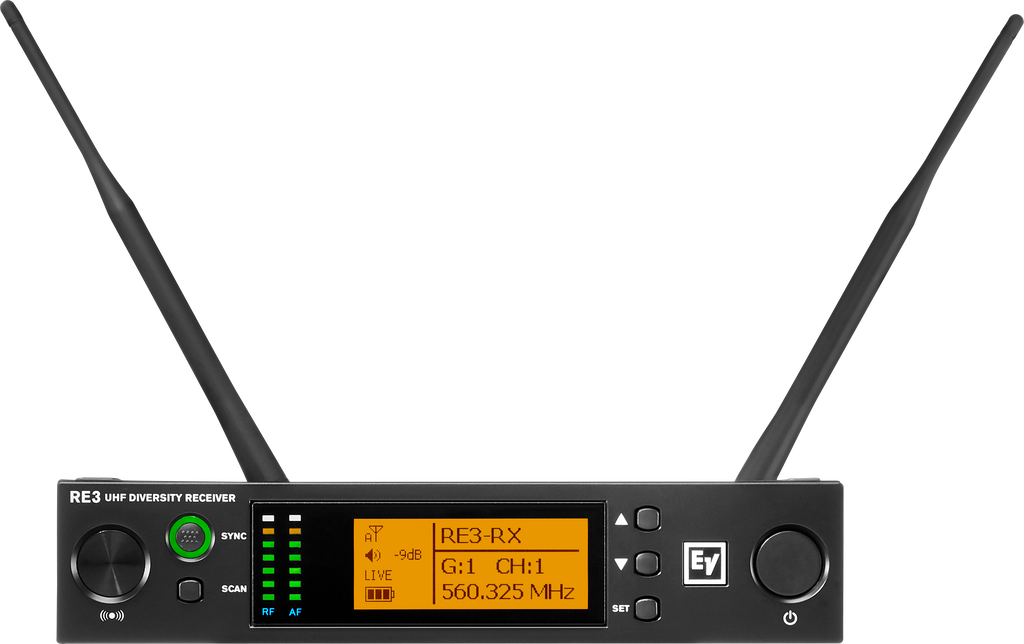

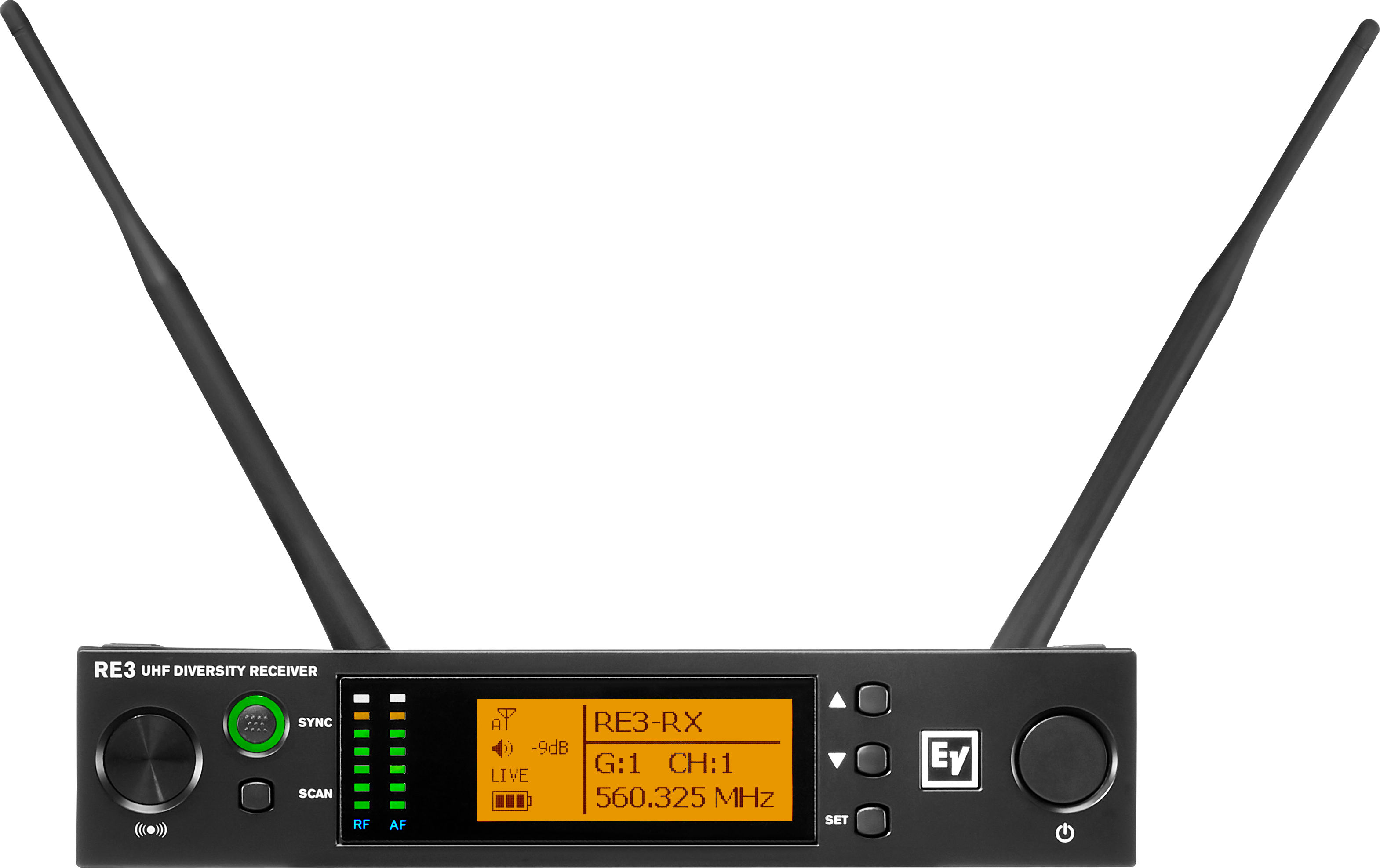

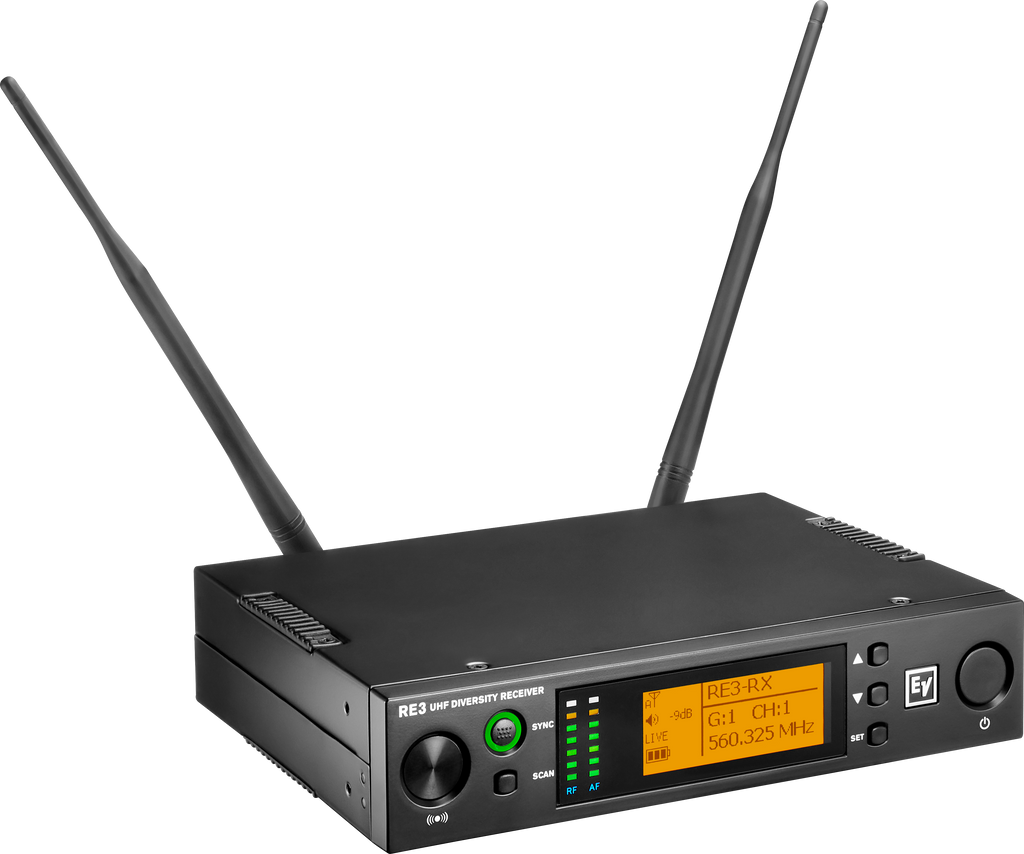

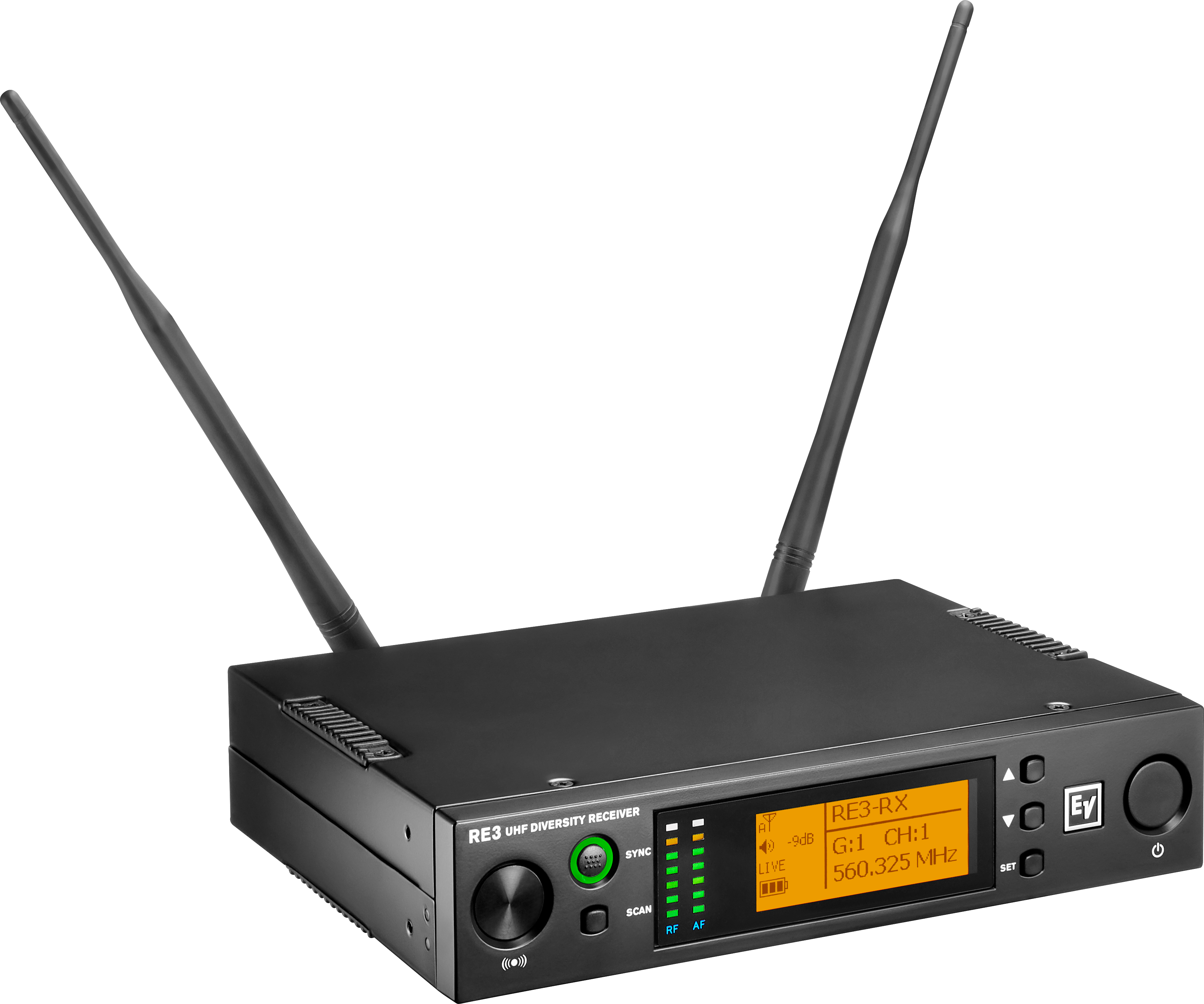

Electro-Voice RE3-RX-6M – Diversity receiver

Electro-Voice RE3-RX-6M – Diversity receiver

$399.00 $445.00

Electro-Voice

RE3-RX-6M – Diversity receiver

Overview

Diversity receiver

Highlights

  • ✓Diversity reception minimizes dropouts
  • ✓Frequency scanning for selecting open frequencies
  • ✓Sync function links transmitter to receiver for easy setup
  • ✓Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
  • ✓Easy-to-read LCD display

Specifications

Frequency Oscillation Mode Phase-locked loop (PLL)
Carrier Frequency Range 470 - 865 MHz (tuning bandwidth is band-dependent)
Sync Frequency Ultrasonic 40 kHz
Specifications Diversity Antenna diversity
Bandwidth 36MHz
Signal/Noise Ratio >100dB(A)
Total Harmonic Distortion (Thd) <0.6%@1kHz
Receiving Sensitivity -81dBm for -12dB SINAD
Frequency Response 63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
Antenna Type Detachable ½ wave with BNC connector
Antenna Booster Power DC12 - 15V/100mA
Function Display By LCD
Contents Of Display Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
Control Functions Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
Sync Data Options Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
Audio Frequency Output Level Ref：±22.5kHz Dev@1kHz Tone
¼&rdquo; (6.3mm) Phone Jack：-10dBV XLR Jack：-4dBV(Line)、-24dBV(MIC) Audio Frequency Output Impedance 240Ω (unbalanced) 1400Ω (balanced)
Squelch and noise muting Noise muting and tone code locking

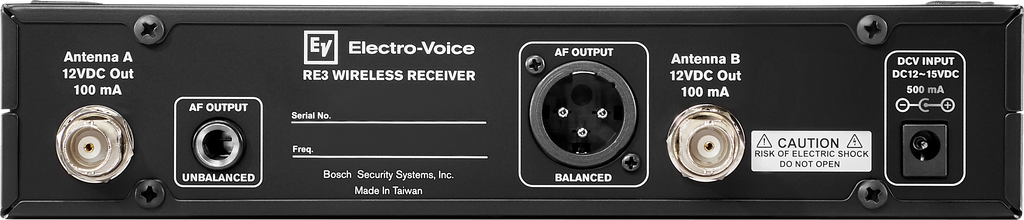

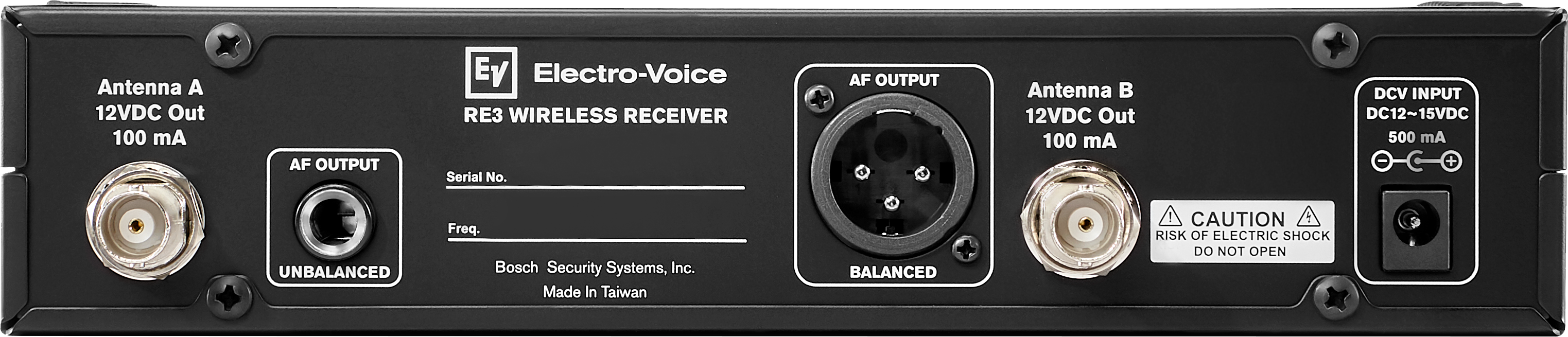

Output Ports 1 x balanced XLRM jack 1 x unbalanced ¼&rdquo; TS (6.3mm) jack
Power Supply DC12~15V/500mA

Product identifiers

SKU RE3-RX-6M
