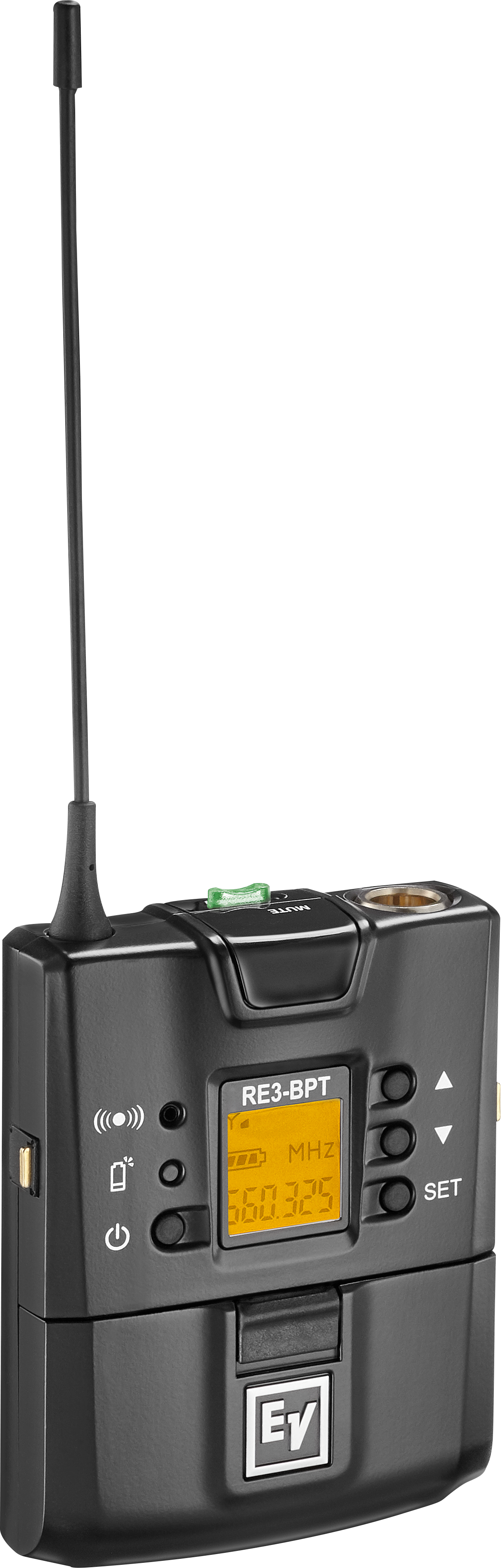

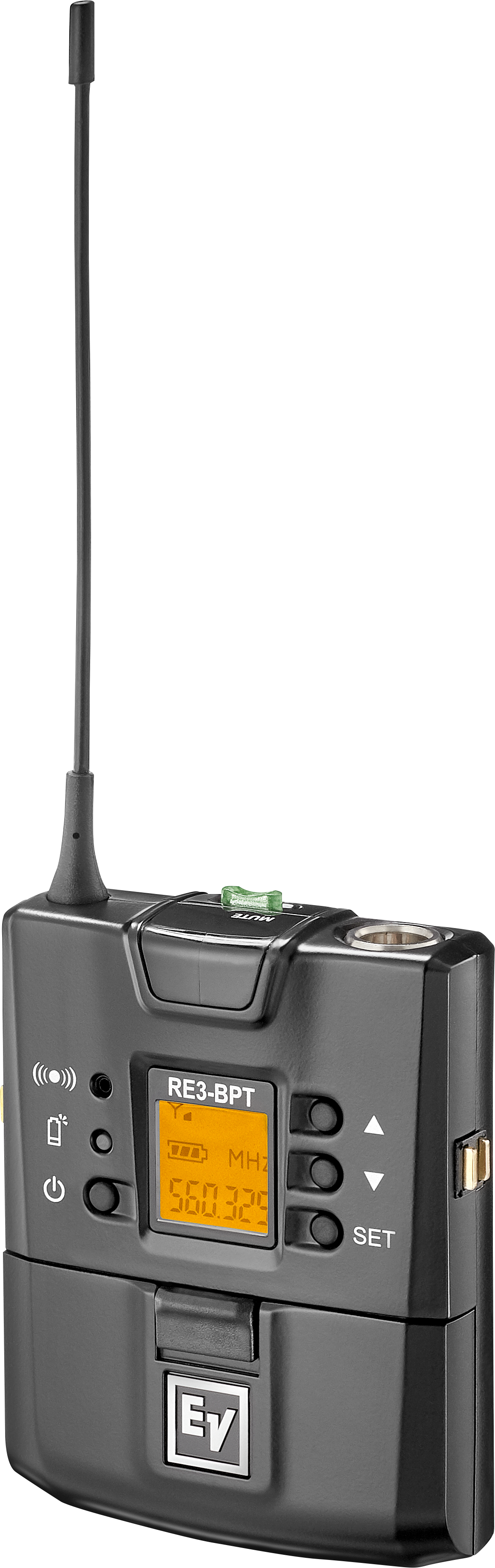

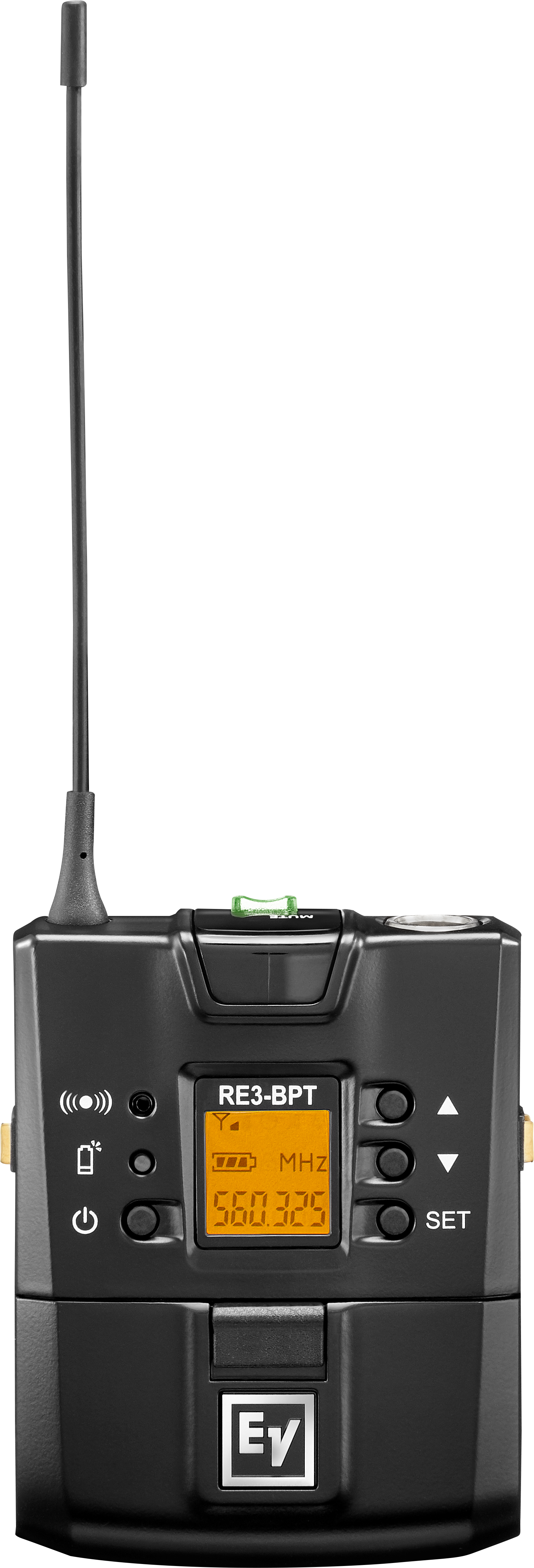

Electro-Voice RE3-BPT-6M – Bodypack transmitter

Electro-Voice RE3-BPT-6M – Bodypack transmitter

$309.00 $344.00

Electro-Voice

RE3-BPT-6M – Bodypack transmitter

Overview

Bodypack Transmitter

Highlights

  • ✓Modified for use with RSB-2 Referee Switch ONLY
  • ✓Robust metal body
  • ✓Sync function for easy frequency setup
  • ✓Selectable low and high output power (band specific)
  • ✓Up to 36 MHz tuning bandwidth (band specific)

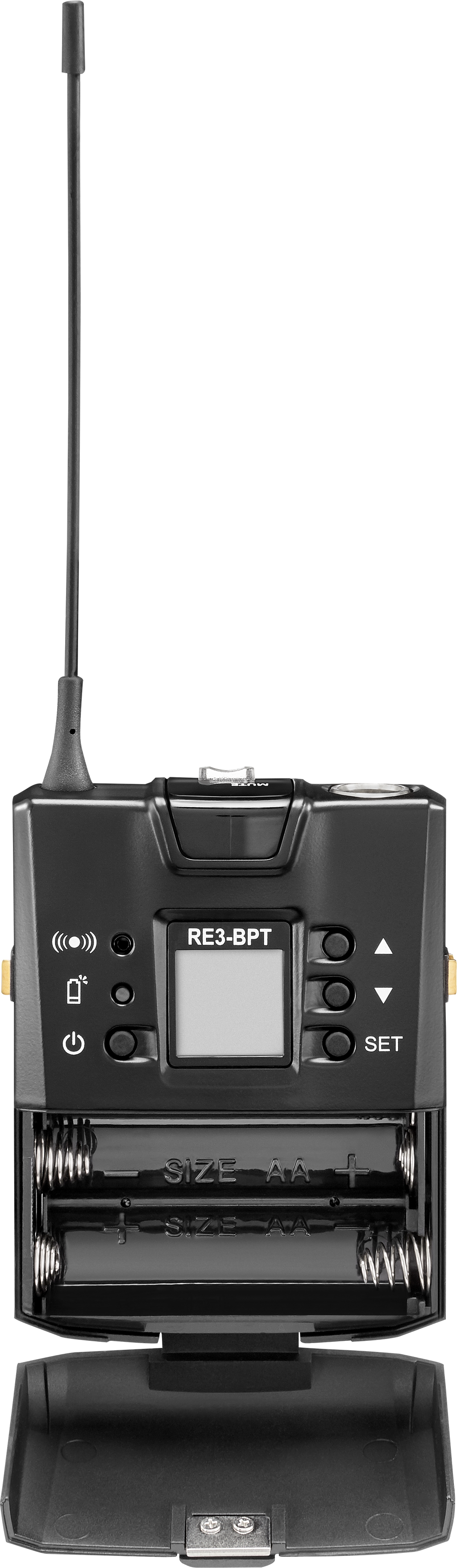

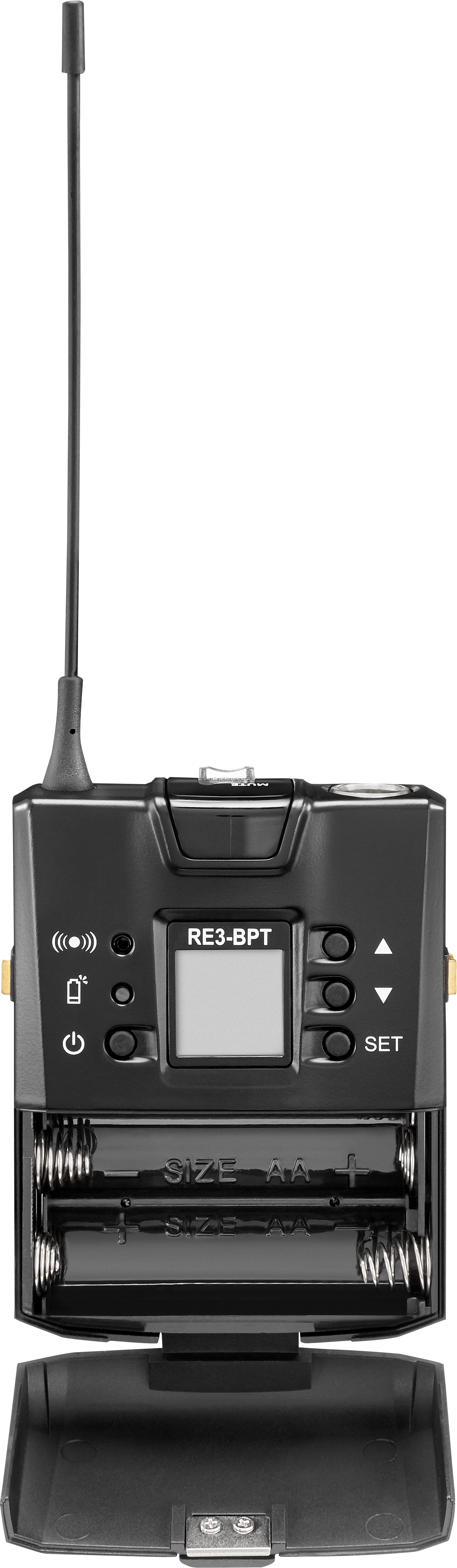

  • ✓Unique magnetic latch and lock for easy access to batteries

Specifications

Frequency Oscillation Mode Phase-locked loop (PLL)
Sync Frequency Ultrasonic
Display By LCD + LED
Specifications Function Controls Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock.
RF Stability <±10kHz@Fc
Modulation Frequency Shift Wideband FM ±48kHz deviation
Harmonic Radiation <-50dBc
Input Jack 4-pin mini jack
Battery 2 x AA alkaline battery or NiMH rechargeable battery
Charging contacts Yes
Finish Black polyurethane paint
Dimensions (without antenna) Height: 3.2 inch (81.5mm) Width: 2.54 inch (64.5mm) Depth: 0.98 inch (25mm)
Net Weight 6.14oz [.174kg]
Gross Weight 8.29oz [.235 grams]

Product identifiers

SKU RE3-BPT-6M
