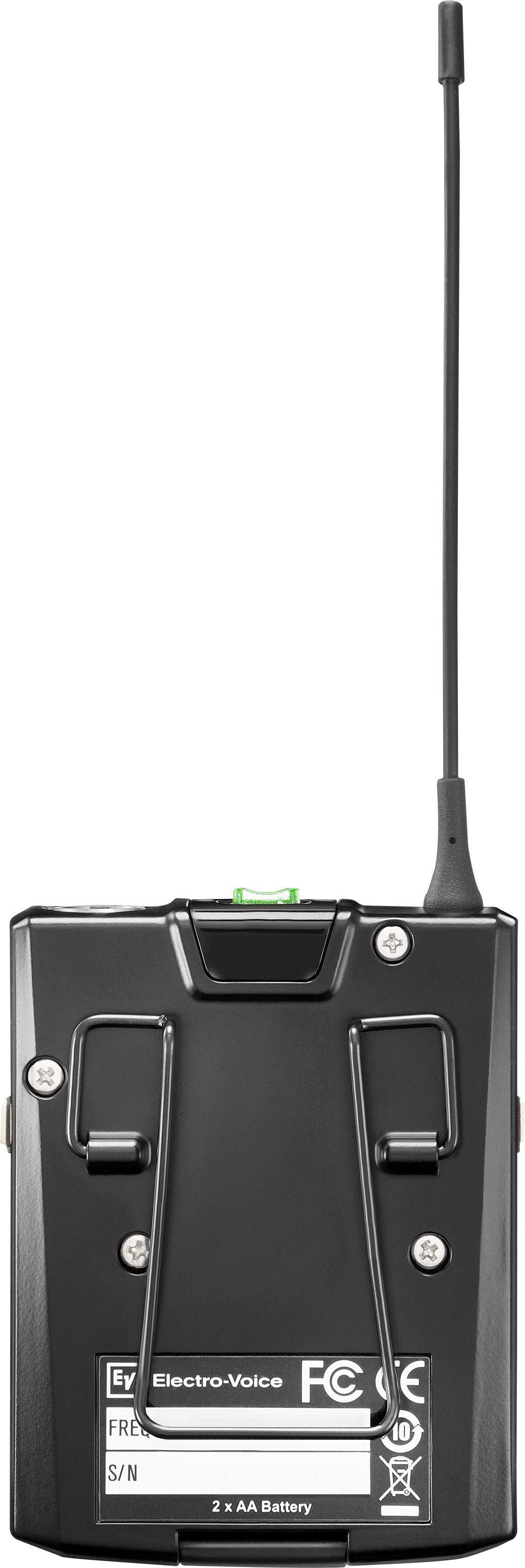

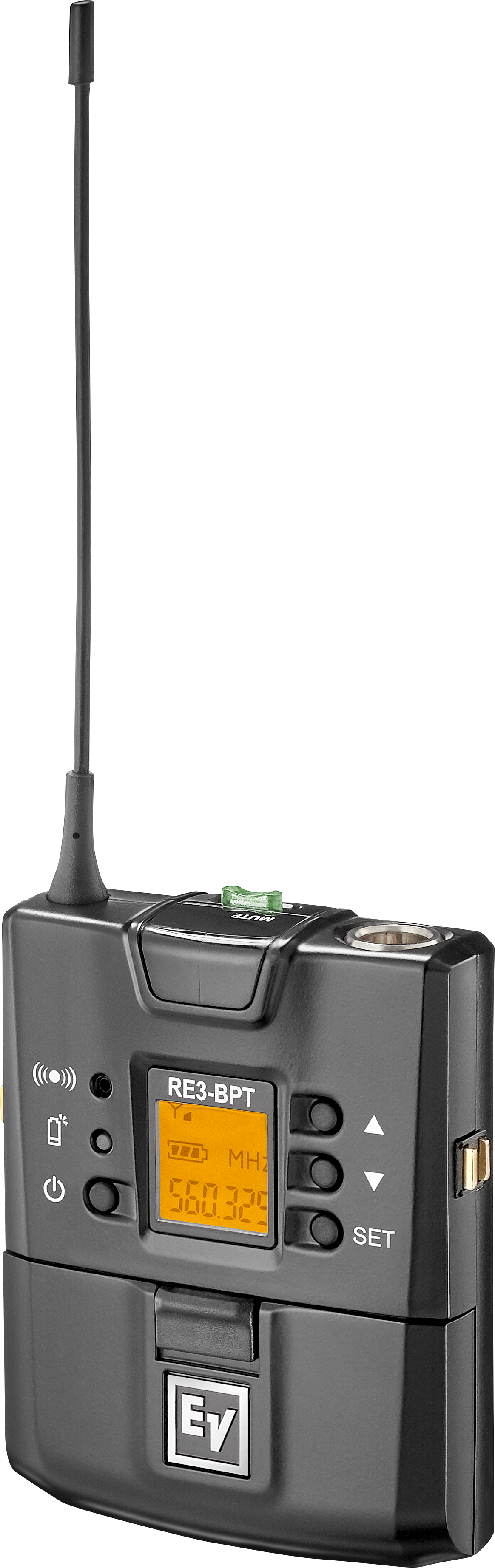

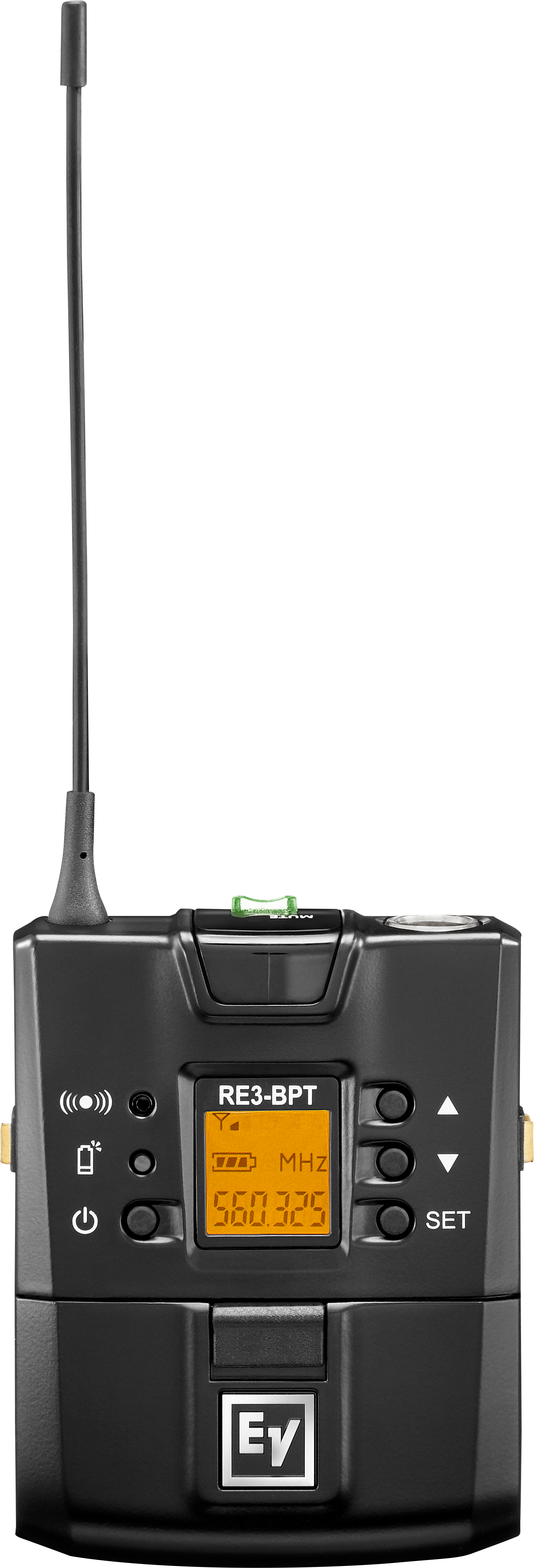

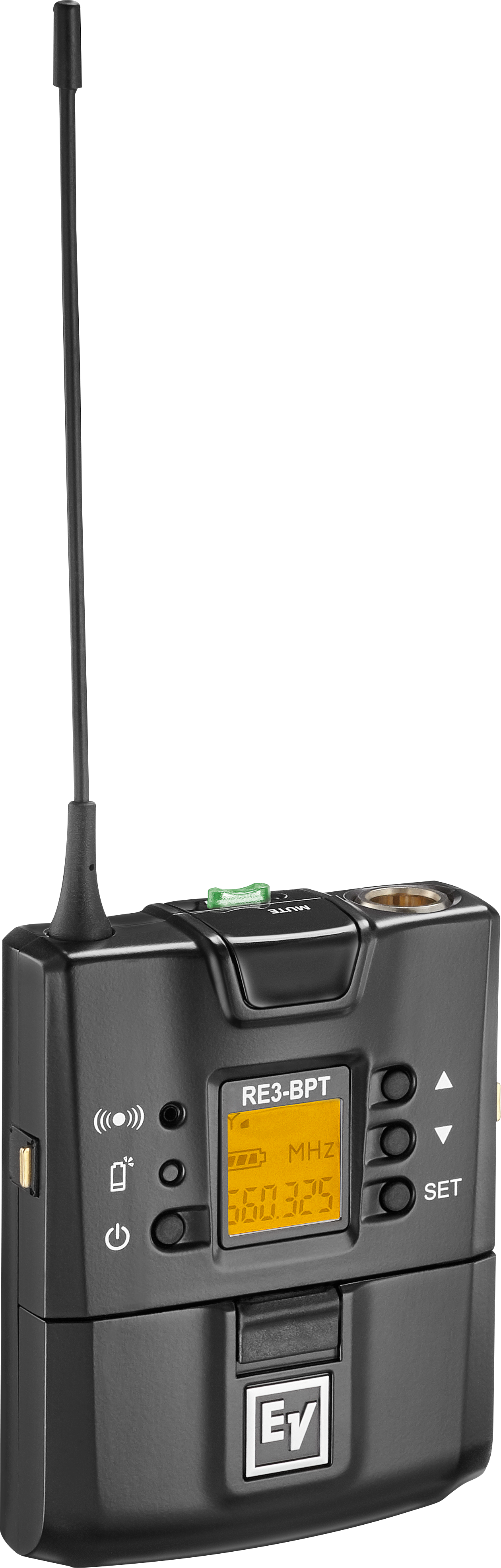

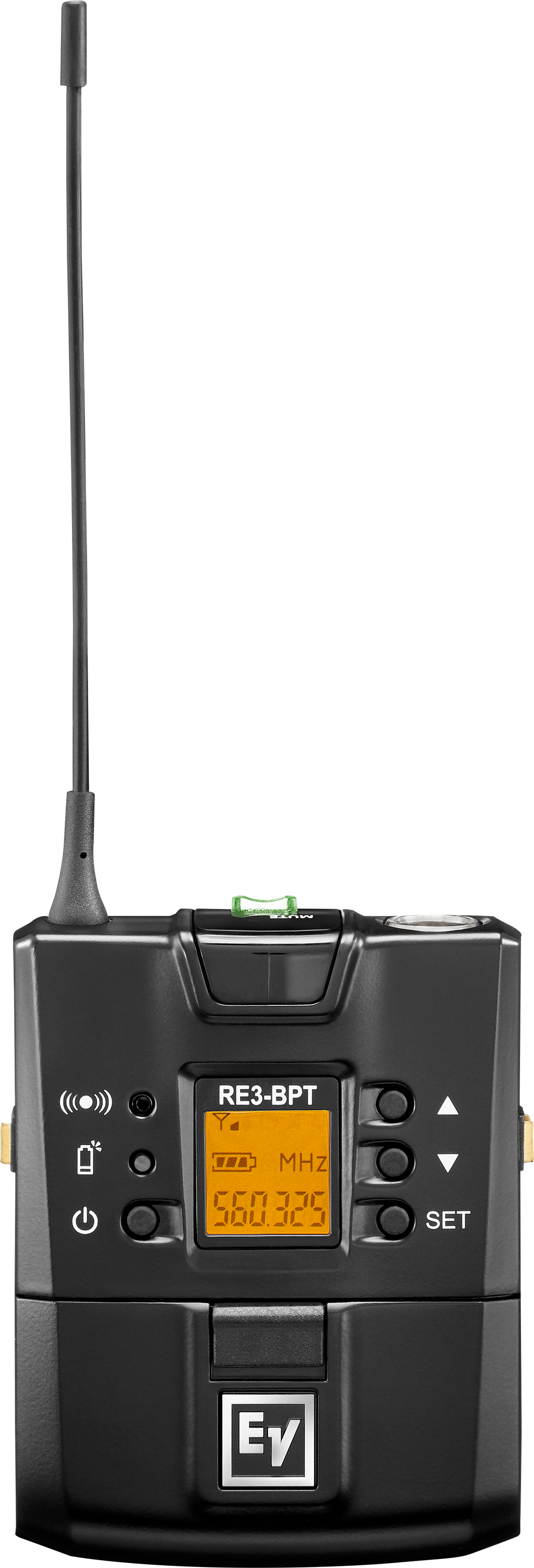

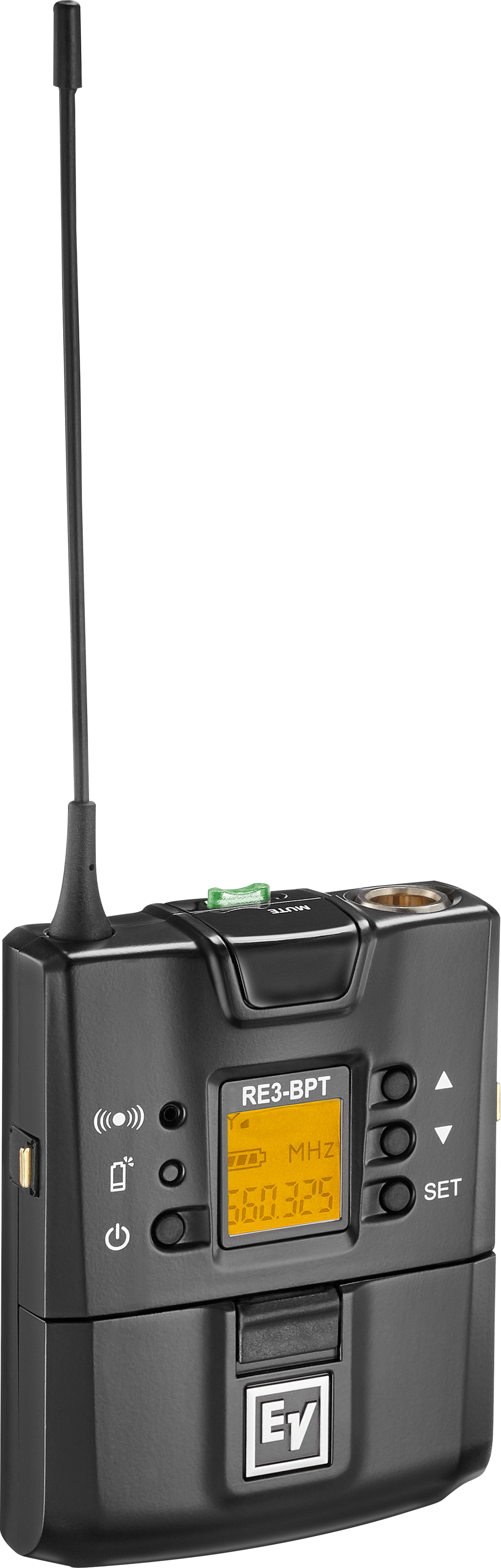

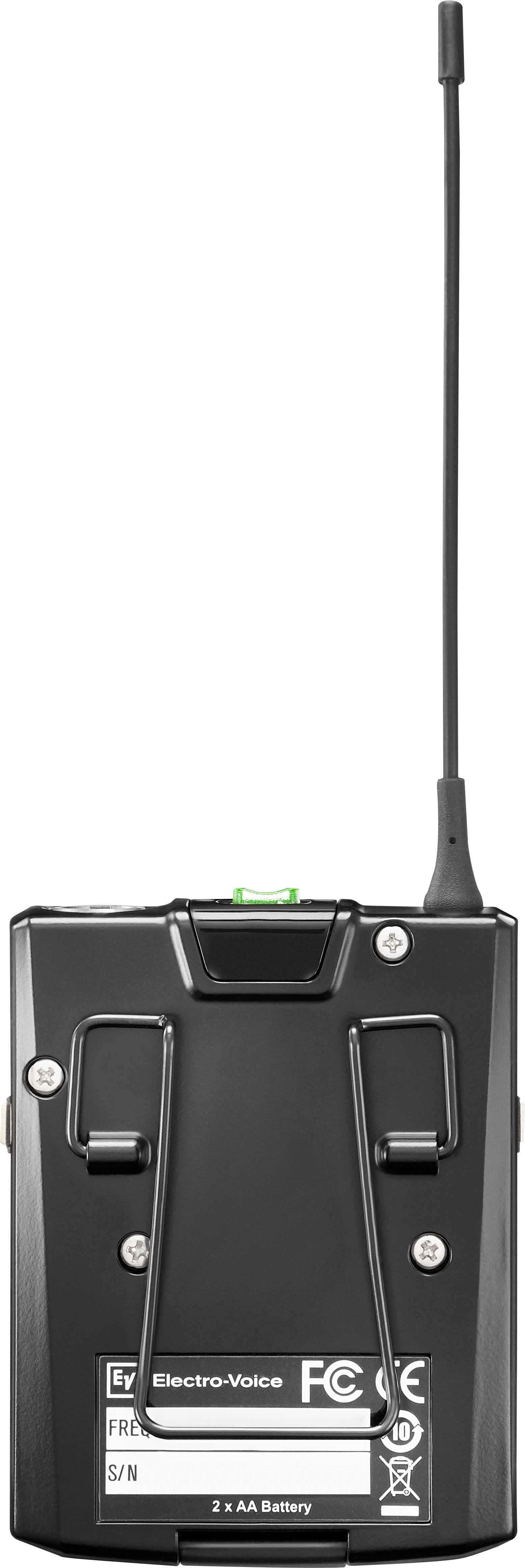

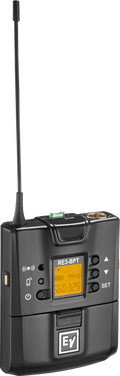

Name: Electro-Voice RE3-BPT-5H – Bodypack transmitter
Brand: Electro-Voice
SKU: RE3-BPT-5H
Price: 309.00 USD
Availability: InStock

Electro-Voice RE3-BPT-5H – Bodypack transmitter

$309.00 $344.00

Electro-Voice

RE3-BPT-5H – Bodypack transmitter

Overview

Bodypack Transmitter

Highlights

✓Modified for use with RSB-2 Referee Switch ONLY
✓Robust metal body
✓Sync function for easy frequency setup
✓Selectable low and high output power (band specific)
✓Up to 36 MHz tuning bandwidth (band specific)

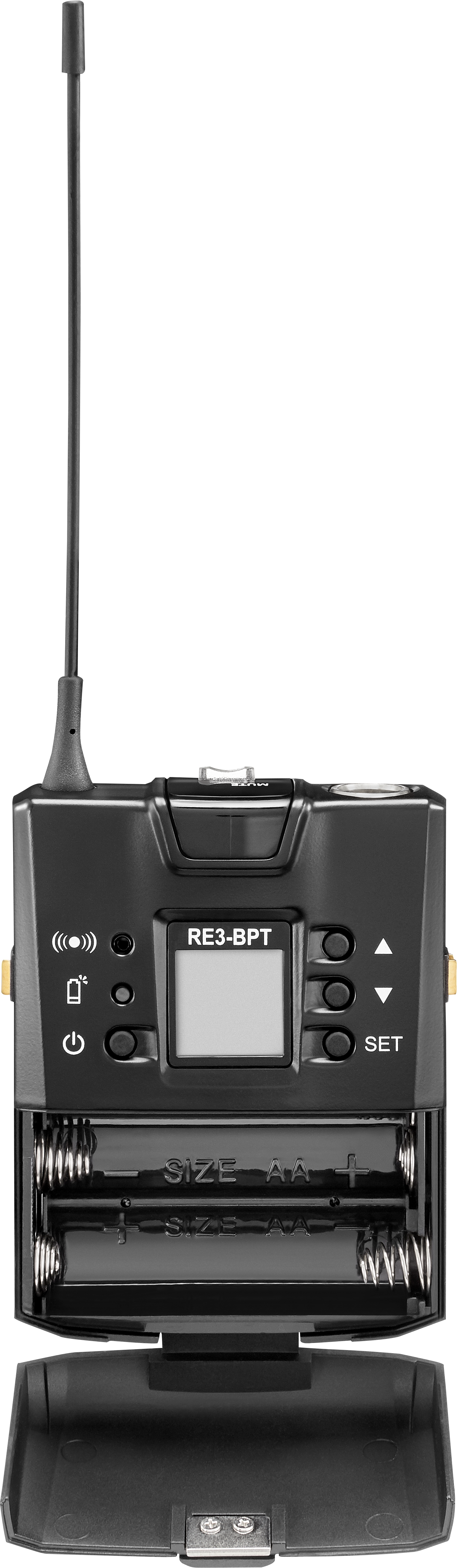

✓Unique magnetic latch and lock for easy access to batteries

Specifications

Frequency Oscillation Mode	Phase-locked loop (PLL)
Sync Frequency	Ultrasonic
Display By	LCD + LED
Specifications Function Controls	Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock.
RF Stability	<±10kHz@Fc
Modulation Frequency Shift	Wideband FM ±48kHz deviation
Harmonic Radiation	<-50dBc
Input Jack	4-pin mini jack
Battery	2 x AA alkaline battery or NiMH rechargeable battery
Charging contacts	Yes
Finish	Black polyurethane paint
Dimensions (without antenna)	Height: 3.2 inch (81.5mm) Width: 2.54 inch (64.5mm) Depth: 0.98 inch (25mm)
Net Weight	6.14oz [.174kg]
Gross Weight	8.29oz [.235 grams]
