RCF EVOX J9 / JMIX9 - Active Three-Way Portable Column Speaker System
RCF EVOX J9 / JMIX9 - Active Three-Way Portable Column Speaker System
The RCF EVOX J9 Series combines powerful output, wide coverage, advanced DSP processing, and an easy-to-transport column design. Choose the EVOX J9 for a streamlined powered column system, or select the EVOX JMIX9 for the same professional acoustic performance with an integrated 8-channel stereo digital mixer and wireless app control.
Highlights
- 2100W peak Class-D amplification
- Maximum output of 130 dB SPL
- True three-way portable column design
- Six 3-inch neodymium full-range transducers
- 1.75-inch voice coil neodymium compression driver
- High-power 12-inch woofer
- Wide 120° horizontal by 40° vertical coverage
- 40 Hz to 20 kHz frequency response
- RCF FiRPHASE processing for accurate phase response and clarity
- Bass Motion Control for extended low-frequency performance and woofer protection
- Live/Linear, Club, and Voice EQ presets
- Fanless convection cooling
- Variable-height column configuration
- Available in EVOX J9 and mixer-equipped EVOX JMIX9 configurations

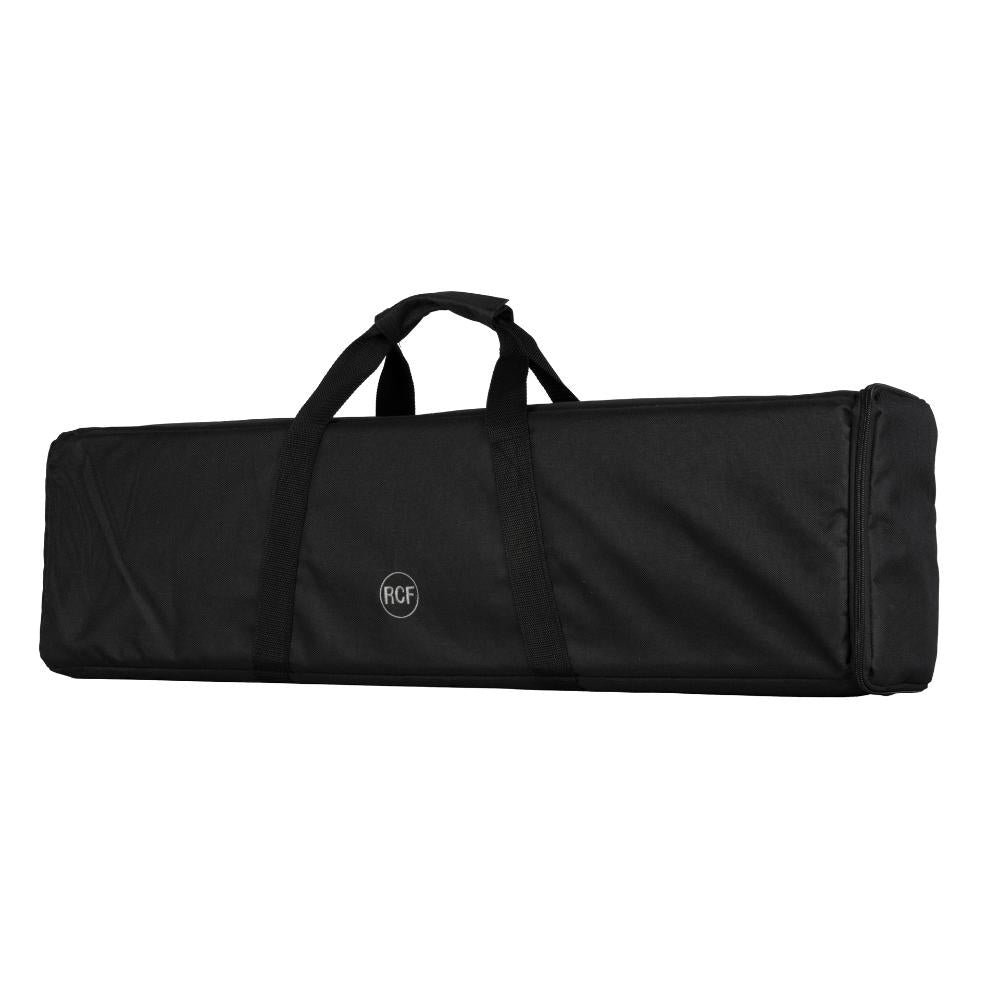

- Padded column carrying bag included
Choose Your Model
RCF EVOX J9
The EVOX J9 is a professional active three-way portable column speaker designed for DJs, live performers, bands, presentations, and mobile sound applications. Its 2100W amplifier powers a high-output 12-inch woofer, six 3-inch neodymium drivers, and a compression driver mounted to RCF's True Resistive Waveguide.

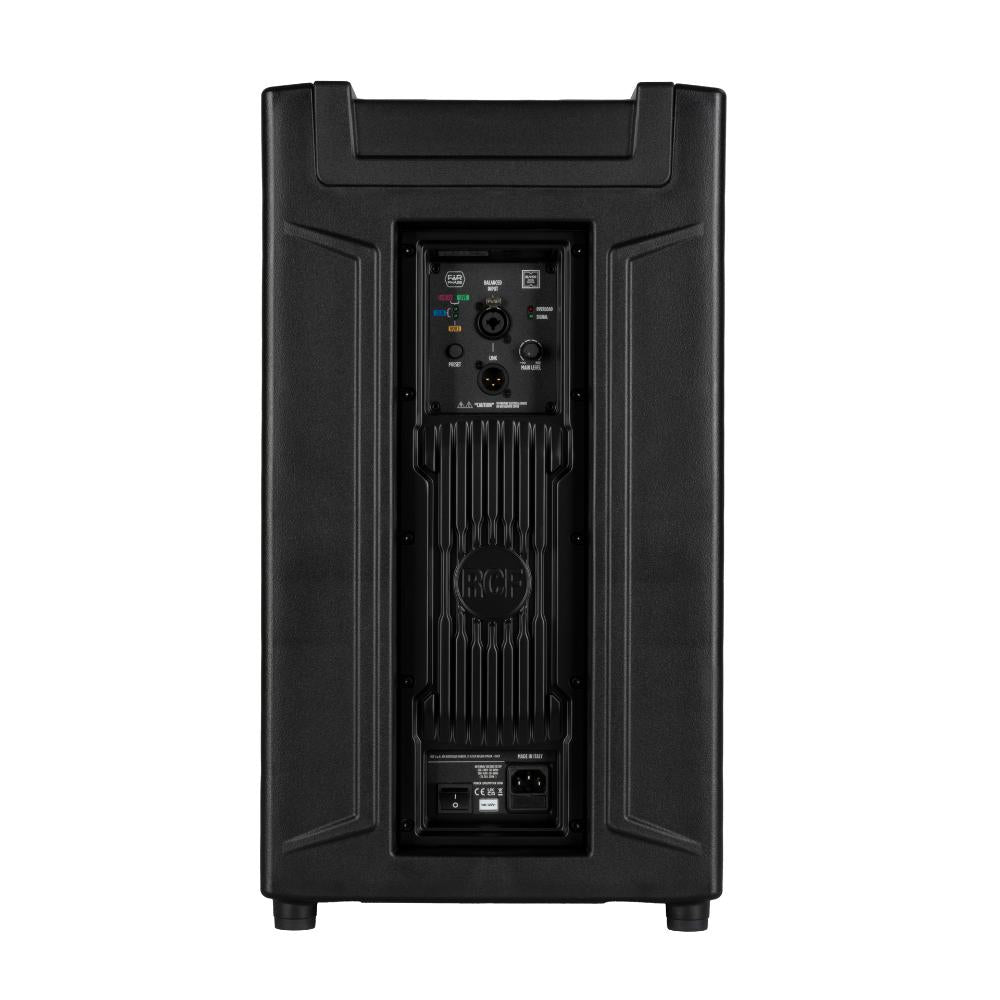

A balanced combo XLR/TRS input, XLR link output, level control, and selectable EQ presets make the J9 easy to integrate with an external mixer, DJ controller, or existing sound system.
RCF EVOX JMIX9
The EVOX JMIX9 adds a complete 8-channel stereo digital mixer to the EVOX J9 acoustic platform. It is designed as an all-in-one system for performers, DJs, bands, speakers, houses of worship, and event professionals who need professional mixing and sound reinforcement in one portable system.
The integrated mixer includes a 2.4-inch color touchscreen, physical encoders, Bluetooth audio streaming, microphone and line inputs, phantom power, channel EQ, compression, stereo reverb, scene storage, auxiliary routing, output EQ, and wireless control through the RCF JMixRemote app.
Professional Three-Way Sound

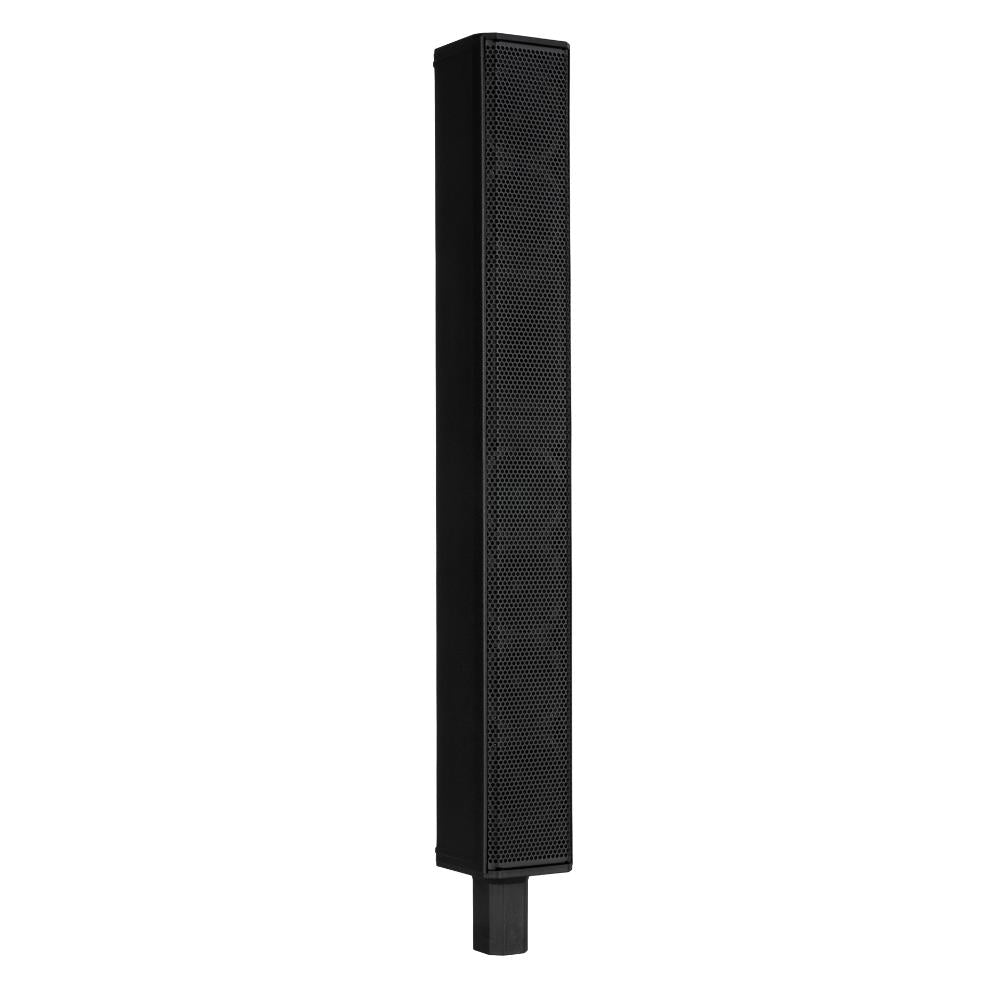

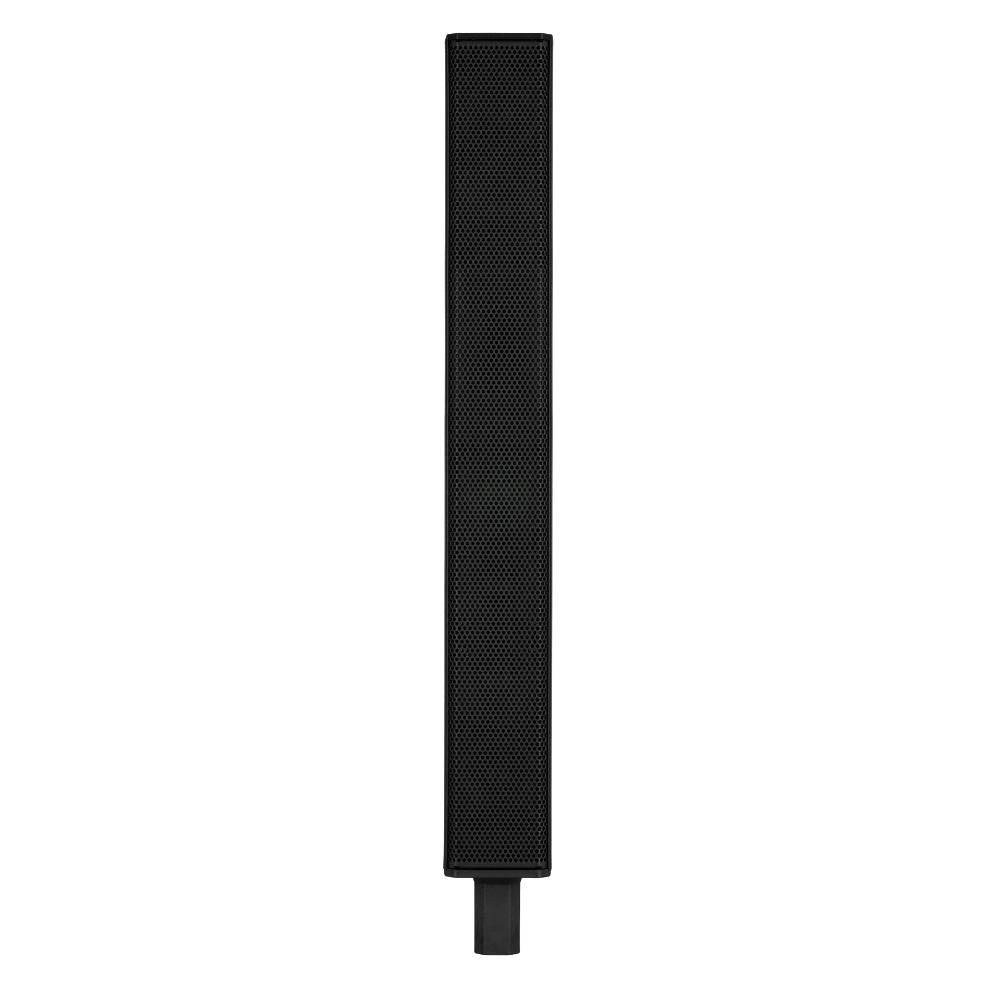

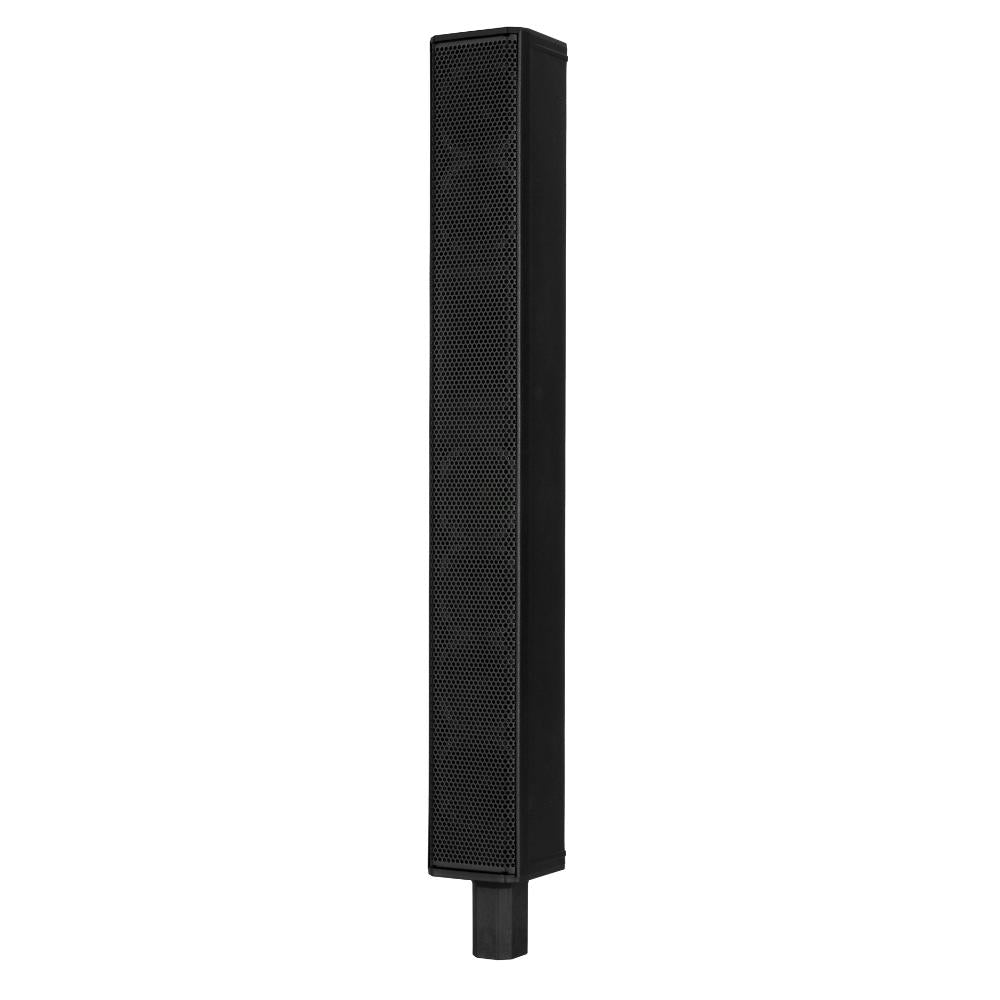

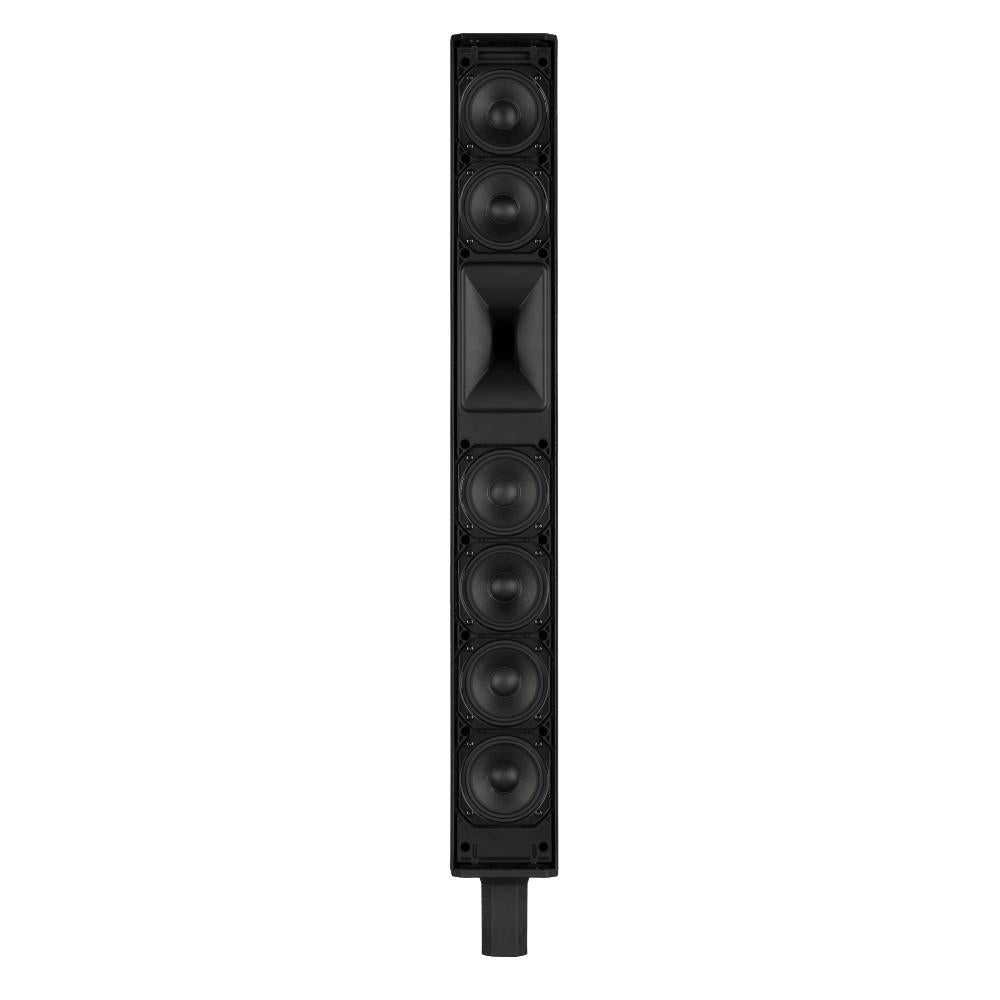

Unlike conventional two-way column systems, the EVOX J9 Series uses a true three-way design. Six 3-inch neodymium transducers reproduce the midrange, while a dedicated compression driver and True Resistive Waveguide provide clear high frequencies and consistent 120° by 40° coverage.

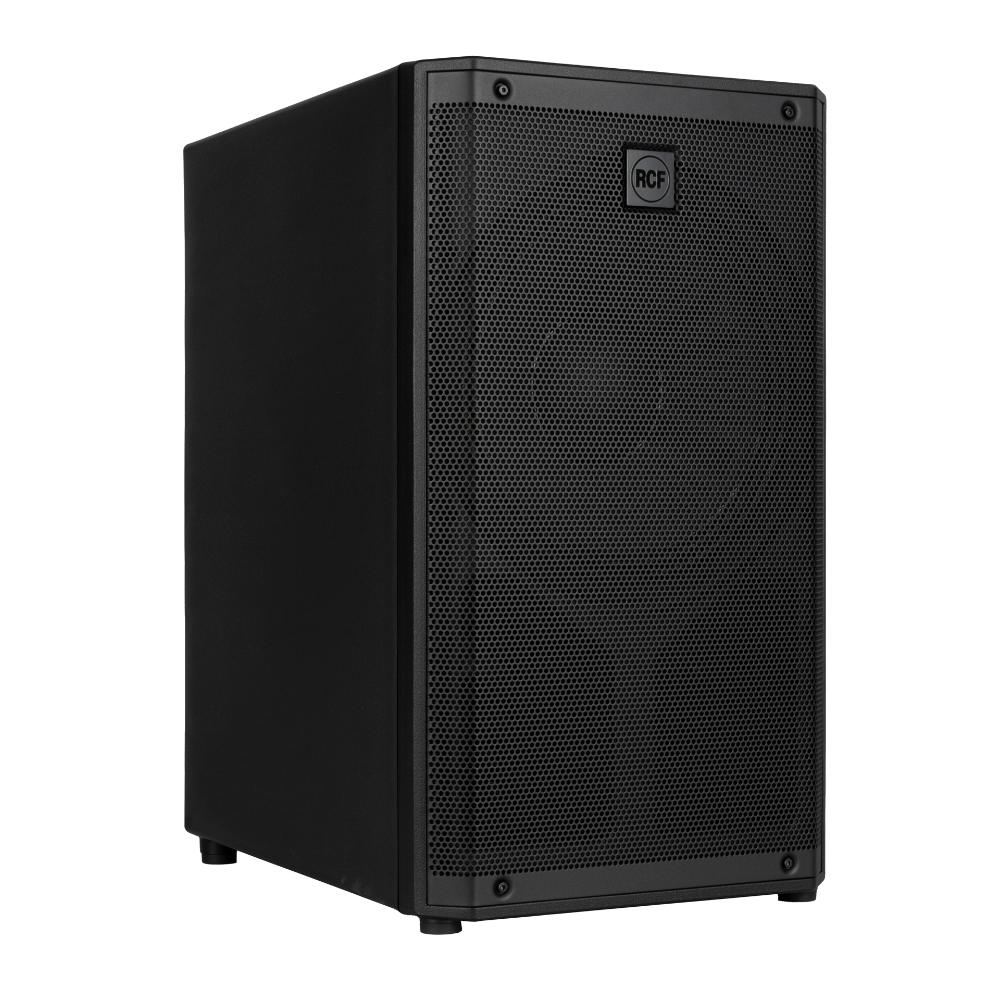

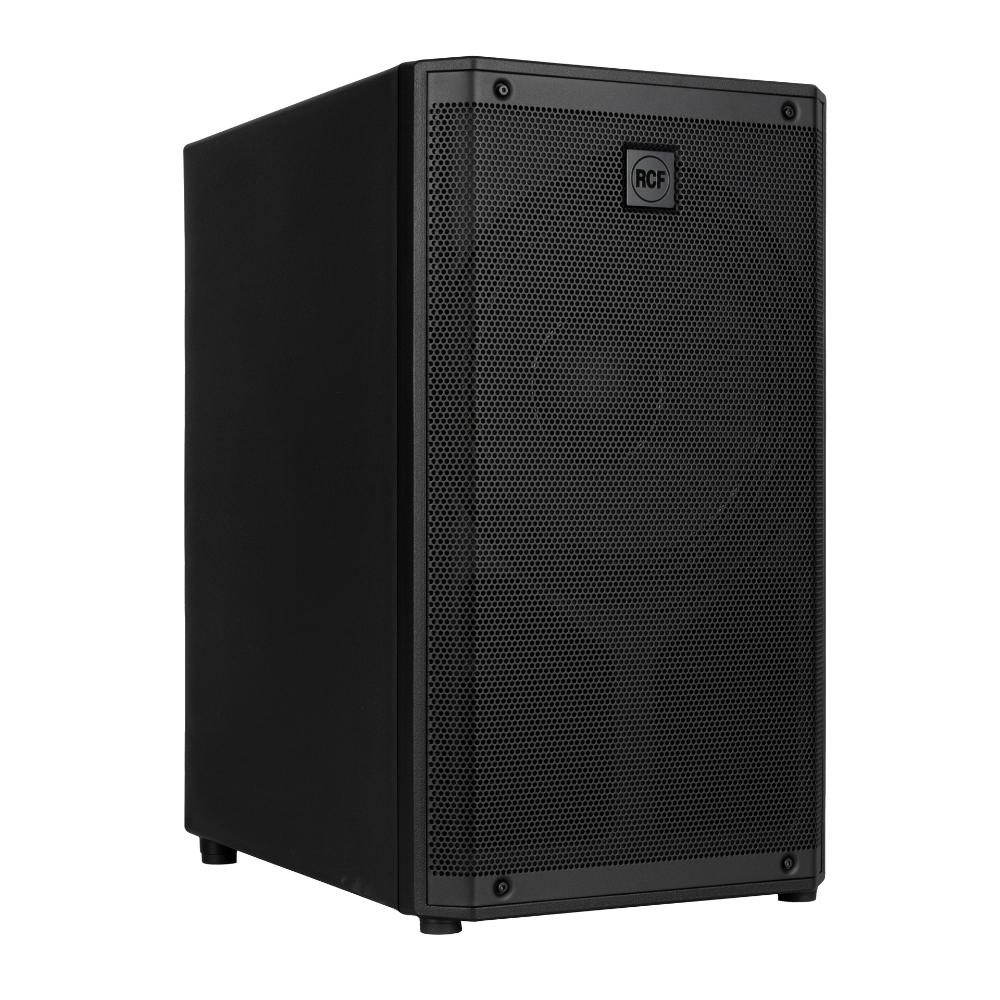

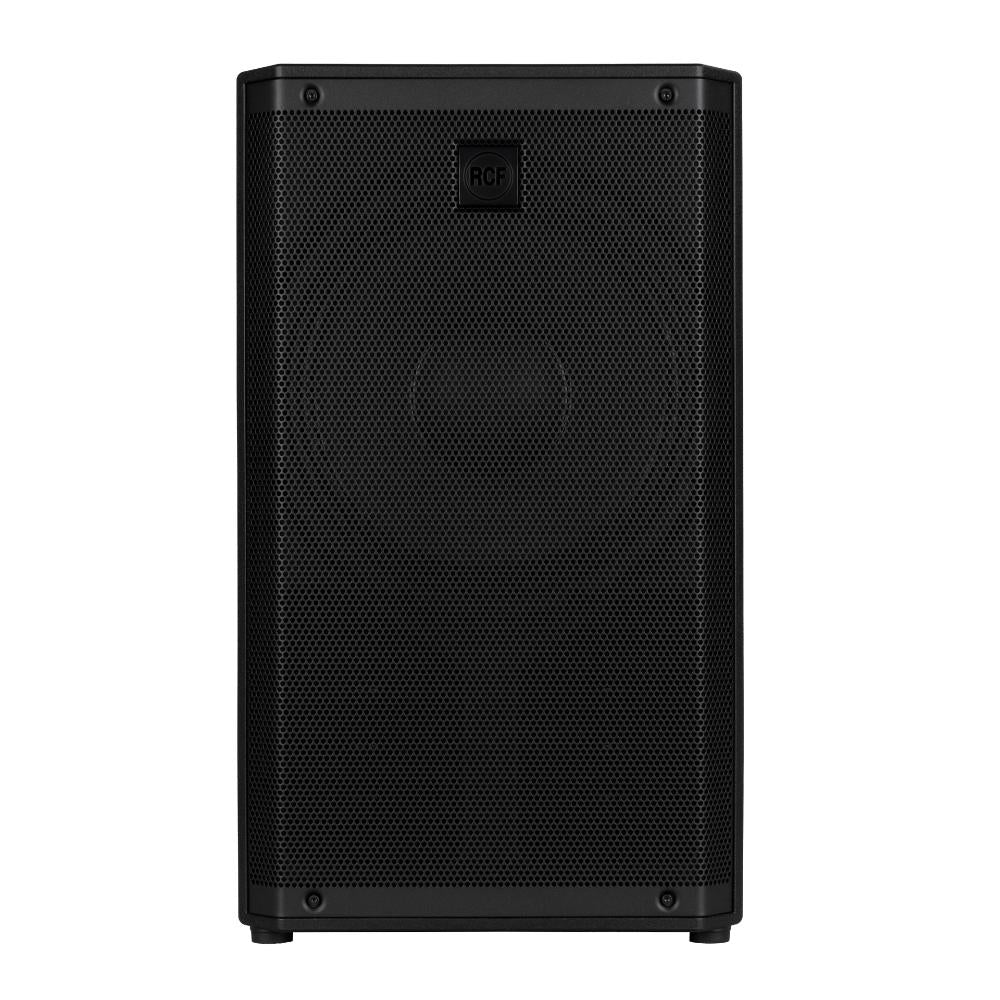

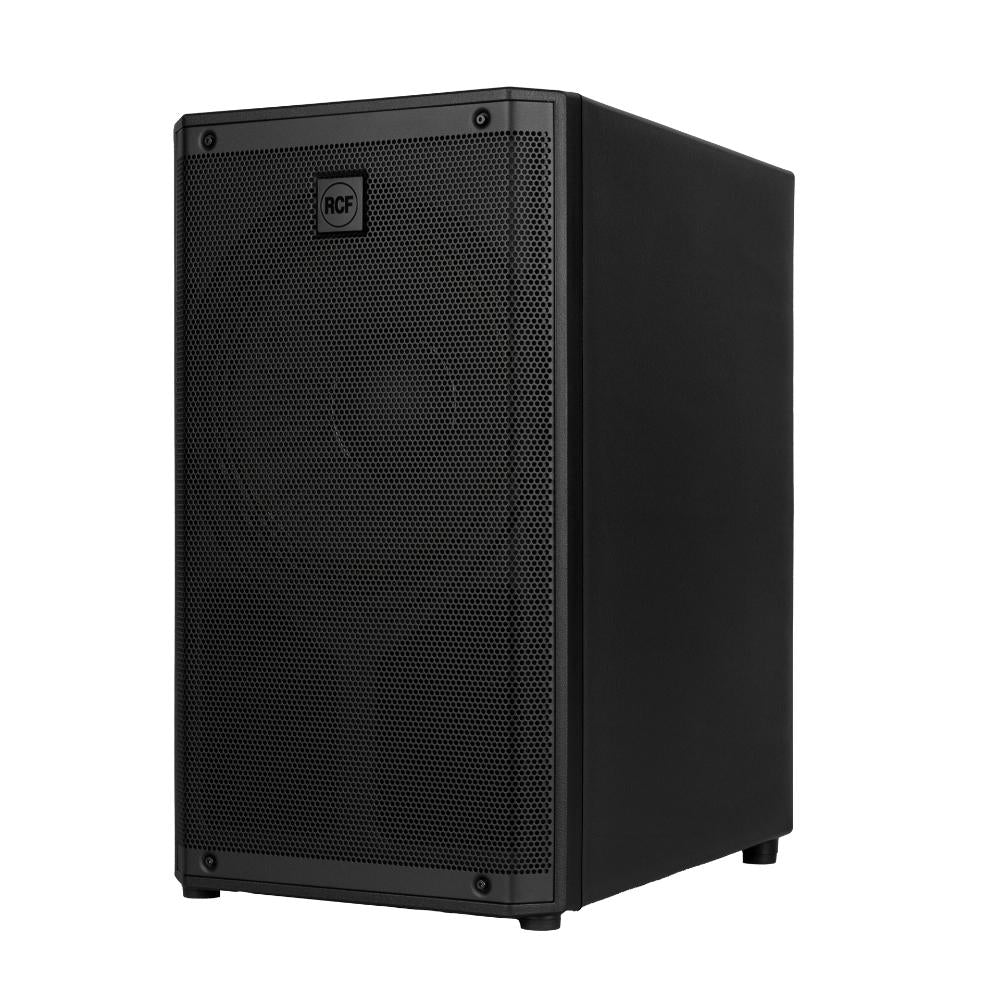

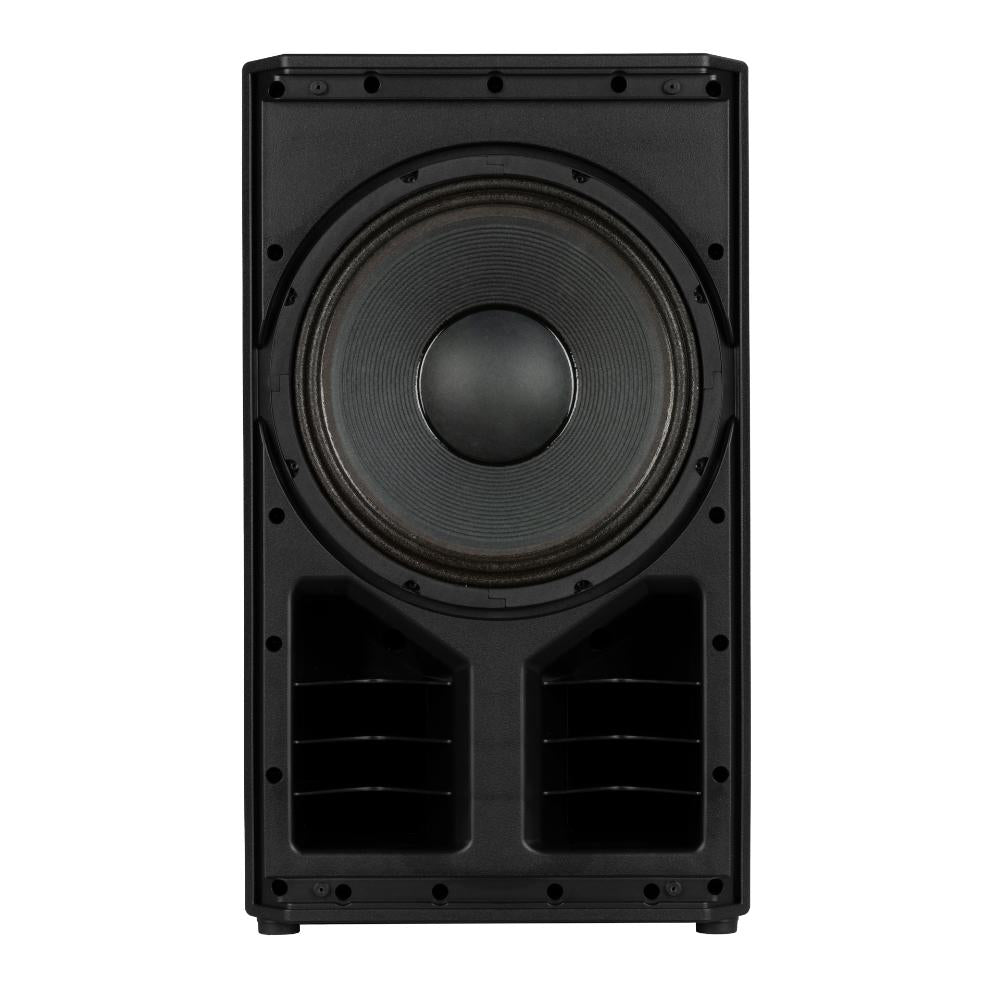

A high-power 12-inch woofer delivers deep, controlled low-frequency output for music, vocals, DJ performances, and live events.
2100W Class-D Amplification
The onboard dual-channel Class-D amplifier delivers up to 2100W peak power and a maximum output of 130 dB SPL. The fanless amplifier uses convection cooling, eliminating fan noise while reducing the number of moving components inside the system.
Advanced RCF DSP Processing
The EVOX J9 Series incorporates RCF's proprietary FiRPHASE and Bass Motion Control technologies. FiRPHASE optimizes phase response for transparent sound, precise imaging, and consistent coverage. Bass Motion Control helps extend usable low-frequency response while protecting the woofer from excessive excursion.
Fast, Flexible Setup

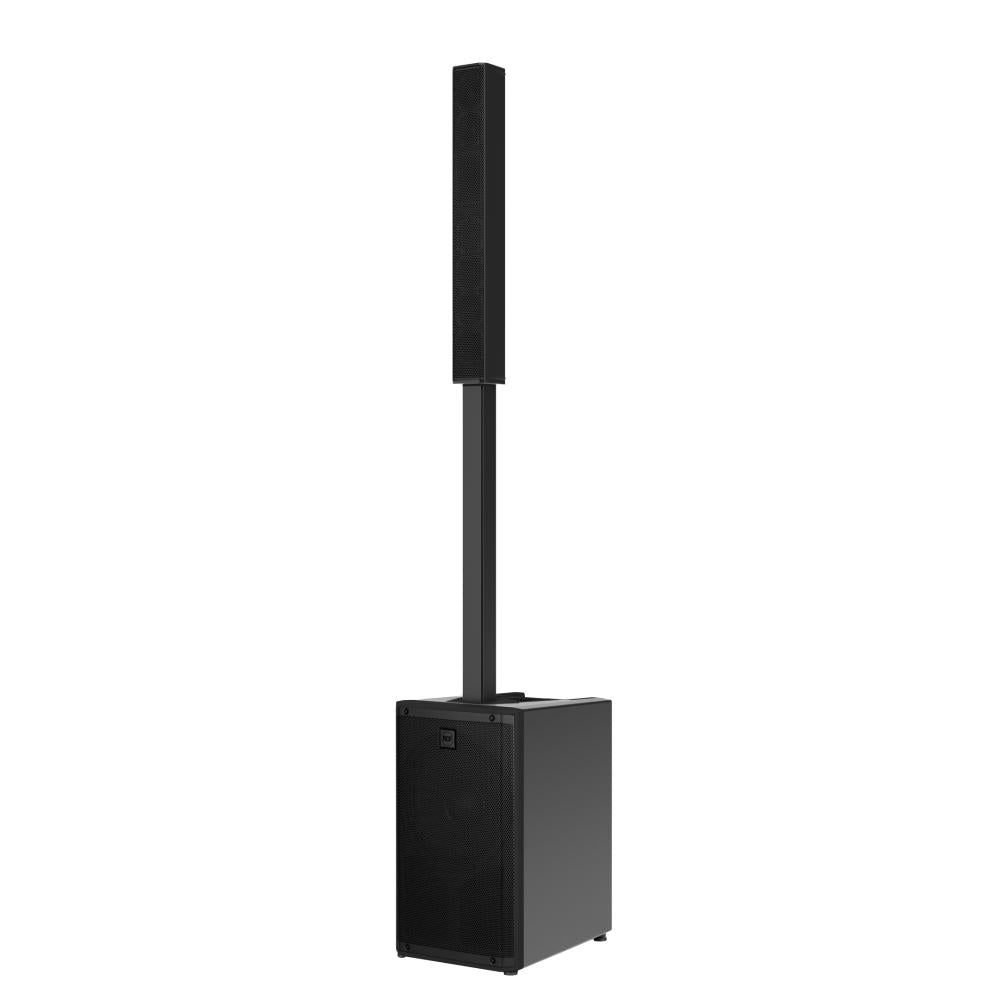

The included aluminum-alloy distance pole connects the column array to the bass enclosure and carries the required signal connections. The system can be configured with the full-length pole, mounted directly to the subwoofer in a zero-offset configuration, or combined with optional pole extensions for additional height.
Specifications
| System Type | Active three-way portable column speaker system |
| Frequency Response | 40 Hz–20 kHz |
| Maximum SPL | 130 dB at 1 meter |
| Coverage | 120° horizontal × 40° vertical |
| High-Frequency Driver | 0.75-inch neodymium compression driver, 1.75-inch voice coil |
| Full-Range Drivers | 6 × 3-inch neodymium drivers |
| Woofer | 12-inch woofer with 2.5-inch voice coil |
| Total Amplifier Power | 2100W peak |
| Low-Frequency Power | 1400W peak |
| High-Frequency Power | 700W peak |
| DSP | FiRPHASE, Bass Motion Control, thermal and RMS protection, soft limiter |
| Cabinet Material | PP composite with steel grille |
| Assembled Height | Approximately 81.89 inches |
| Width | 13.78 inches |
| Depth | Approximately 18.1 inches |
| EVOX J9 Weight | 57.32 lb |
| EVOX JMIX9 Weight | 58.64 lb |
| Included Accessory | Padded column carrying bag |

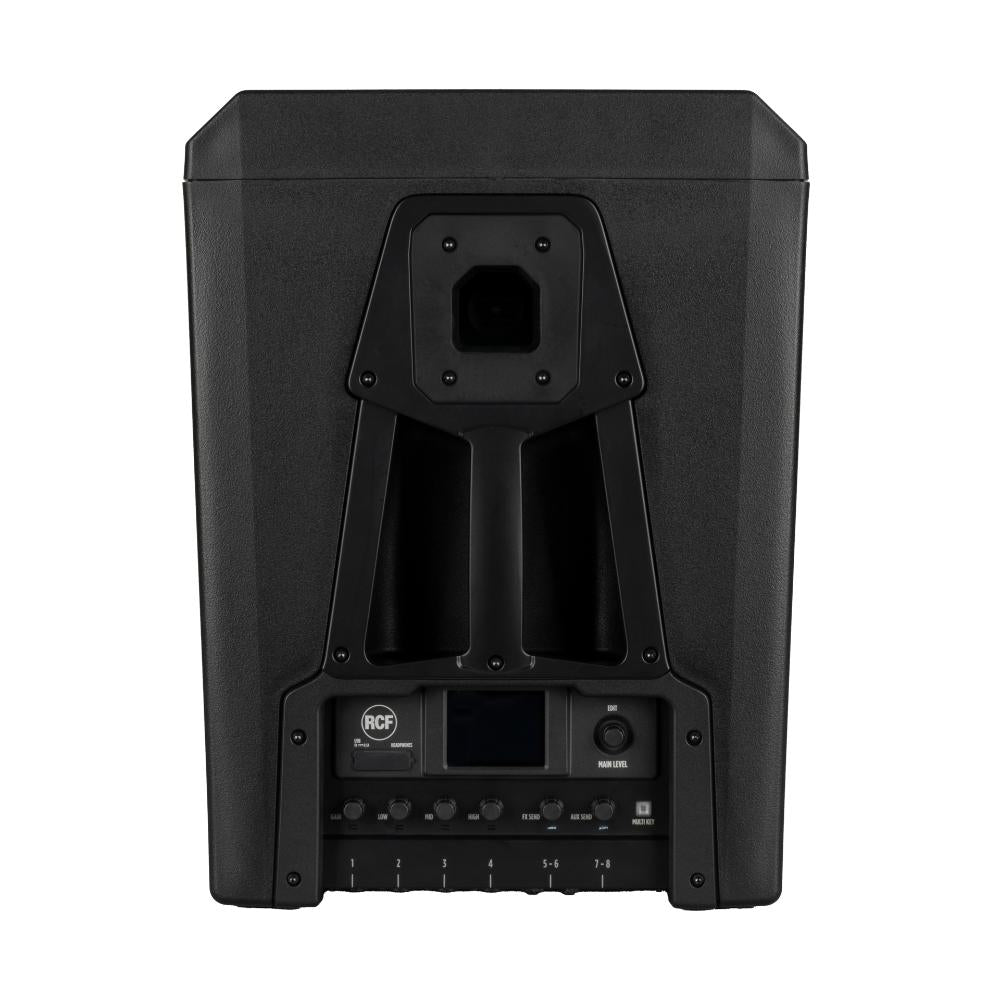

JMIX9 Integrated Mixer Features
- 8-channel true-stereo digital mixer
- 2.4-inch color touchscreen with physical encoders
- Four microphone/line combo inputs
- Individual +48V phantom power on microphone inputs
- Stereo TRS line input
- 3.5 mm stereo input shared with Bluetooth audio streaming
- High-pass filter and 3-band EQ on each input channel
- Compression on microphone/line channels 1–4
- Internal stereo reverb
- Main output with stereo 8-band EQ
- Auxiliary bus with pre/post selection and dedicated XLR output
- Scene save and recall
- JMixRemote wireless control for iOS and Android
- Stereo operation when paired with an EVOX J9
Note: Mixer functions, Bluetooth streaming, touchscreen control, JMixRemote app control, phantom power, channel processing, and auxiliary routing are included only with the EVOX JMIX9 variant.
