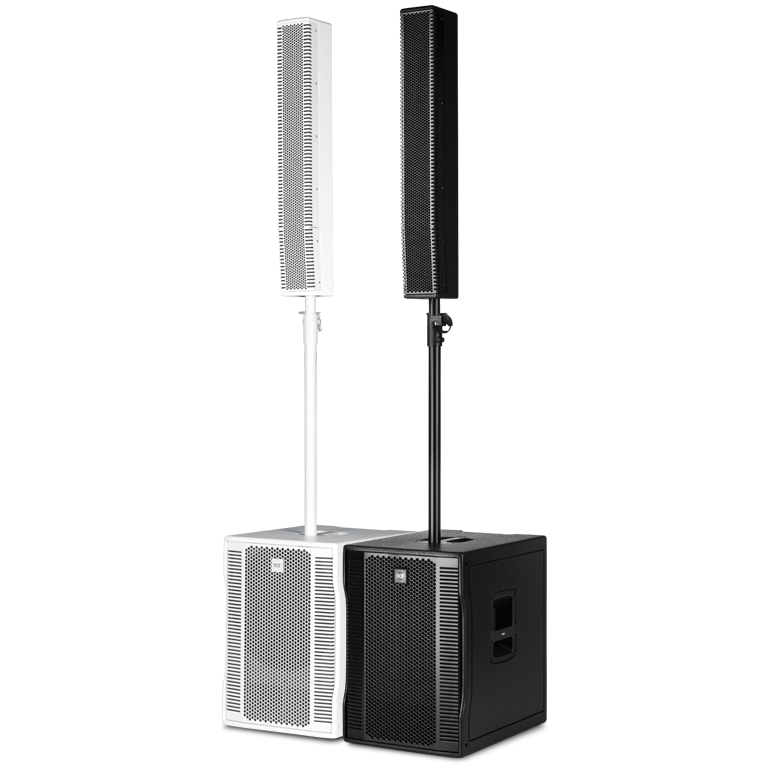

RCF EVOX 12 Active Two-Way Array Speaker System
The RCF EVOX 12 is a powerful active two-way array system designed for performers, DJs, bands, venues, and event production where high output, clear coverage, and fast setup matter. With a built-in 1400W peak Class-D amplifier, a 15-inch woofer, and an array of eight 4-inch neodymium full-range drivers, the EVOX 12 delivers strong bass, detailed mids, and wide, consistent audience coverage.
Built for serious portable sound, the EVOX 12 combines high SPL performance with practical transport features including integrated wheels, an extendable handle, and a compact enclosure. Its line-source design provides excellent throw and clarity, while RCF’s advanced DSP and FiRPHASE processing help maintain transparent sound and coherent phase response across the listening area.
Key Features
- 1400W peak / 700W RMS total power
- 130 dB maximum SPL
- 40 Hz - 20 kHz frequency response

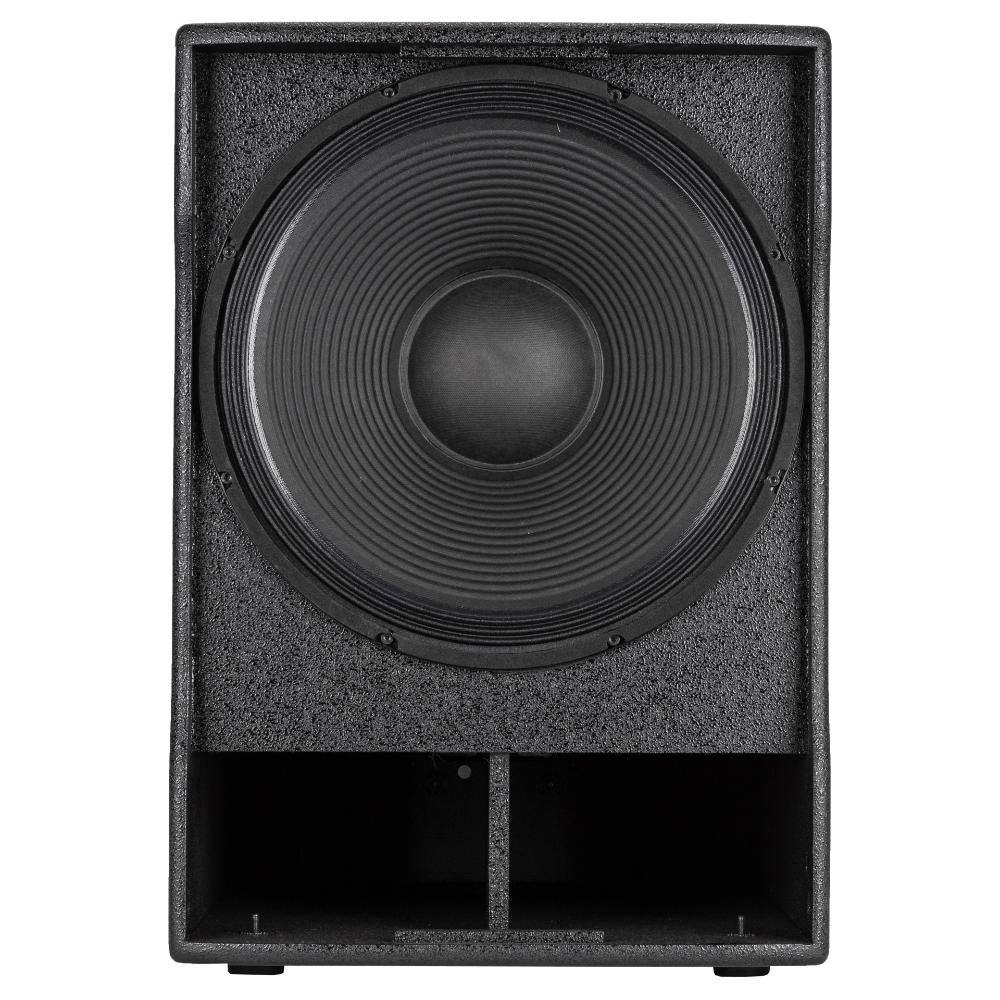

- 15-inch high-excursion woofer with 3-inch voice coil

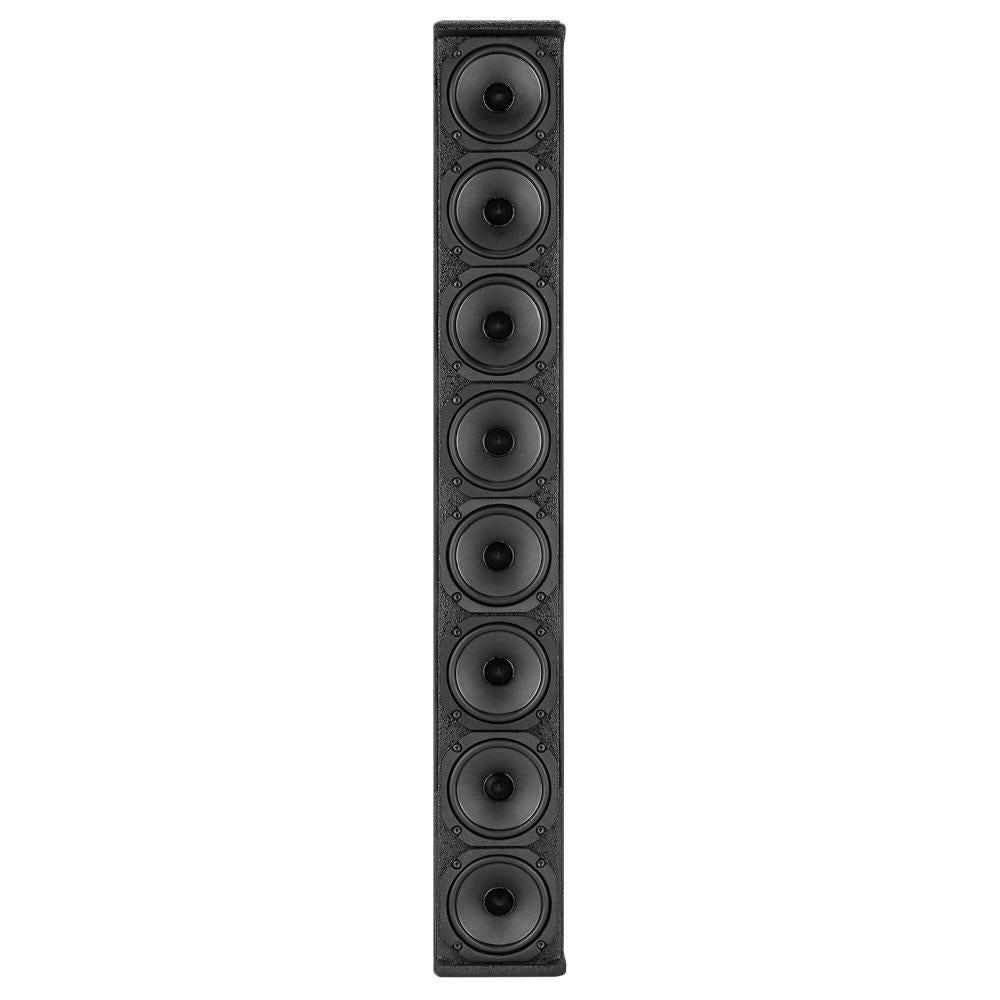

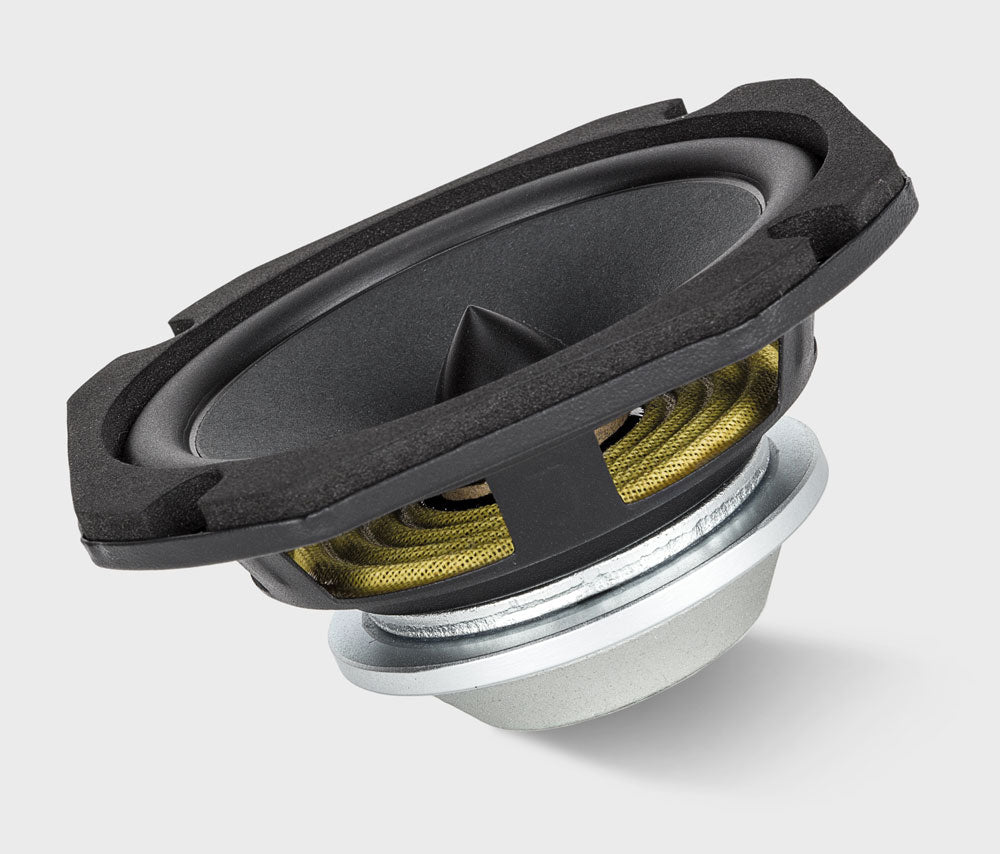

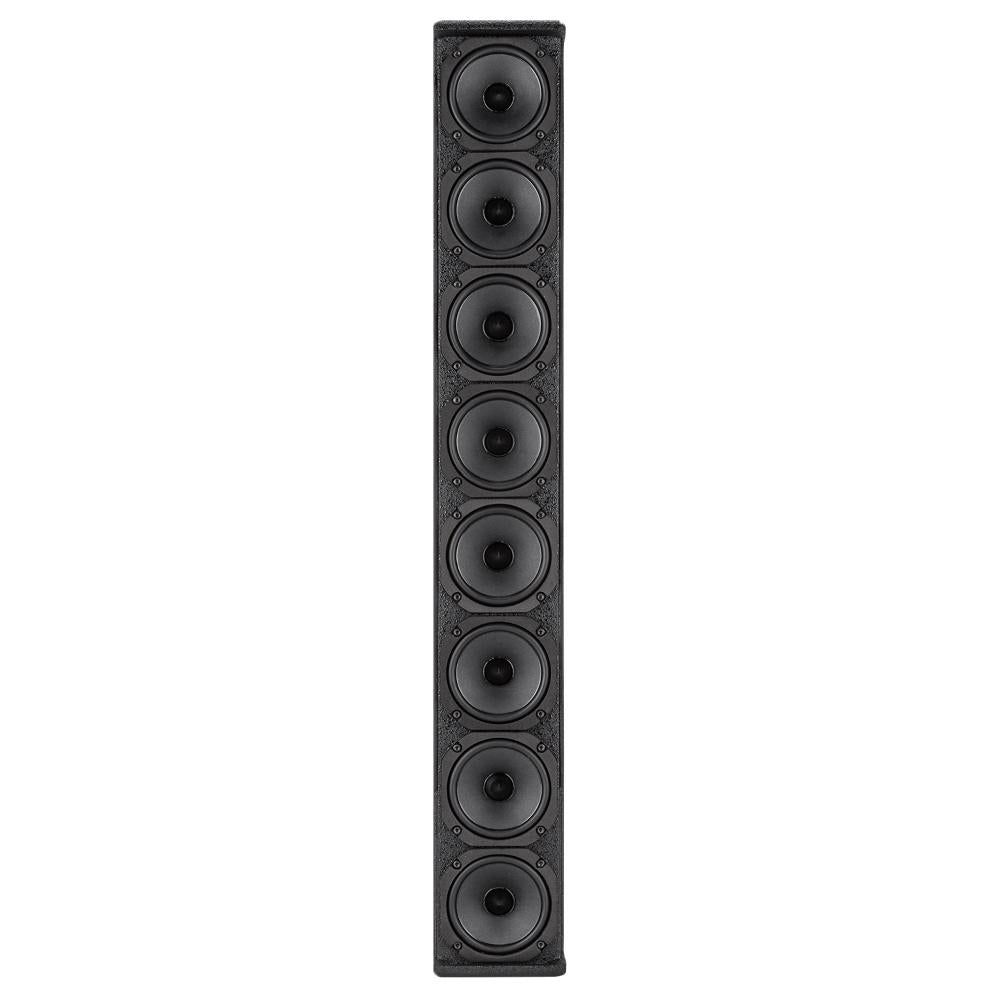

- 8 x 4-inch neodymium full-range drivers with 1-inch voice coils
- 90° horizontal x 30° vertical coverage
- RCF FiRPHASE technology for clear, phase-coherent sound
- Innovative onboard DSP processing
- Class-D amplifier with convection cooling

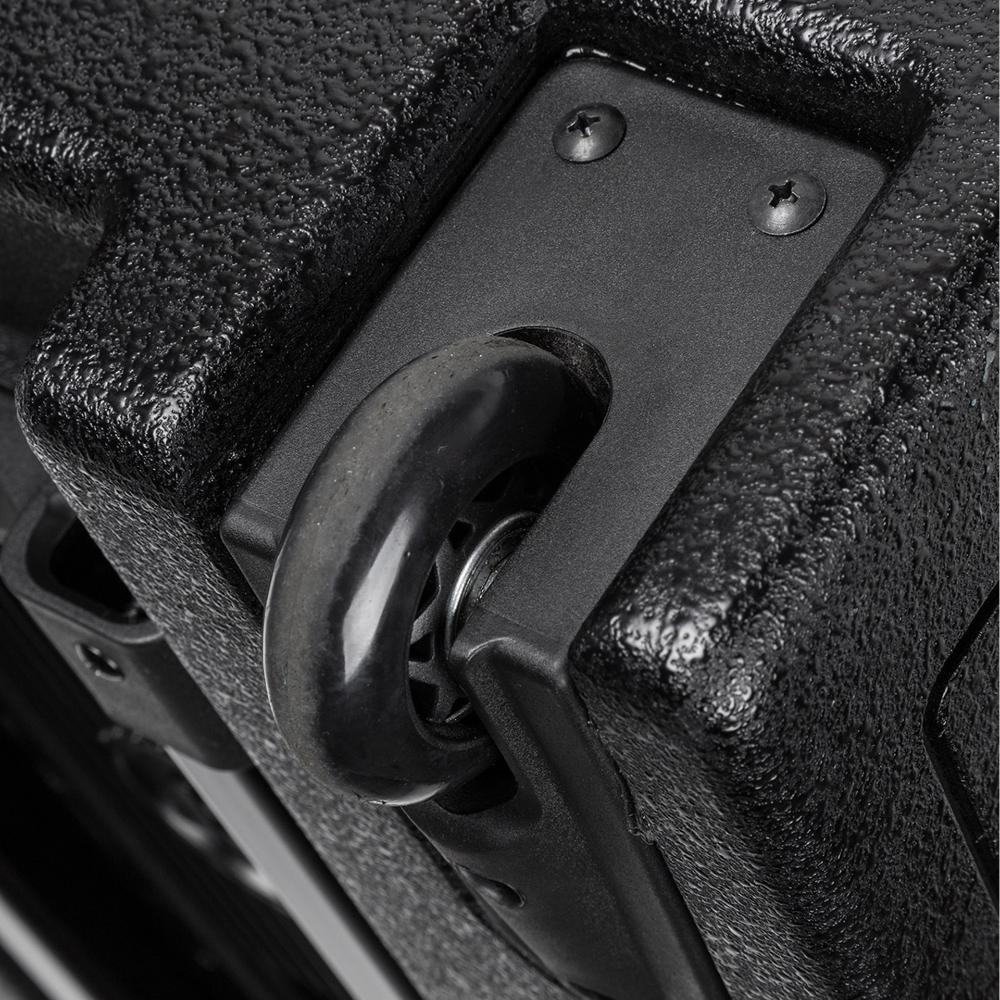

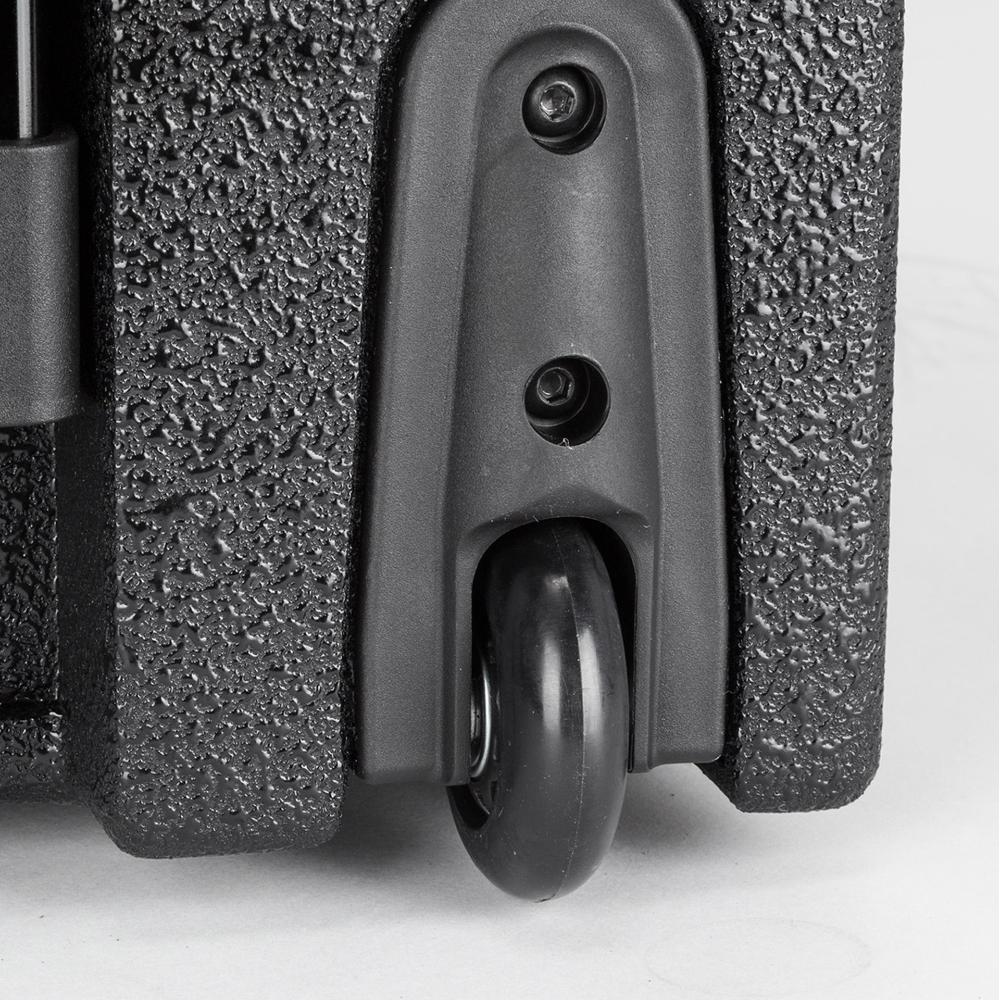

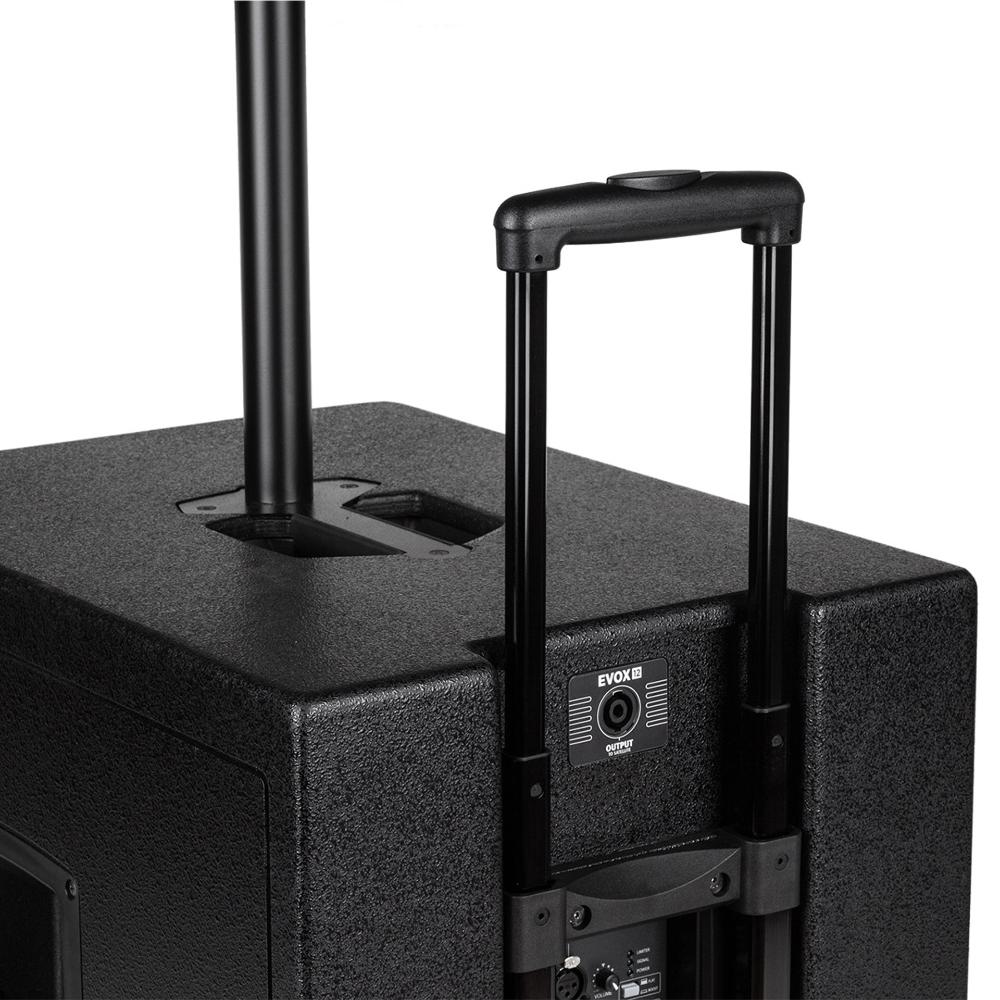

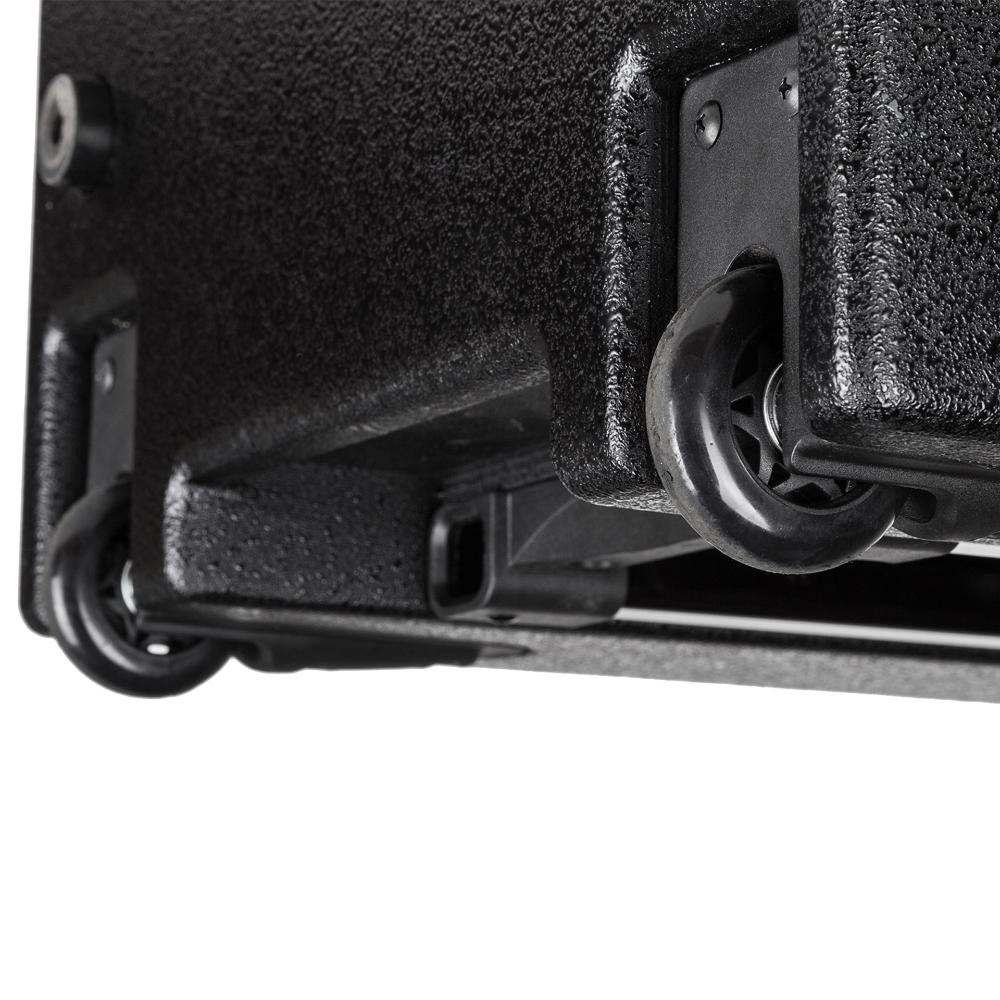

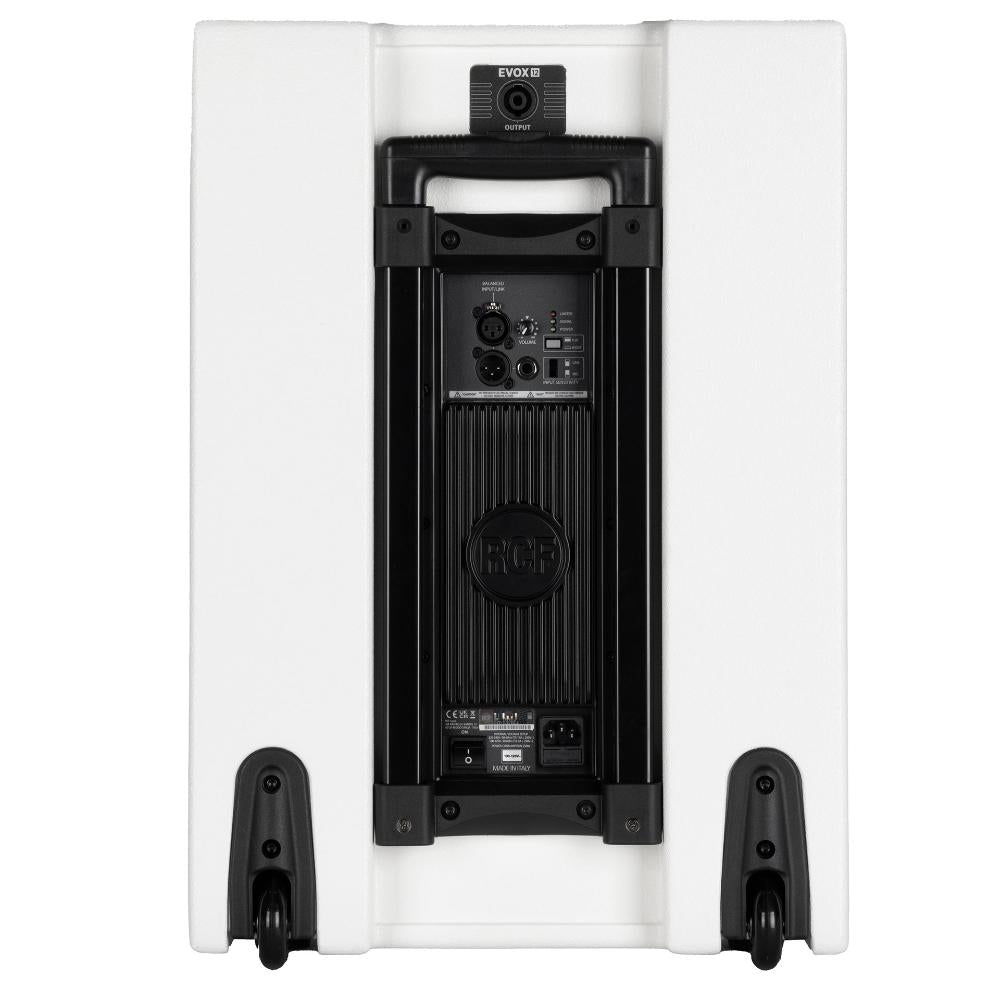

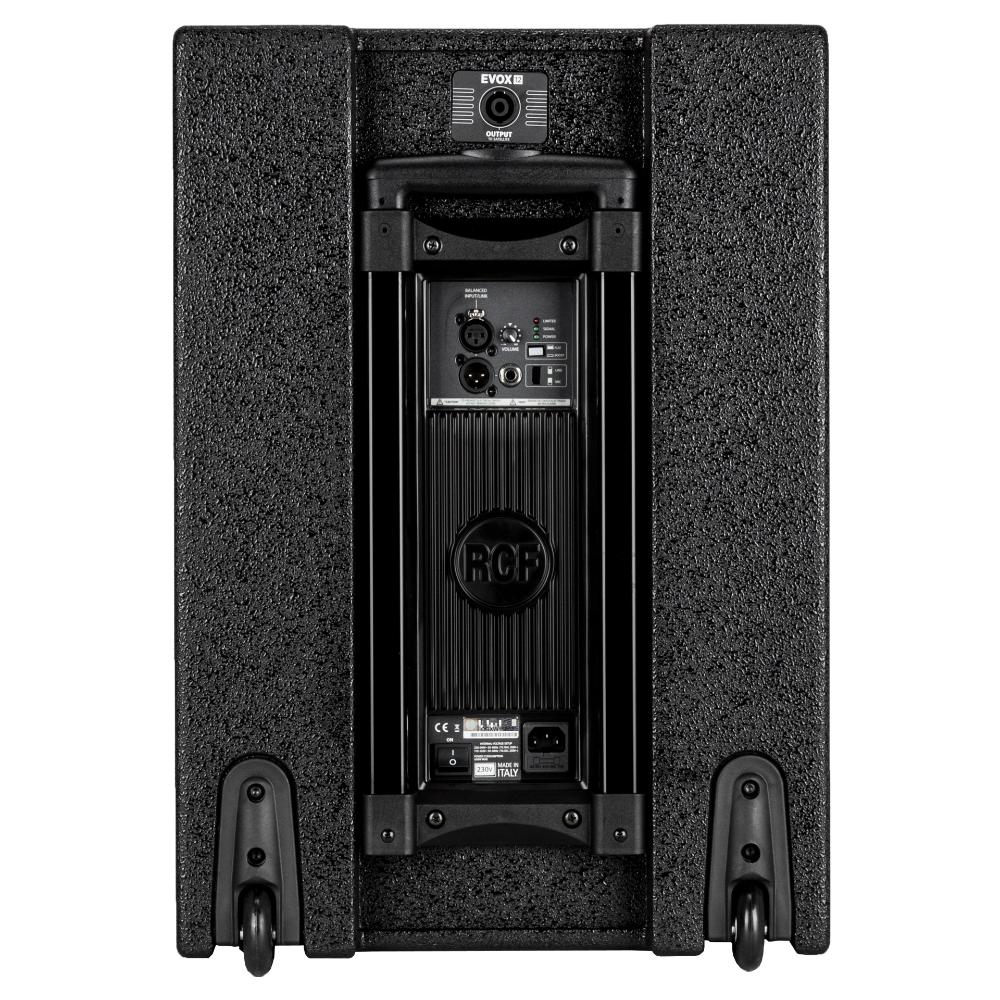

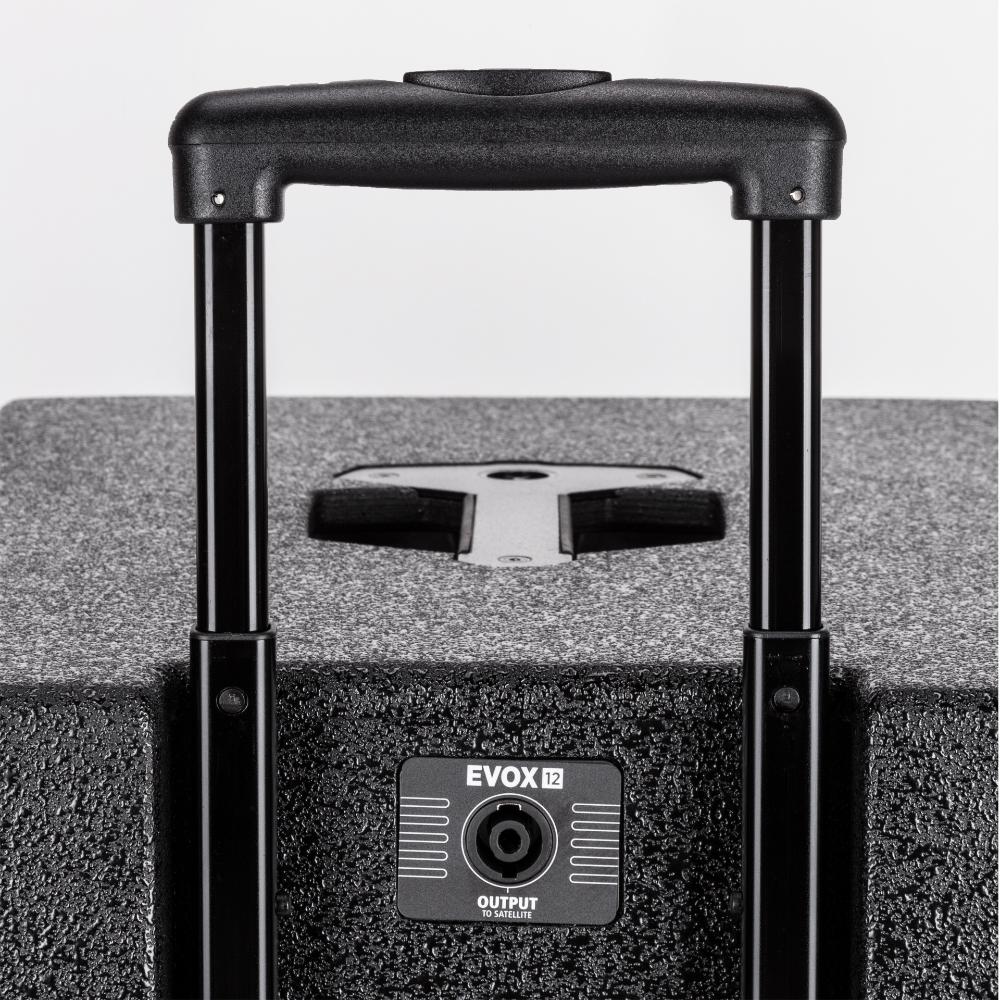

- Integrated wheels and extendable handle for easier transport
- Fast pole-mounted setup
Professional Sound, Portable Design

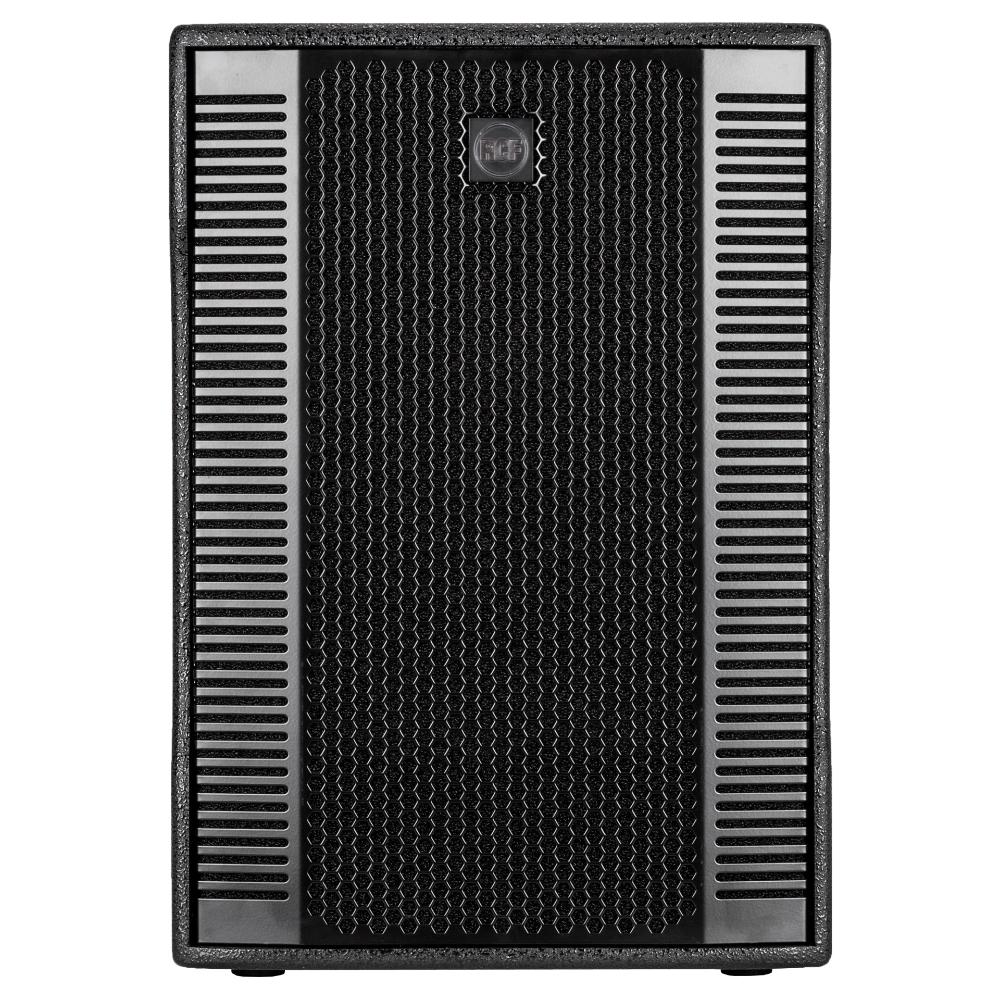

The EVOX 12 is engineered to deliver deep, dynamic reproduction at high levels. The 15-inch subwoofer provides powerful low-frequency support for live bands, DJs, parties, and mobile events, while the compact top column produces wide, controlled coverage for vocals, instruments, and program audio.

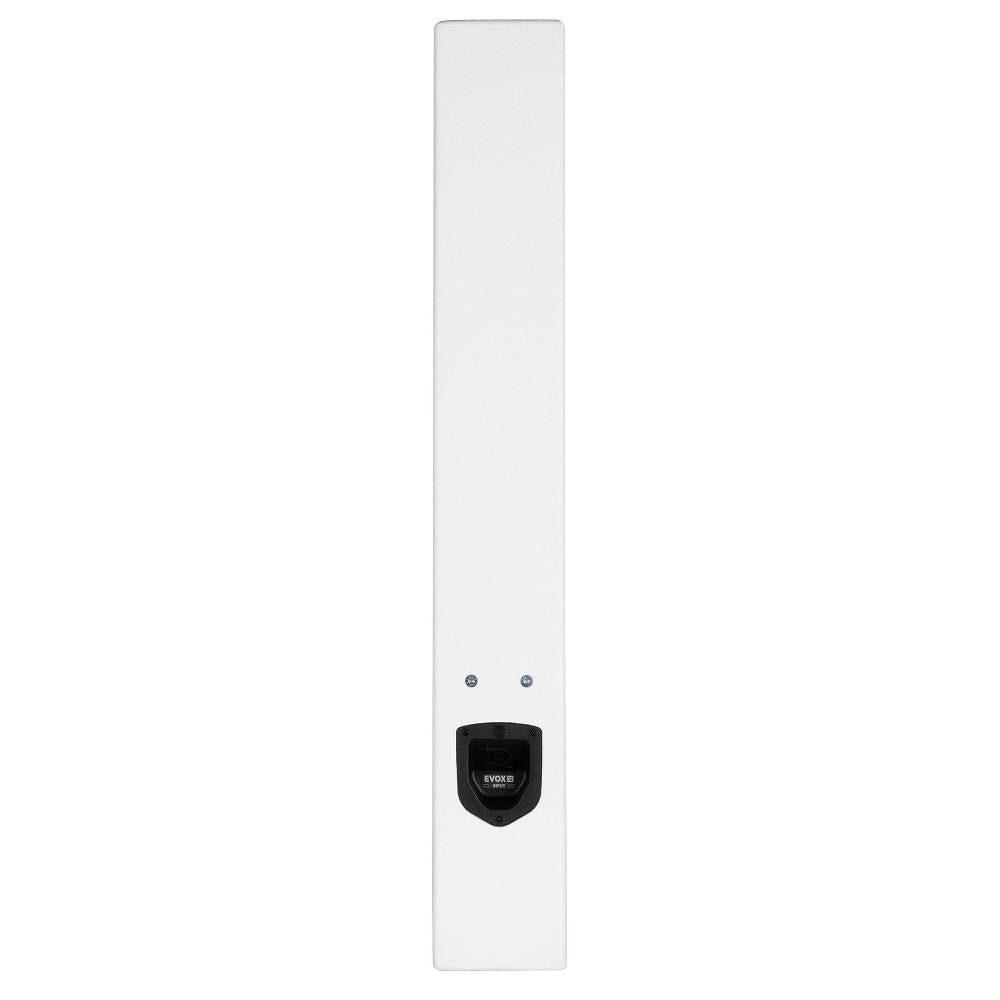

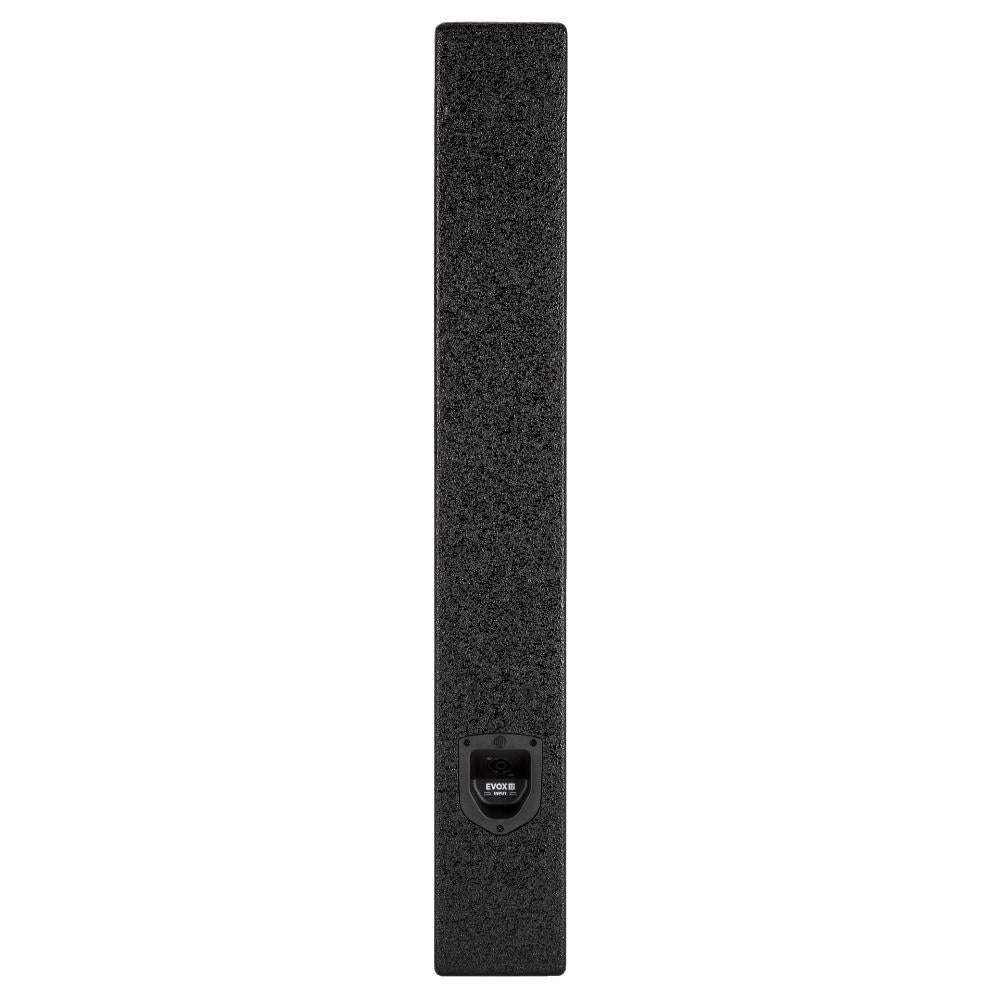

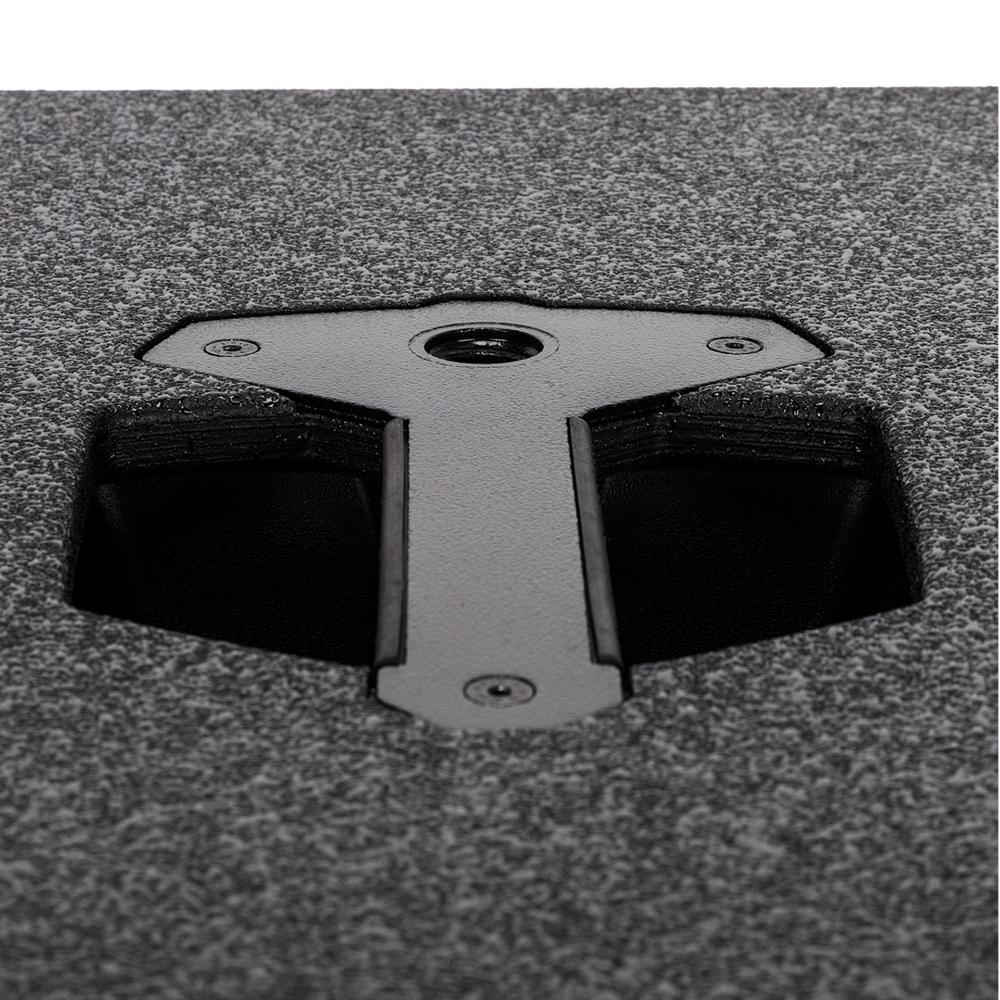

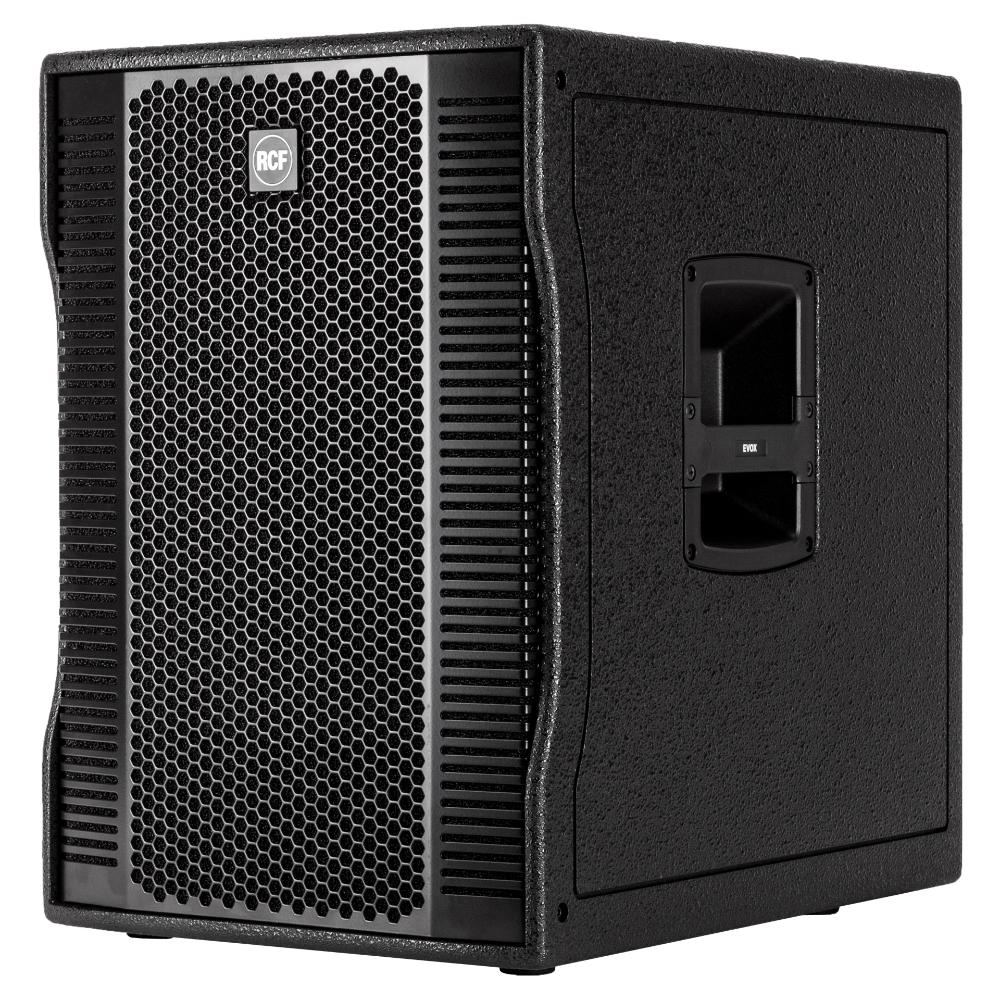

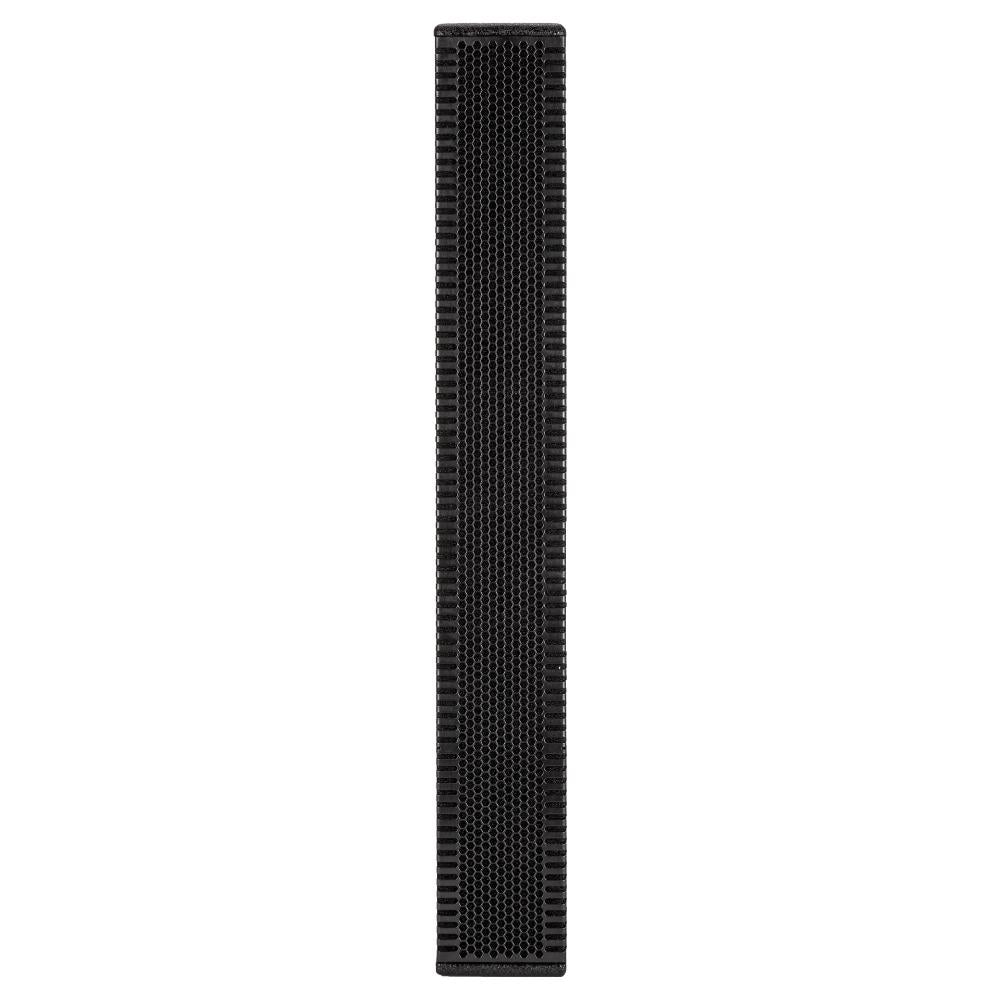

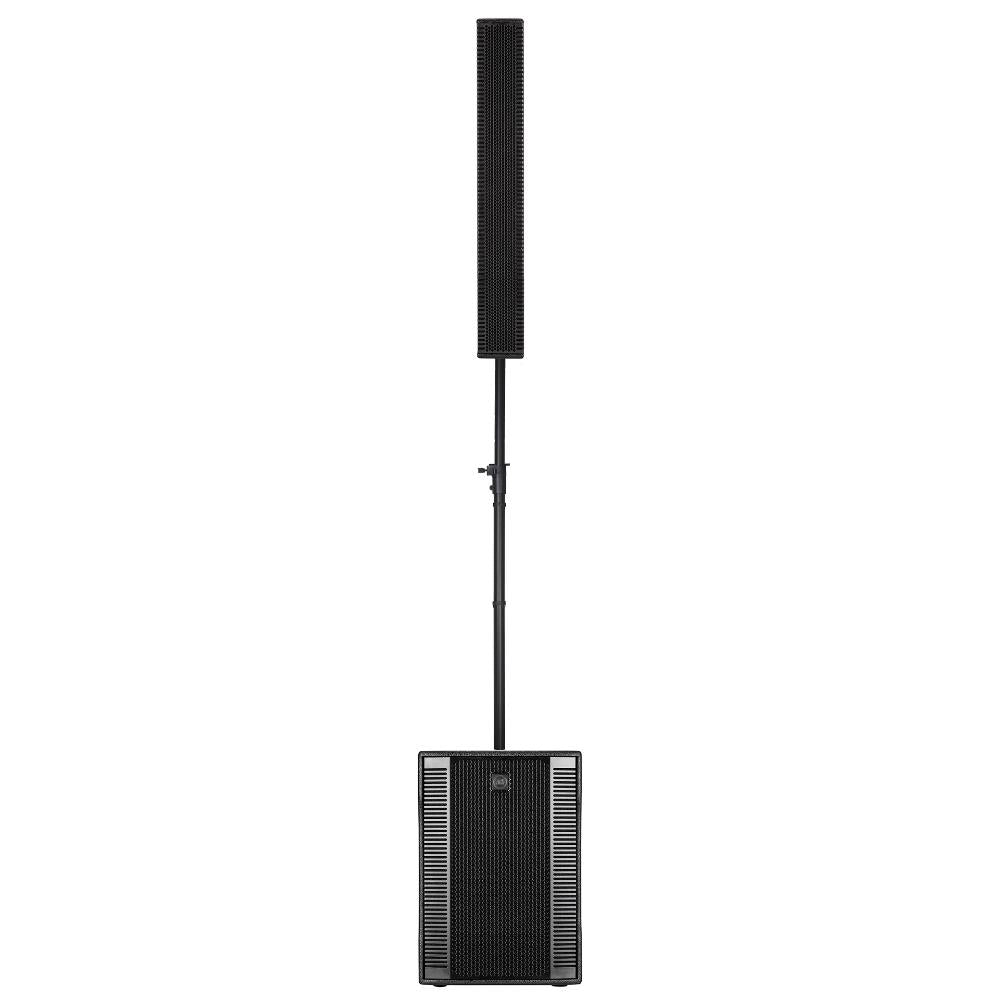

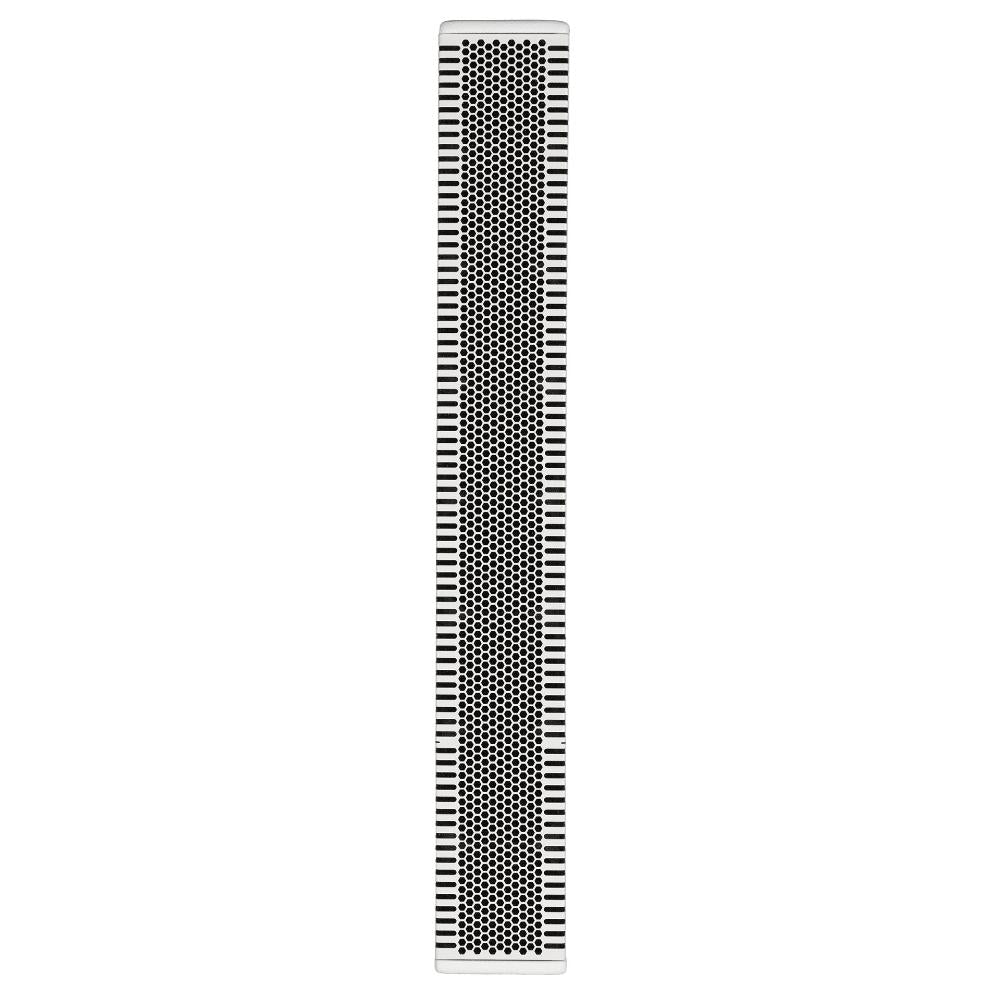

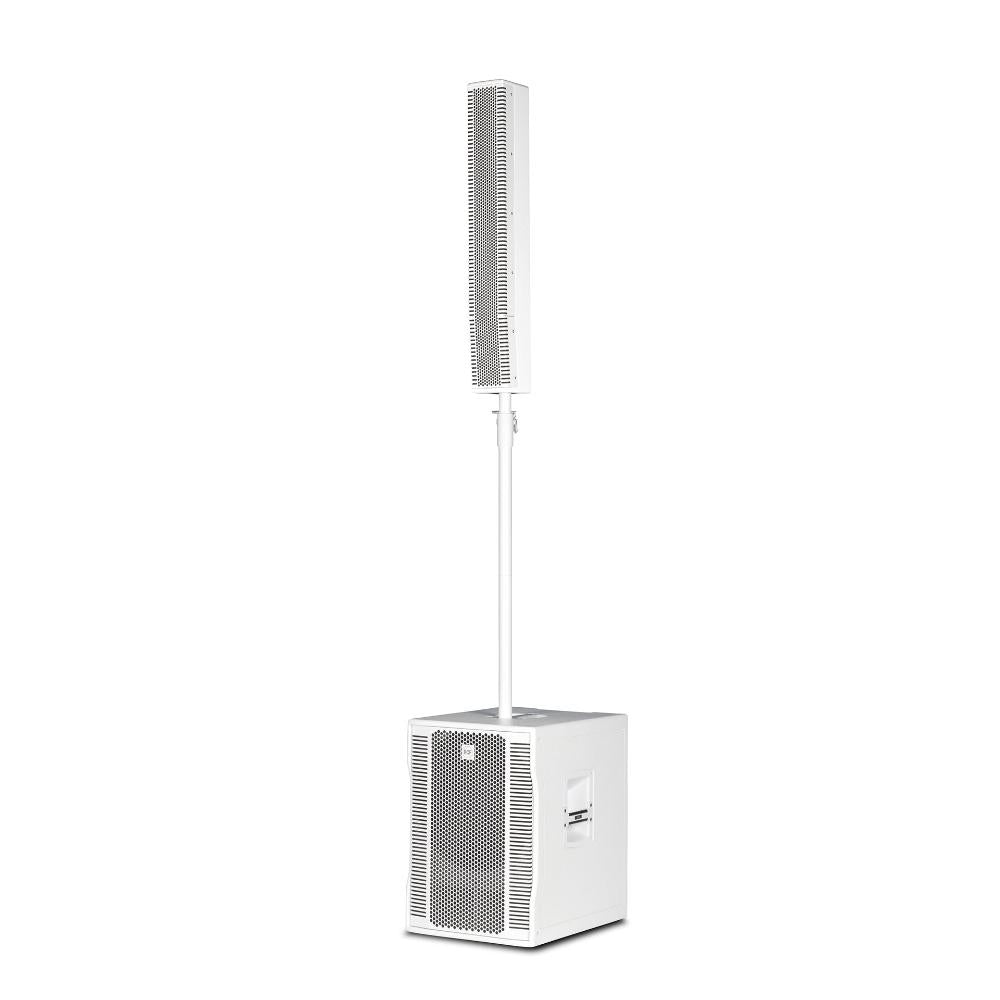

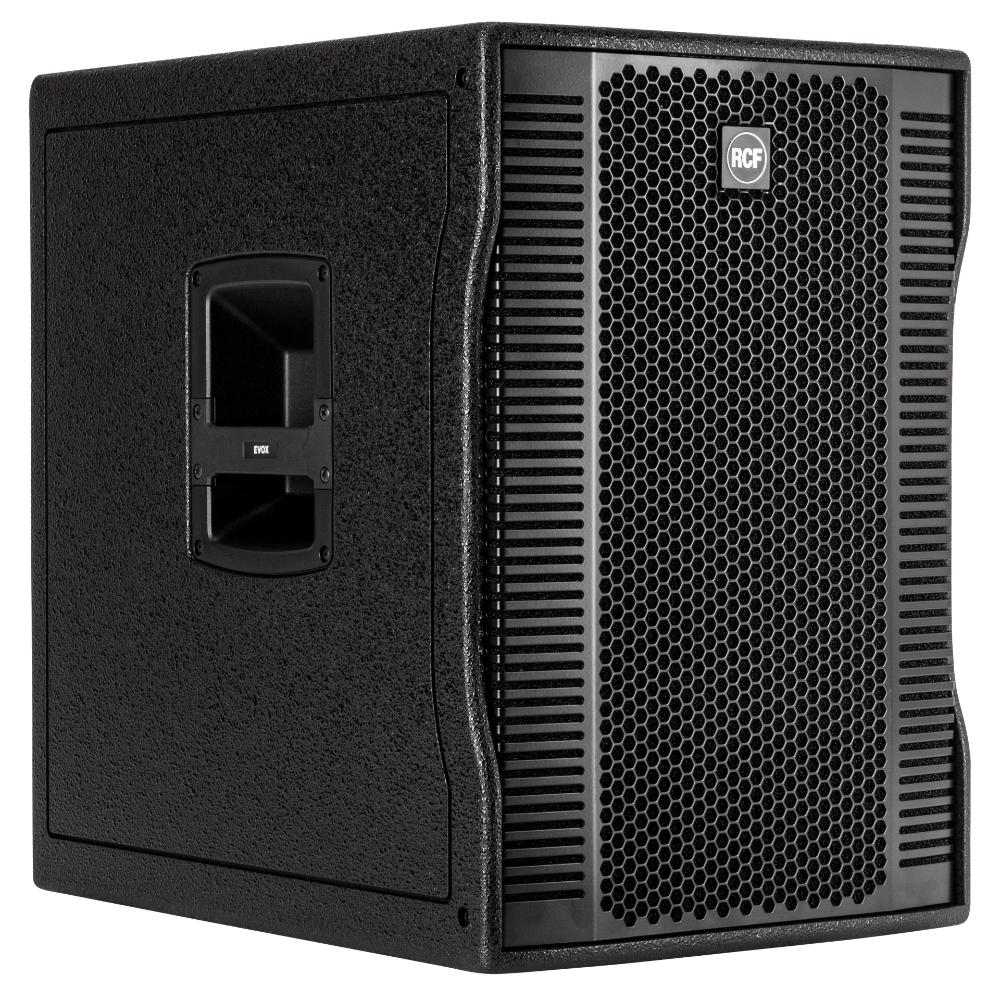

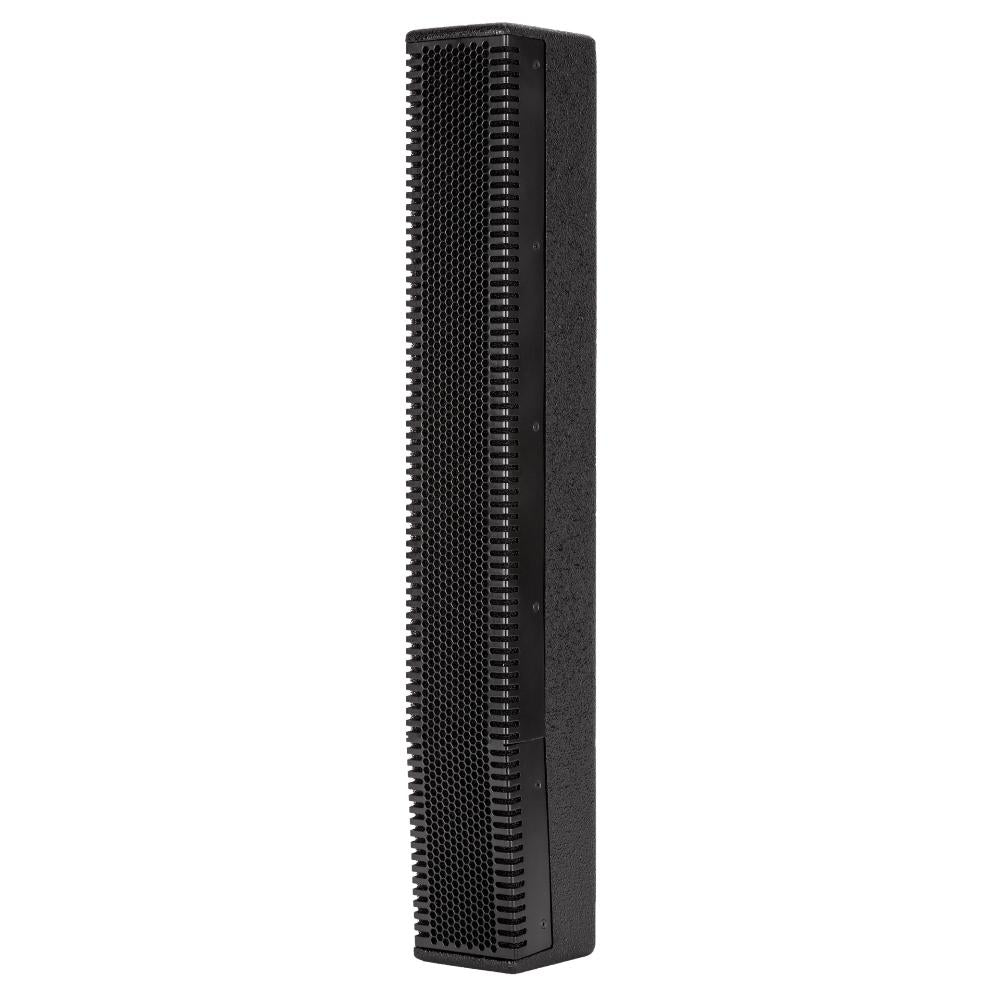

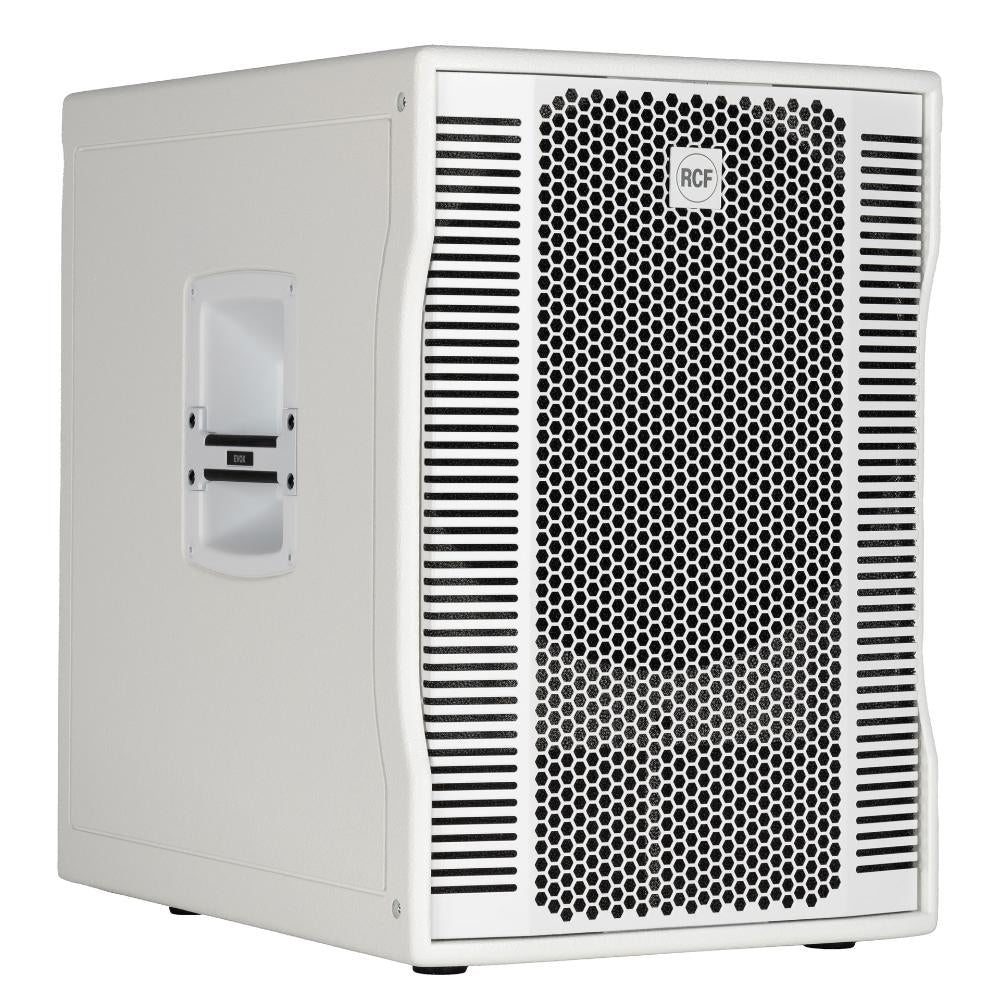

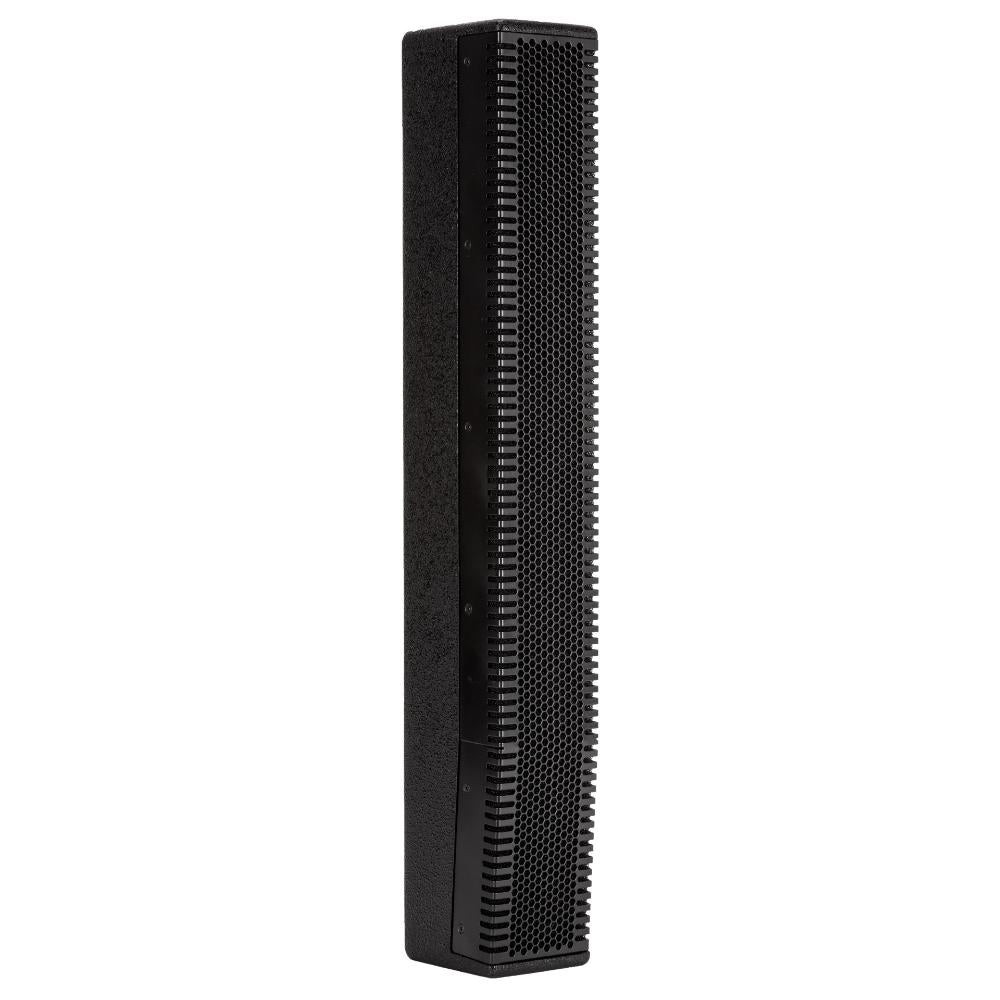

The system is designed for quick setup and breakdown. The top column mounts directly onto the included pole system, while the subwoofer cabinet houses the amplification and low-frequency section in a compact, transport-friendly format.
Specifications
| System Type | Active two-way array |
| Total Power | 1400W peak / 700W RMS |
| Maximum SPL | 130 dB |
| Frequency Response | 40 Hz - 20 kHz |
| Coverage | 90° horizontal x 30° vertical |
| Full-Range Drivers | 8 x 4-inch neodymium drivers |
| Woofer | 15-inch woofer |

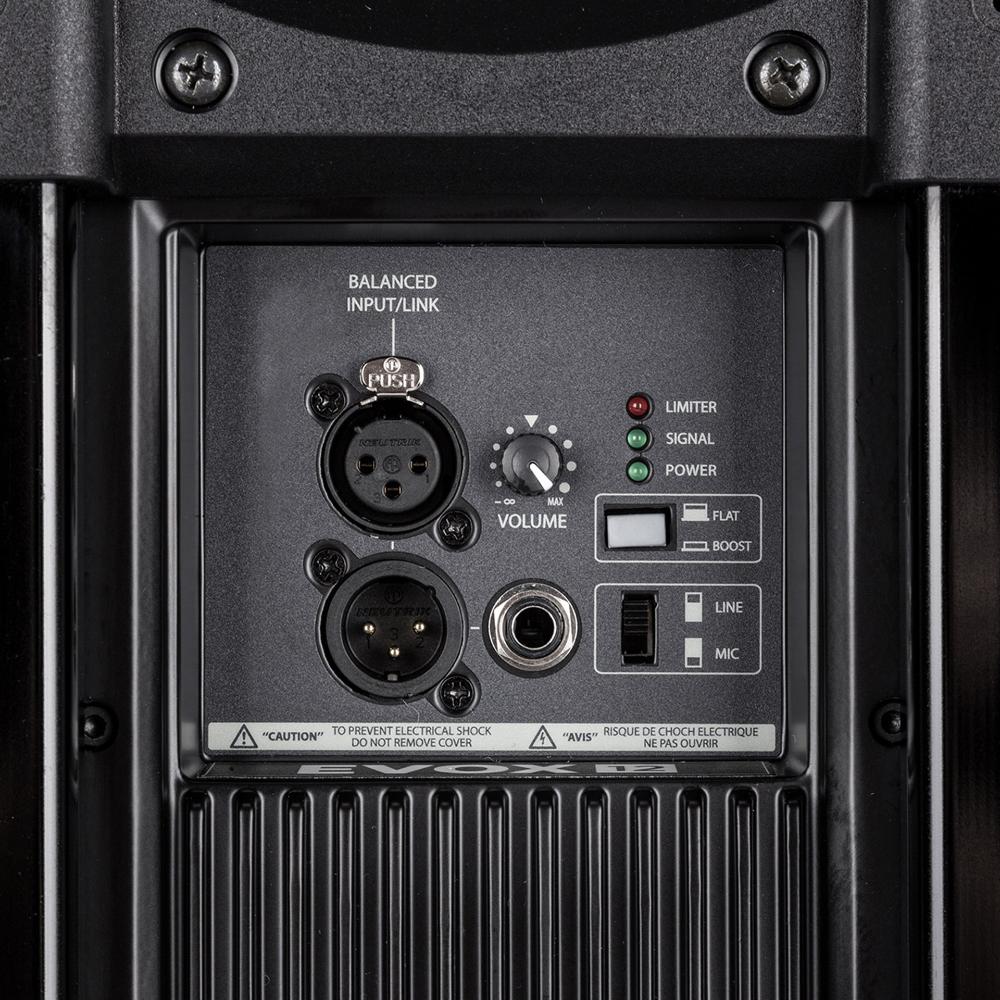

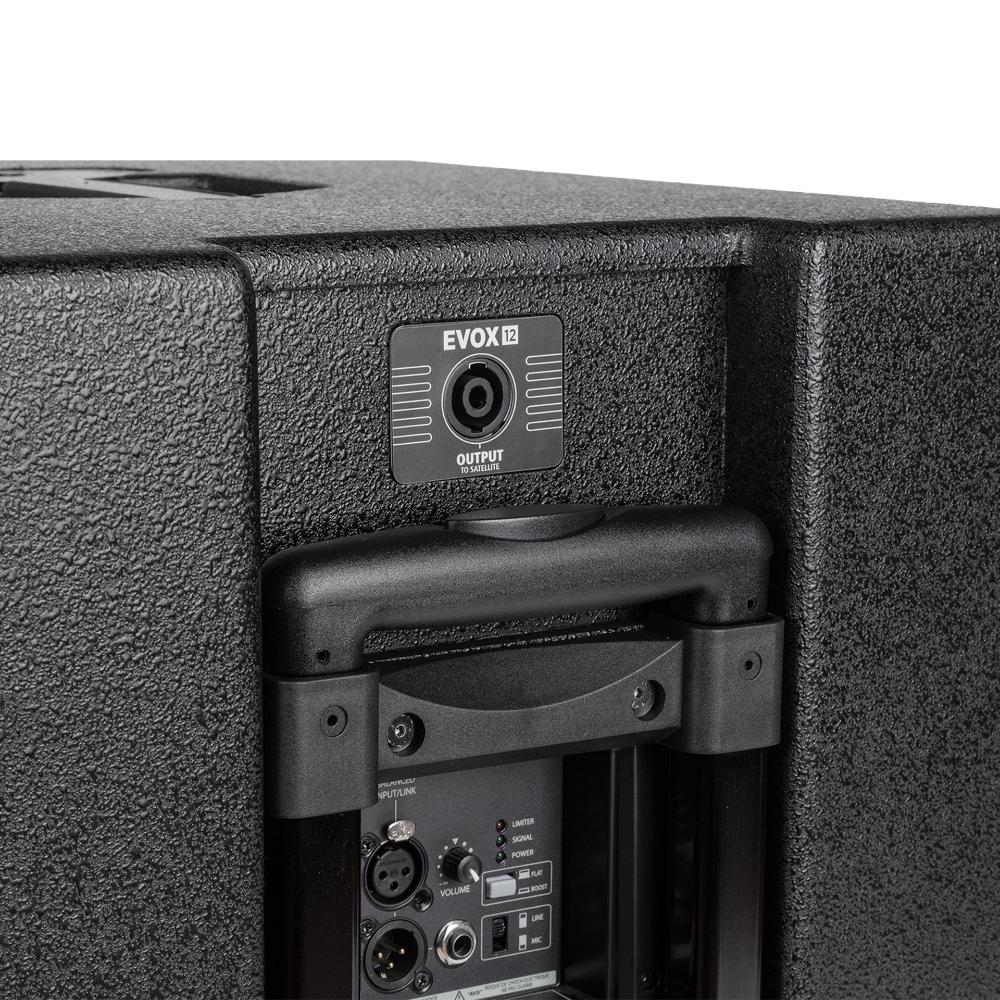

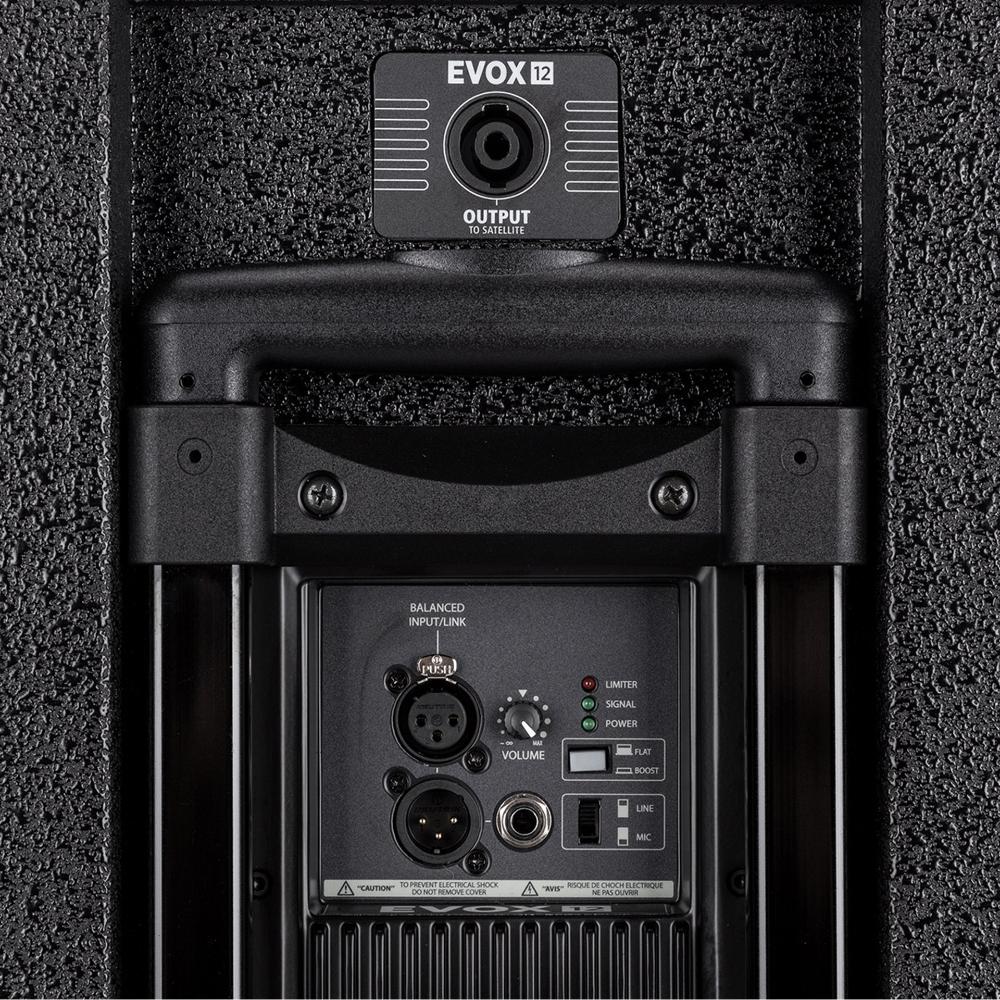

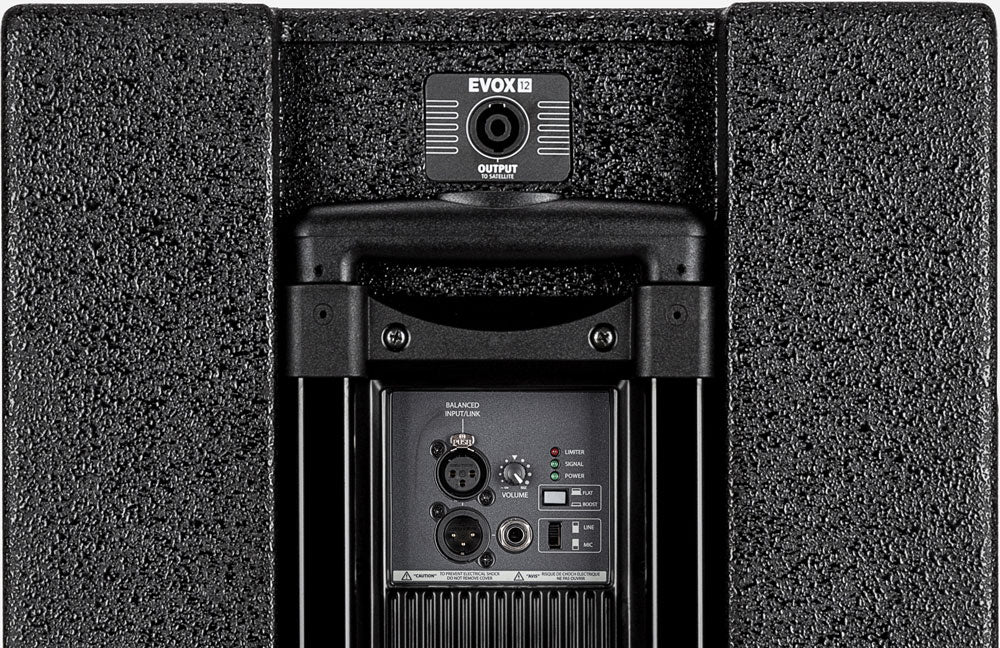

| Input Connectors | XLR, Jack |
| Output Connector | XLR |
| Controls | Volume, EQ |
| Cabinet Material | Baltic birch plywood |
| Dimensions | 2200 mm H x 410 mm W x 560 mm D |
| Weight | 36.4 kg / 80.25 lbs |
Ideal For
- Live bands and performers
- DJs and mobile entertainers
- Corporate events and presentations
- Houses of worship
- Small to medium venues
- Portable PA and event production
Manufacturer part numbers may vary by voltage and color configuration. Please confirm the correct version for your region before purchase.
