Name: Electro-Voice R300-HD-C – Handheld System PL22 in case
Brand: Electro-Voice
SKU: R300-HD-C
Price: 365.00 USD
Availability: InStock

Electro-Voice R300-HD-C – Handheld System PL22 in case

$365.00

$365.00 $398.00

Electro-Voice

R300-HD-C – Handheld System PL22 in case

Overview

Handheld system with PL22 dynamic microphone

Highlights

✓ClearScan automatically finds the clearest channel
✓EZsync one-step channel setup

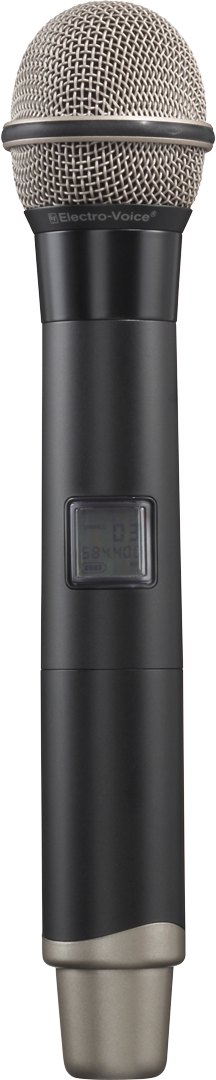

✓PL22 cardioid dynamic microphone element
✓14 hour battery life from two AA alkaline
✓Rugged metal transmitter
✓Metal receiver chassis with optional rack mount

Specifications

Receiver Type	Synthesized PLL
Frequency Range (RF)	A Band 618 - 634 MHz (Not Available in US or Canada) B Band 678 - 694 MHz (Not Available in US or Canada) C Band 516 - 532 MHz E Band 850 - 865 MHz (Not Available in US or Canada)
Number of Channels	32
Specifications Modulation	± 40 kHz
Diversity	True Antenna
RF Sensitivity	<1.0 μV for 12 dB SINAD
Image Rejection	> 55 dB
Squelch	Tone Code plus Amplitude
Power Requirements	12-16 VDC, 500mA max
Operating Temperature	5°C to 45°C (41°F to 113°F)
Dimensions	43 mm H x 206 mm W x 210 mm D (1.72 in H x 7.8 in W x 8.0 in D)
Frequency Response	80 Hz - 18 kHz ± 2 dB
Balanced Output	20 dBV (max @ 40 kHz deviation)
Unbalanced Output	Adjustable 8 mV to 0.755V RMS
Distortion	< 1.0%, 0.4% typical (ref 1 kHz, 40 kHz deviation)
Signal-to-Noise Ratio	> 100 dB A-Weighted
Dynamic Range	> 95 dB
Radiated Output	8 mW typical
Back Lit LCD Display	Channel, Frequency, Mute, and Battery Level
Microphone Head	Electro-Voice PL22 Cardioid Dynamic
