Electro-Voice R300-E-C

Electro-Voice R300-E-C – Headworn System in case

$375.00 $413.00
Skip to product information
Electro-Voice R300-E-C
  • Electro-Voice R300-E-C
  • Electro-Voice R300-E-C
  • Electro-Voice R300-E-C
  • Electro-Voice R300-E-C
  • Electro-Voice R300-E-C
  • Electro-Voice R300-E-C
Electro-Voice R300-E-C – Headworn System in case

Electro-Voice R300-E-C – Headworn System in case

$375.00 $413.00

Electro-Voice

R300-E-C – Headworn System in case

Overview

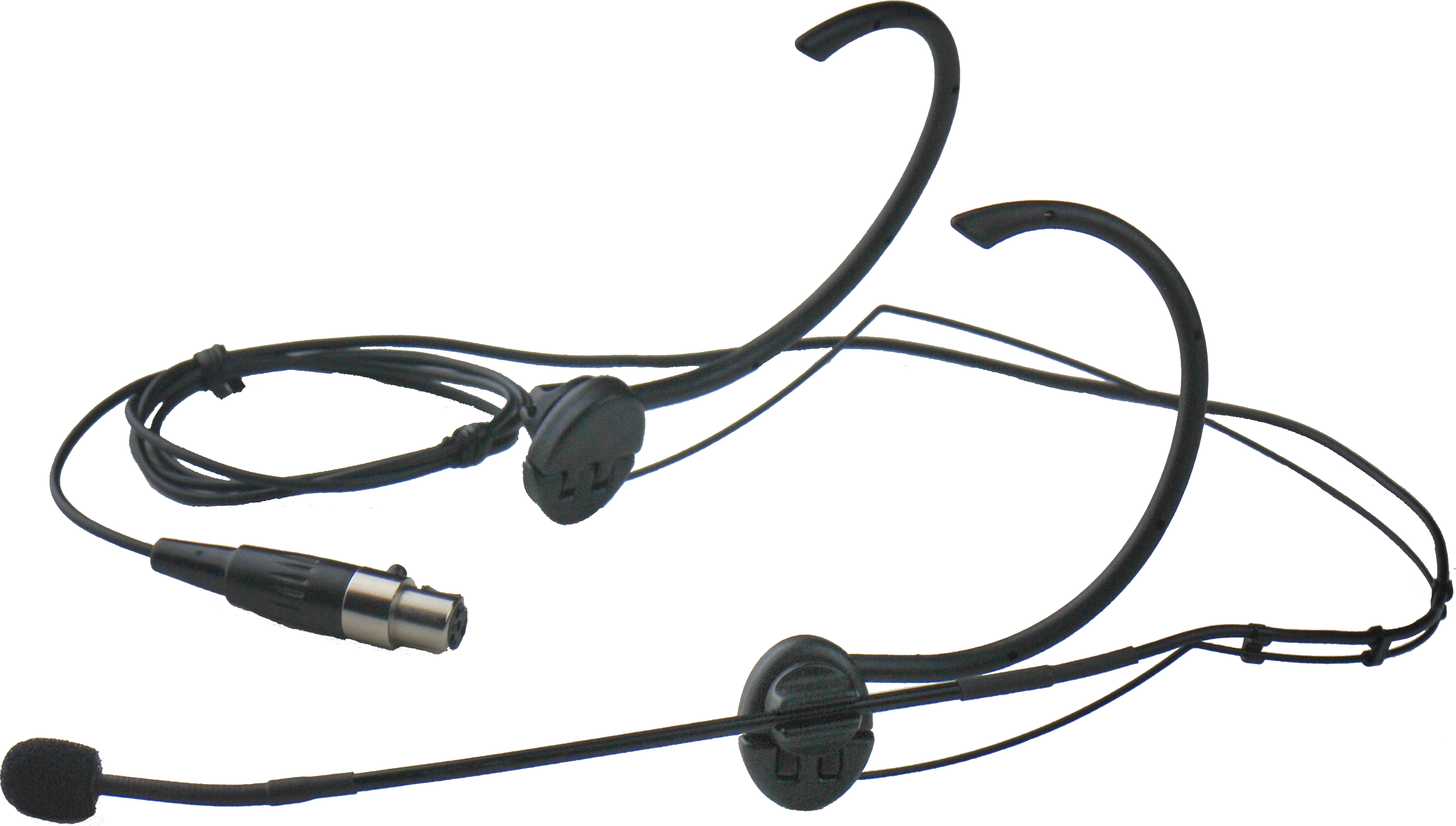

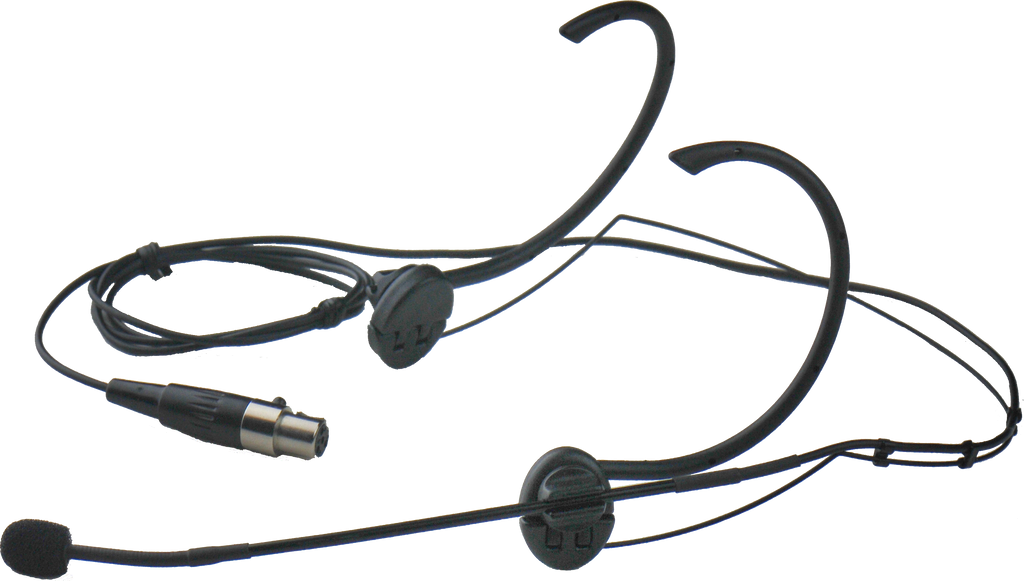

Head worn system with HM3 omni‑directional microphone

Highlights

  • ✓ClearScan automatically finds the clearest channel
  • ✓EZsync one-step channel setup
  • ✓HM3 omni-directional microphone
  • ✓14 hour battery life from two AA alkaline
  • ✓Rugged metal transmitter
  • ✓Metal receiver chassis with optional rack mount

Specifications

Connector Type 1/4 inch unbalanced, 3-pin XLR balanced
Family R300
Polar Pattern Omnidirectional
Element HM-3 Omni-directional headworn
Case Material metal
Signal-to-Noise Ratio (A-weighted) greater than 100
Specifications Power Requirement 12-16 VDC, 500 mA max
Controls on/off, Set, Up, Down, Sync
Antennas Flexible TNC 1/2 Wave
Number of Channels 32 per band, 8 Simultaneous
Diversity True Antenna
Squelch Tone code plus Amplitude
Receiver Type Synthesized PLL
RF Sensitivity (12 dB SINAD) less than 1.0
Audio Frequency Response 80 Hz - 18kHz +/-2dB
Balanced Line Level Output (RMS Adjustable) 10 - 100
Distortion (@ 1 kHz, 40 kHz deviation) Less than 1.0, 0.4 typical
Dynamic Range greater than 95
Power Supply 12 VDC, 500mA max
Battery Life 14 hours with (2) AA alkaline typical

Product identifiers

SKU R300-E-C
