Specifications

SOURCE

0.2 SMD RGB 3-in-1 LEDs

Color Resolution: 8 bits per color (24 bits per pixel)

Viewing Angle: 120 x 120 degrees

Pixels Per Meter: 60 pixels

Pixel Pitch (pixel center-to-center) 16mm

PWM (Pulse Width Modulation): 44,000Hz

CONNECTIONS

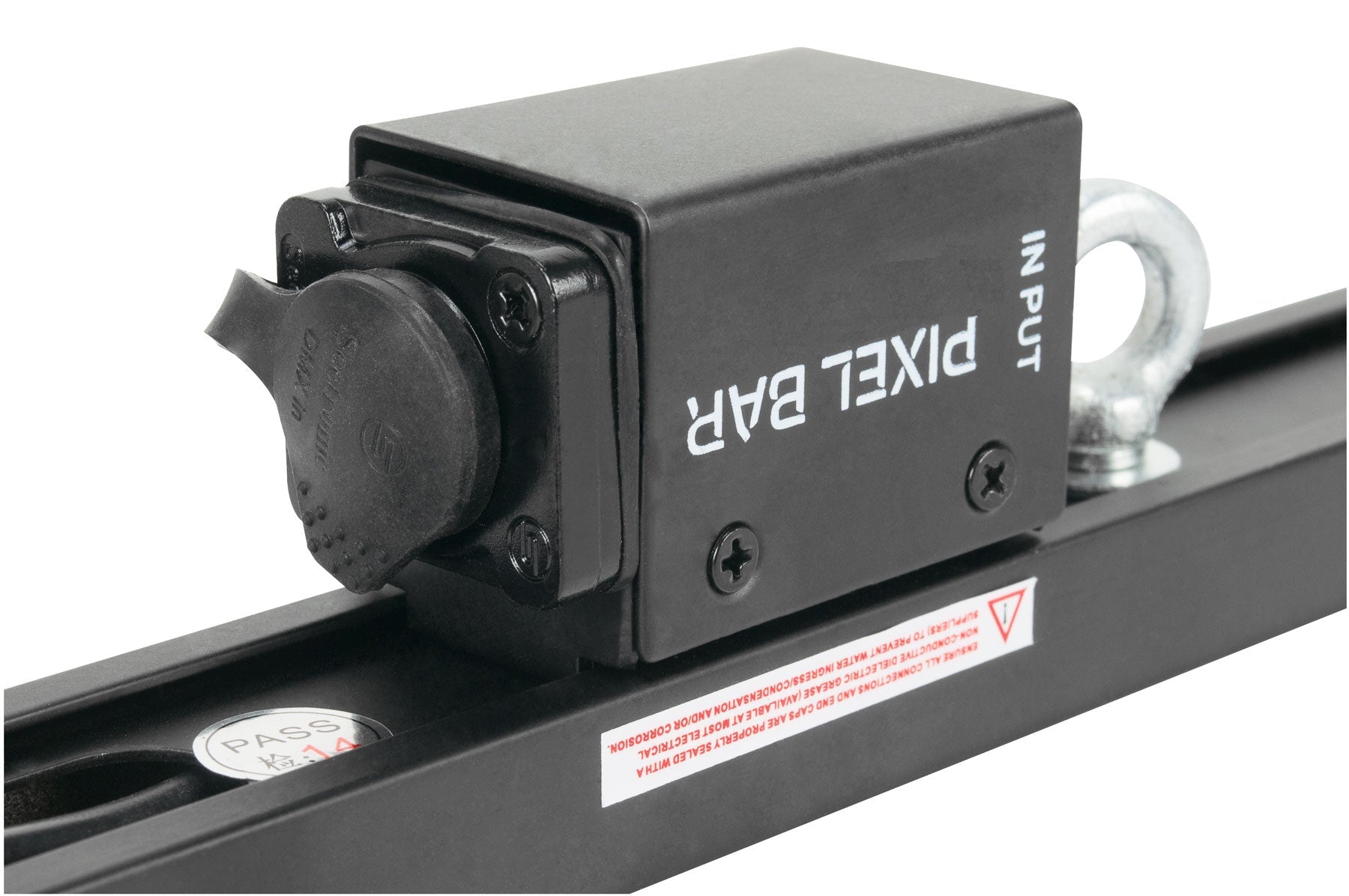

4pin Power/Data In/Out

SIZE / WEIGHT

Length: 19.2” (488mm)

Width: 1.3” (34mm)

Height: 3.3” (83mm)

Weight: 1.5 lbs. (0.7kg)

ELECTRICAL

Max Power Consumption: 6W

ACCESSORIES

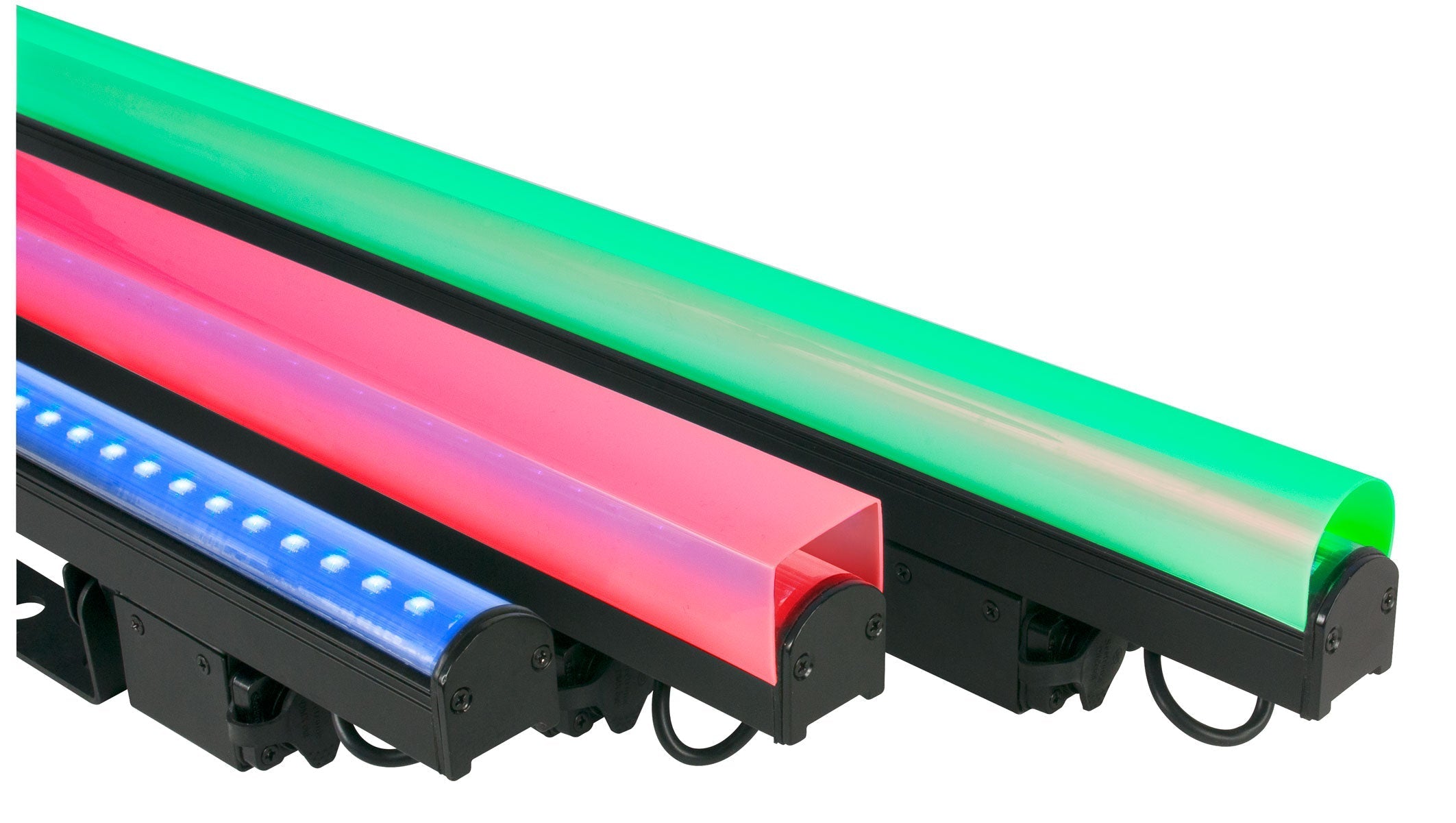

(1) Frosted Square LED Lens Cover (Included)

(1) Frosted Round LED Lens Cover (Included)

(1) Stealth Gray LED Lens Cover (Included)

(1) Stealth Gray LED Lens Cover (Included)

APPROVALS

CE | cETLus | IP65

Specifications and documentation subject to change without notice.
