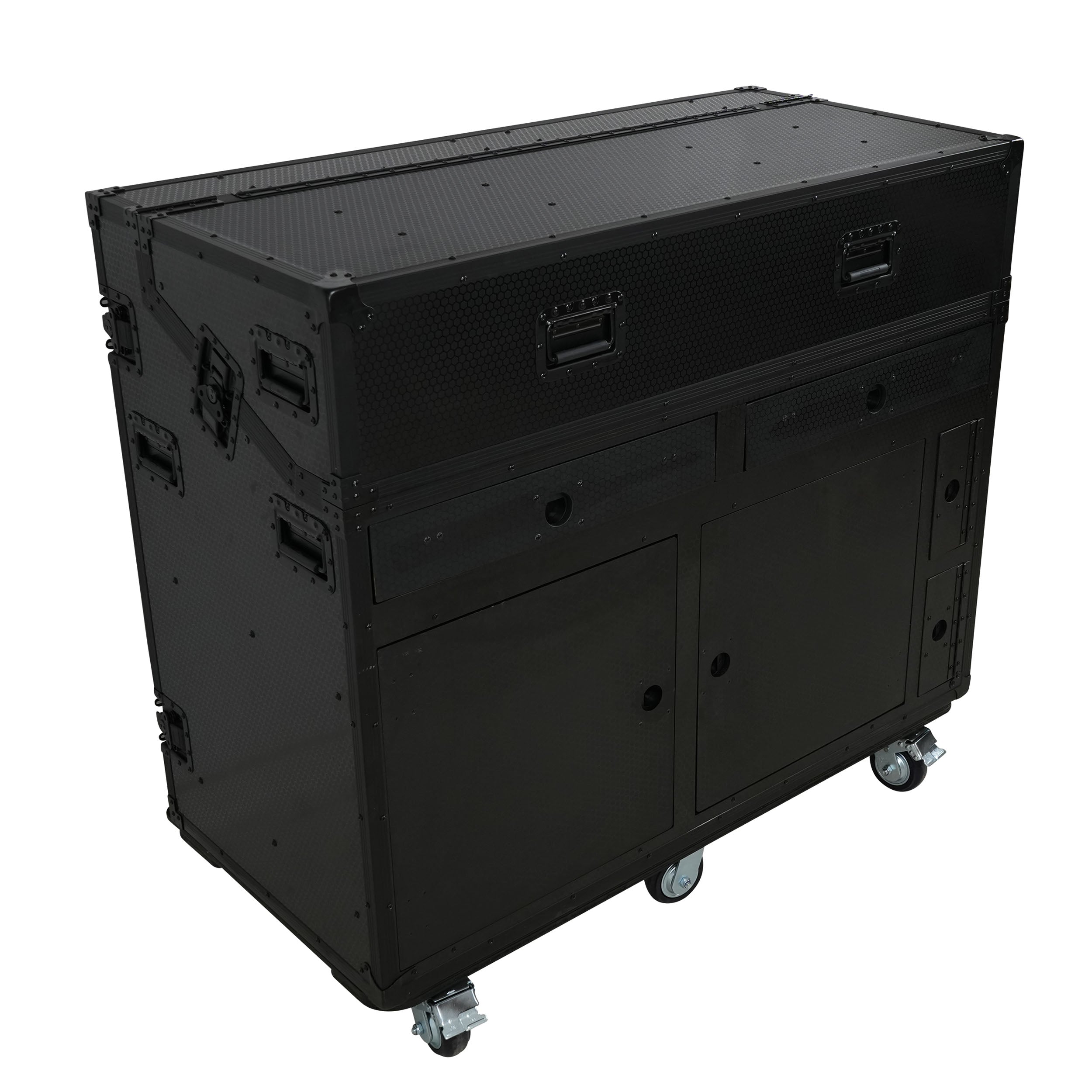

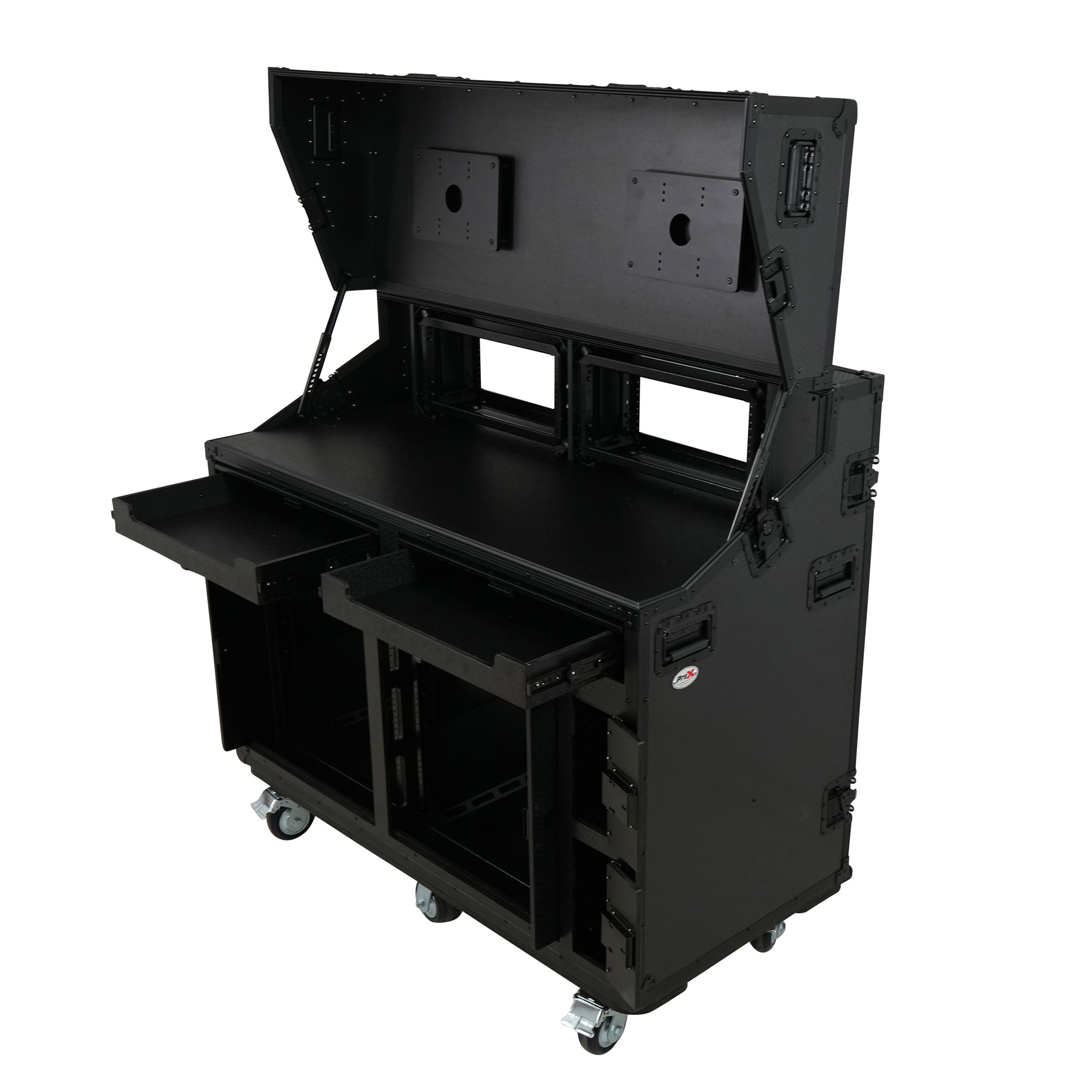

ProX XS-SLAM2X12U4UPRADO Mobile AV Broadcasting Streaming Recording Studio Workstation Case - There is a point in every serious live production, streaming setup, or mobile broadcast operation where a collection of individual cases stops being a workstation and becomes a liability. Cables running to separate units, monitors balanced on improvised surfaces, rack gear with no shock isolation, and no dedicated work surface for operators managing a show in real time. The ProX PRADO is the answer to exactly that problem. It is a complete, self-contained, all-black mobile AV broadcasting, streaming, and recording studio workstation case engineered to house dual monitors, four sets of shock-mounted rack space, integrated utility drawers, side storage, a convertible rear work table, and six heavy-duty casters - all in one unified, professional system that travels with your production and deploys fast.

All-Black on Black Finish with Flat Black Corner Hardware The ProX PRADO presents a clean, unified all-black aesthetic from every angle - black frame, black hardware, and flat black corner pieces with no chrome or silver to interrupt the look. For broadcast studios, production companies, and operators who demand a professional appearance both on stage and on camera, this consistent black-on-black finish ensures the workstation itself never competes visually with the production it supports.

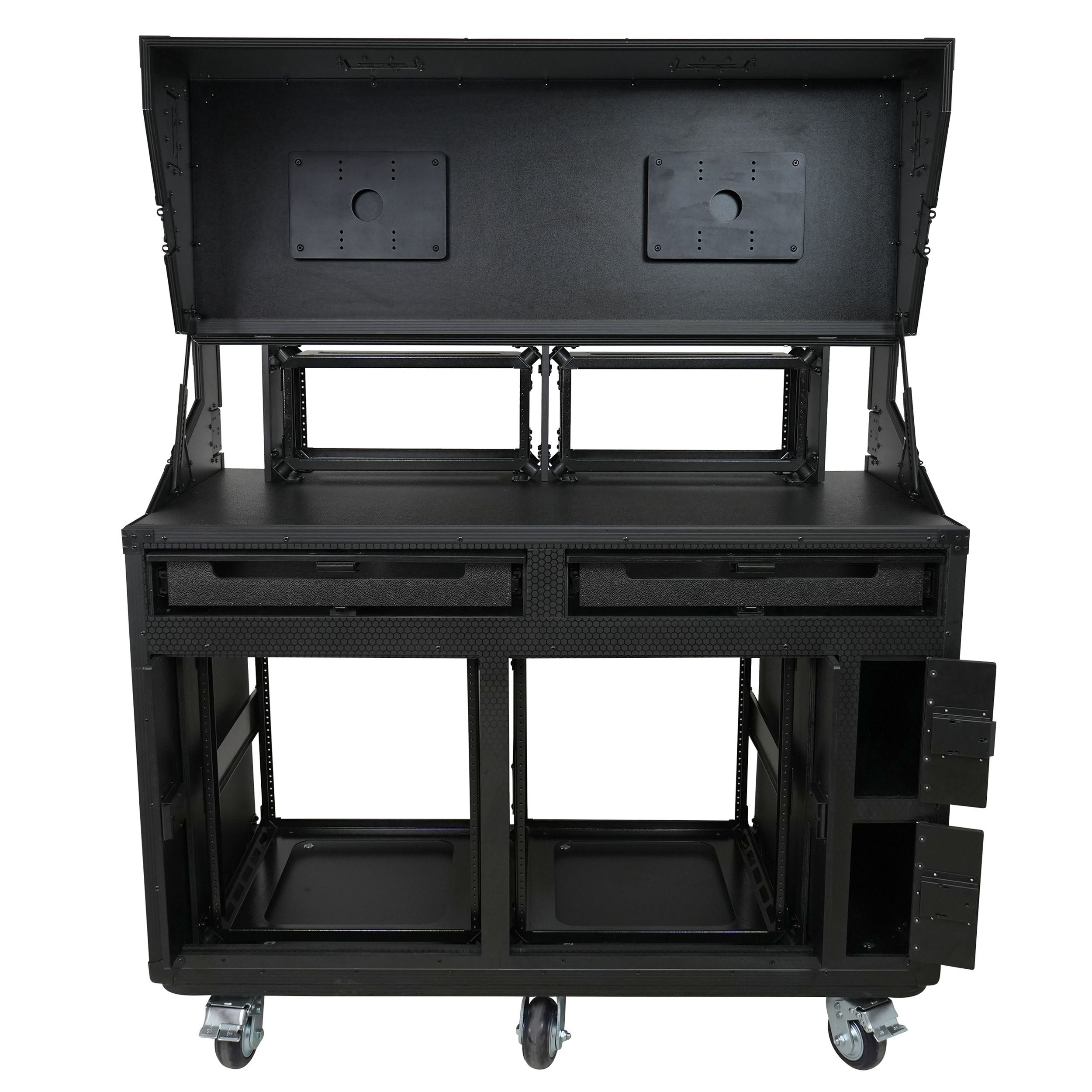

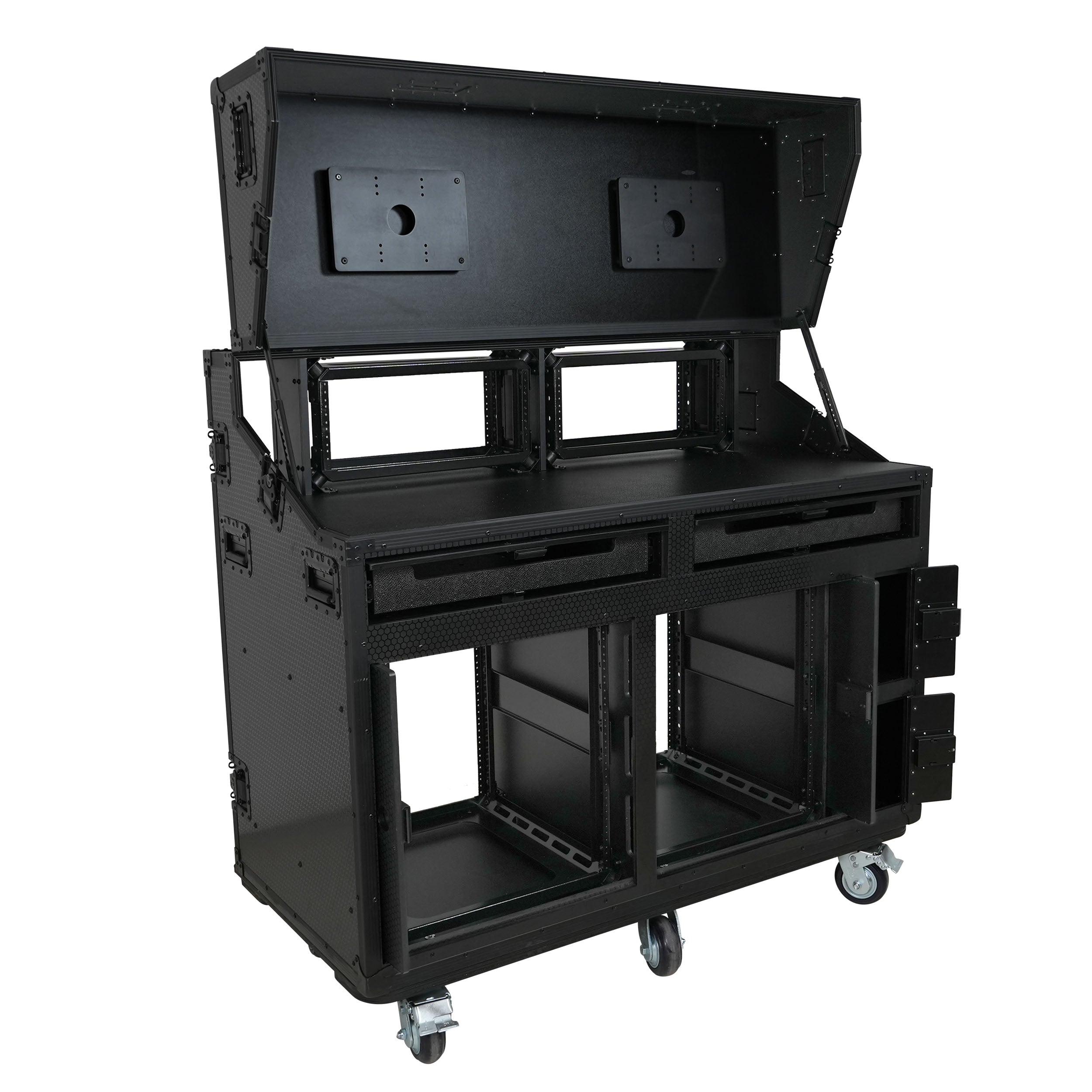

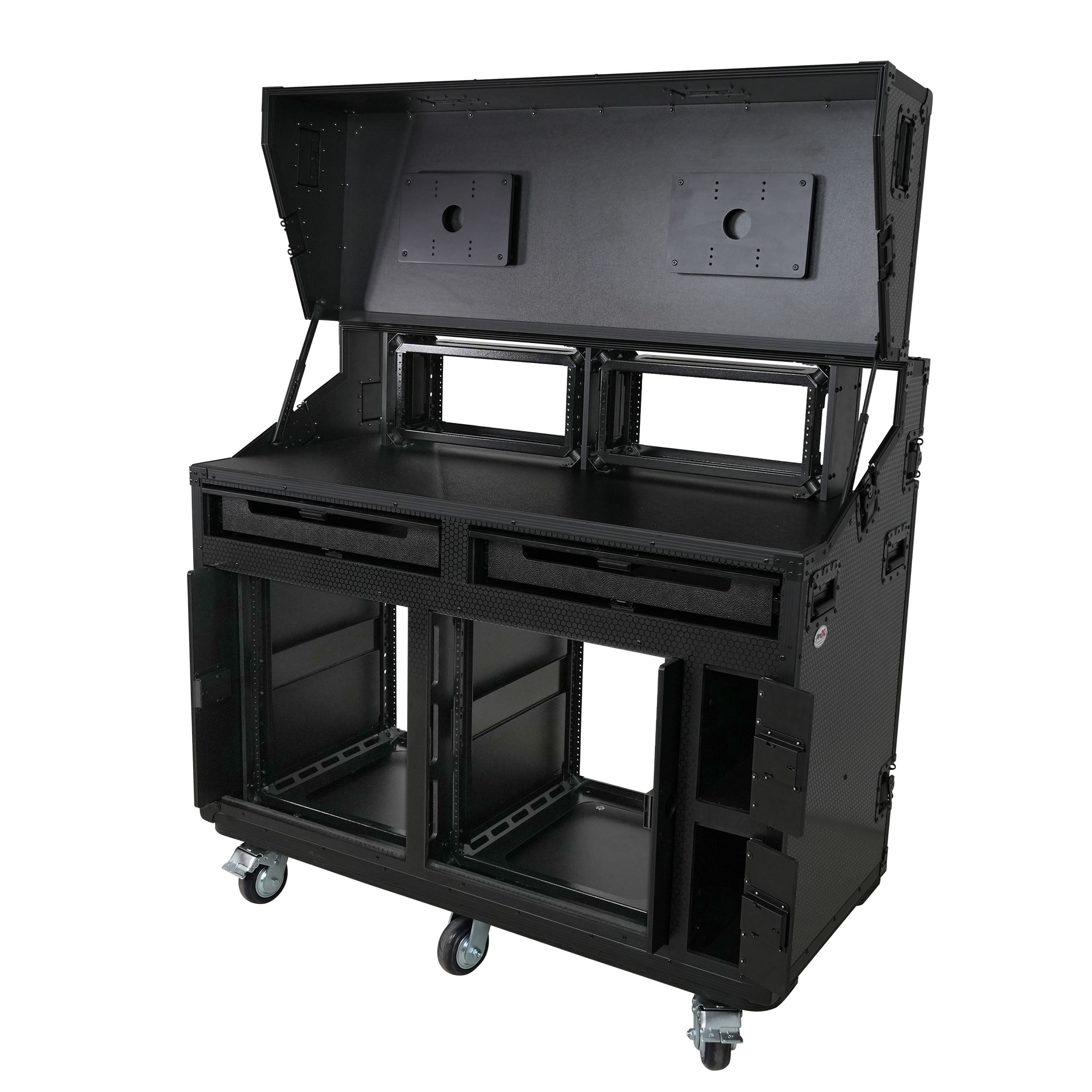

Dual Monitor Support - 53" Edge to Edge, 17" adjustable height. The ProX PRADO is built to support dual 27" monitors side by side, with the open top spanning 53" edge to edge at a 17" height clearance. This accommodates most 27" displays and is also compatible with select 28" and 29" monitors depending on bezel and base configuration. Running dual monitors in a live production or broadcast environment gives operators the ability to manage separate feeds, preview channels, control surfaces, and show management software simultaneously - something a single-monitor setup simply cannot support efficiently when a show is running.

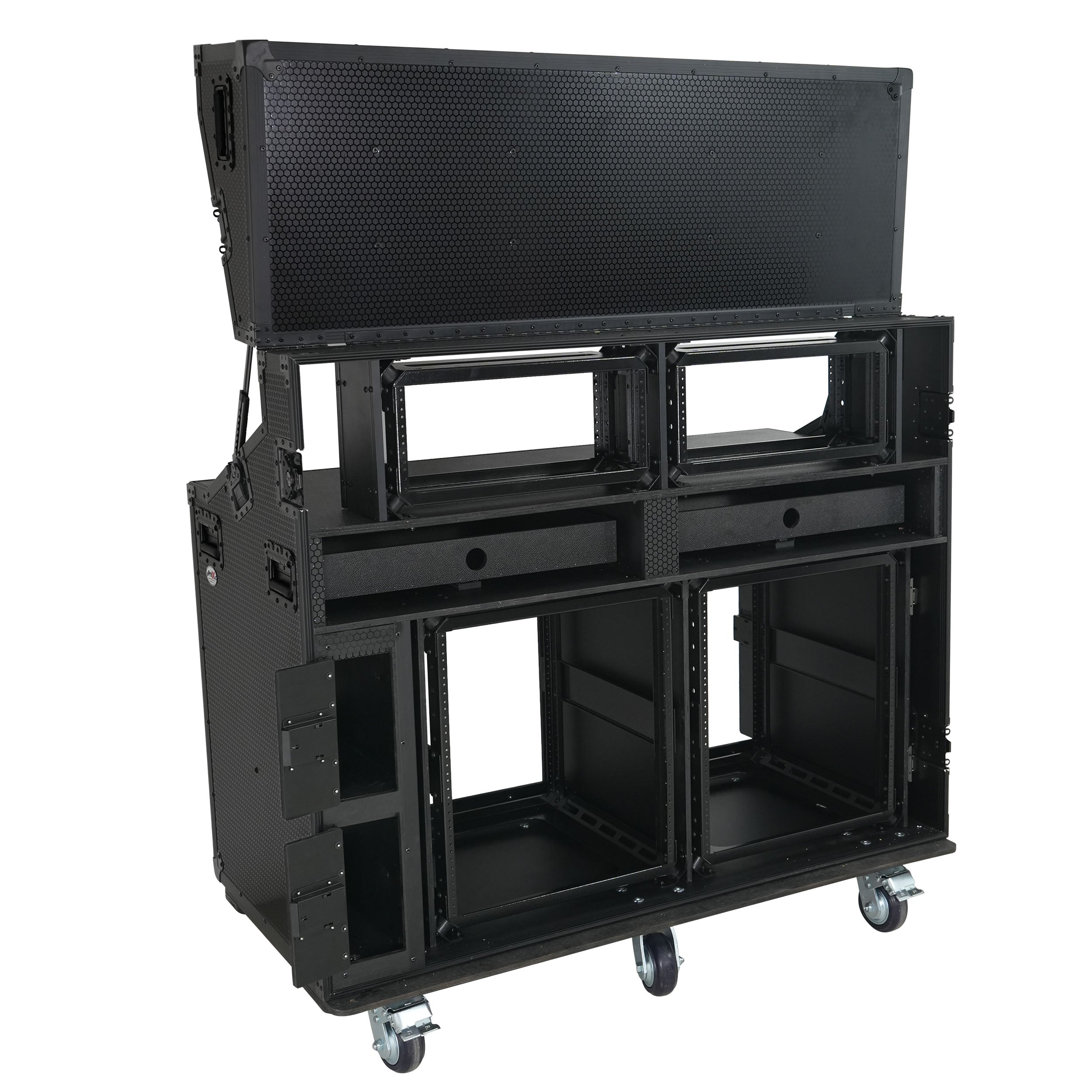

Adjustable Height Angle for Open Top The open top of the ProX PRADO features adjustable height capability, allowing operators to position the monitor surface and working area at the ergonomic height that works best for their specific setup and operator preference. In a live production environment, operator comfort directly affects performance, and having a workstation that adjusts to the person rather than forcing the person to adapt to a fixed surface is a meaningful functional advantage across a full day of show operation.

Top Table Clearance - 52" x 18" / 9" Interior Clearance, the top working surface of the ProX PRADO offers an 18" x 52" table clearance area with 9" of interior clearance depth. This gives operators a usable workspace above the rack area for control surfaces, tablets, additional accessories, or production reference materials - all within reach without leaving the operator position.

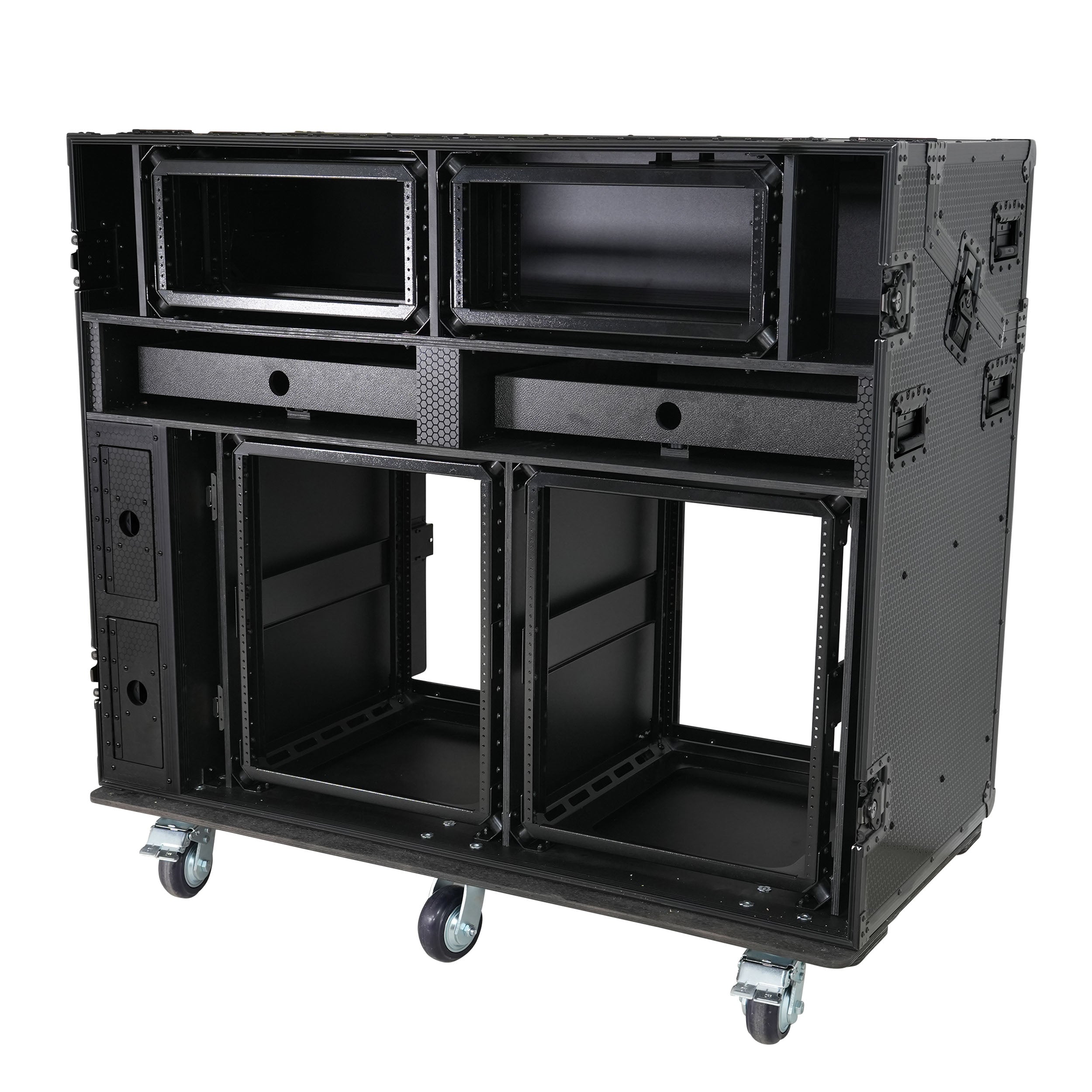

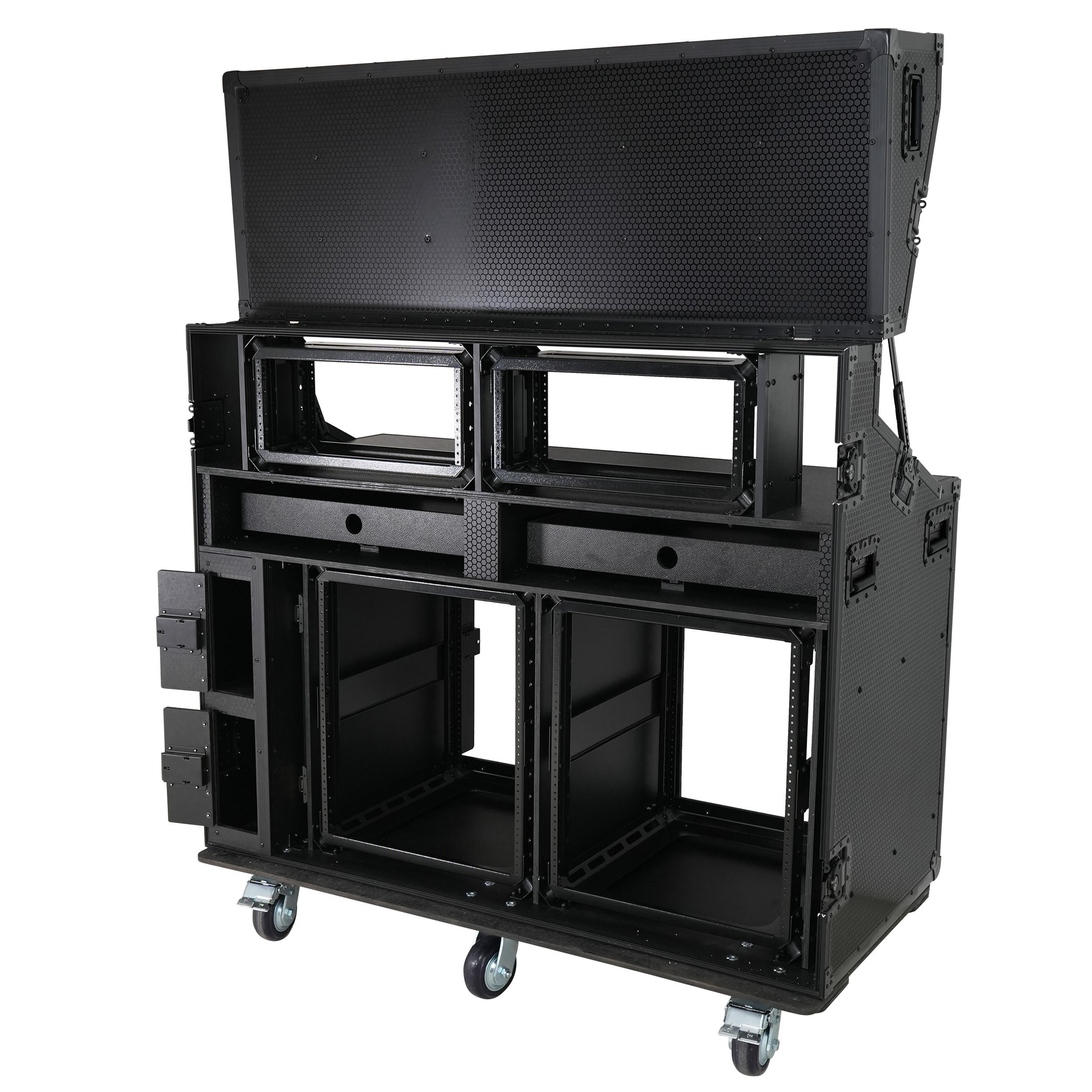

Dual 4U Top Shock Mount Steel Cage Racks - 7" Front to Rear Depth Positioned at the top of the ProX PRADO are two independent 4U shock-mounted steel cage rack sections, each with a 7" front-to-rear depth. Shock mounting at this location is critical because the top rack space is typically home to the most access-sensitive gear - audio interfaces, video switchers, outboard processors, and network hardware that operators interact with constantly during a live event. The steel cage rack design absorbs vibration and impact energy before it reaches the equipment, protecting sensitive electronics from the bumps, vibrations, and transport stress that a mobile workstation experiences between deployments. At 7" depth, these racks accommodate a wide range of standard 1U and 2U rack units without requiring shallow-mount compromises.

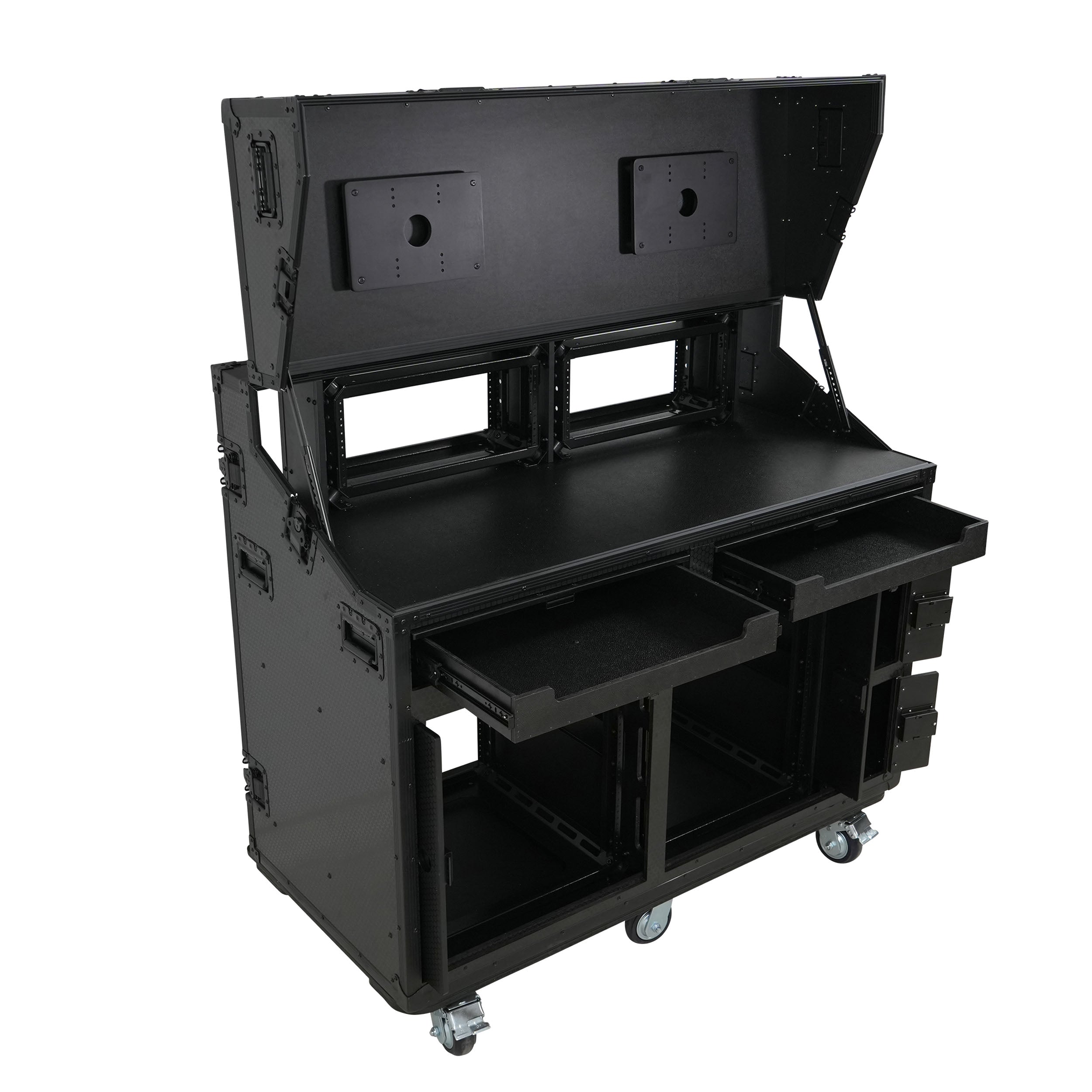

2 Top Slam Doors with Pullout Utility Drawers - 21.5"W x 20.5"D x 2.5"H The ProX PRADO features two slam door utility drawers positioned at the top, each measuring 21.5" wide x 20.5" deep x 2.5" high. These drawers are specifically sized to accommodate laptops, hardwired remotes, small hardware units, tablets, and production essentials that operators need immediate access to during a show. The slam door design means the drawer closes and latches securely with a single motion - critical in a live environment where there is no time to fuss with latches or worry about a drawer rolling open during transport. Because the doors are attached to the case, they cannot be set down somewhere and lost during load-out, which is exactly the kind of small detail that matters when you are packing up a complex workstation at the end of a long night.

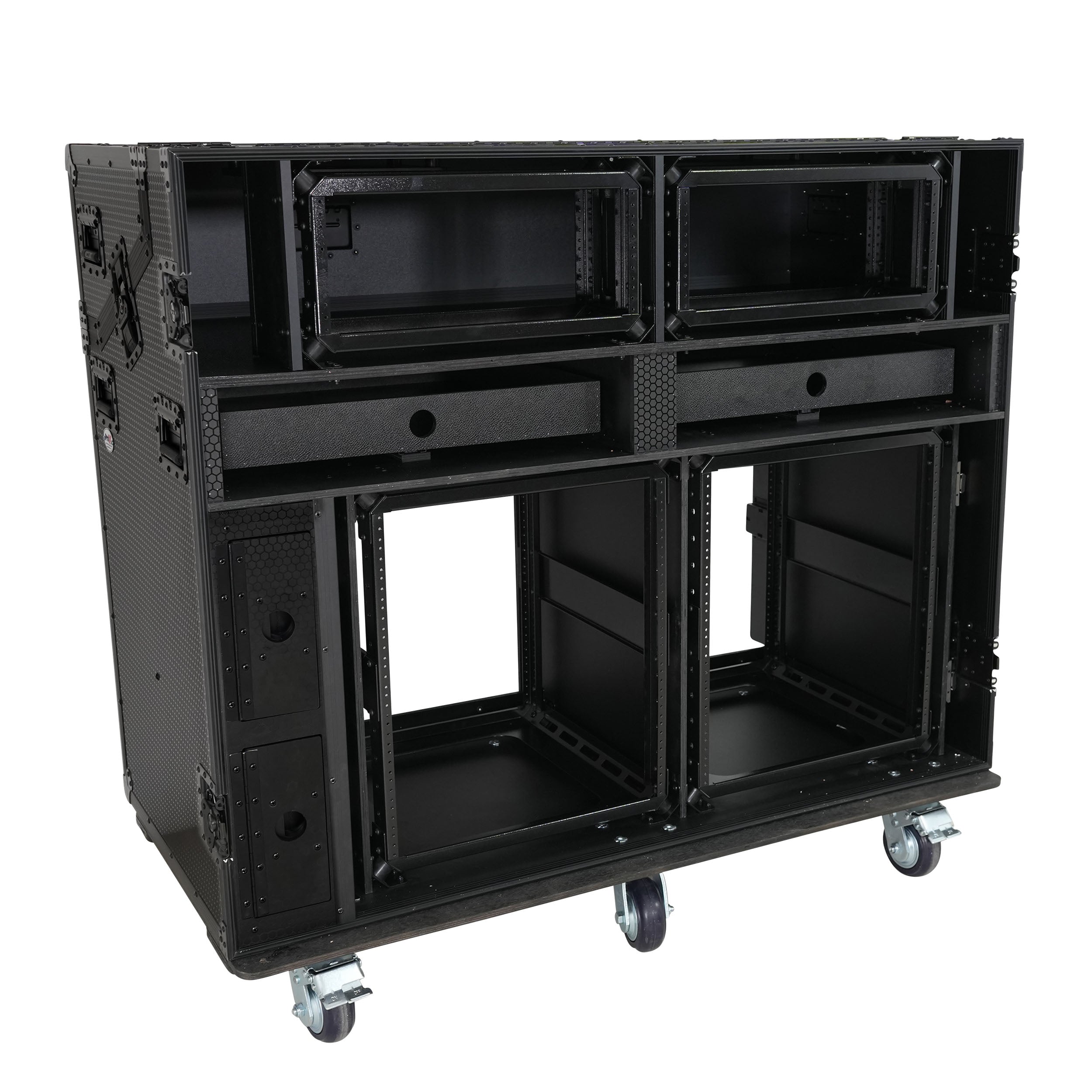

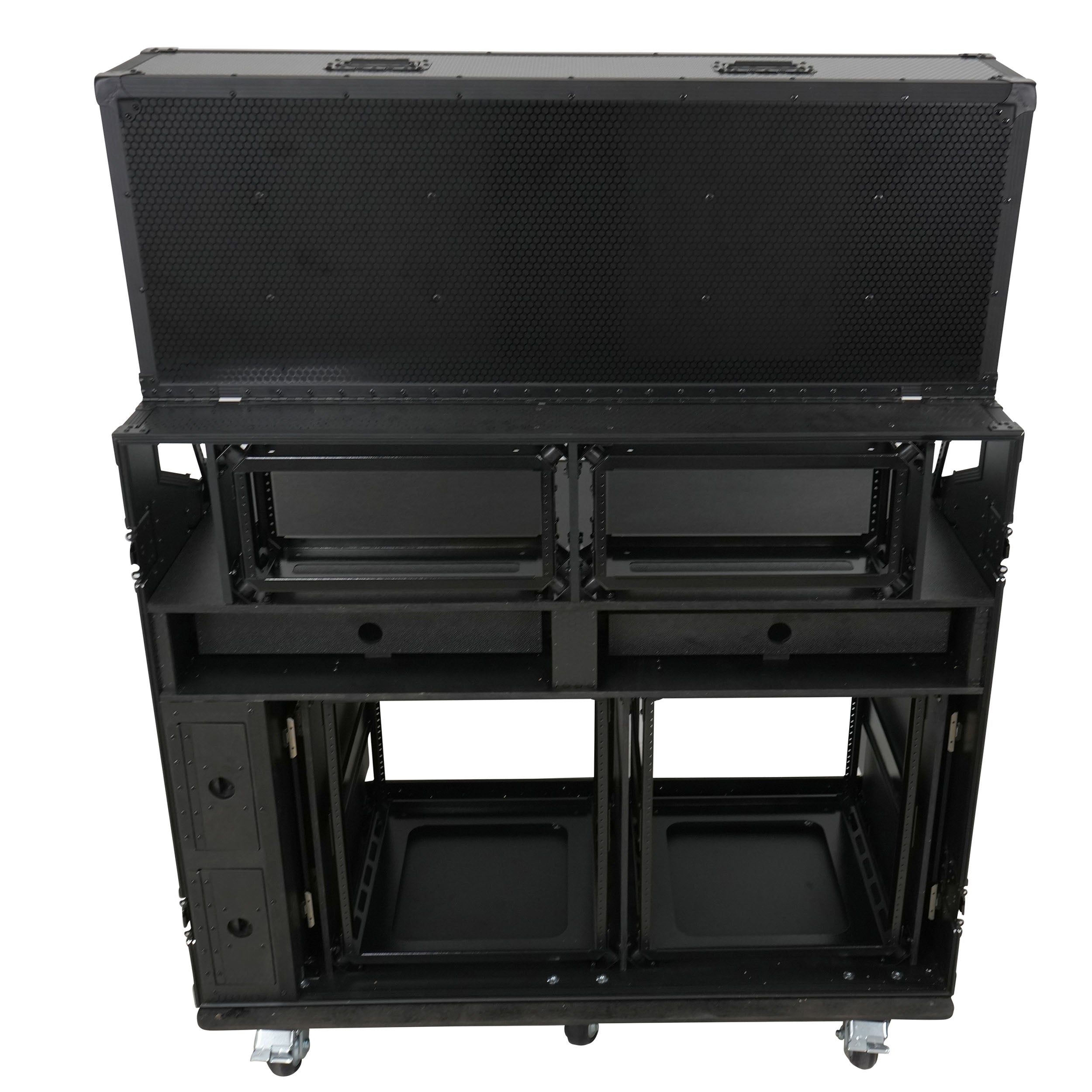

Dual 12U Bottom Shock Mount Steel Cage Racks - 20" Deep, the bottom section of the ProX PRADO houses another pair of shock-mounted steel cage rack systems, each with 20" of depth to accommodate deeper rack units - amplifiers, power sequencers, dense patch bays, larger signal processors, and other full-depth professional rack hardware that the shallower top racks cannot accommodate. This 20" depth allows operators to rack virtually any standard-depth 19" rack unit without modification, adapter rails, or leaving equipment partially unsupported. The shock mounting in this section is equally important because bottom-section rack gear typically includes power and distribution hardware where vibration and impact resistance directly affects system uptime.

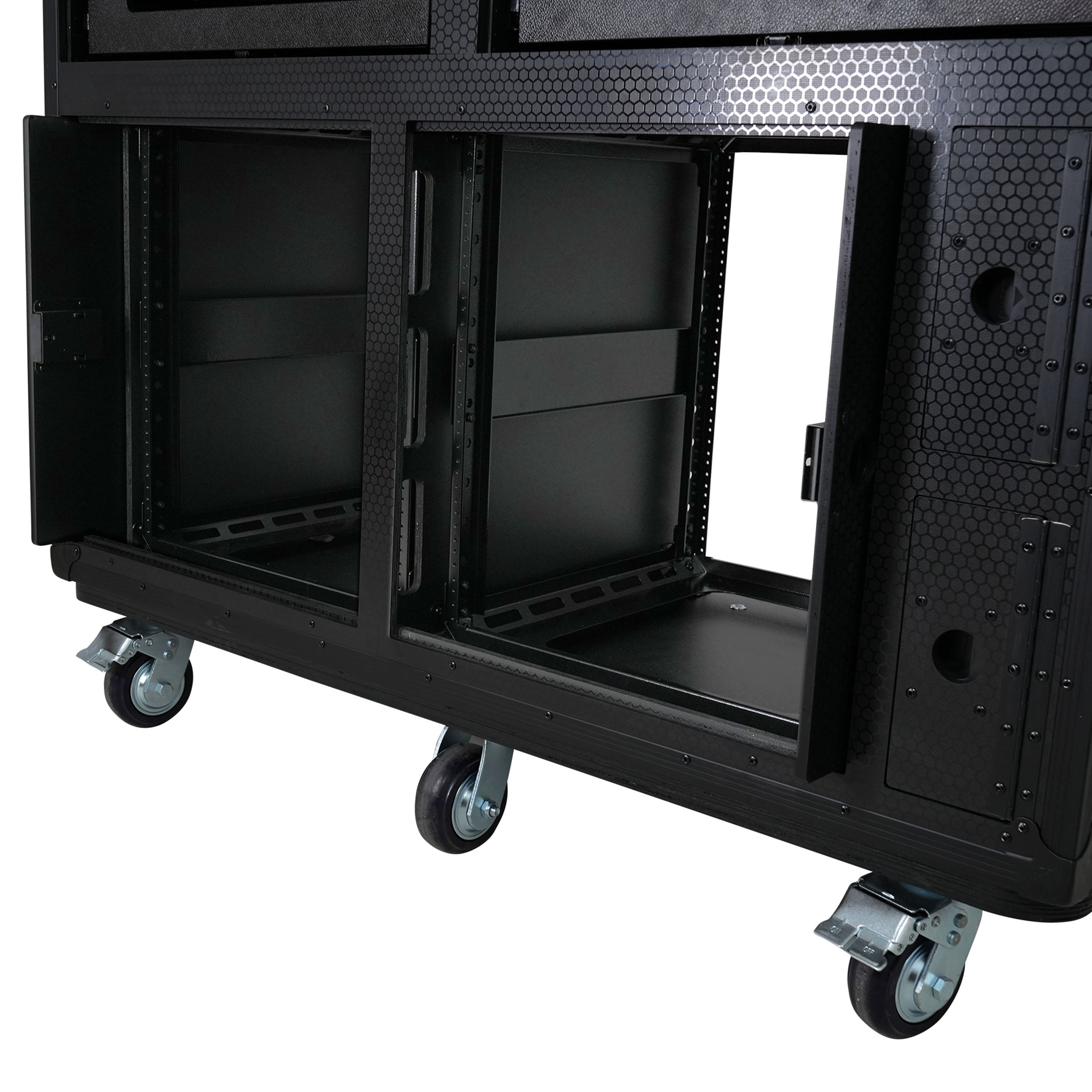

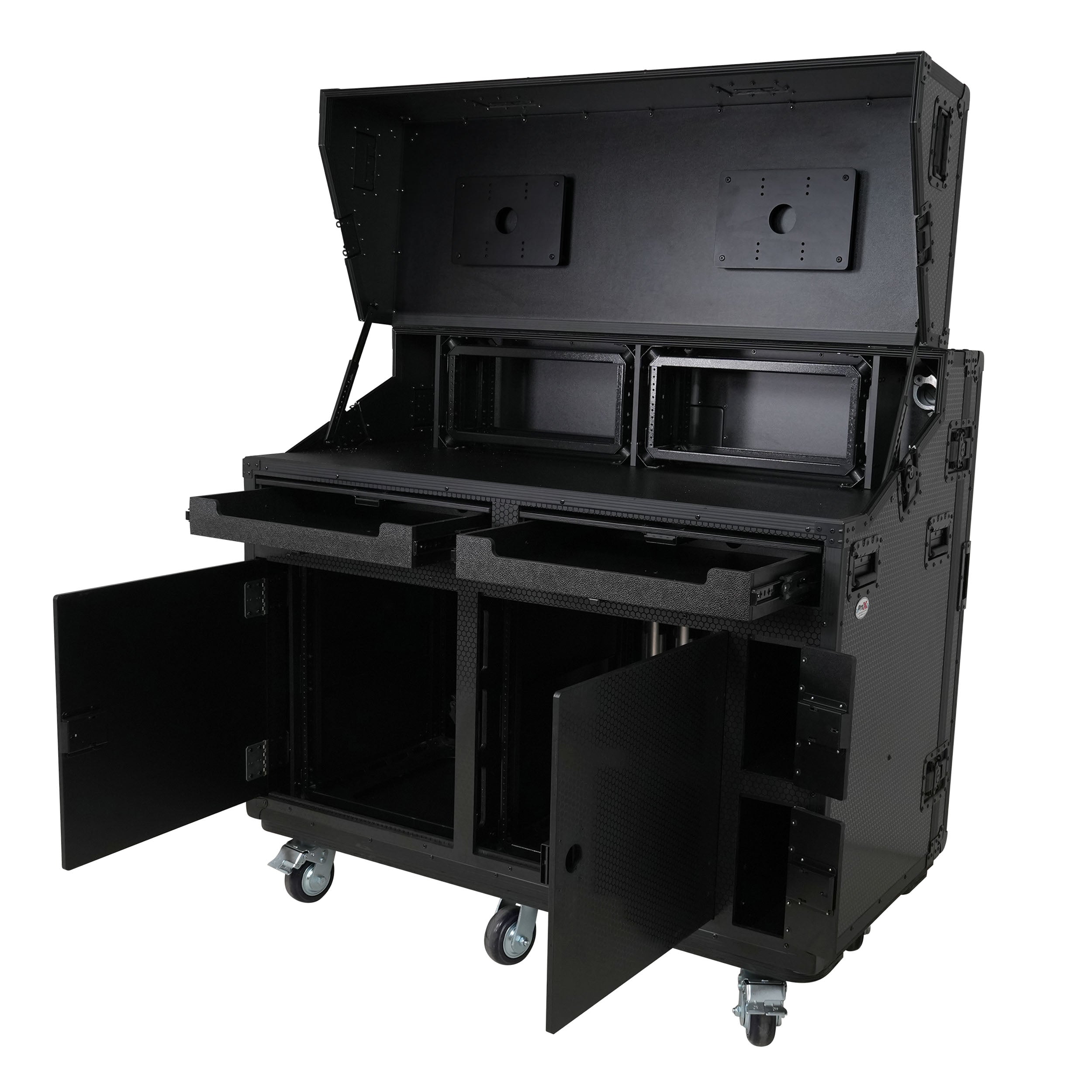

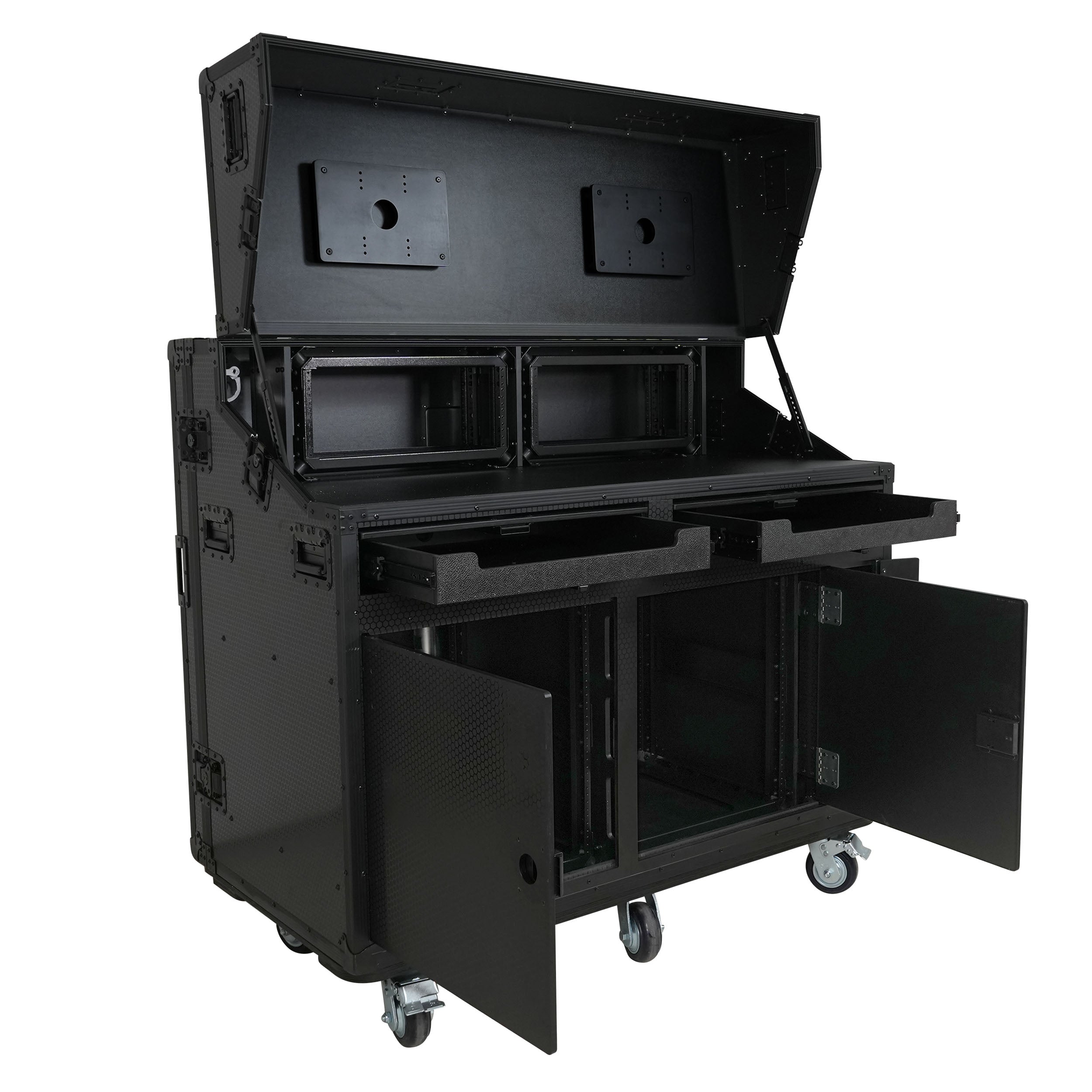

2 Side Slam Doors on Bottom Rack Section The two bottom rack sections are accessed via side-mounted slam doors, providing clean front access to all 12U of rack space on each side. Like all slam doors on the ProX PRADO, these are attached and cannot be separated from the case, meaning they cannot be misplaced, forgotten on a loading dock, or left behind in a venue. This attached-door design is a practical production detail that saves crews from the all-too-common problem of missing panels at the start of a show day.

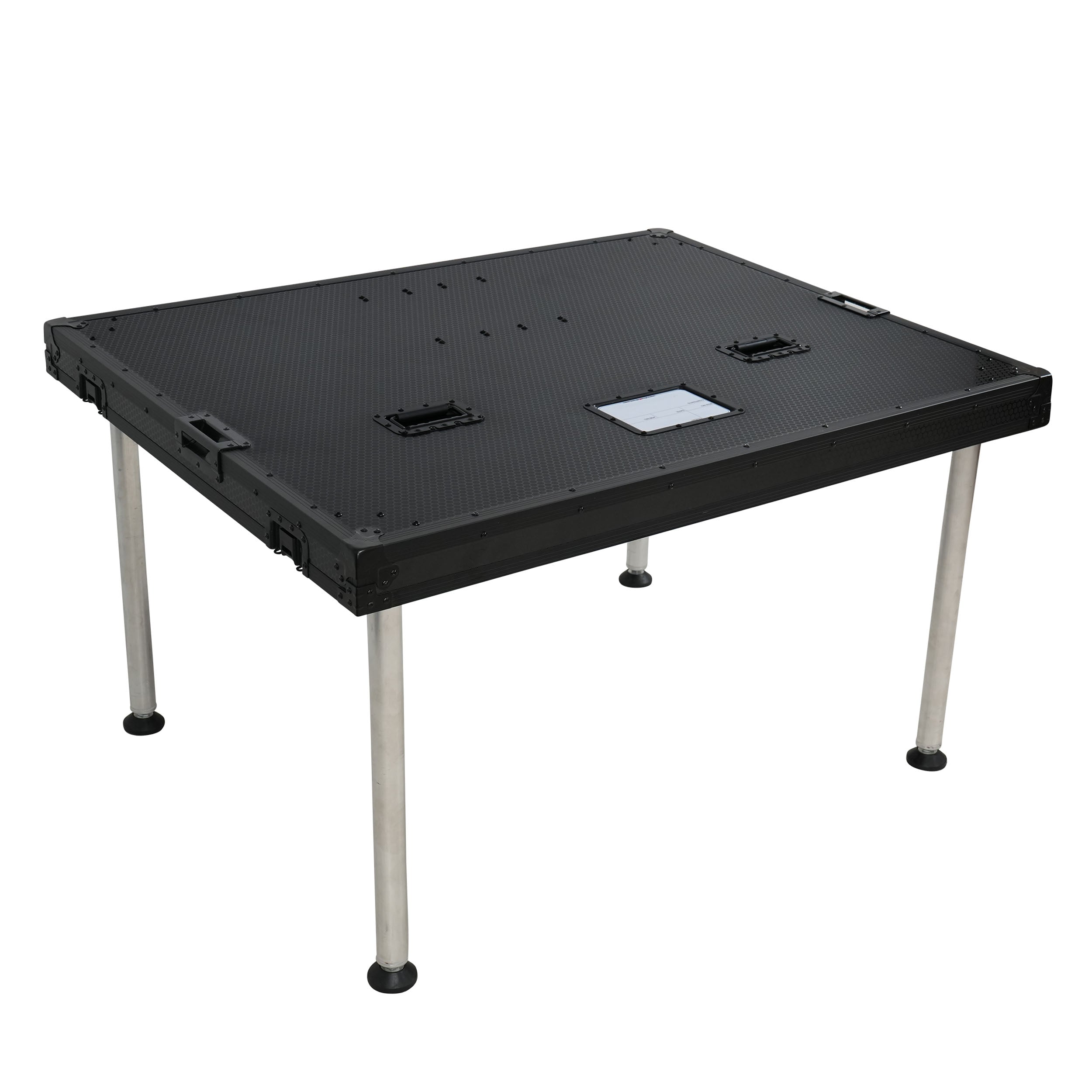

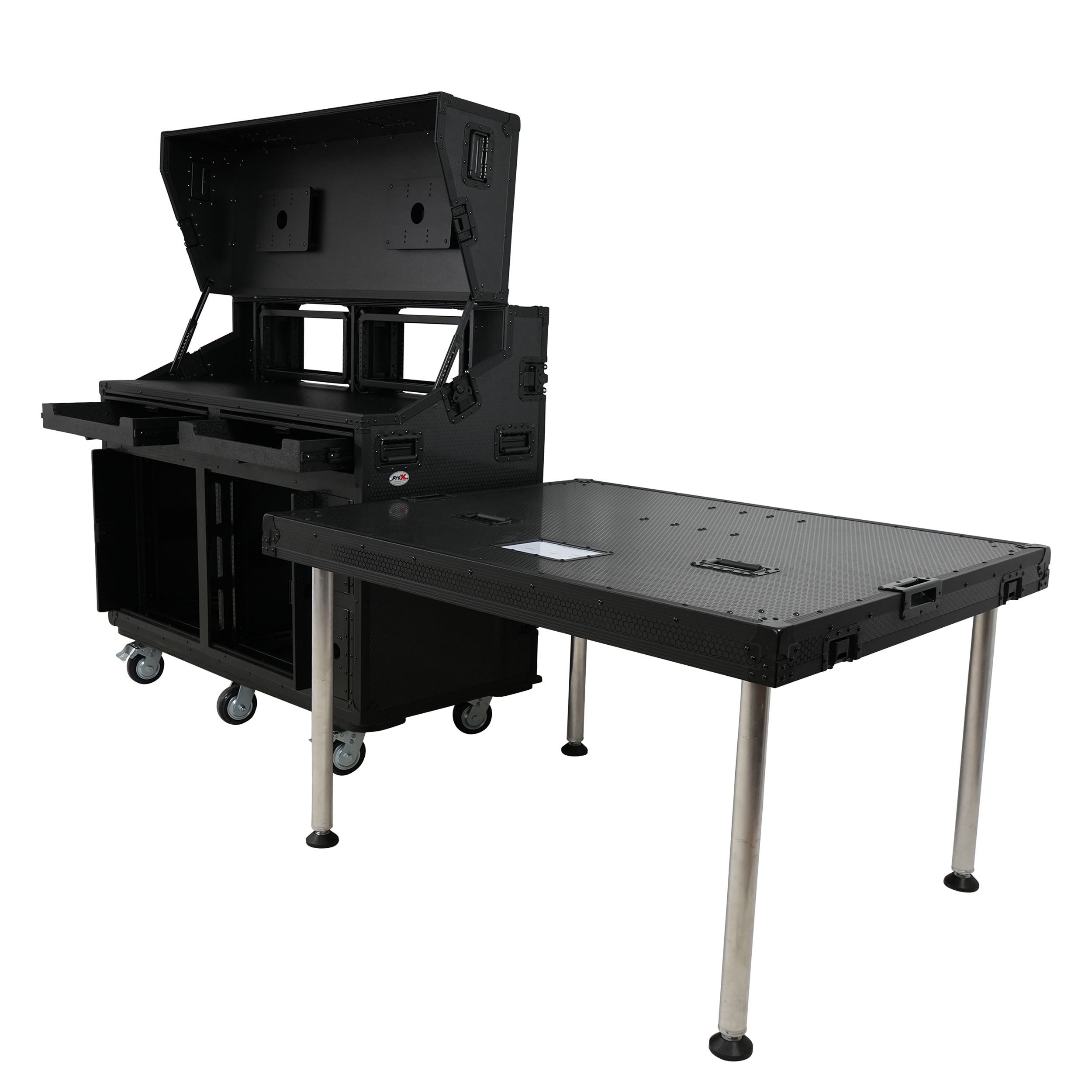

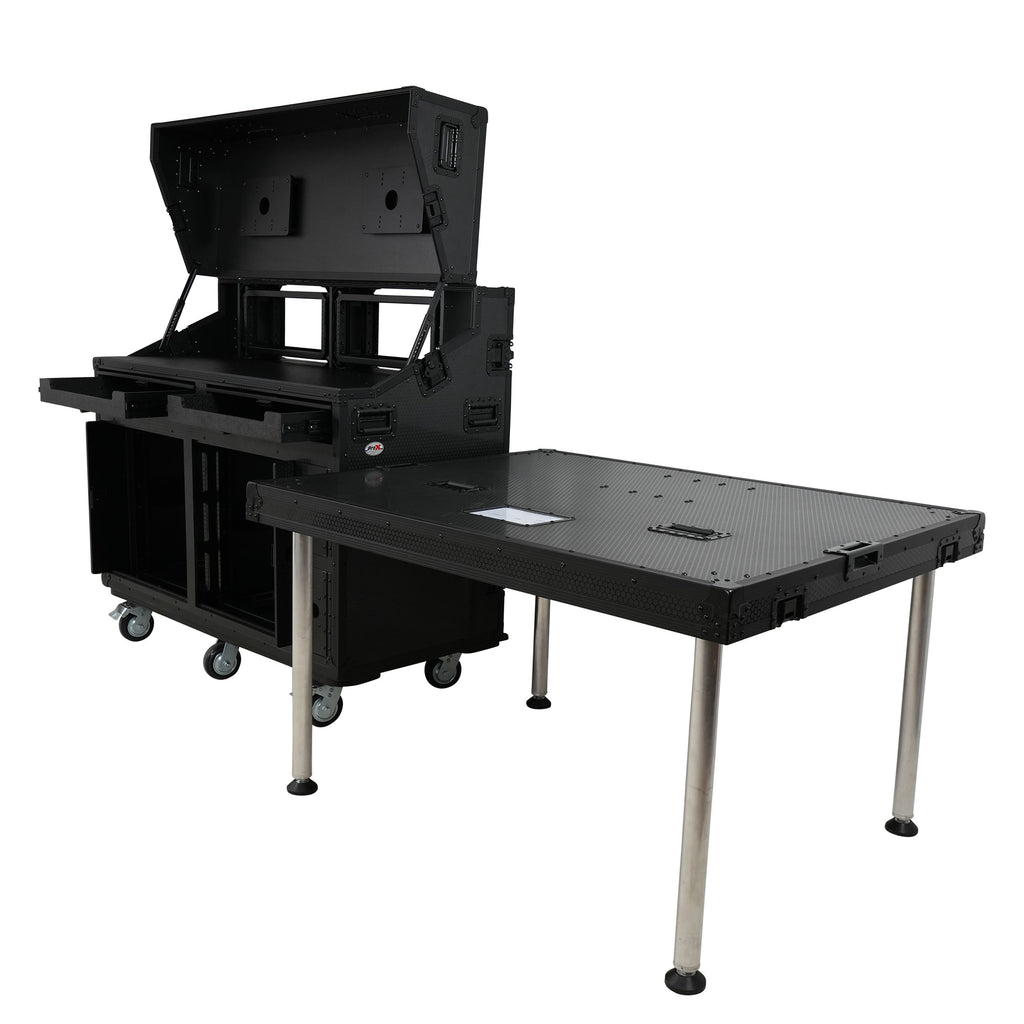

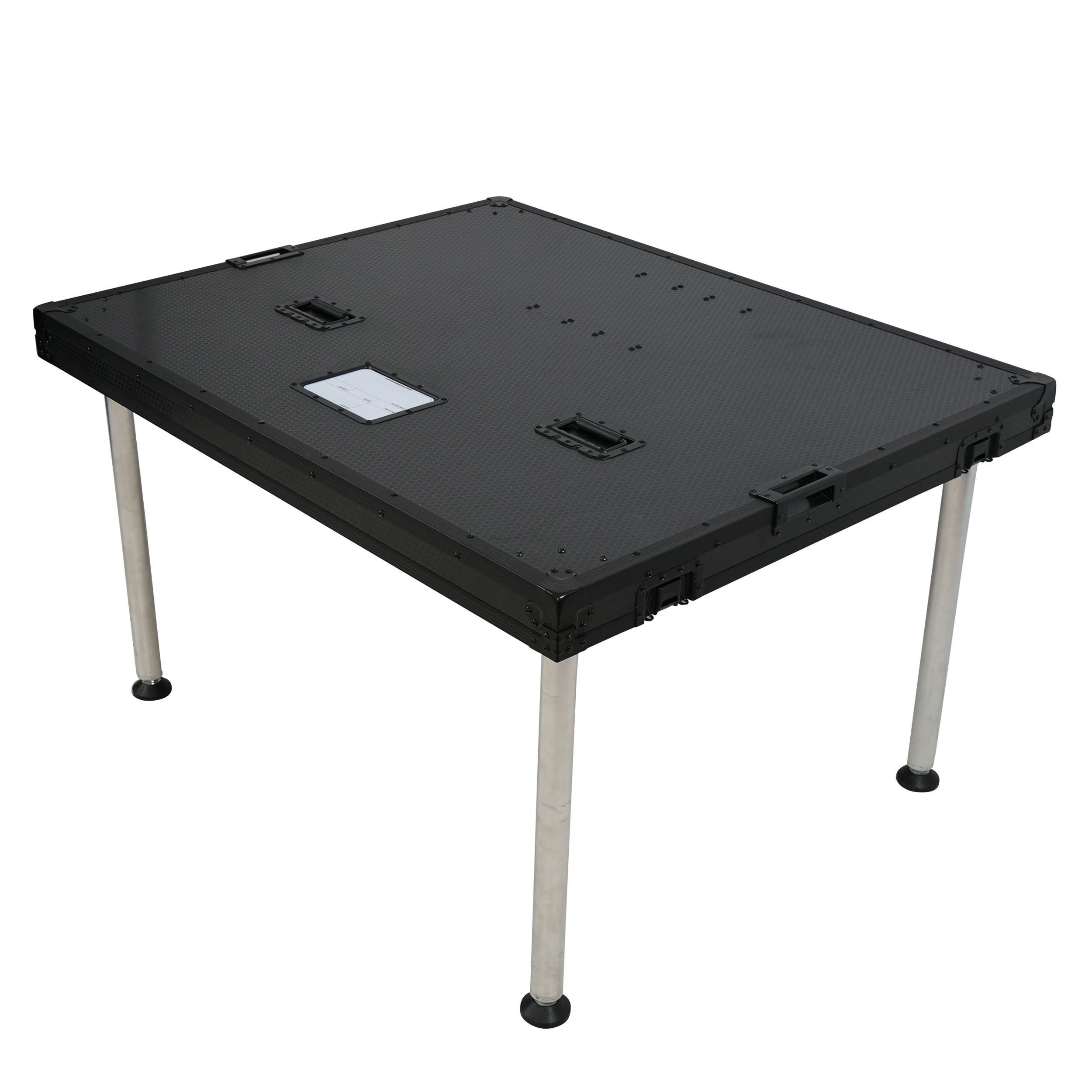

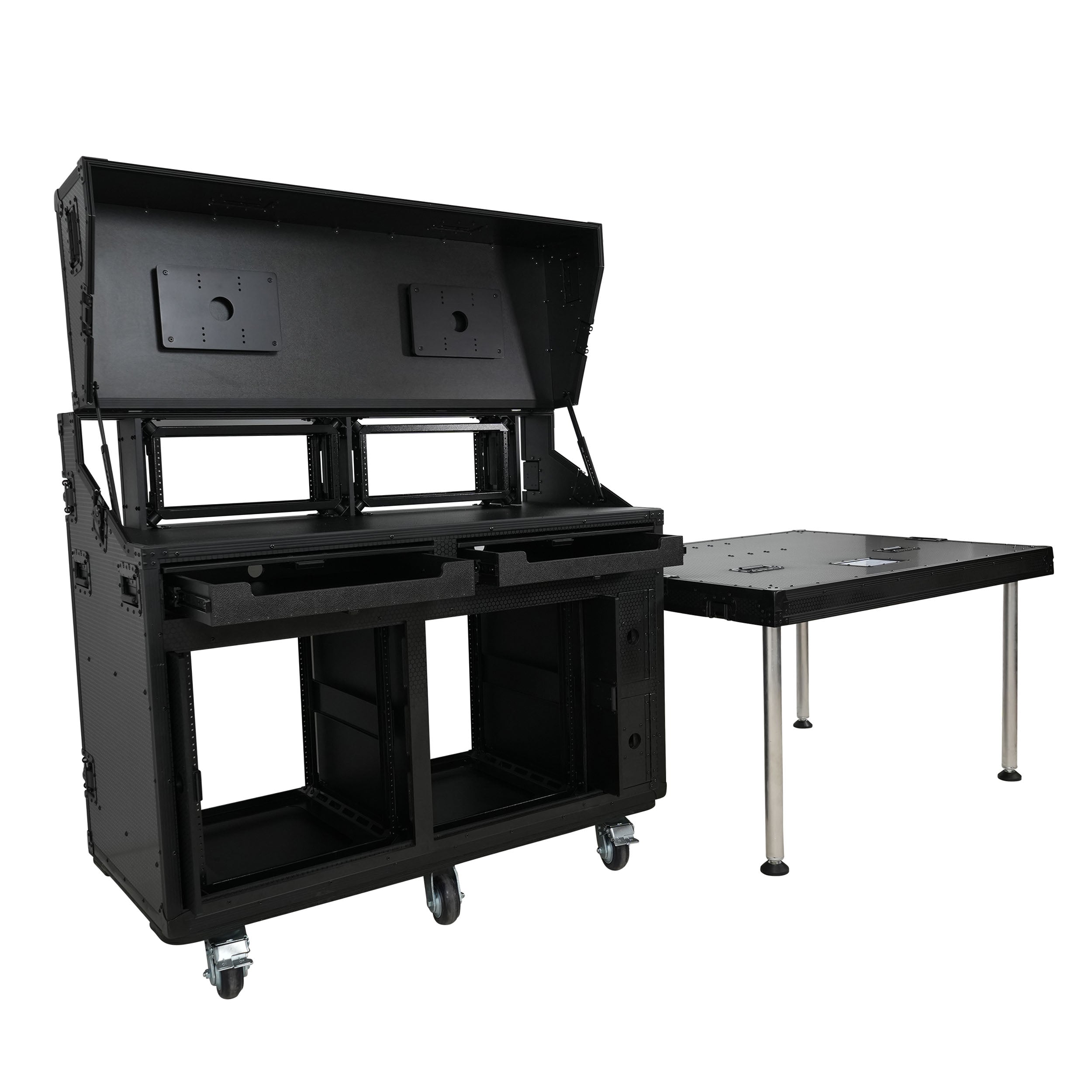

Removeable  Rear Door - 55" x 43" / 32" Height with Included Legs.  One of the most versatile features of the ProX PRADO is the removable rear door, which functions not only as case access but also converts into a fully independent stand-alone work table measuring 55" x 43" with a working height of 32" when set up on the legs (included). This rear table creates a secondary operator workspace, a gear staging area, a client monitor position, or an additional production surface without requiring any additional furniture. In broadcast and AV production environments where setup space is at a premium and every additional table requires another trip to the truck, having a full-size work surface built into the case itself is a significant operational advantage.

Multiple Handles - 3 Per Side, 2 Front, 2 Rear The ProX PRADO is equipped with a total of ten handles strategically positioned across the case - three handles on each side, two on the front, and two on the rear. For a workstation of this size and weight, handle placement is not decorative - it is the difference between a safe, controlled lift and a dangerous one. Multiple handles on each side allow two or more crew members to position their grip at the most mechanically advantageous points for the specific lift needed, whether that is loading from a truck, navigating a doorway, or positioning the unit in a tight stage wing. Having handles on all four faces of the case means there is always a proper grip point available regardless of the orientation or access angle.

2 Side Storage Units - 4"W x 24"L x 9.5"H The ProX PRADO includes two side-mounted storage compartments, each measuring 4" wide x 24" long x 9.5" high. These storage units are designed for cables, power adapters, small tools, backup hardware, and production accessories that need to be accessible quickly during a show without digging through a separate bag or case. Having dedicated on-board storage integrated into the workstation itself reduces the number of separate cases a crew needs to manage and keeps critical accessories within arm's reach of the operator throughout the event.

6 Heavy-Duty 5" Caster Wheels - 4 Locking The ProX PRADO rides on six heavy-duty 5" caster wheels, four of which lock to hold the workstation securely in position once deployed. The combination of six casters distributes the substantial weight of a fully loaded workstation across more contact points, reducing floor stress and improving rolling stability on the variety of surfaces - concrete, carpet, rubber flooring, and uneven stage decking - that a mobile production workstation encounters. The locking wheels engage independently, allowing operators to lock and unlock the workstation quickly as deployment conditions change.

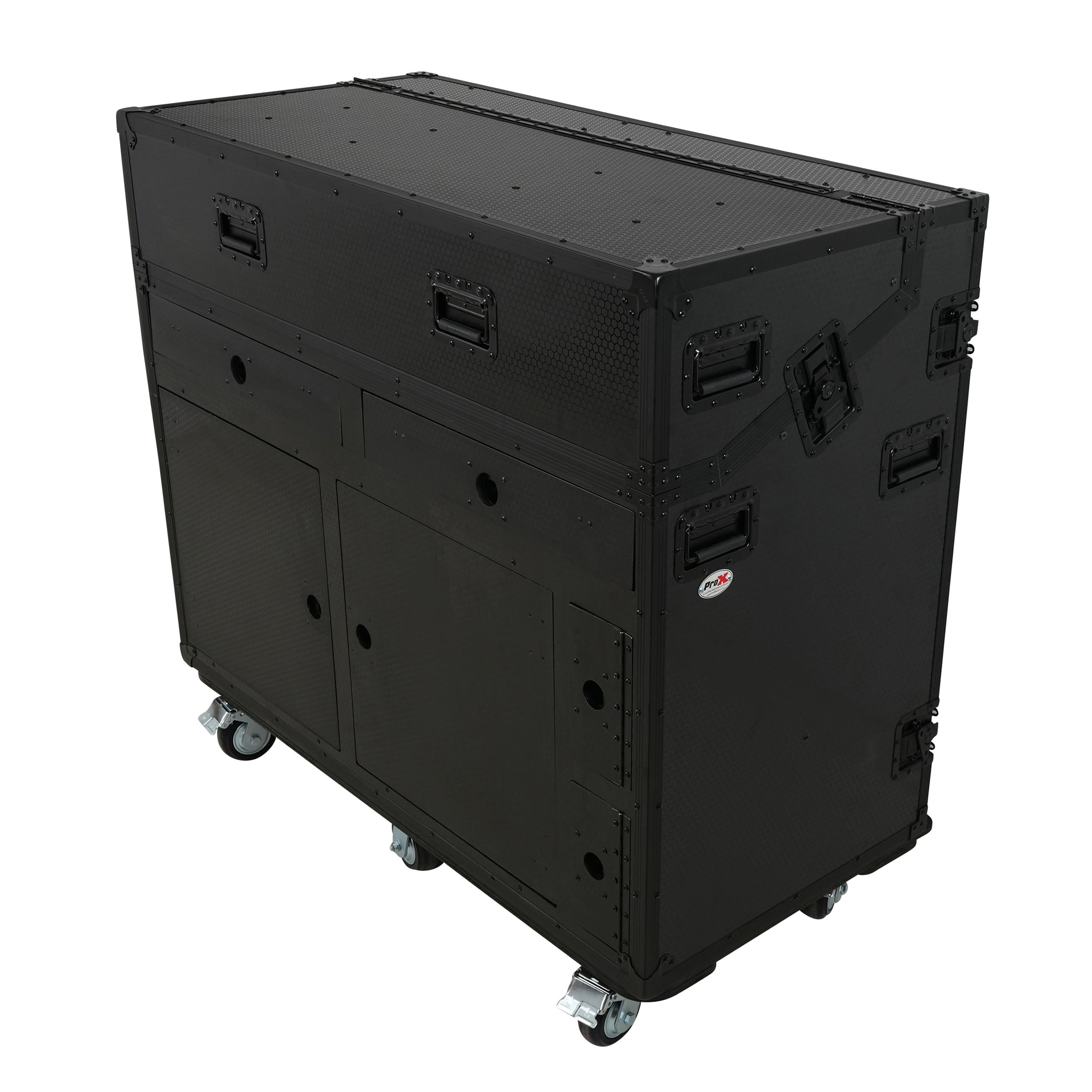

Exterior Dimensions and Weight - The ProX PRADO measures 52.5"H x 29.90"W x 54.75"L at a weight of 424.00 lbs. This is a large-format professional workstation system and should be planned for accordingly in terms of vehicle access, loading ramp capacity, floor load ratings, and crew requirements for deployment.

Designed by Professionals. Built for Performers. Backed by 40 Years of Excellence.

ProX products are designed by a team of seasoned industry professionals who know firsthand what it means when power fails mid-show. Since 1984, ProX has built its reputation on one principle: every product must perform as hard as the professionals who depend on it. We listen to our customers, and their real-world feedback directly shapes the products we bring to market. The ProX PRADO is a direct result of that collaboration. When you choose ProX, you are investing in four decades of hands-on expertise and a brand that has never stopped raising the standard for live performance gear.

• Dual 27” Monitor Support - Open top spans 53” edge to edge at 17” height, compatible with most 27” displays and select 28”/29” monitors
• 2x 4U Top Shock Mount Steel Cage Racks - 7” front-to-rear depth with steel cage isolation, protecting sensitive gear from vibration and transport impact
• 2x 12U Bottom Shock Mount Steel Cage Racks - 20” deep to accommodate full-depth rack units including amplifiers, power sequencers, and signal processors
• Top Table Clearance - 52” x 18” working surface area with 9” interior depth clearance for control surfaces and accessories
• Adjustable Angle Height Open Top - height adjustment for operator comfort during extended show operation
• 2 Top Slam Door Utility Drawers - 21.5”W x 20.5”D x 2.5”H each, sized for laptops, tablets, and production hardware with attached doors that can never be lost
• Convertible Rear Door Work Table - Removable rear door converts to a 55” x 43” stand-alone table at 32” height using included legs
• All Slam Doors Attached to Case - All slam doors on all sections are permanently attached and cannot be separated, misplaced, or left behind
• 10 Strategically Positioned Handles - 3 per side, 2 front, 2 rear for safe multi-person lifts from any angle
• 2 Side Storage Compartments - 4”W x 24”L x 9.5”H each for cables, adapters, tools, and production accessories
• 6 Heavy-Duty 5” Caster Wheels - 4 Locking - Distributes weight across six contact points for stable rolling and secure locked deployment
• All-Black on Black Finish - Black frame, black hardware, and flat black corner pieces for a clean, professional all-black aesthetic
• Exterior Dimensions - 52.50”H x 29.90”W x 54.75”L / Weight: 424.00 lbs
