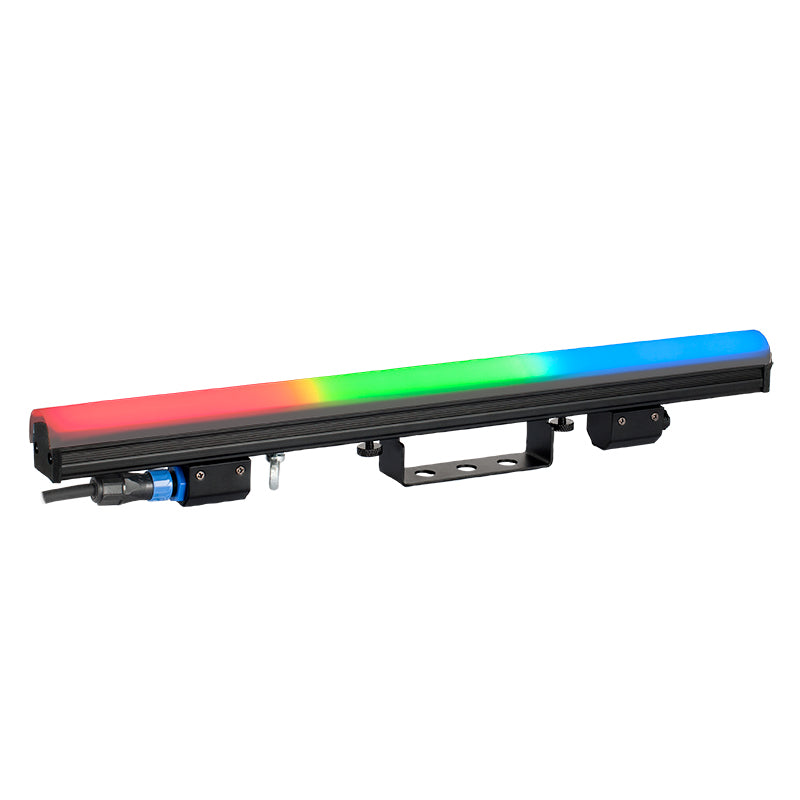

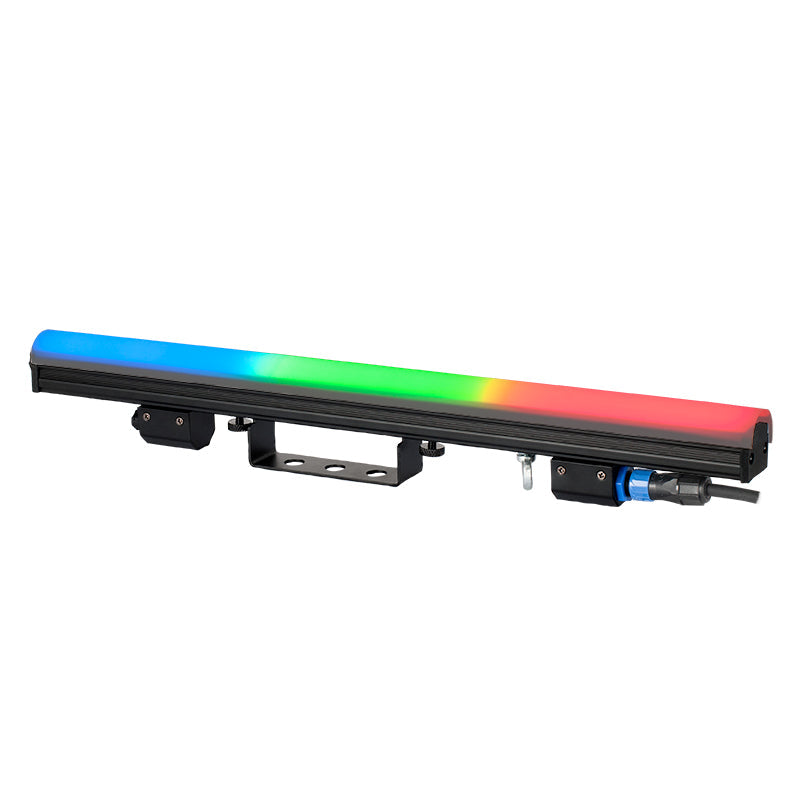

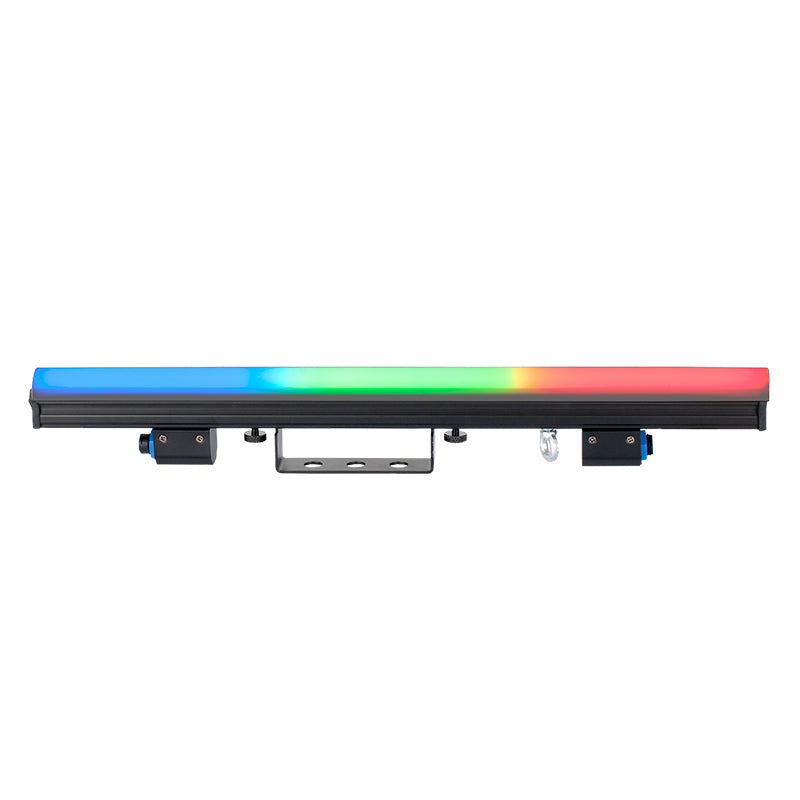

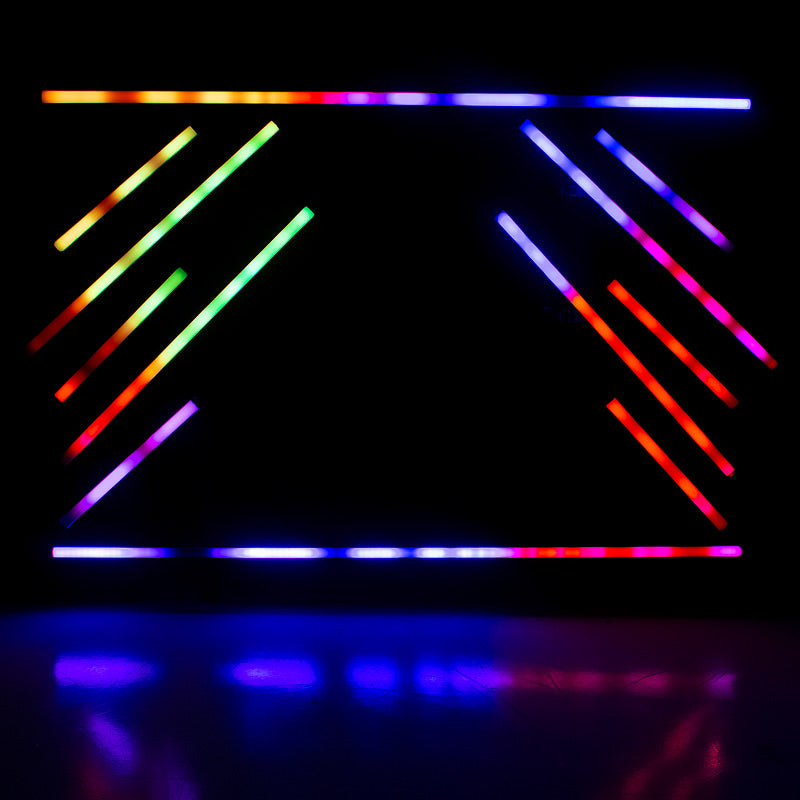

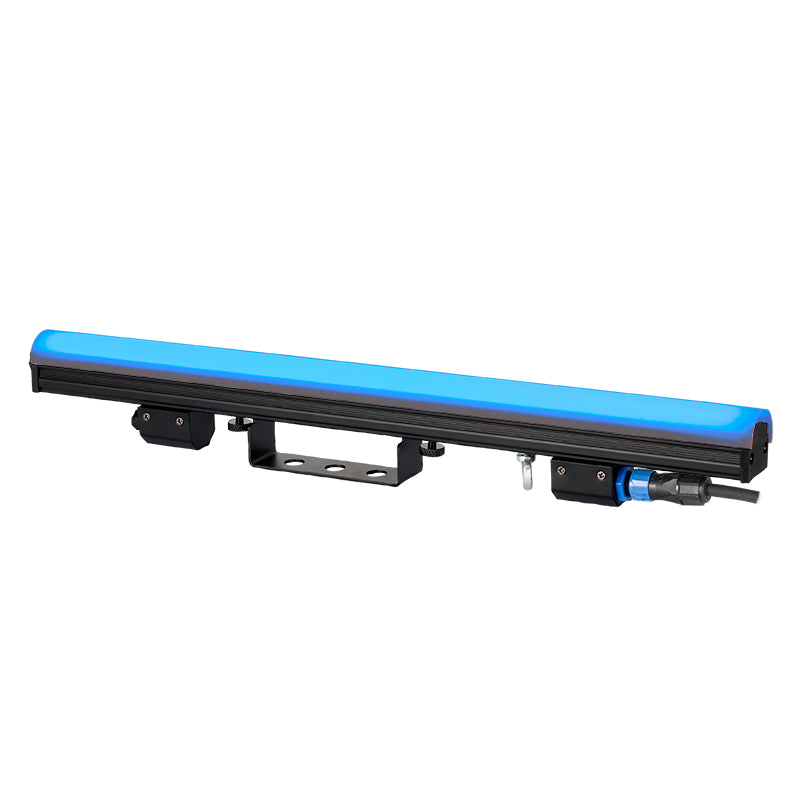

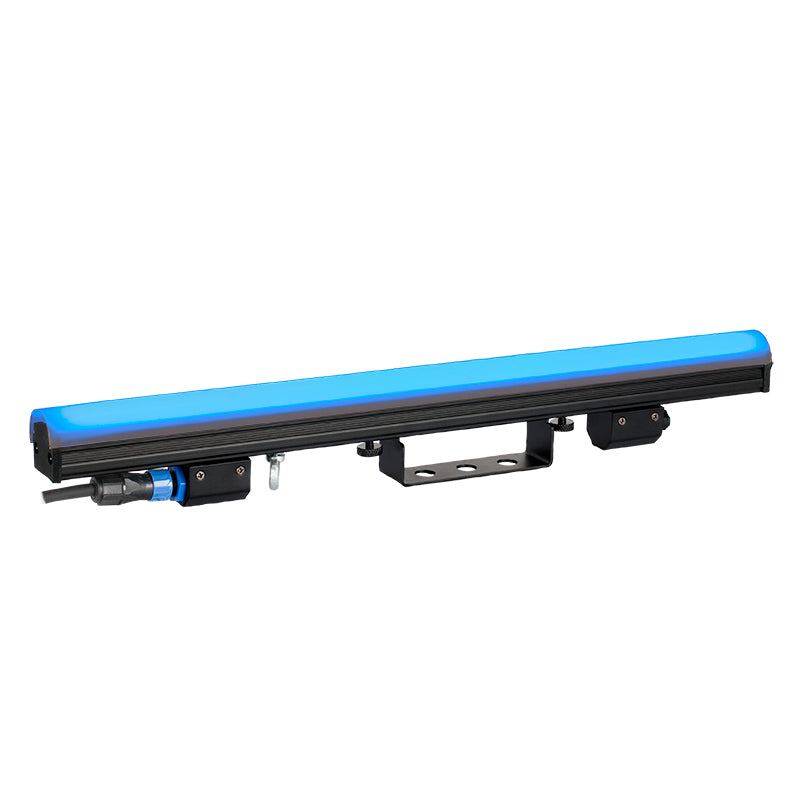

The PIXIE STRIP 30 is a 0.5 meter, indoor LED pixel strip featuring (30) tri-color RGB SMD LEDs with a 16.5mm pixel pitch. ADJ’s Pixie Strip Series is a versatile collection of pixel battens combine vibrant LEDs with intelligently-designed housings to create a powerful and versatile system. They can be used to design dazzling pixel-mapped displays for touring shows and one-off events as well as for a wide variety of permanent installations.

Specifications

SOURCE:

• SMD RGB 3-in-1 LED's
• Color Resolution: 8 bits per color (24 bit per pixel)
• Viewing Angle: 120 x 120 degrees
• Pixels Per Fixture: 30 pixels
• Pixel Pitch (pixel center-to-center) 16.5mm
• PWM (Pulse Width Modulation): 44,000Hz

CONNECTIONS:

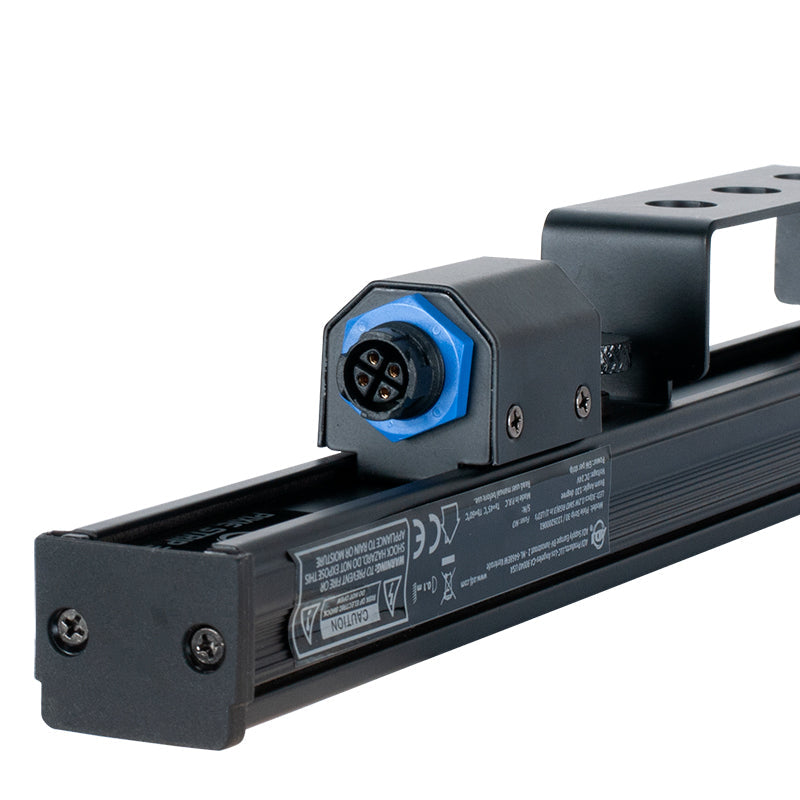

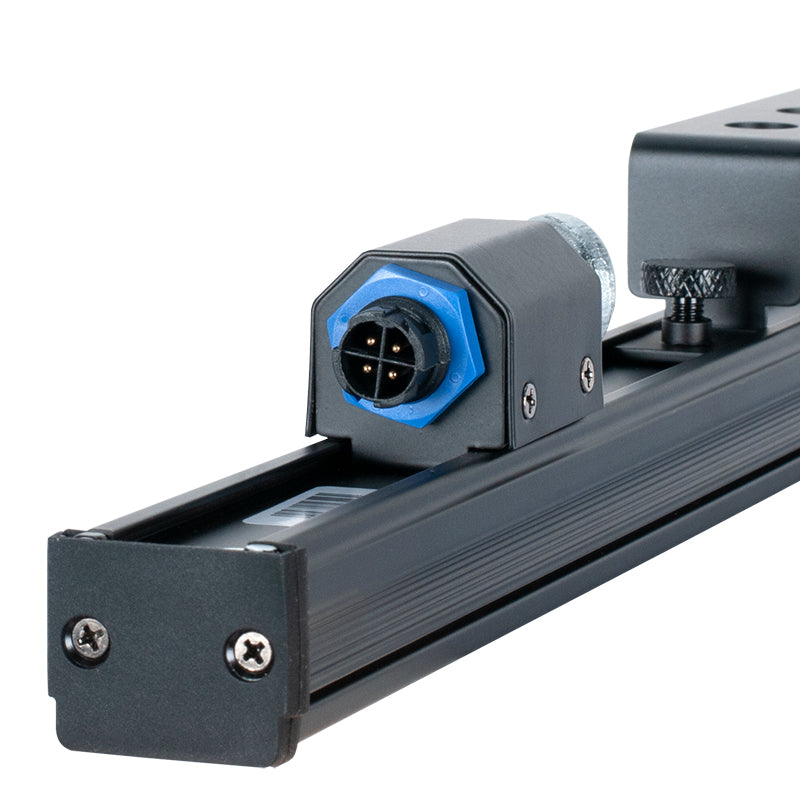

• 4-pin Power/Data In/Out

SIZE / WEIGHT:

• Length: 20” (508mm)
• Width: 2.33” (59.3mm)
• Height: 2.33” (59.3mm)
• Weight: 1.31 lbs. (0.59 kg)

ELECTRICAL:

• Max Power Consumption: 6W

APPROVALS:

• CE | cETLus

INCLUDED ITEMS:

• Round frosted cover (x1)
• Square froster cover (x1)
• Round smoked cover (x1)
• Square smoked cover (x1)
• 1.96' (0.6m) 4-pin power/data cable (x1)

Specifications and documentation subject to change without notice.
