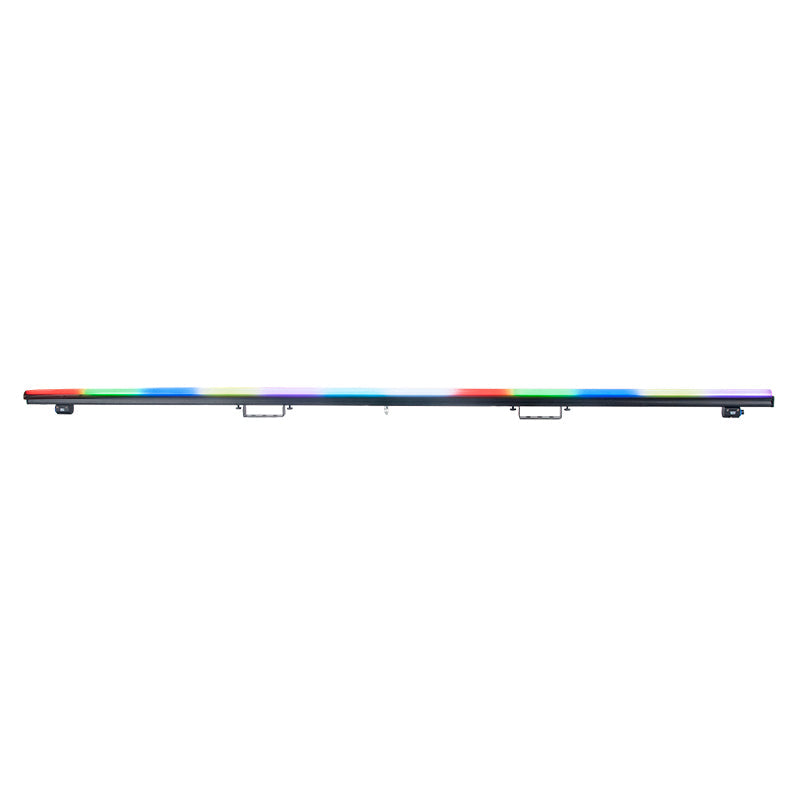

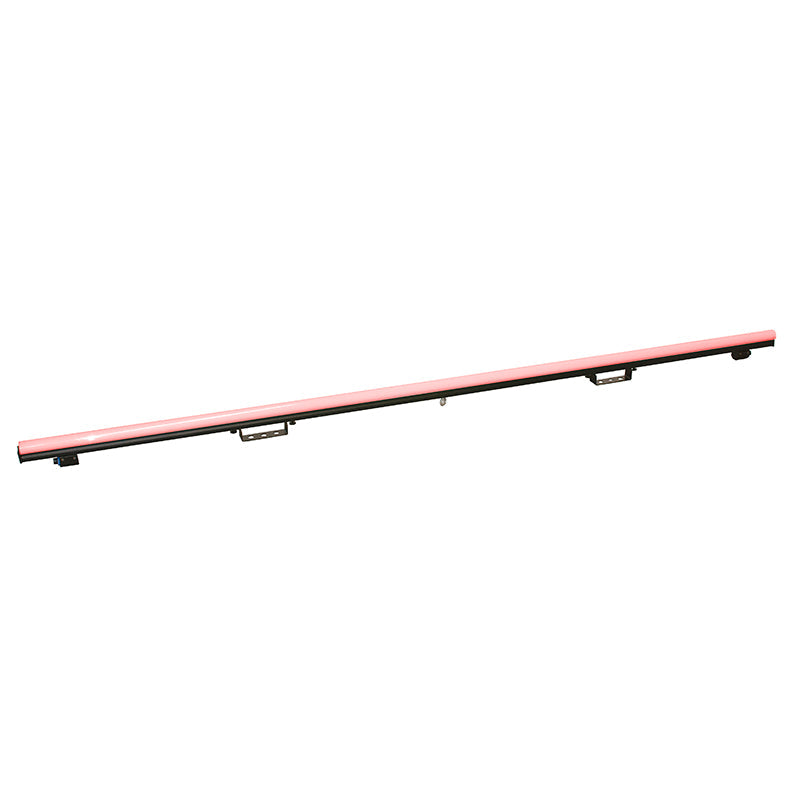

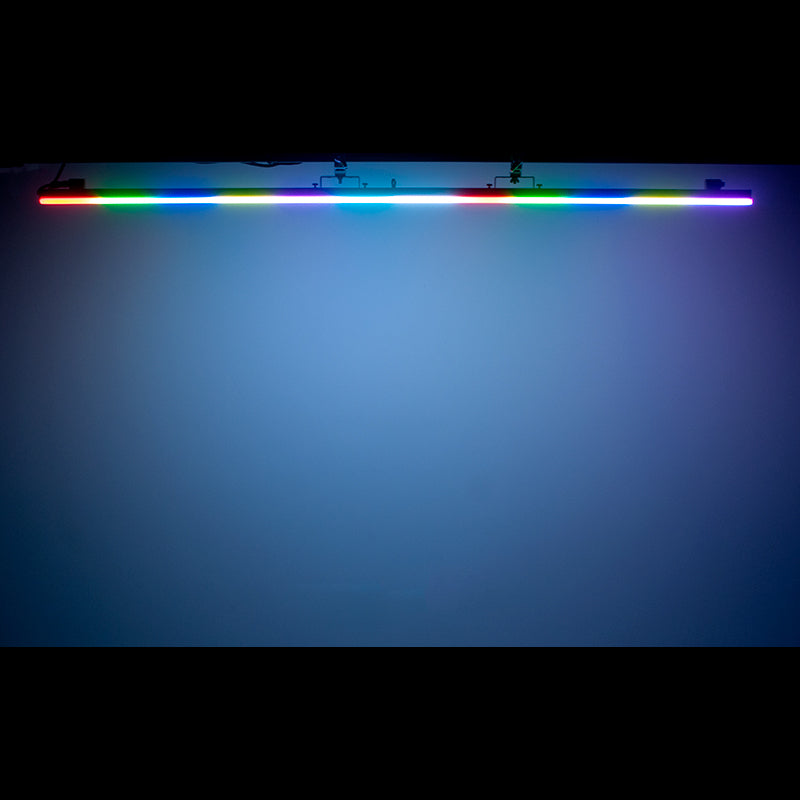

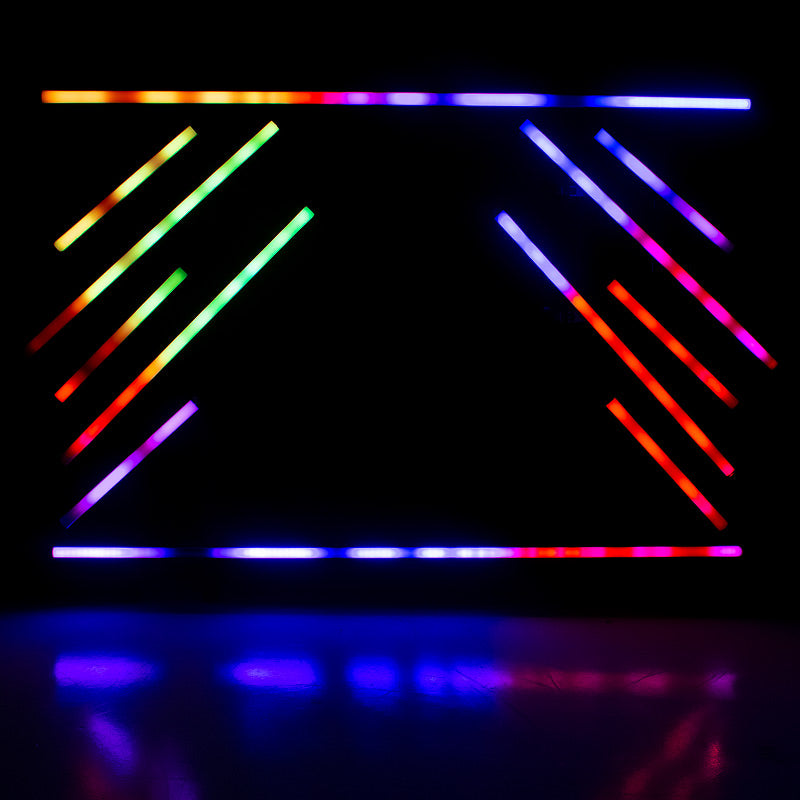

The PIXIE STRIP 120 is a 2-meter, indoor LED pixel strip featuring (120) tri-color RGB SMD LEDs with a 16.5mm pixel pitch. ADJ’s Pixie Strip Series is a versatile collection of pixel battens combine vibrant LEDs with intelligently-designed housings to create a powerful and versatile system. They can be used to design dazzling pixel-mapped displays for touring shows and one-off events as well as for a wide variety of permanent installations.

Specifications

SOURCE

SMD RGB 3-in-1 LED's

Color Resolution: 8 bits per color (24 bit per pixel)

Viewing Angle: 120 x 120 degrees

Pixels Per Fixture: 120 pixels

Pixel Pitch (pixel center-to-center) 16.5mm

PWM (Pulse Width Modulation): 44,000Hz

CONNECTIONS

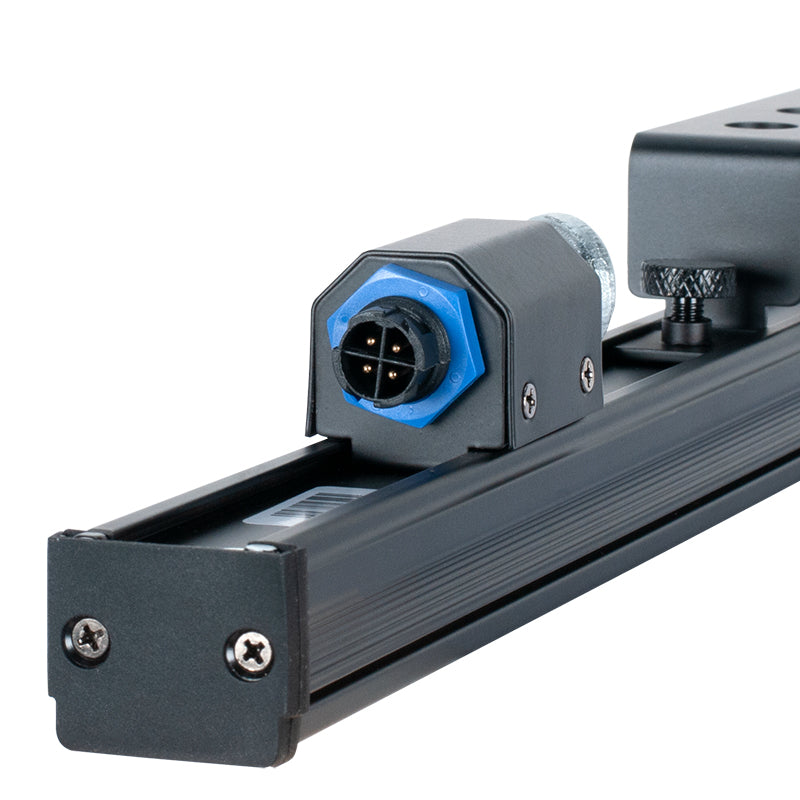

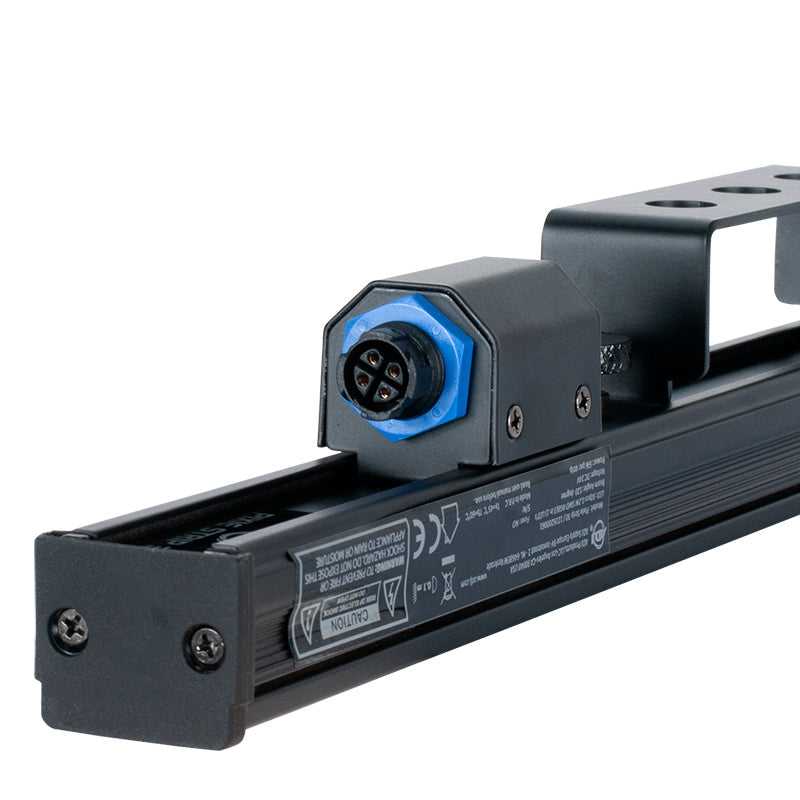

4pin Power/Data In/Out

SIZE / WEIGHT

Length: 78.8” (2000mm)

Width: 1.26” (32mm)

Height: 2.64” (67mm)

Weight: 4.6 lbs. (2.1kg)

ELECTRICAL

Max Power Consumption: 24W

APPROVALS

CE | cETLus

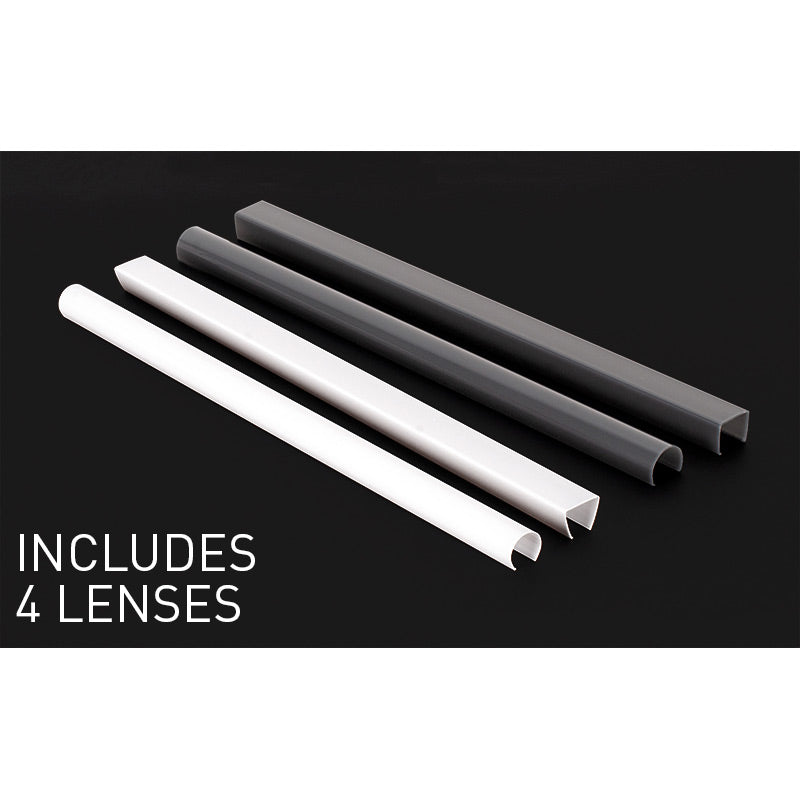

INCLUDED ITEMS:

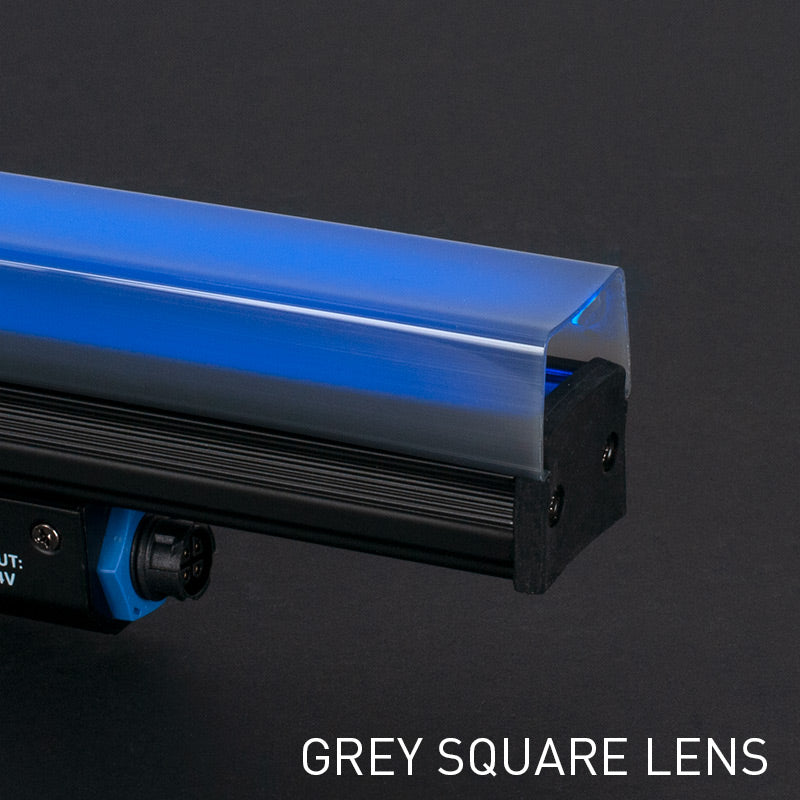

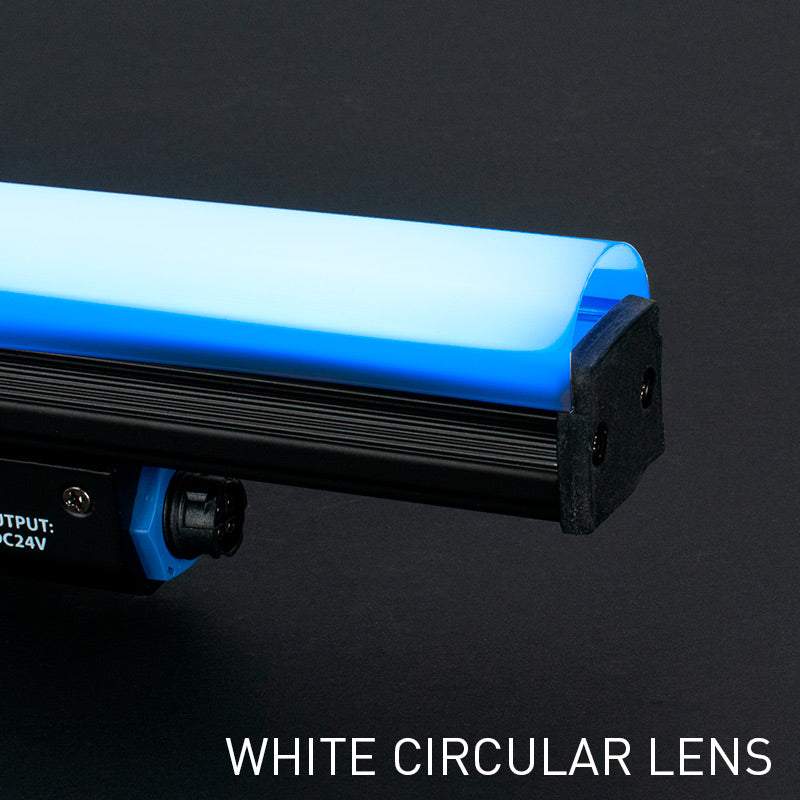

• Round frosted cover (x1)

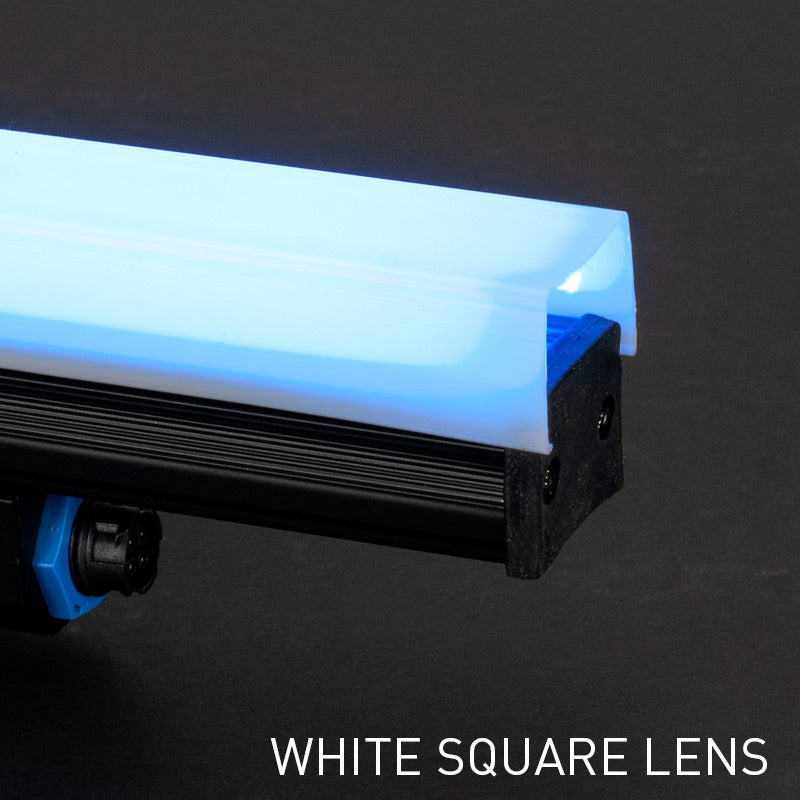

• Square froster cover (x1)

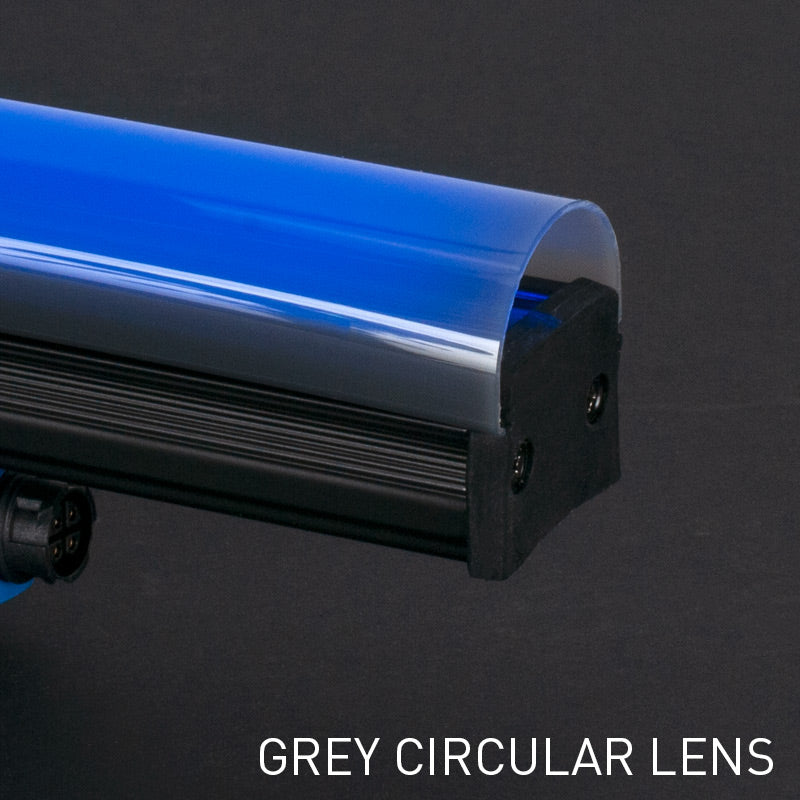

• Round smoked cover (x1)
• Square smoked cover (x1)
• 1.96' (0.6m) 4-pin power/data cable (x1)

Specifications and documentation subject to change without notice.
