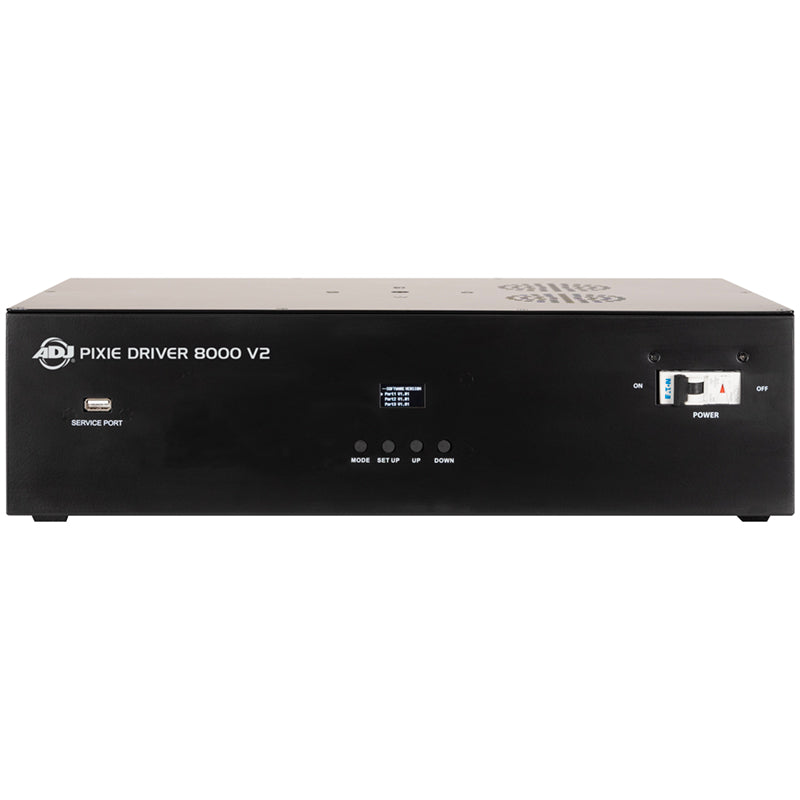

ADJ's Pixie Driver 8000 V2 is designed specifically for the ADJ Pixie Strip Series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control.

Specifications

Control Features:

• Power / data supply for ADJ Pixie Strip 30, Pixie Strip 60, Pixie Strip 120 and Pixie Curve 60
• Manual RGB mode
• Internal programs
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• Drives up to 8,160 Pixels via ArtNet or sACN (1,020 Pixels per port)
• OLED screen with 4-button menu
• USB port for Firmware Updates

Control Quantity:

Art-Net/sACN: max 34x Pixie Strip 30; 17x Pixie Strip 60 or Pixie Curve 60; 8x Pixie Strip 120 (Per port, or any combination not exceeding 1,020 pixels per port)

***Default Subnet Mask is 255.0.0.0***

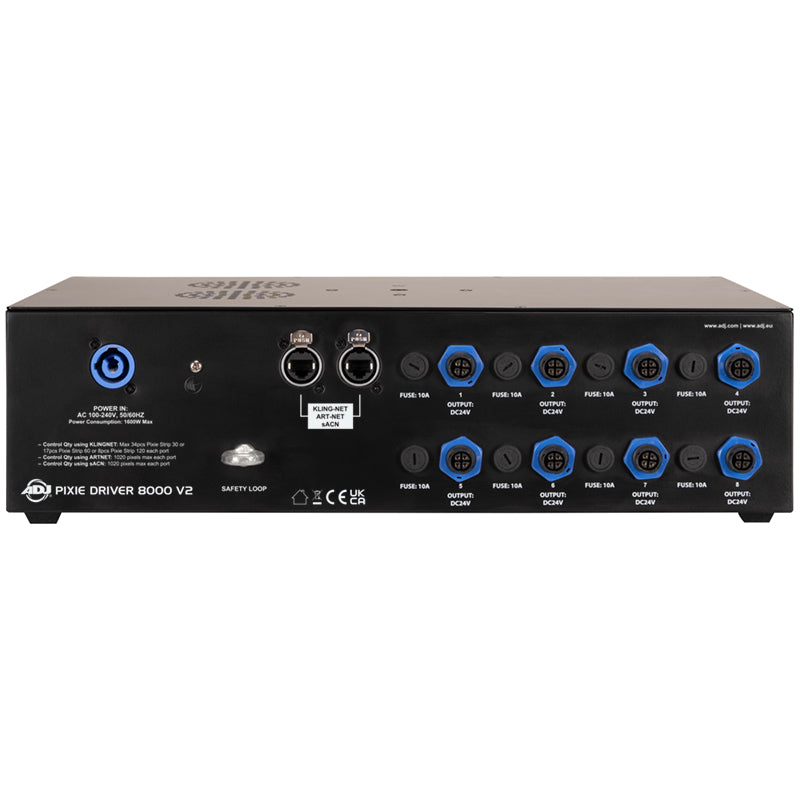

Connections:

• Power: PowerLock Input
• Two locking RJ45 ports
• Eight 4-pin DC24V power/data outputs to Pixie Strips

Mounting Options:

• Bolt to add a clamp to hang from truss (clamp and truss not included)
• Includes 19-inch rack mount ears
• Safety eye

Electrical:

• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Consumption: 1,600W max
• -4°F to 113°F (-20°C to 45°C)

Dimensions / Weight:

• Dimensions (LxWxH): 11.8” x 18.9” x 4.7” / 300.3x480x120mm
• Weight: 13.4 lbs. / 6.1 kg.

Approvals:

CE | cETLus (Pending)

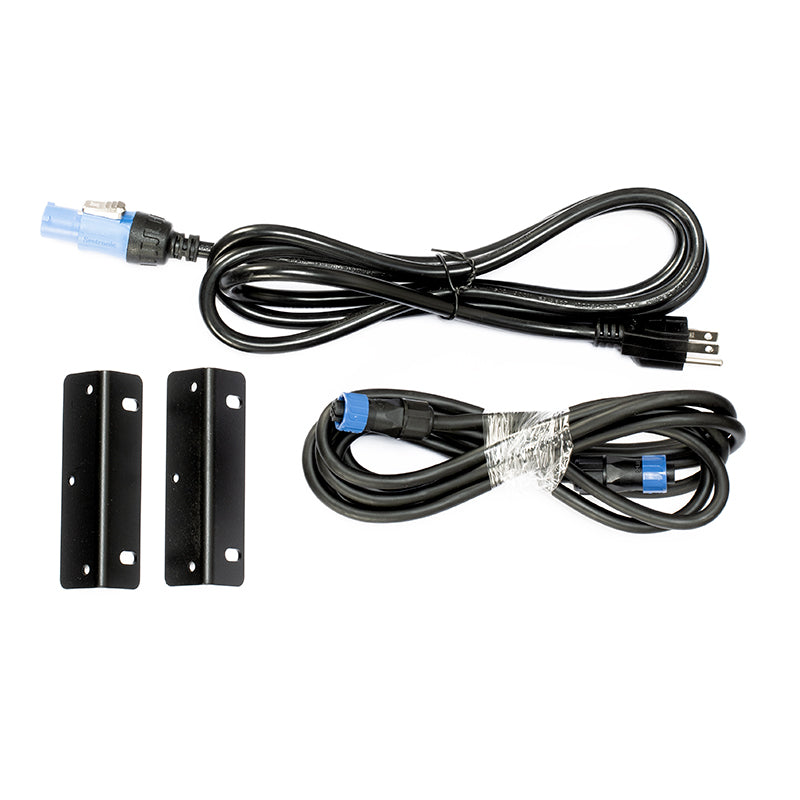

Included Accessories:

(1) 10-foot Pixie Strip to Pixie Strip

or

Pixie Driver to Pixie Strip link cable

(1) SIP20MPC (SIP293): Power Input cable

(2) 19" Rack Ears

Accessories Sold Separately:

PSLC1 (PIX158): 1-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable

PSLC3 (PIX174): 3-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable

PSLC5 (PIX188): 5-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable

PSLC10 (PIX200): 10-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable

PSLC15 (PIX213): 15-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable

PSLC25 (PIX229): 25-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable

PSLC50 (PIX242): 50-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable

Specifications subject to change without notice.
