Specifications

Control Features:

• Power / data supply for ADJ Lighting Pixie Strip 30, Pixie Strip 60, Pixie Strip 120 and Pixie Curve 60
• Manual RGB mode
• Internal programs
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• 2,040 Pixels via ArtNet and sACN (1020 Pixels per Port)
• OLED screen with 4-button menu
• RDM compatible
• USB port for Firmware Updates

Control Quantity:

Art-Net/sACN: max 34x Pixie Strip 30; 17x Pixie Strip 60 or Pixie Curve 60; 8x Pixie Strip 120 (Per port, or any combination not exceeding 1,020 pixels per port)

***Default Subnet Mask is 255.0.0.0***

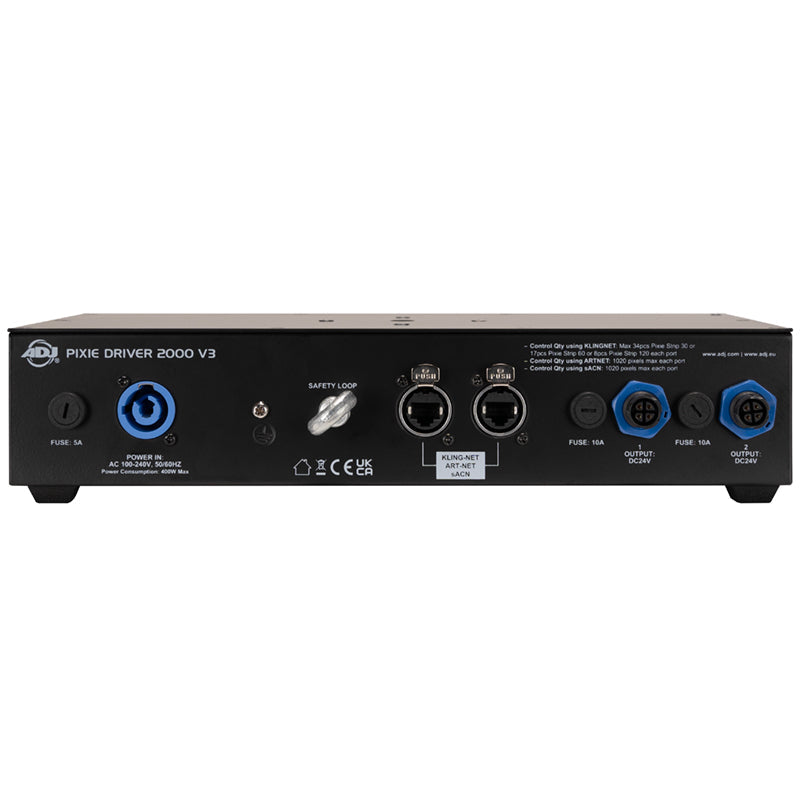

Connections:

• Indoor Power Locking Input
• Two locking RJ45 ports
• Two 4-pin DC24V power/data outputs to Pixie Strips

Mounting Options:

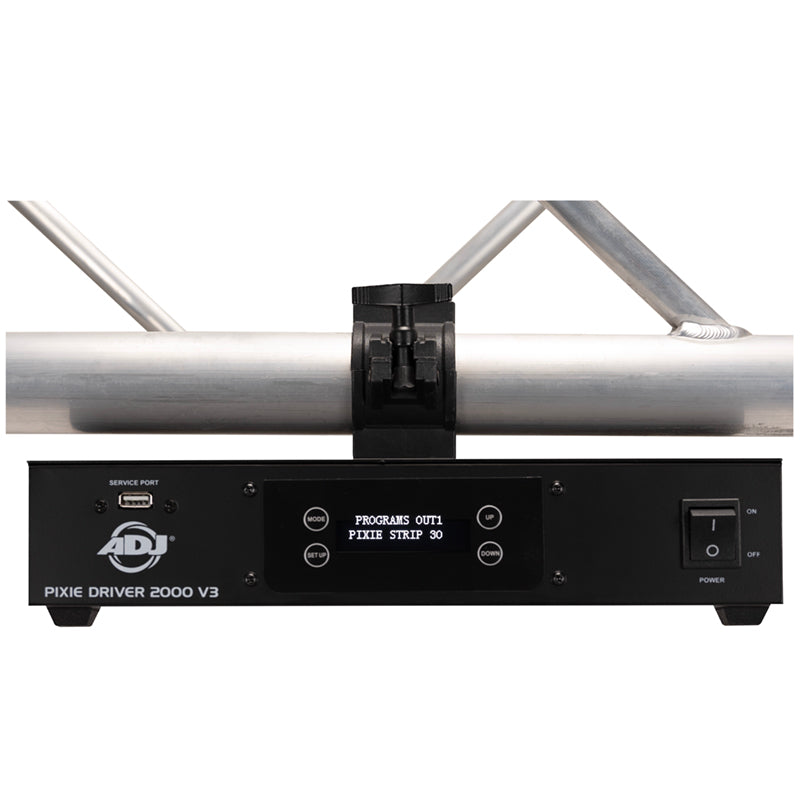

• Bolt to add a clamp to hang from truss (clamp and truss not included)
• Includes 19-inch rack mount ears
• Safety eye

Electrical:

• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Consumption: 400W max
• -4°F to 113°F (-20°C to 45°C)

Dimensions / Weight:

• Dimensions (LxWxH): 18.9” x 7.11” x 2.91” / 480x180.8x74mm
• Weight: 5.6 lbs. / 2.5 kg.

What's Included:

• Twist-Lock power cable
• 19-inch rack mount ears
• 4-pin data cable

Approvals:

CE

cETLus

Accessories:

PSLC1 (PIX158): 1-foot Pixie Strip Link Cable

PSLC3 (PIX174): 3-foot Pixie Strip Link Cable

PSLC5 (PIX188): 5-foot Pixie Strip Link Cable

PSLC10 (PIX200): 10-foot Pixie Strip Link Cable

PSLC15 (PIX213): 15-foot Pixie Strip Link Cable

PSLC25 (PIX229): 25-foot Pixie Strip Link Cable

PSLC50 (PIX242): 50-foot Pixie Strip Link Cable

Specifications are subject to change without notice.
