Specifications

Source:

SMD RGB 3-in-1, APA-102C LEDs

Color Resolution: 8 bits per color (24 bit per pixel)

Viewing Angle: 120 x 120 degrees

Pixels Per Fixture: 60 pixels

Pixel Pitch (pixel center-to-center) 16.5mm

PWM (Pulse Width Modulation): 44,000Hz

50,000 Hours Life

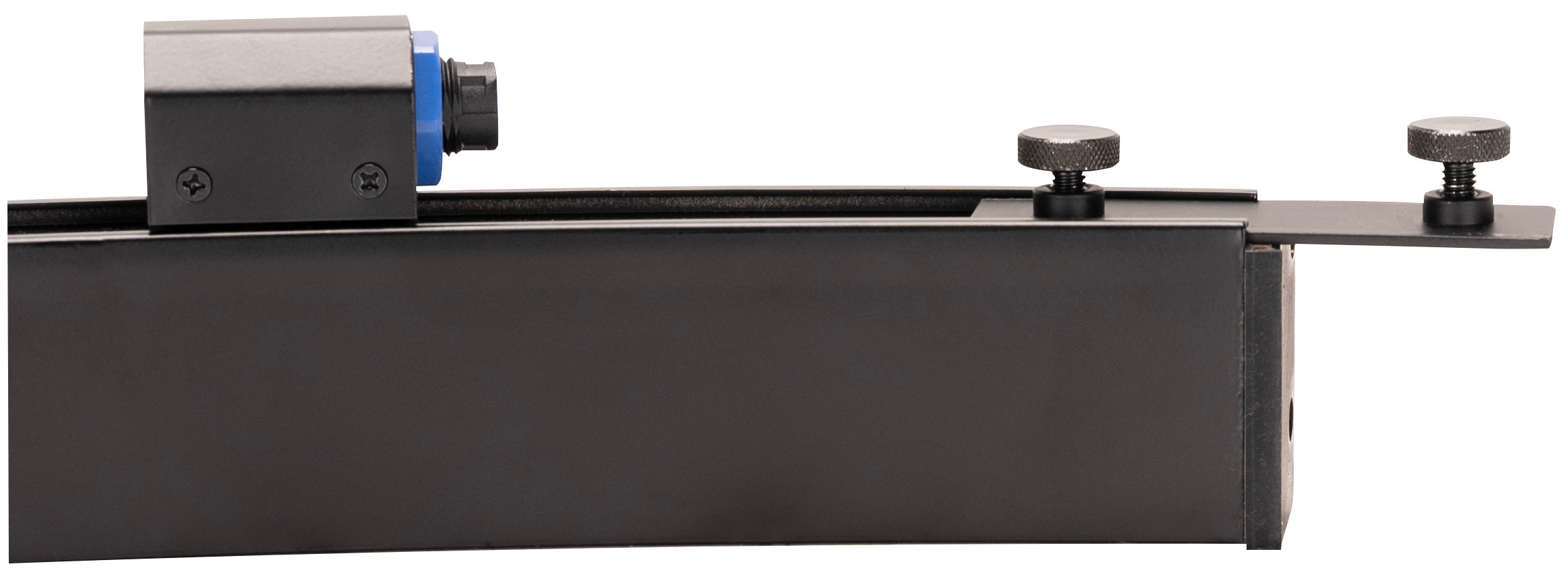

Connectors:

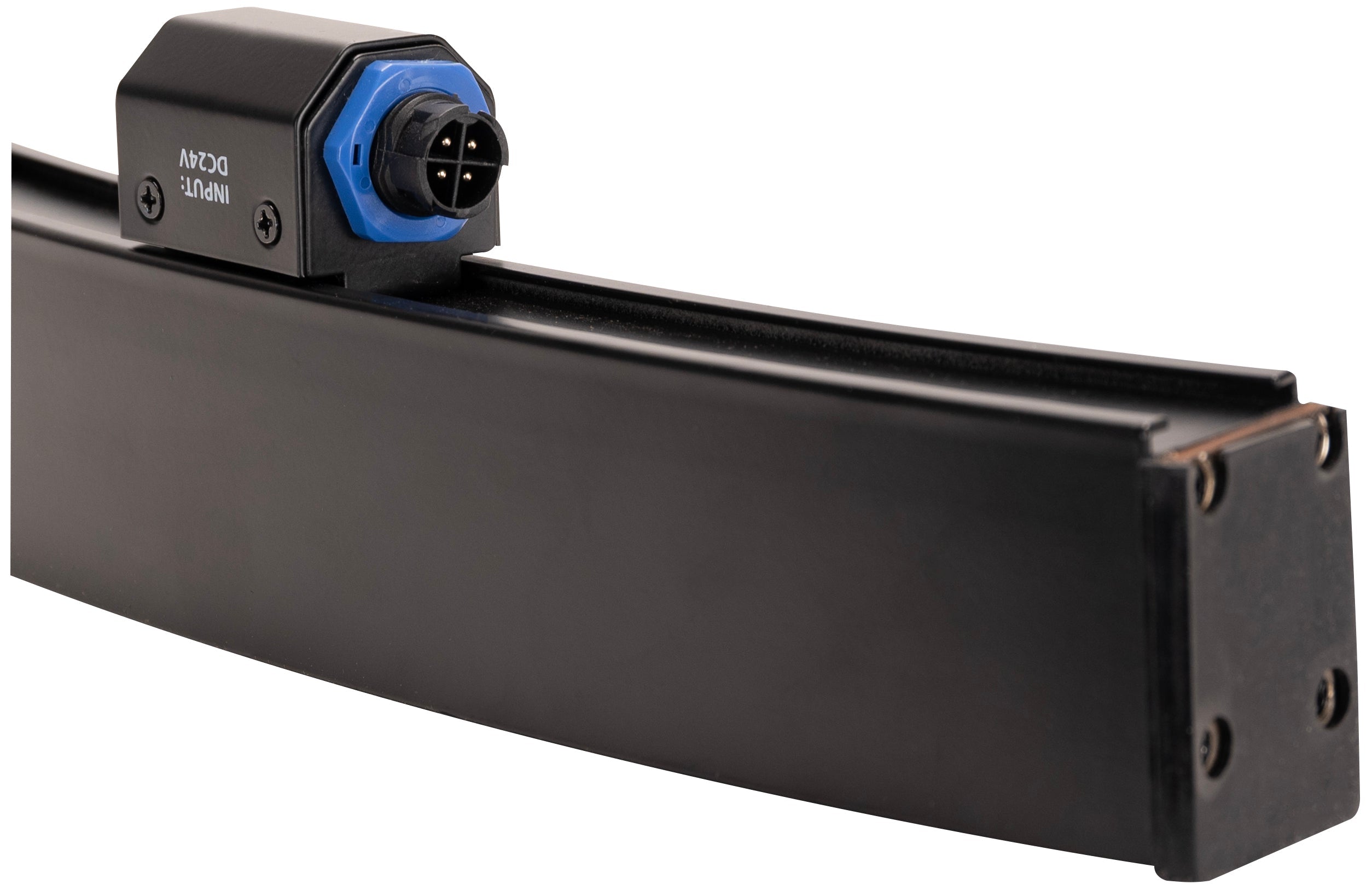

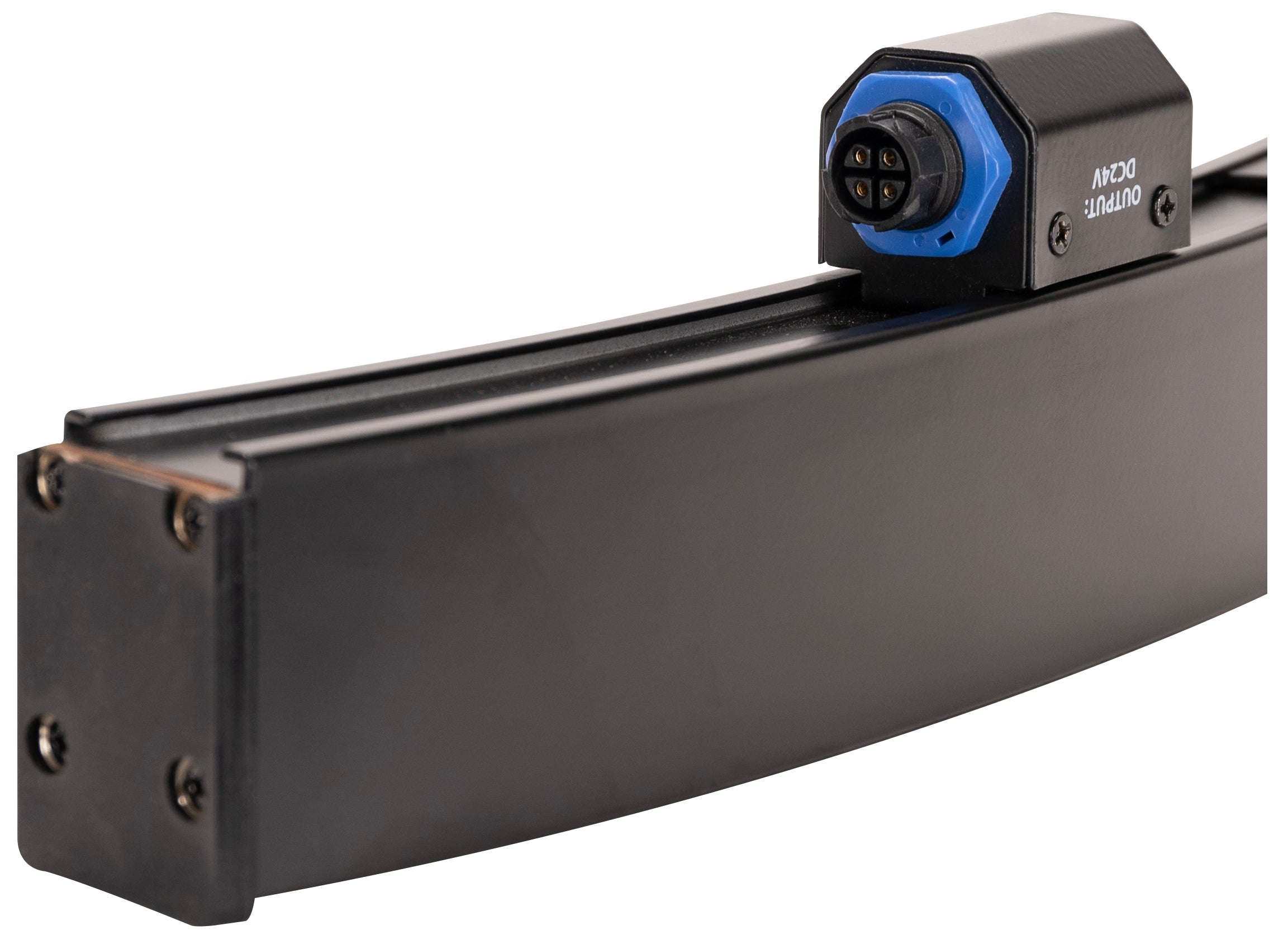

4-pin Power/Data Input & Output

Dimensions & Weight:

Length: 36.4” (924mm)

Width: 1.3” (32mm)

Height: 3.1” (79mm)

Weight: 2.0 lbs. (1.2kg)

Power:

DC24V

Max Power Consumption: 12W

Thermal:

Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)

Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

CE

cETLus (Pending)

FCC

IP65

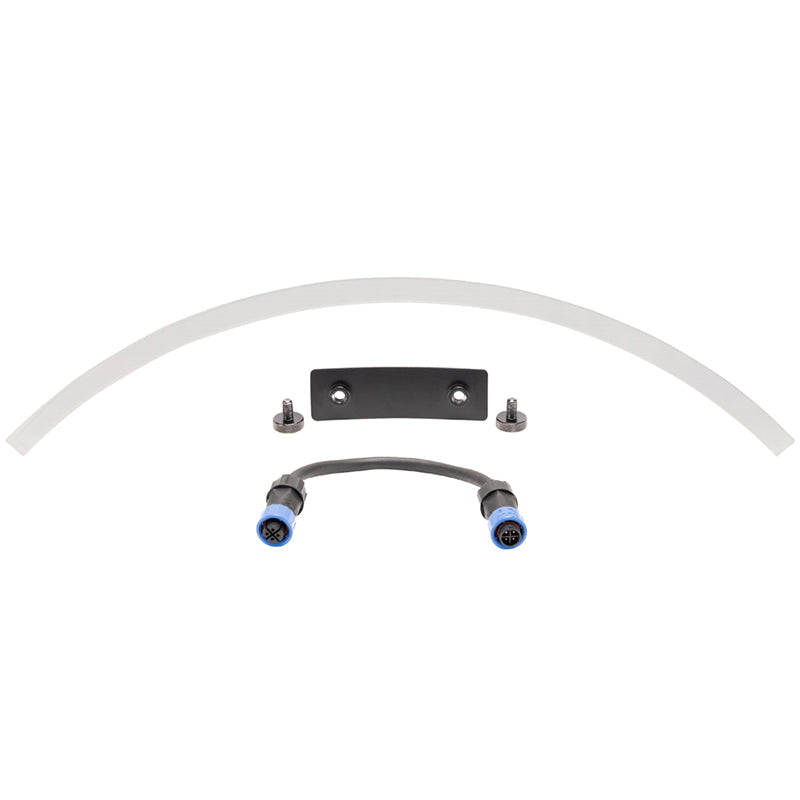

What's Included:

Round clear cover (x1)

10.6" (0.27m) 4-pin Power/Data Cable (x1)

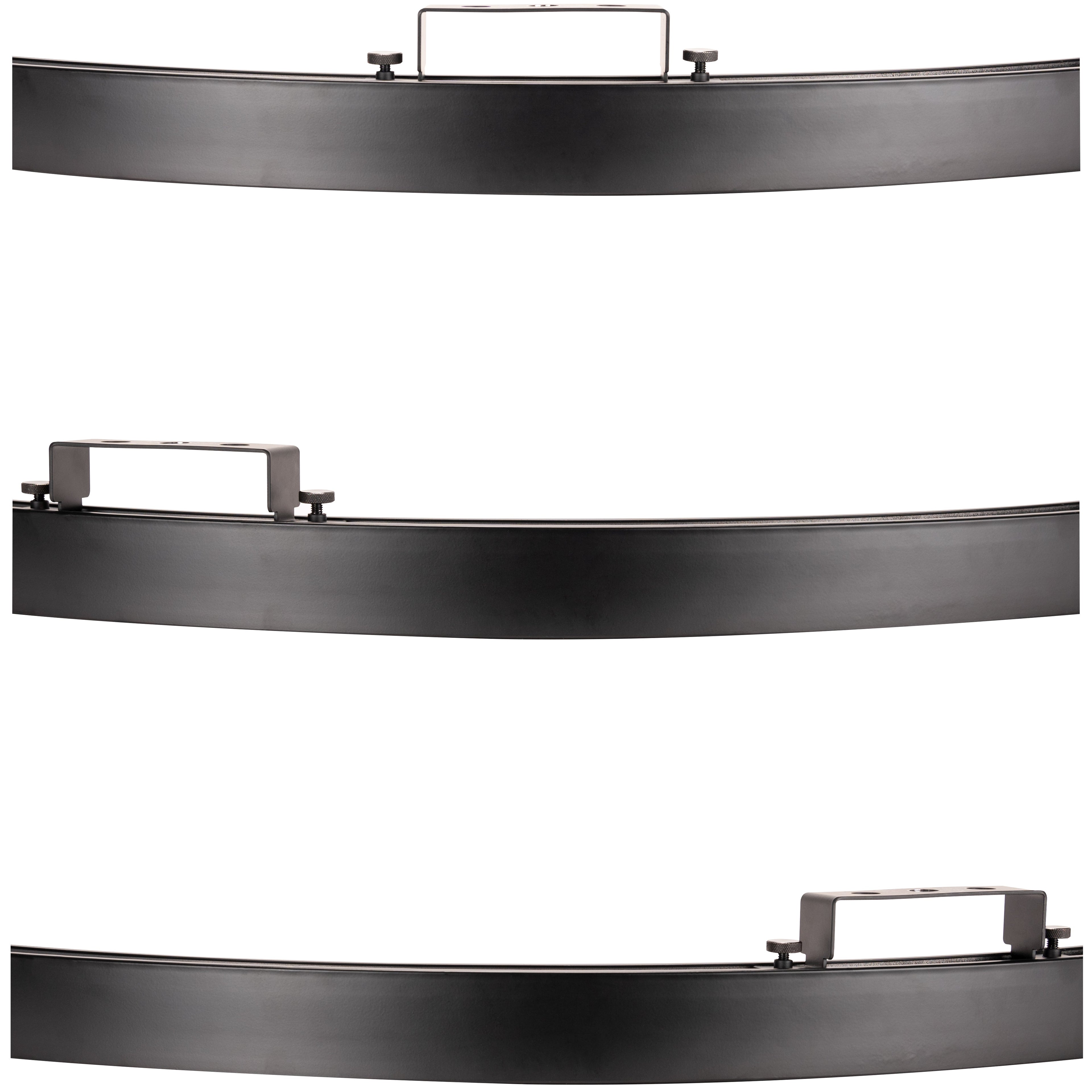

Adapter Bracket (x1)

Specifications and documentation subject to change without notice.
