Pedalboard Power Supply; 12 Outputs – 2300Ma

$303.99 $189.99

Guitar Effects Pedal Power Supply with 12 Isolated Outputs Outputs: 2 x 18V DC @ 120mA, 3 x 9/12V DC @ 120mA, 2 x 4~9V DC @ 120mA, 2 x 9V DC @ 300mA, 2 x 9V DC @ 500mA, 1 x USB @ 5V/2A (10W), 1 x AC Outlet...

Product Description

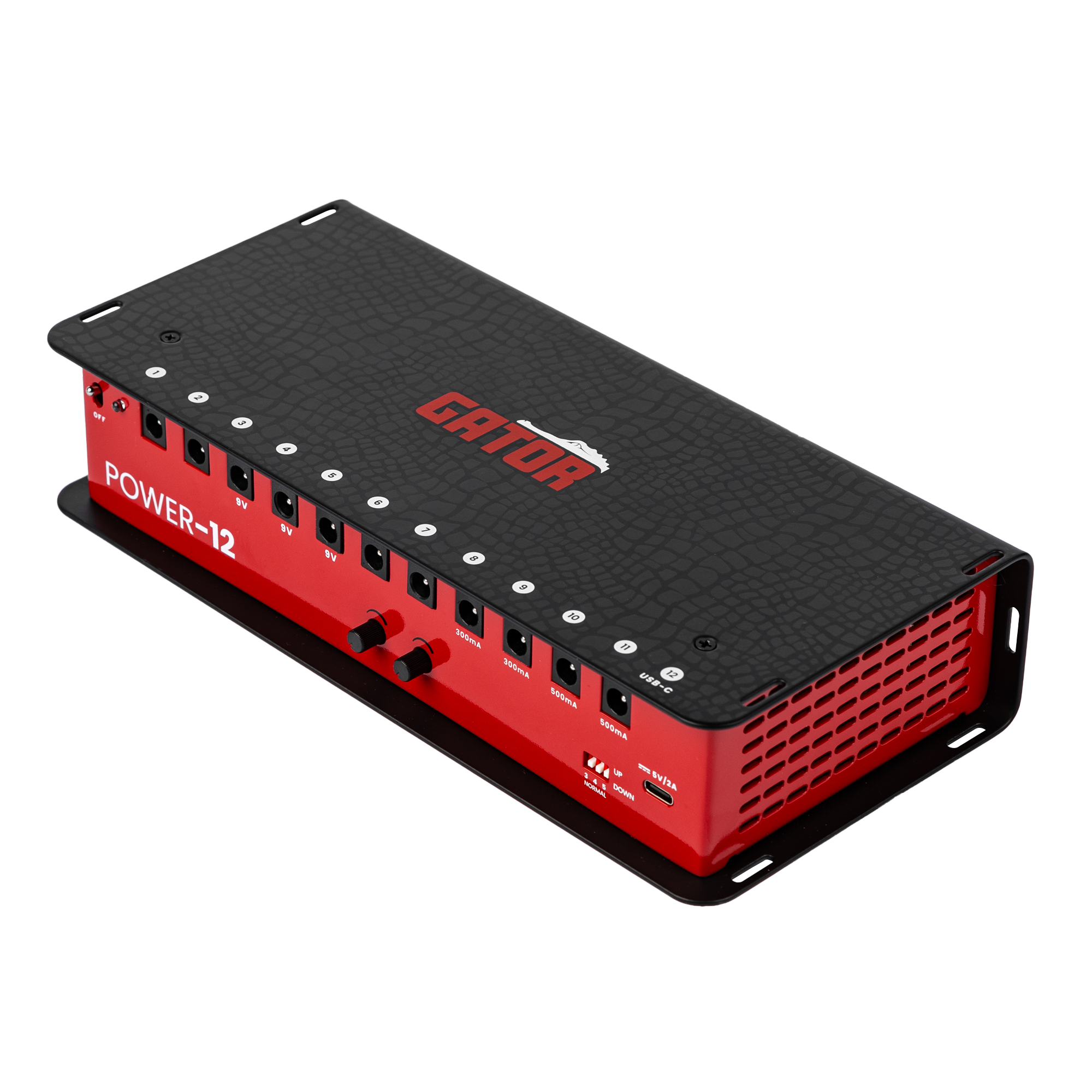

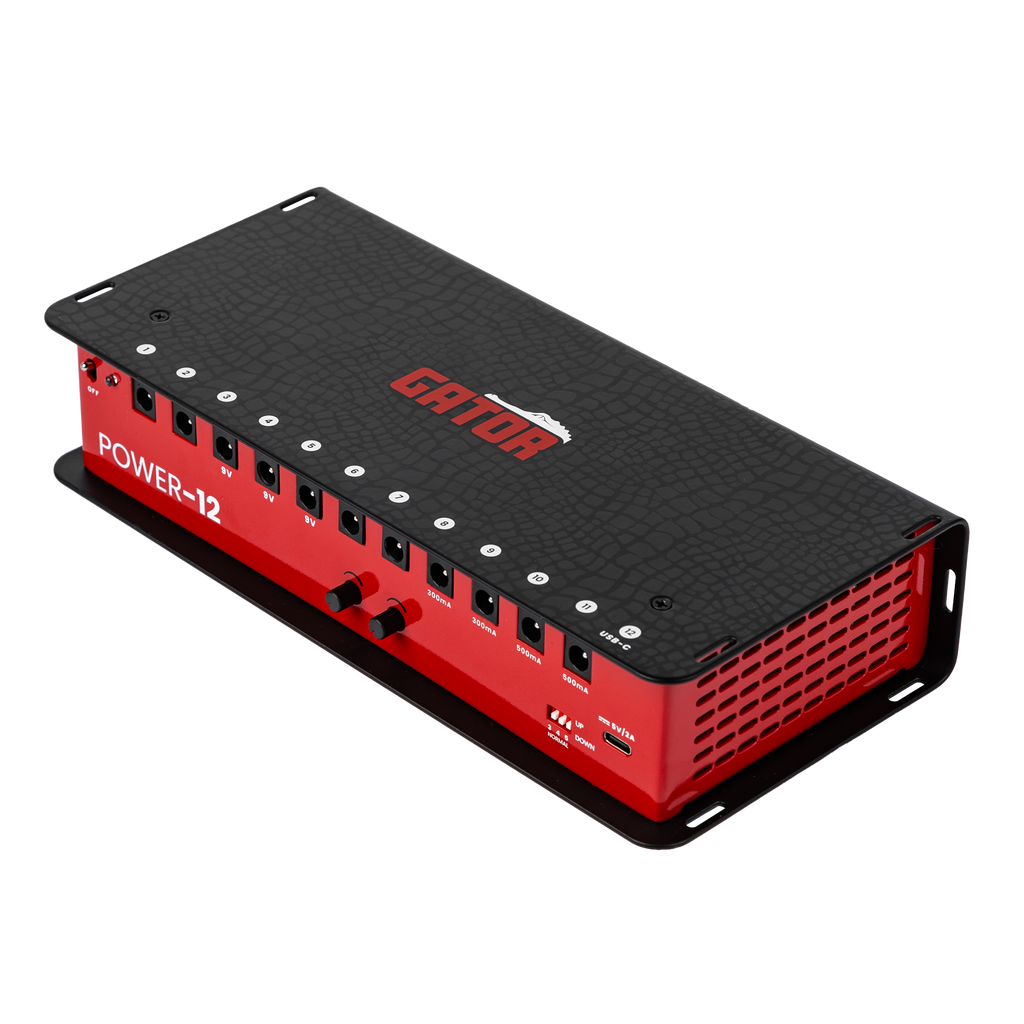

Guitar Effects Pedal Power Supply with 12 Isolated Outputs

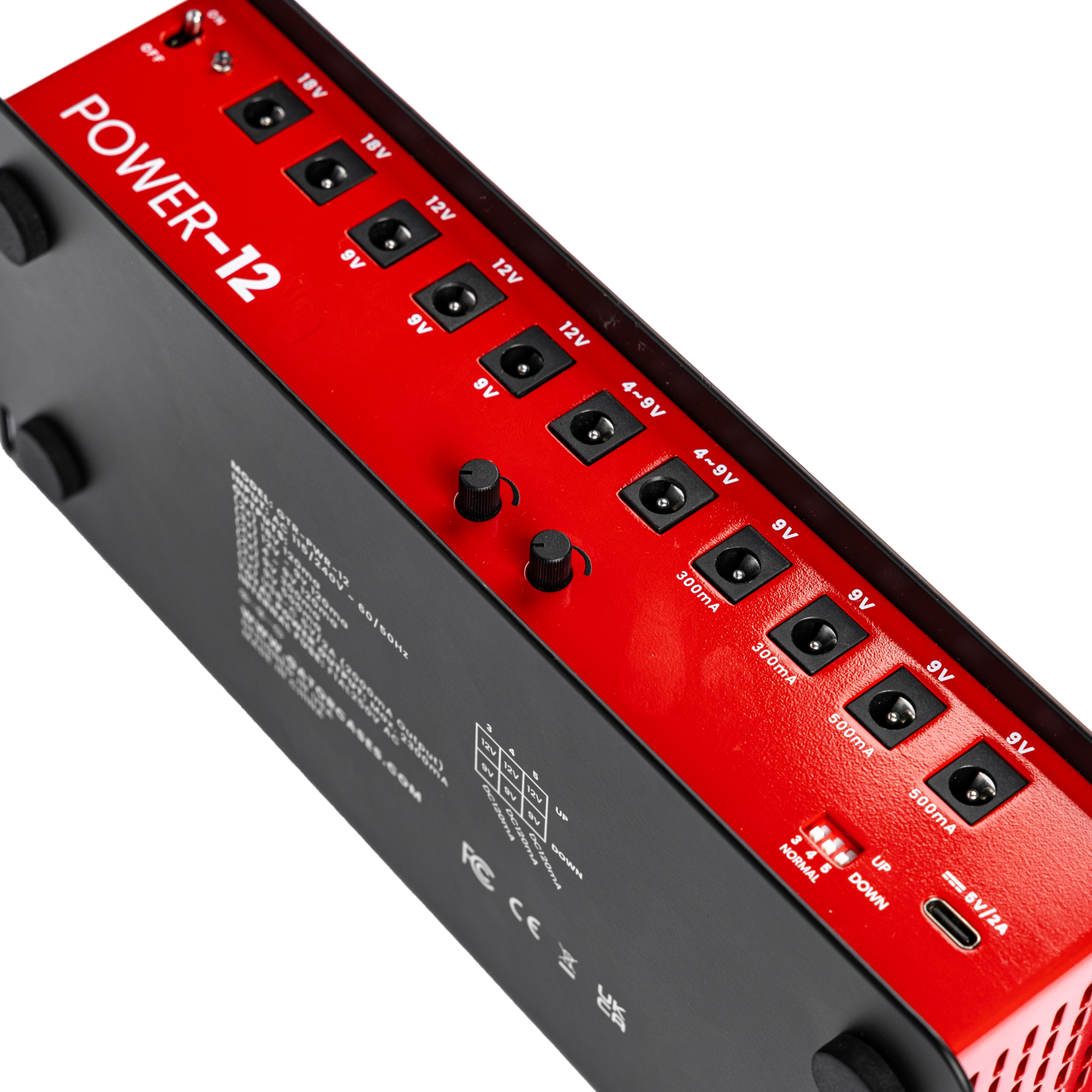

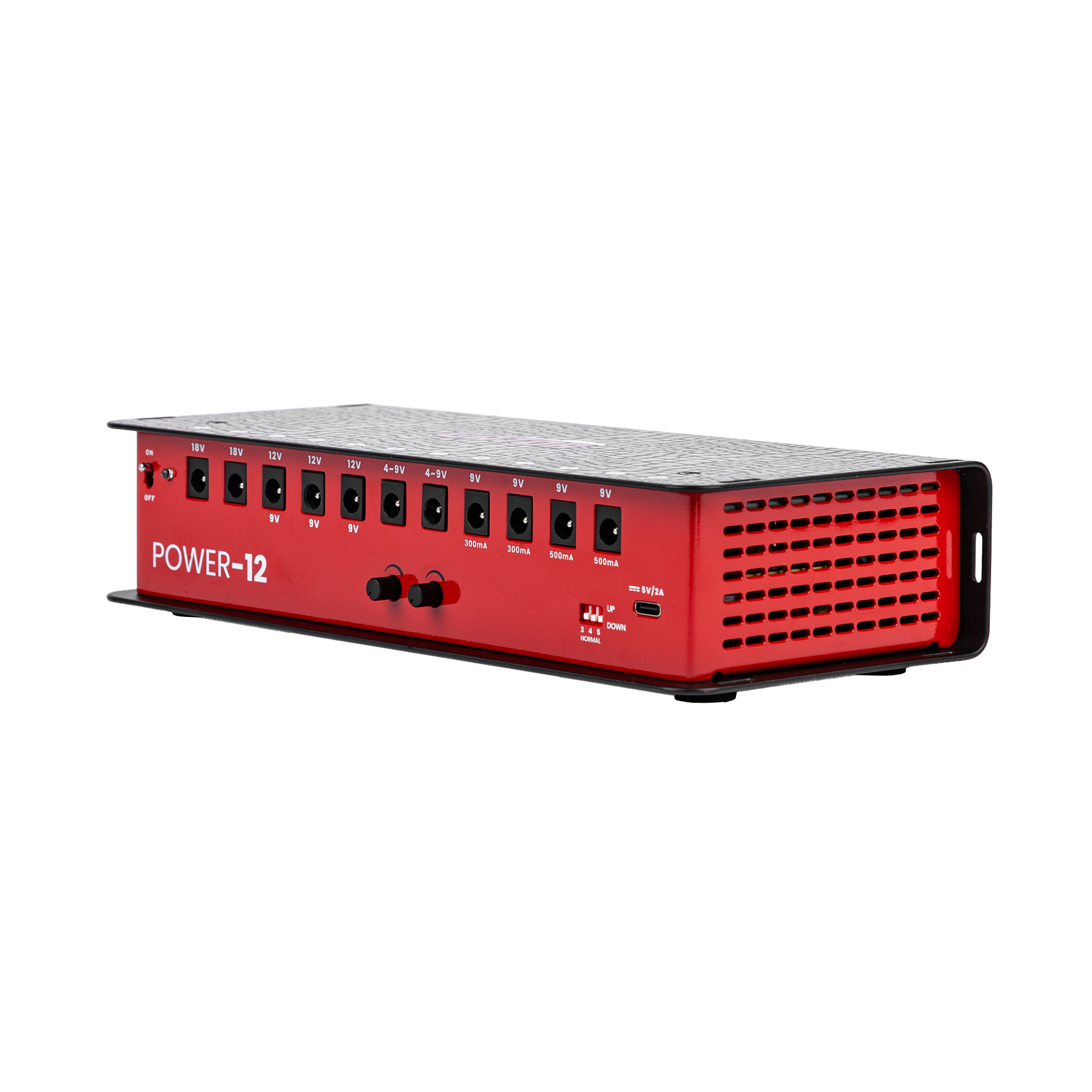

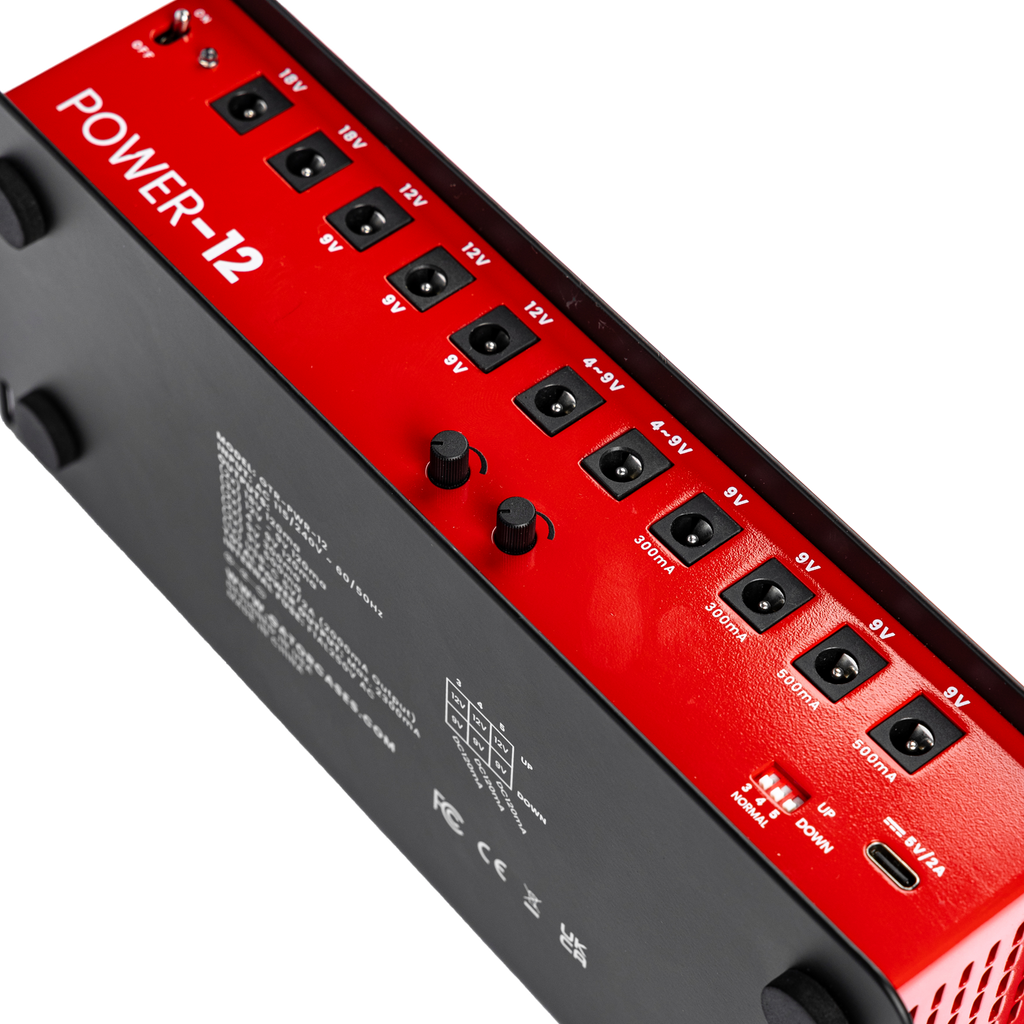

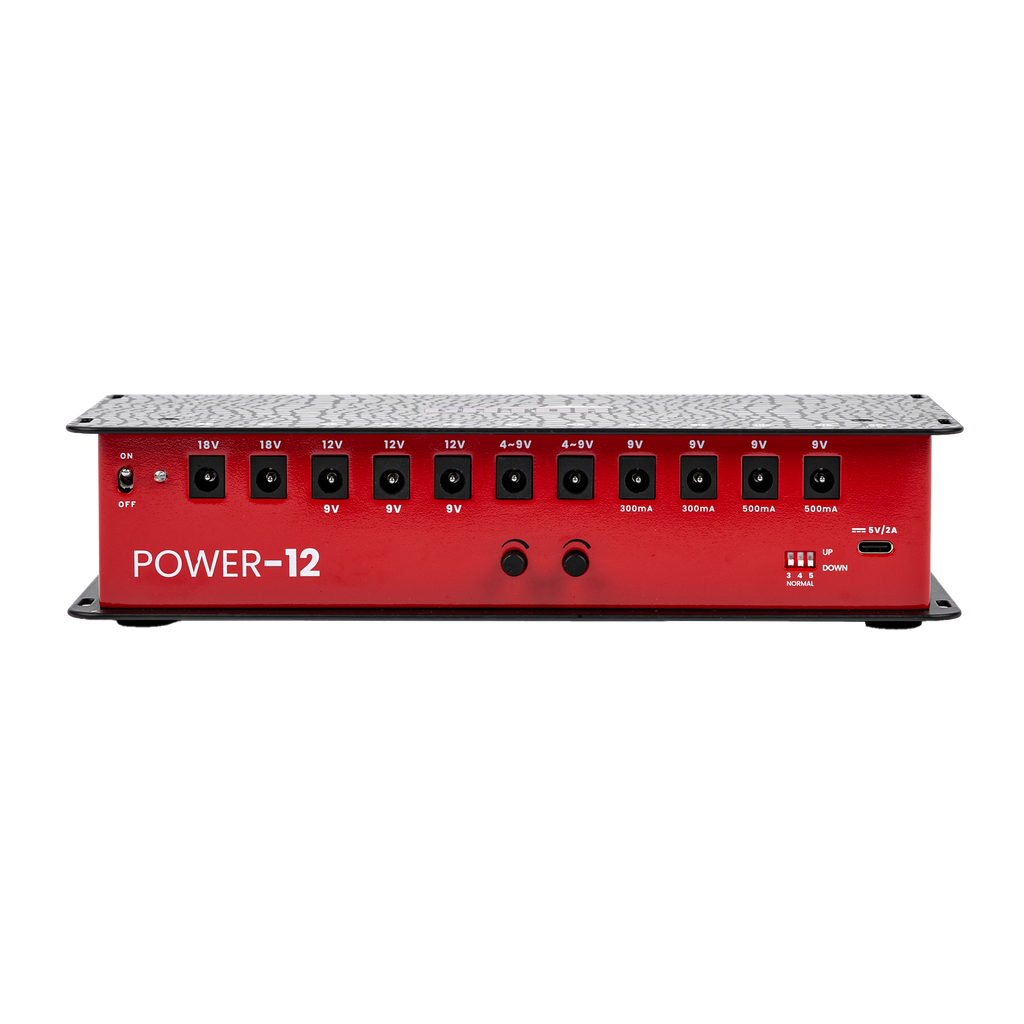

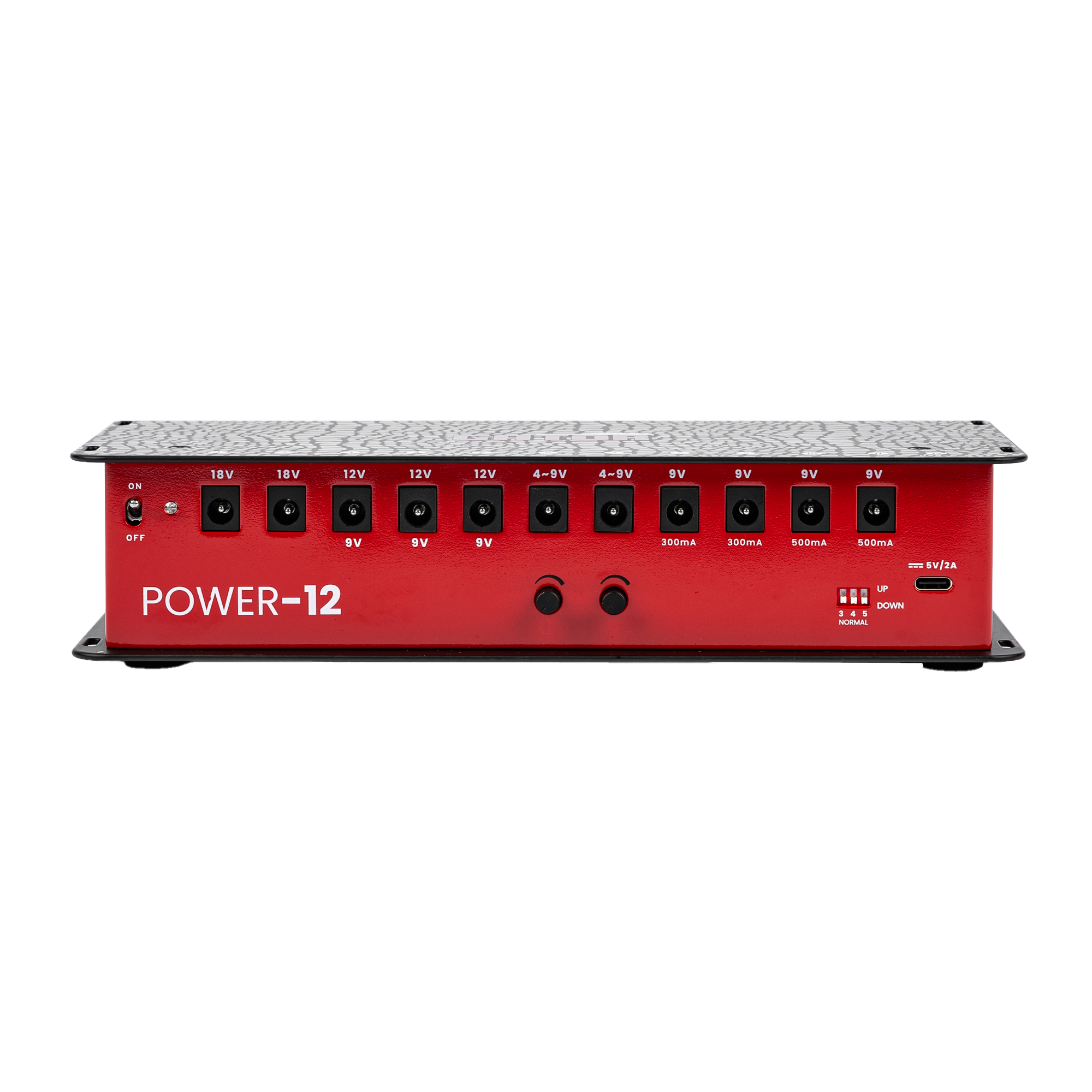

Outputs: 2 x 18V DC @ 120mA, 3 x 9/12V DC @ 120mA, 2 x 4~9V DC @ 120mA, 2 x 9V DC @ 300mA, 2 x 9V DC @ 500mA, 1 x USB @ 5V/2A (10W), 1 x AC Outlet
Maximum Output Current: 2300mA

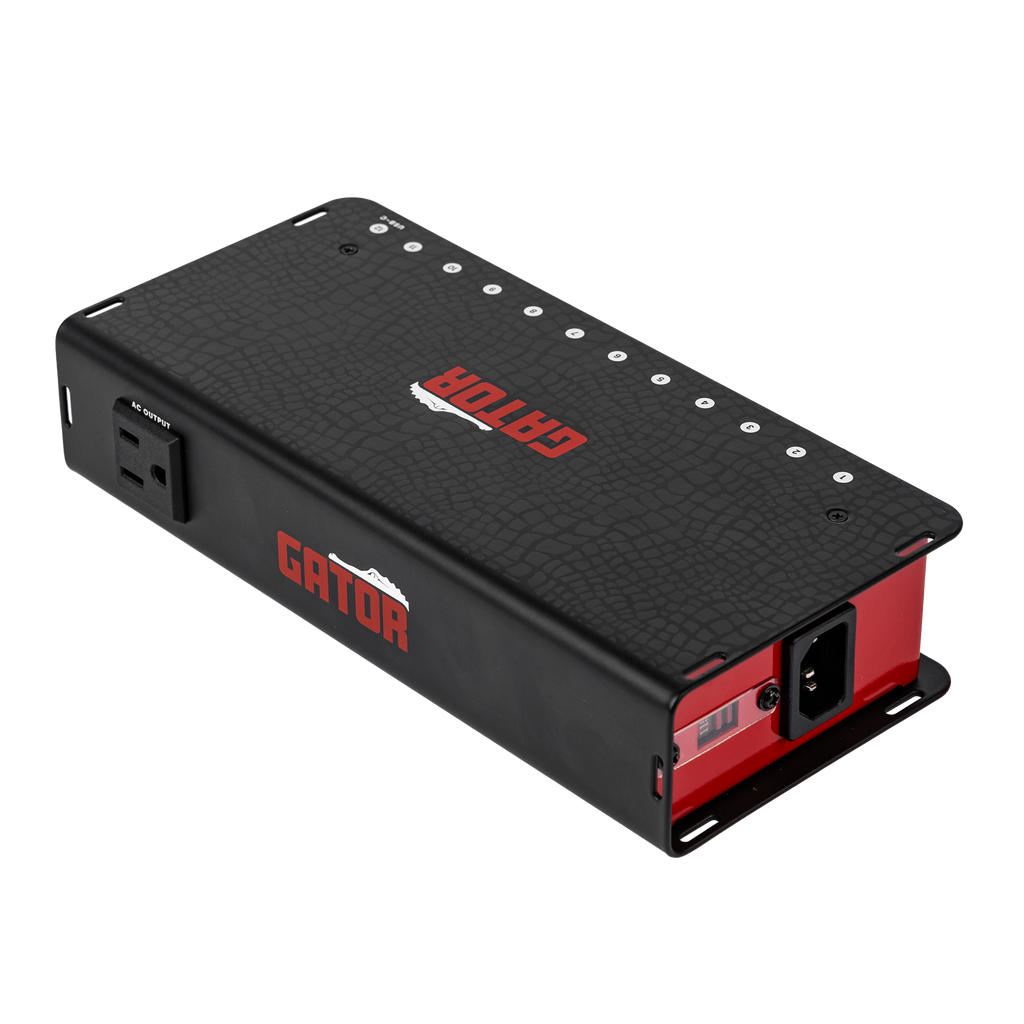

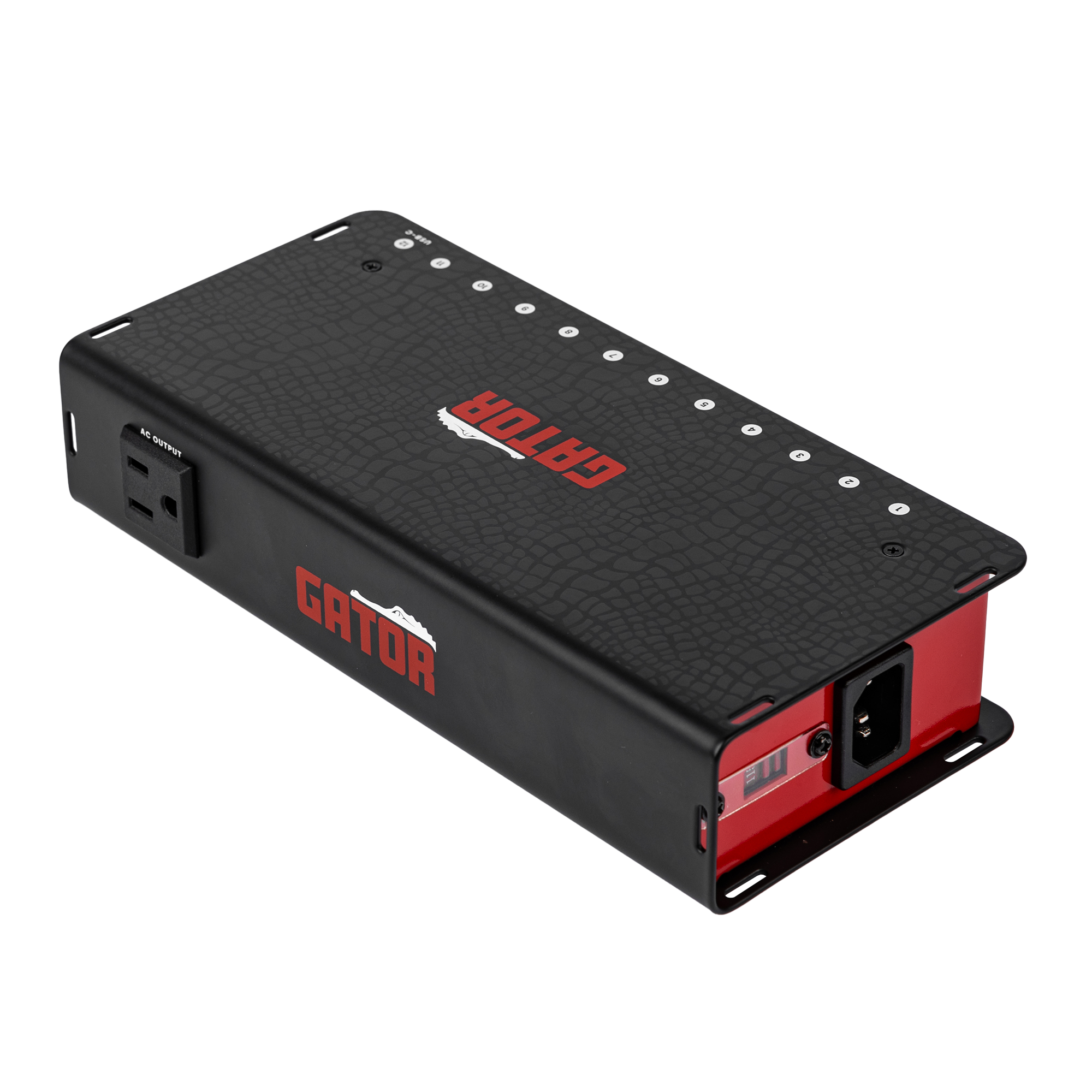

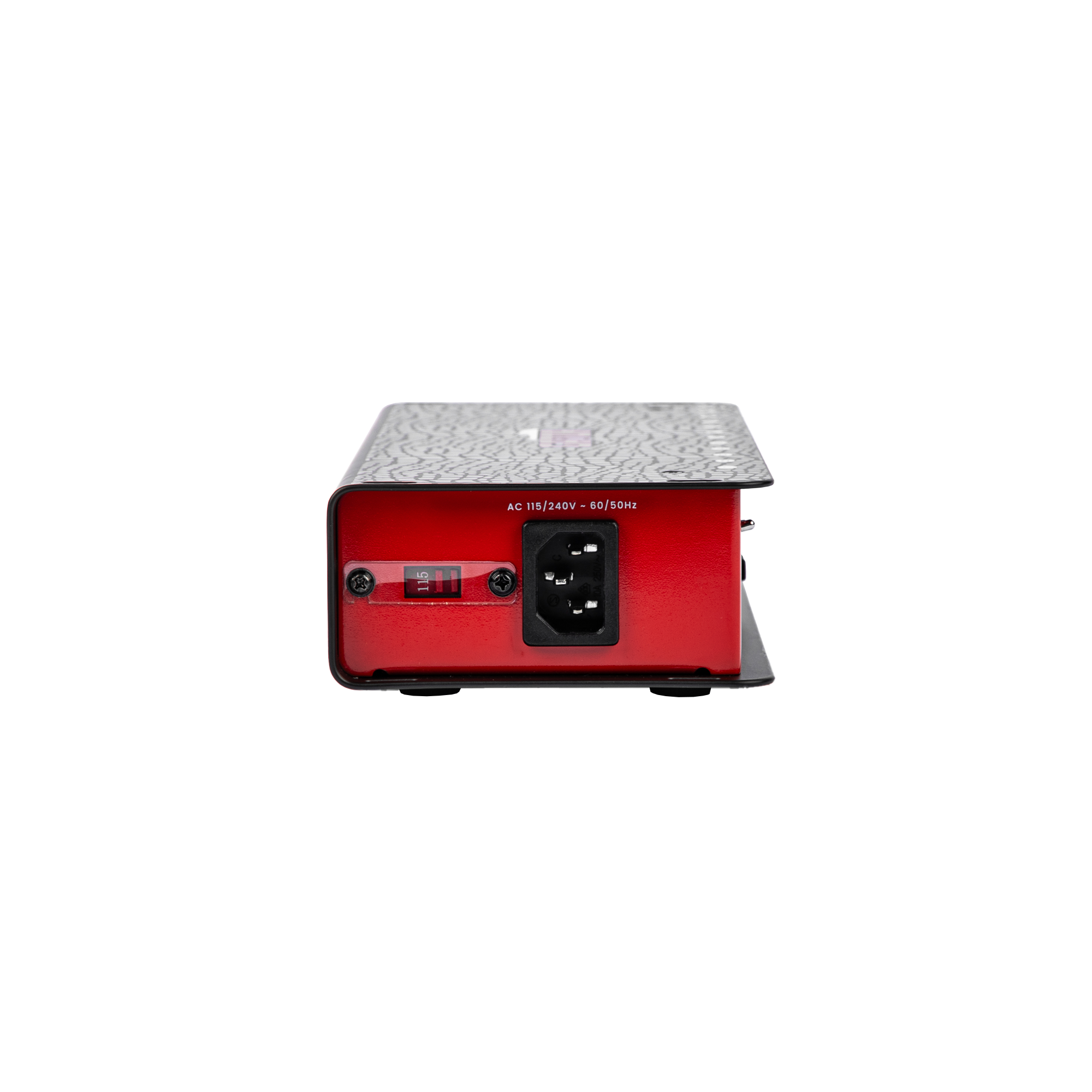

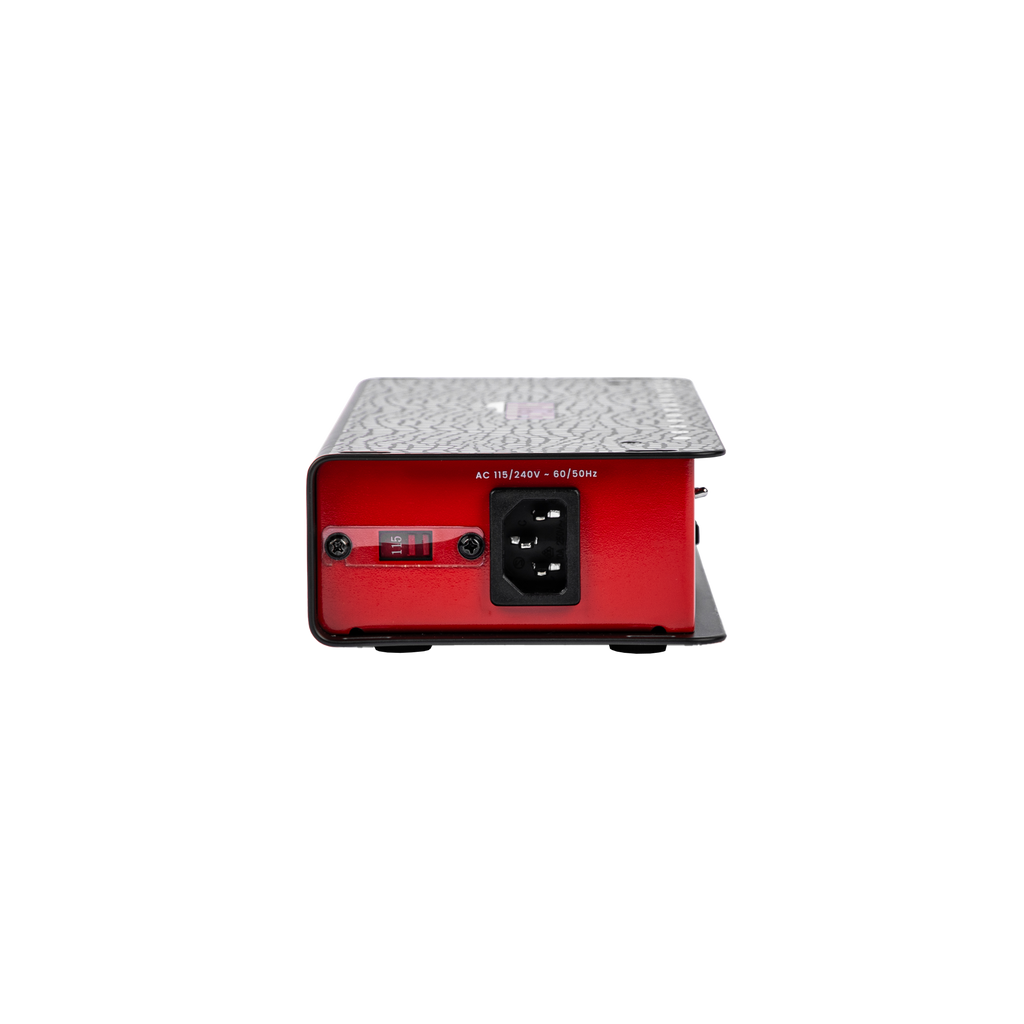

AC Power Input with Switchable Voltage Between 115V/240V (50-60Hz) for International Use

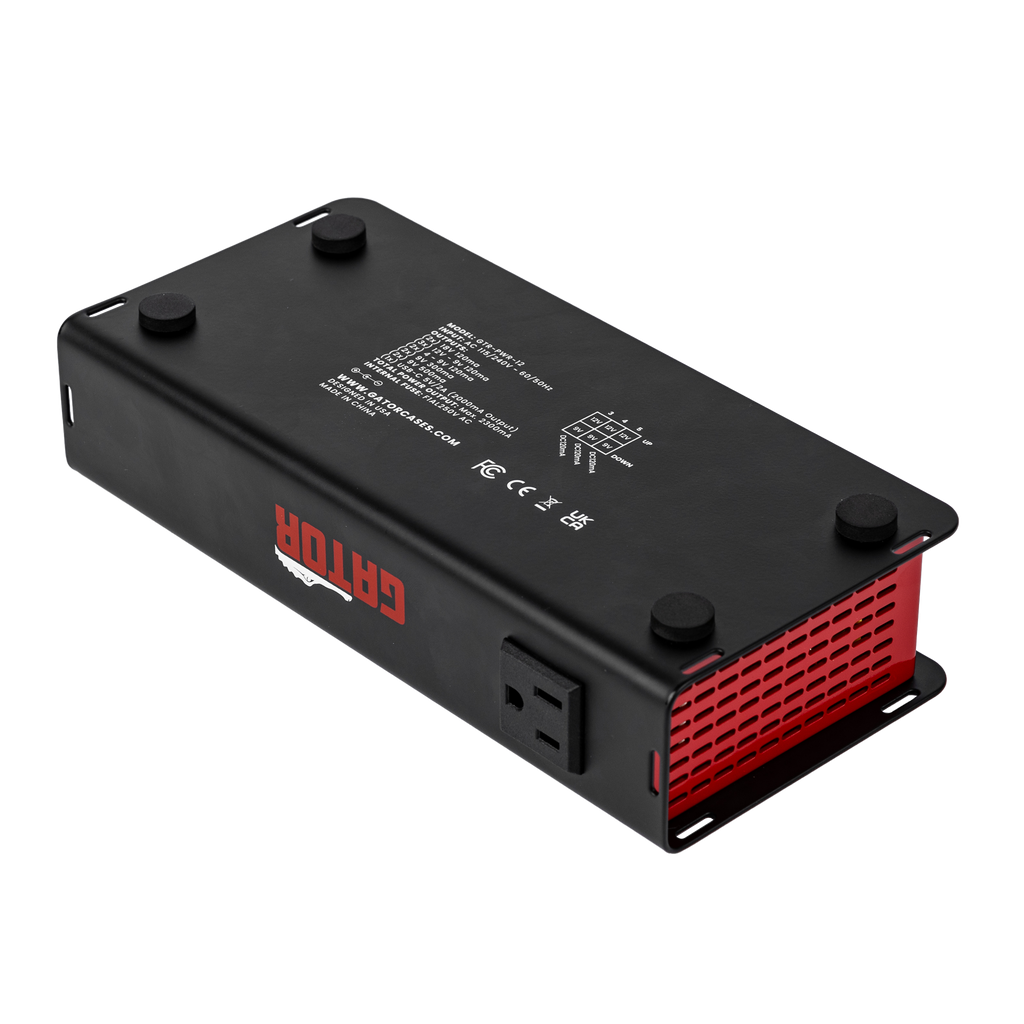

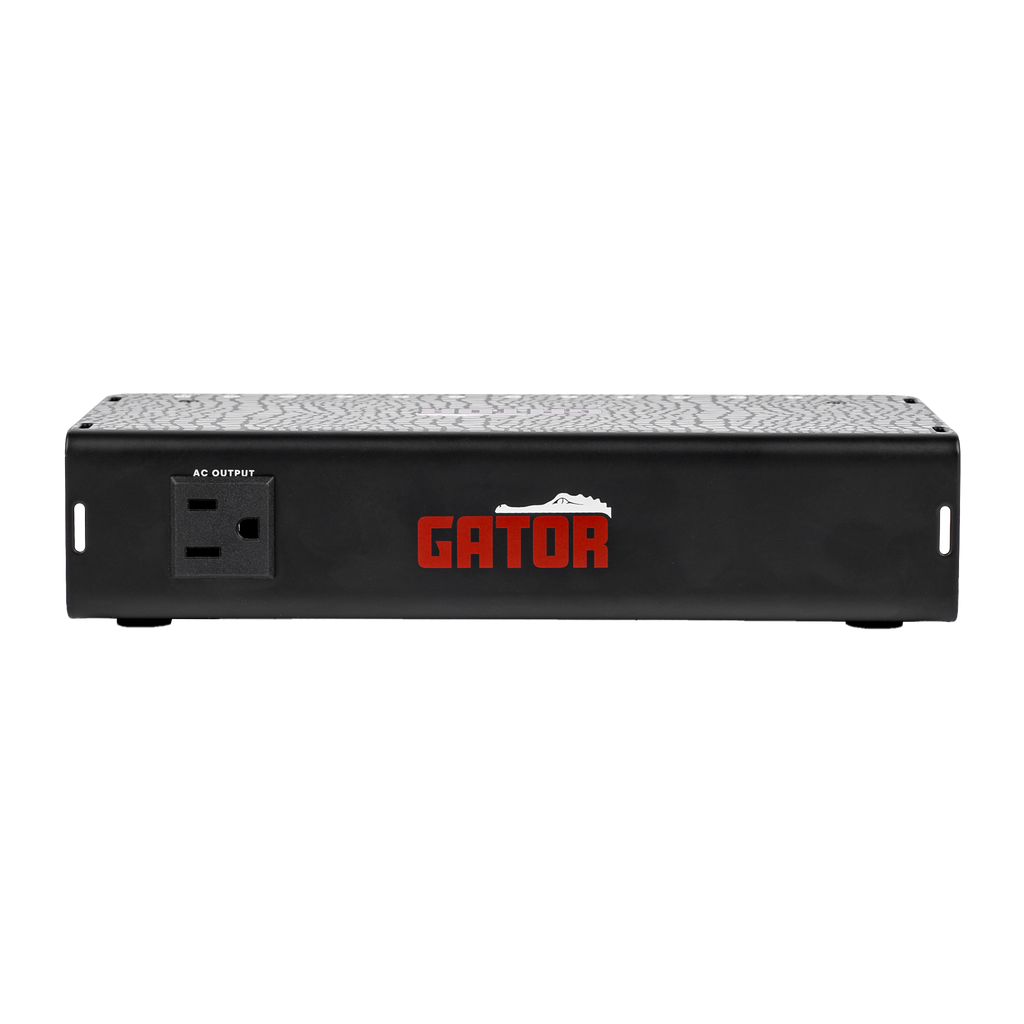

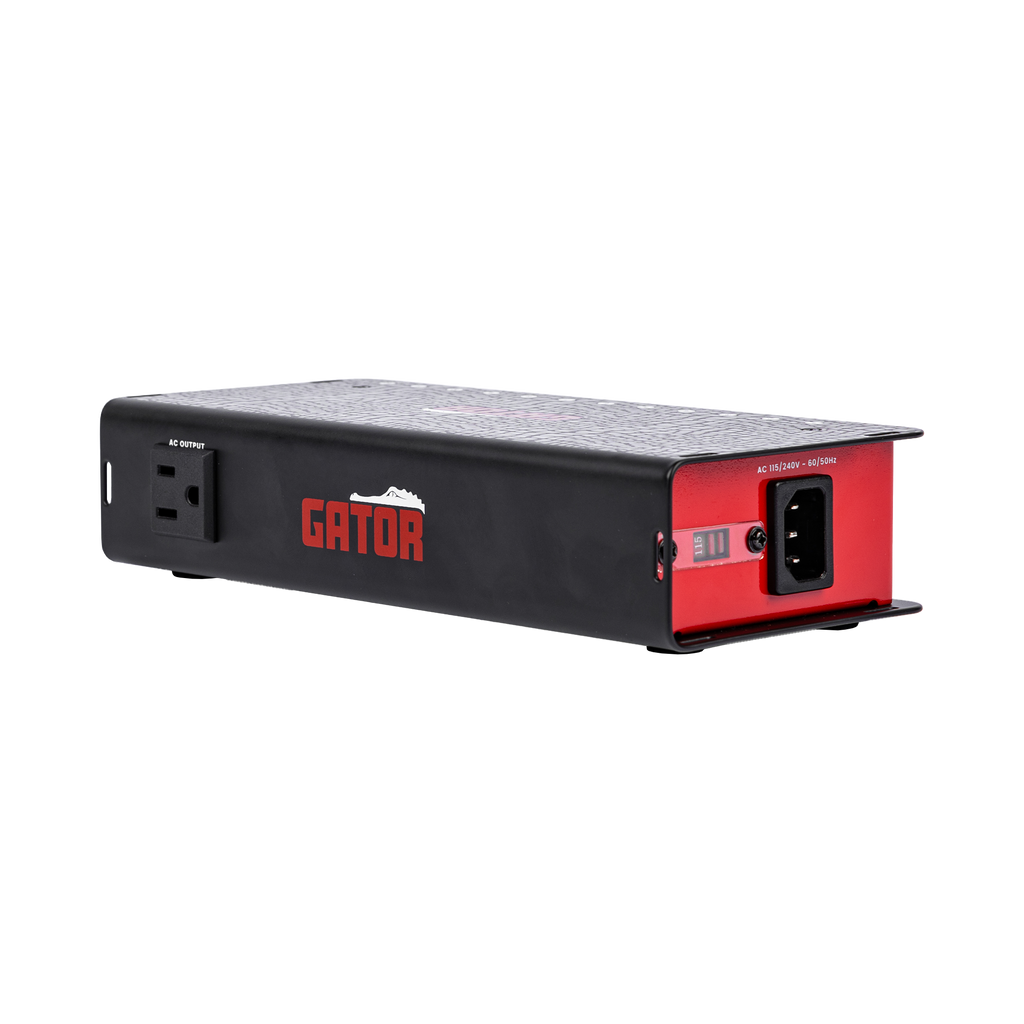

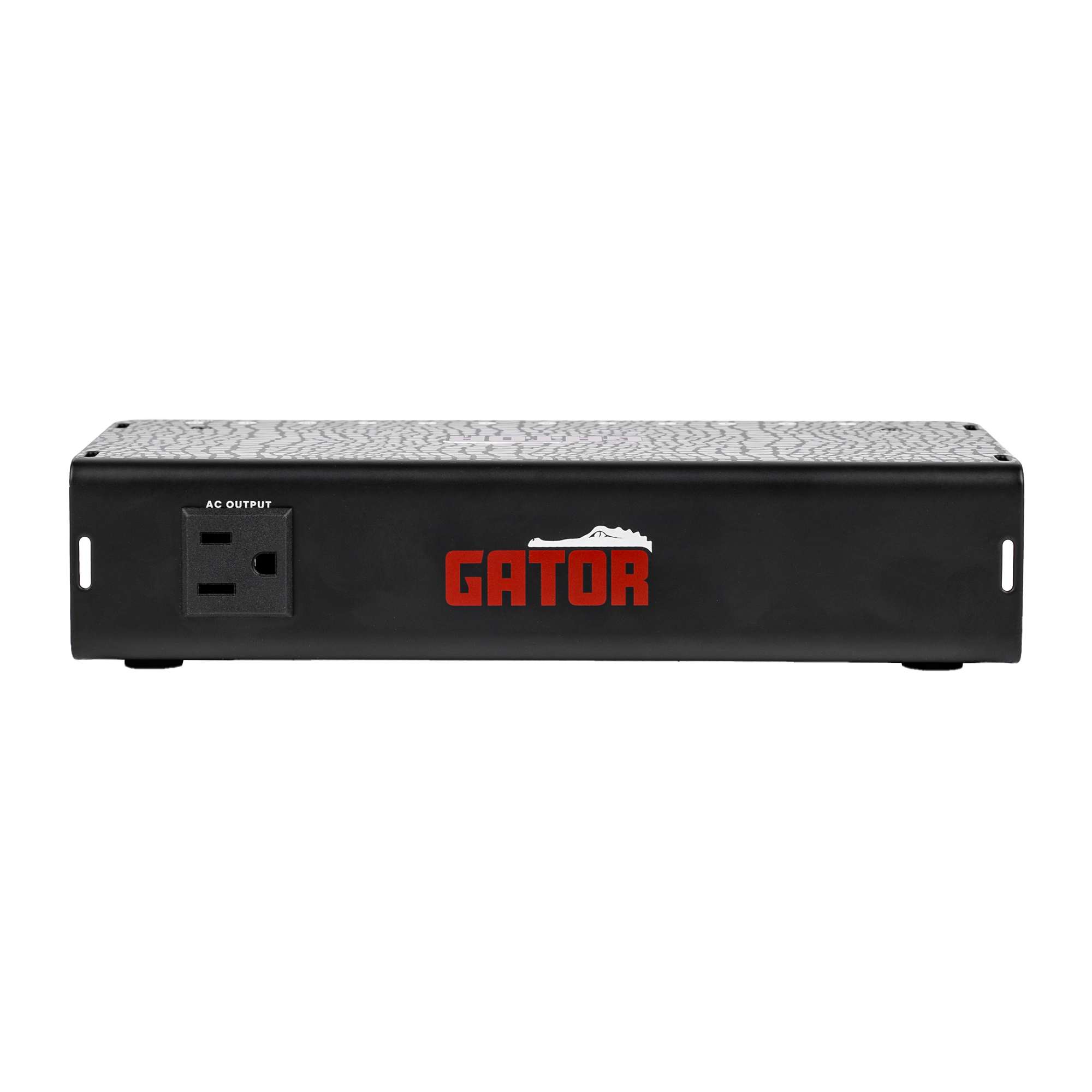

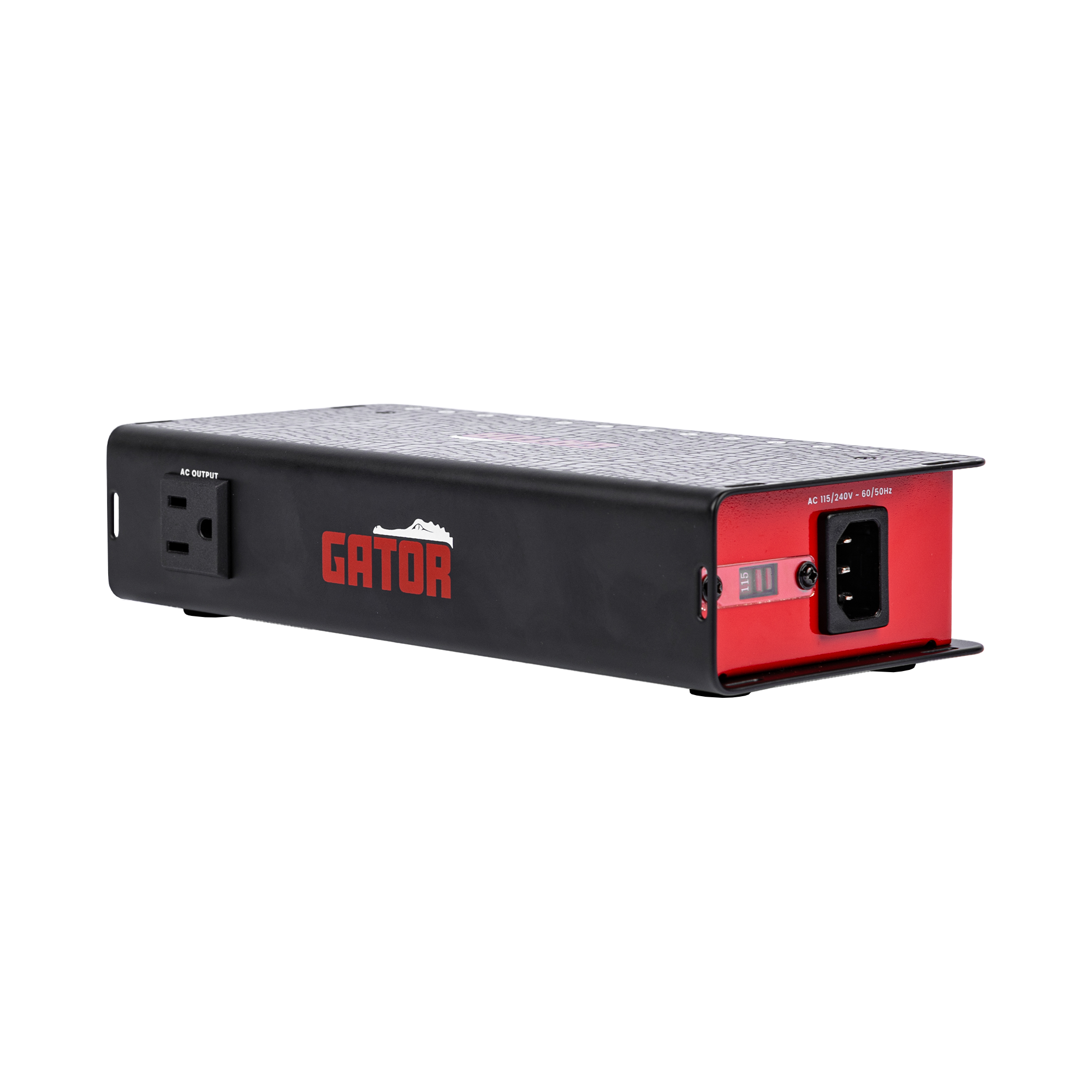

AC Outlet on Rear Side

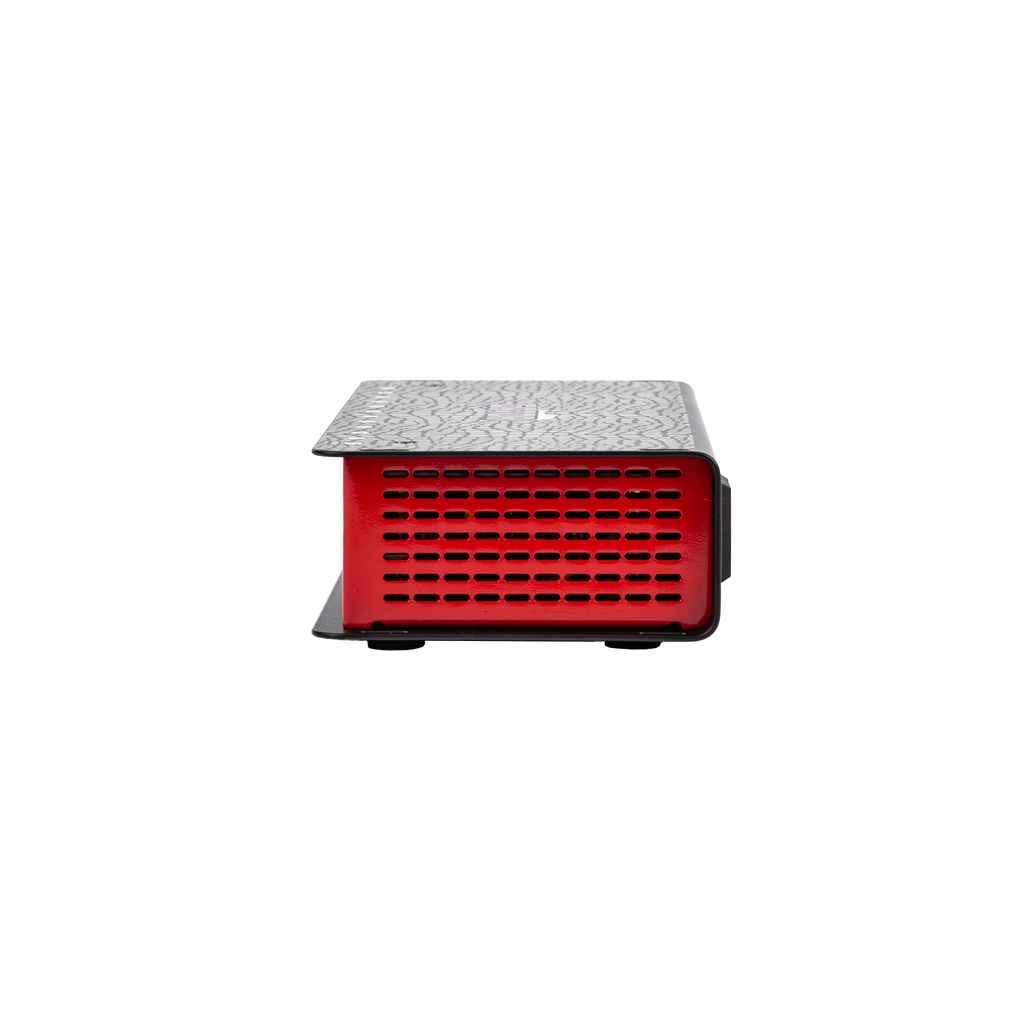

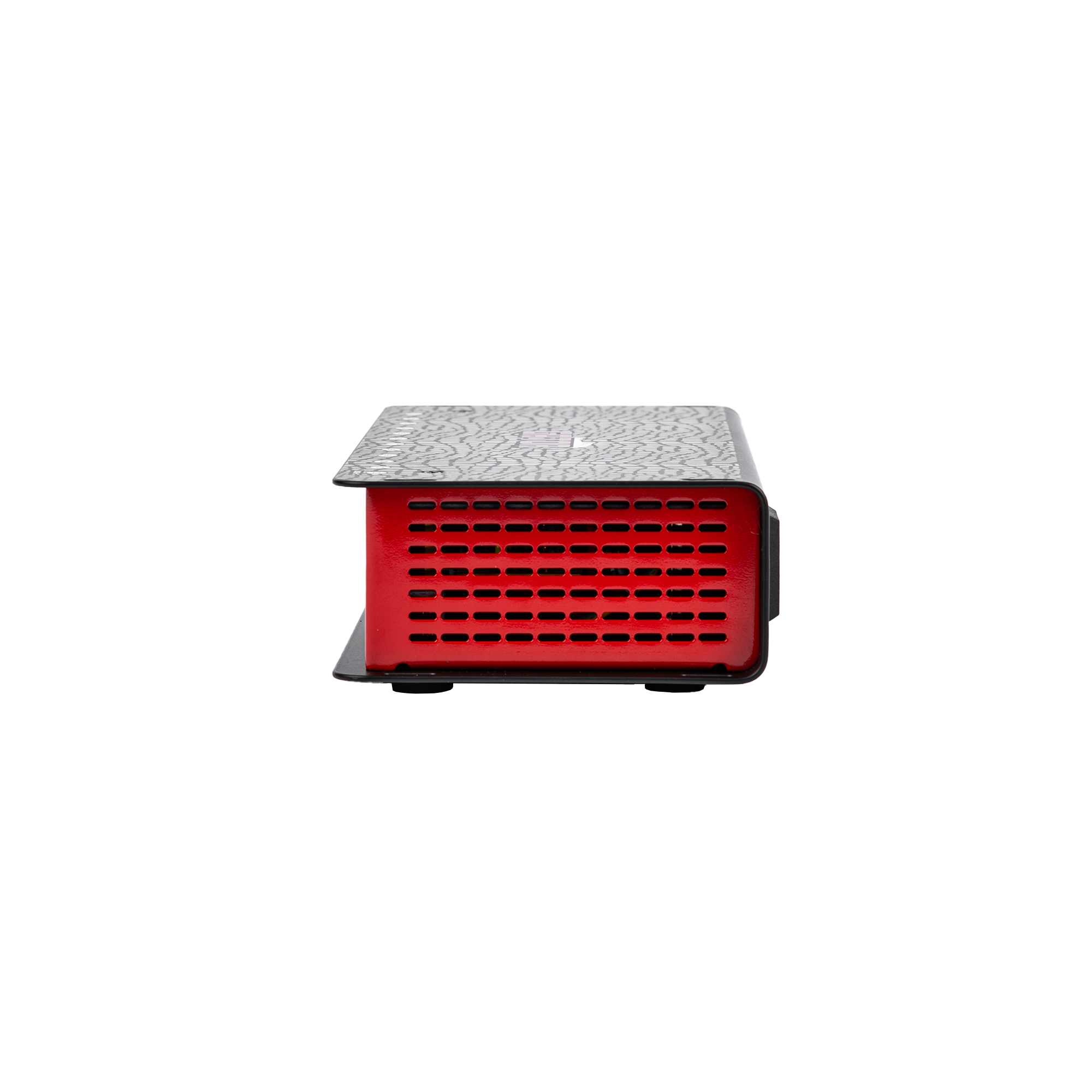

Heavy-Duty All Metal Enclosure with Slotted Vents for Heat Dissipation

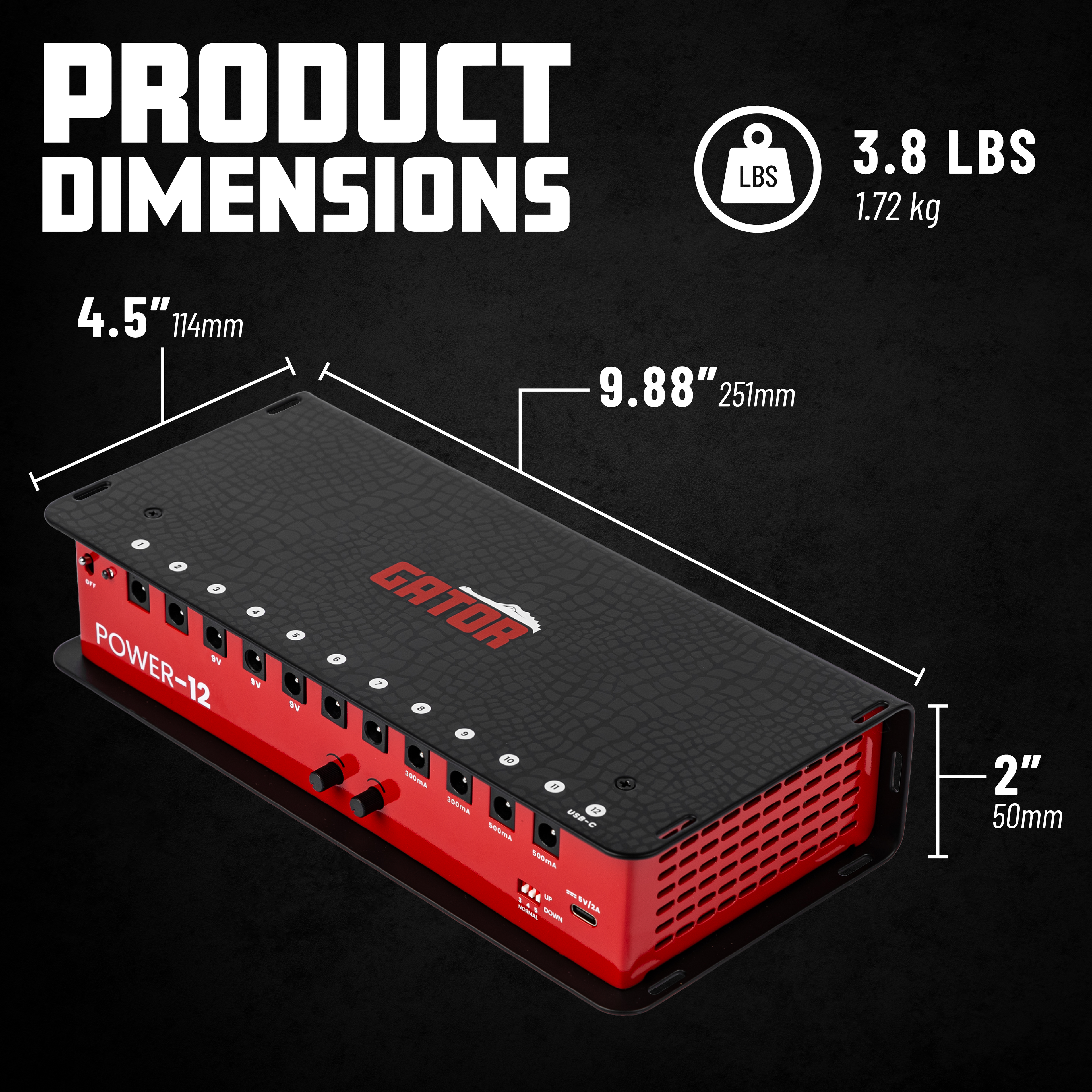

Product Dimensions: 9.88” x 4.5” x 2” (251 x 114 x 51 mm), Net Weight: 3.8 lb (1.72 kg)
AC Power Input with Switchable Voltage Between 115V/230V (50Hz-60Hz) for International Use

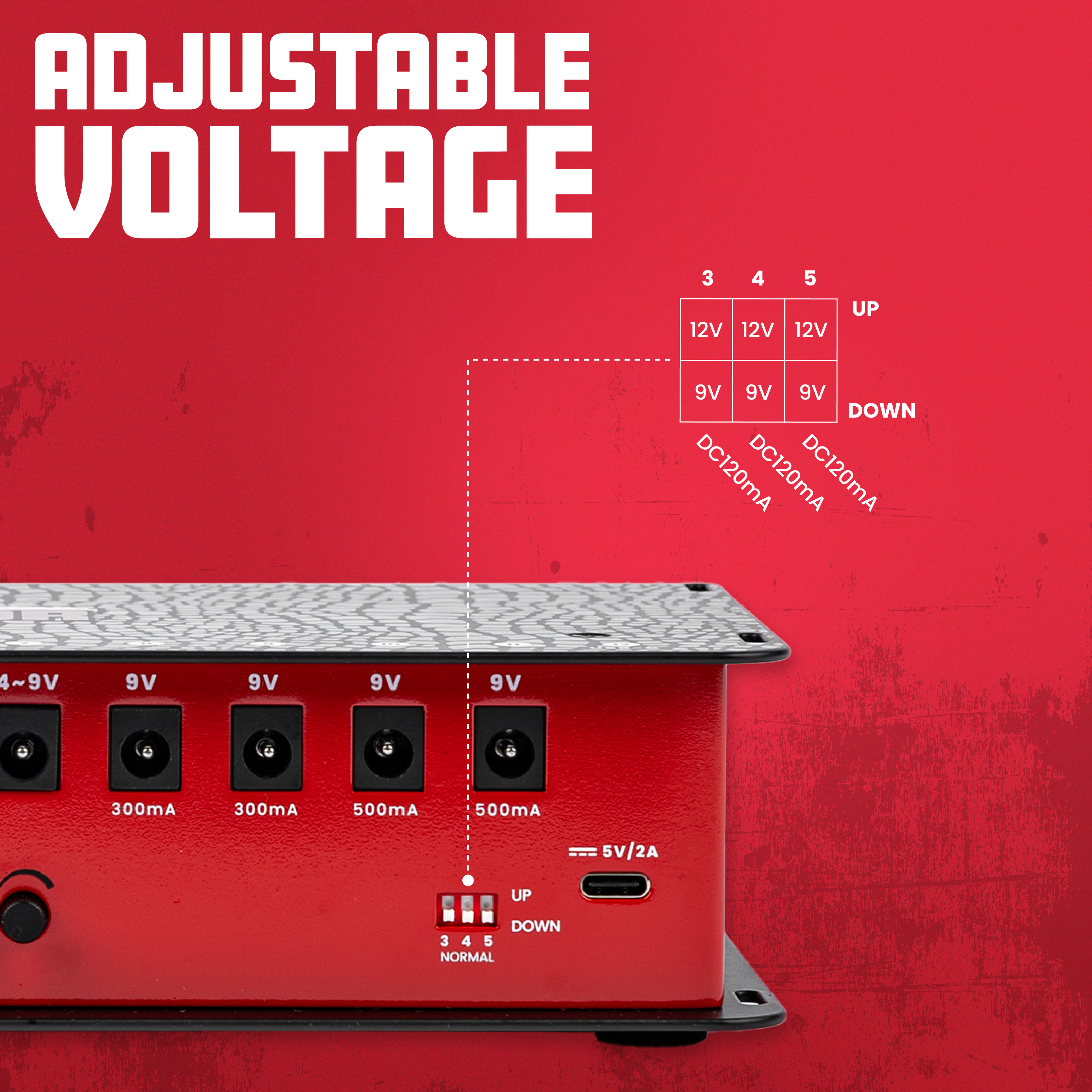

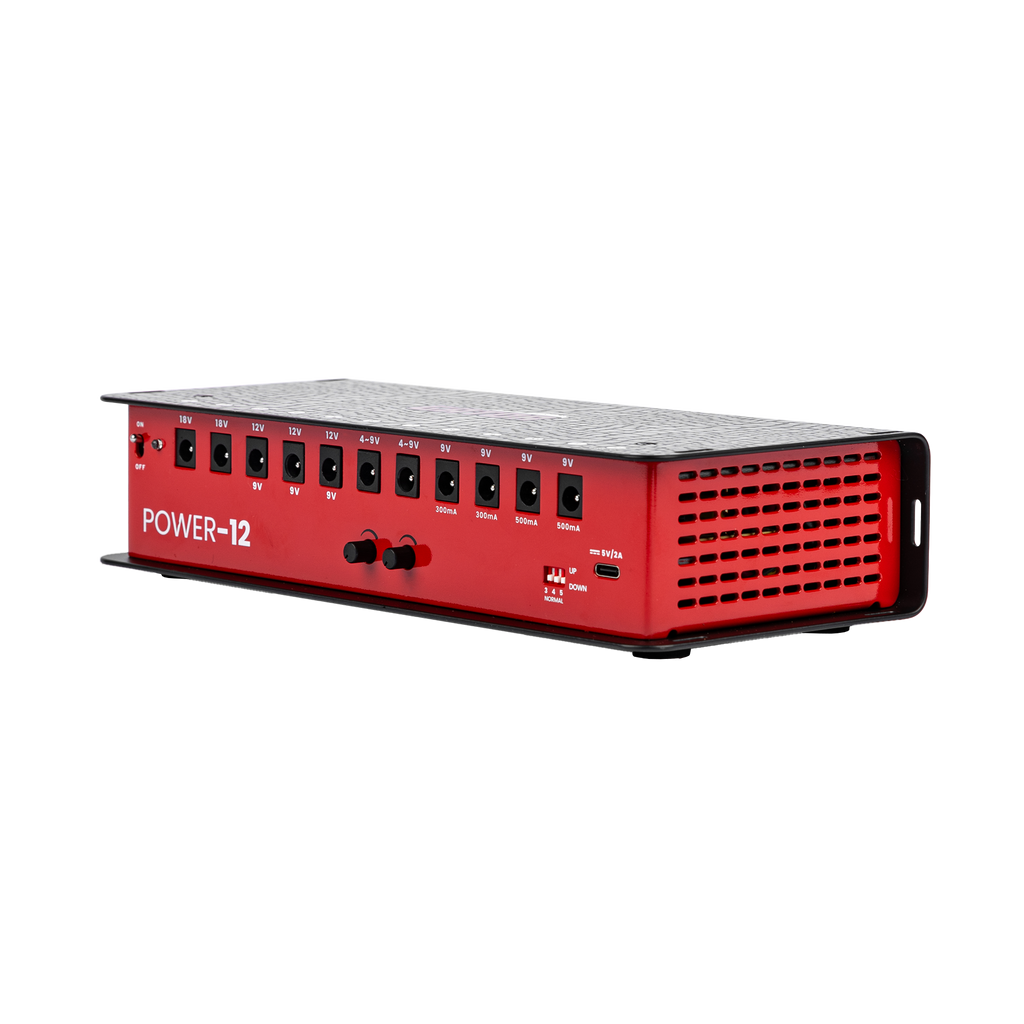

Voltage Adjustable on Outputs 3, 4 & 5 via DIP Switches
Continuously Variable Voltage (4v ~ 9v) on Two (2) Outputs to Simulate Low Battery Effects

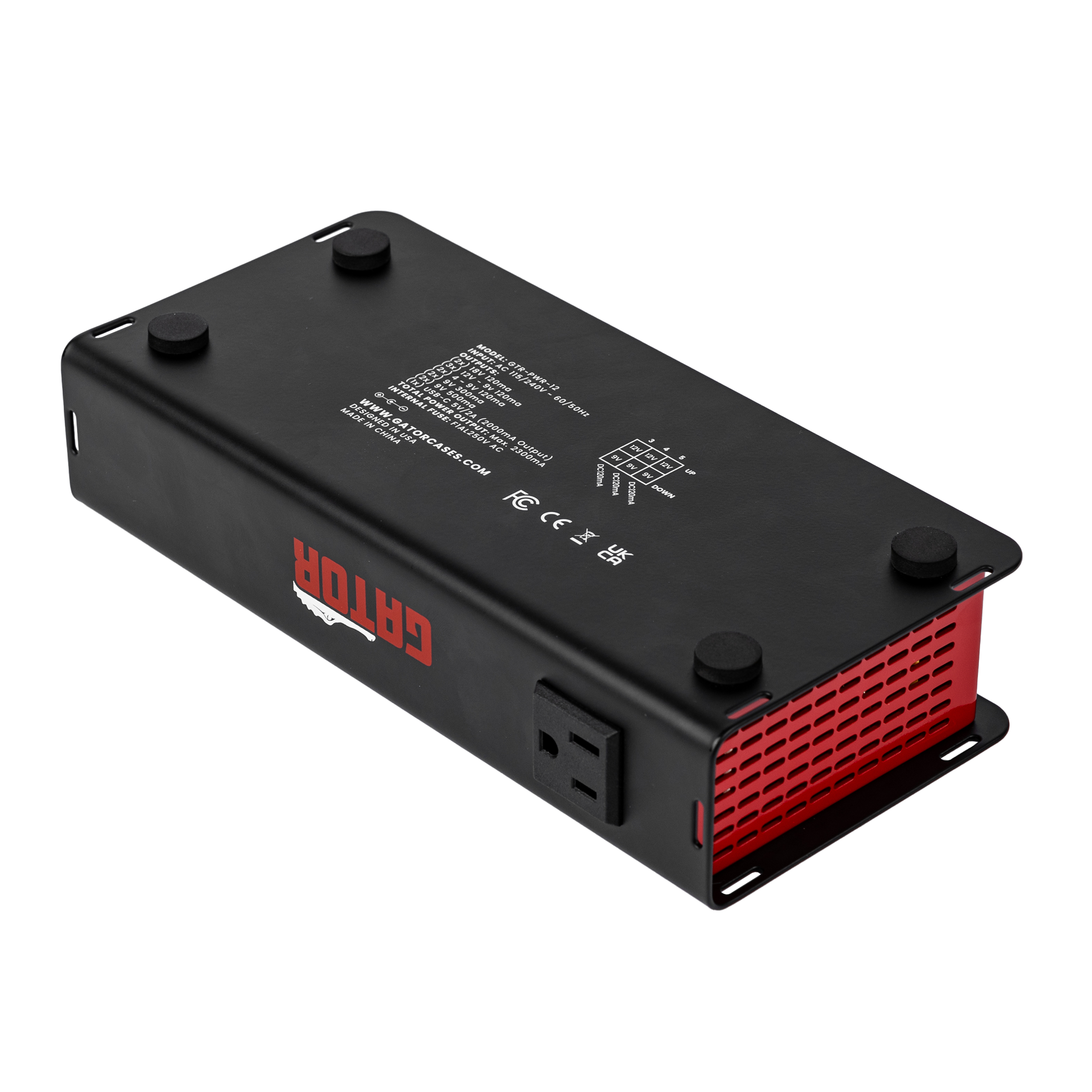

Integrated Slots Allow for Direct Mounting to Pedal Board
On/Off Power Switch with LED Indicator Light
