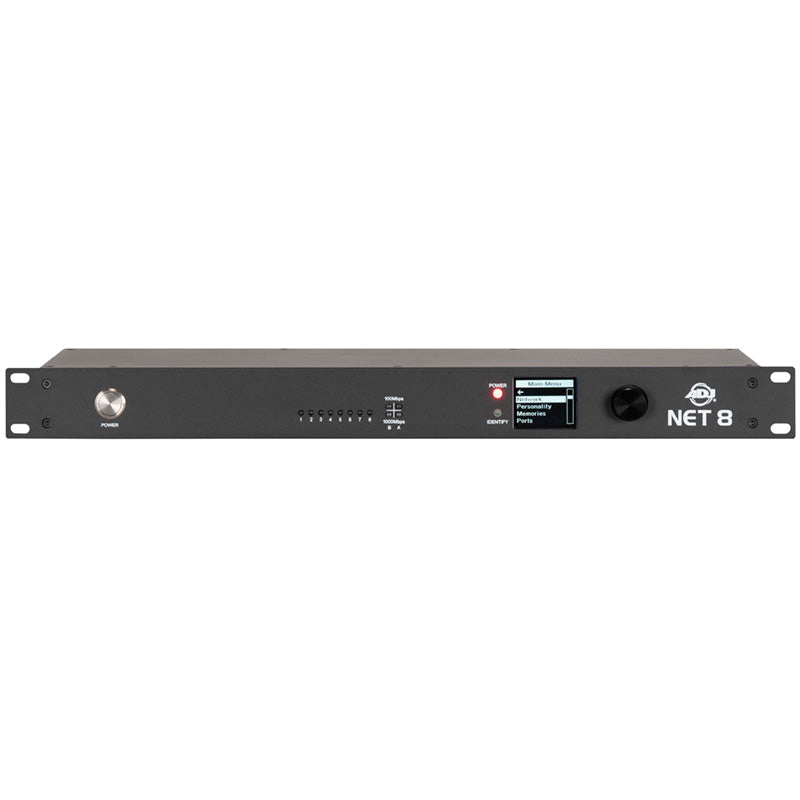

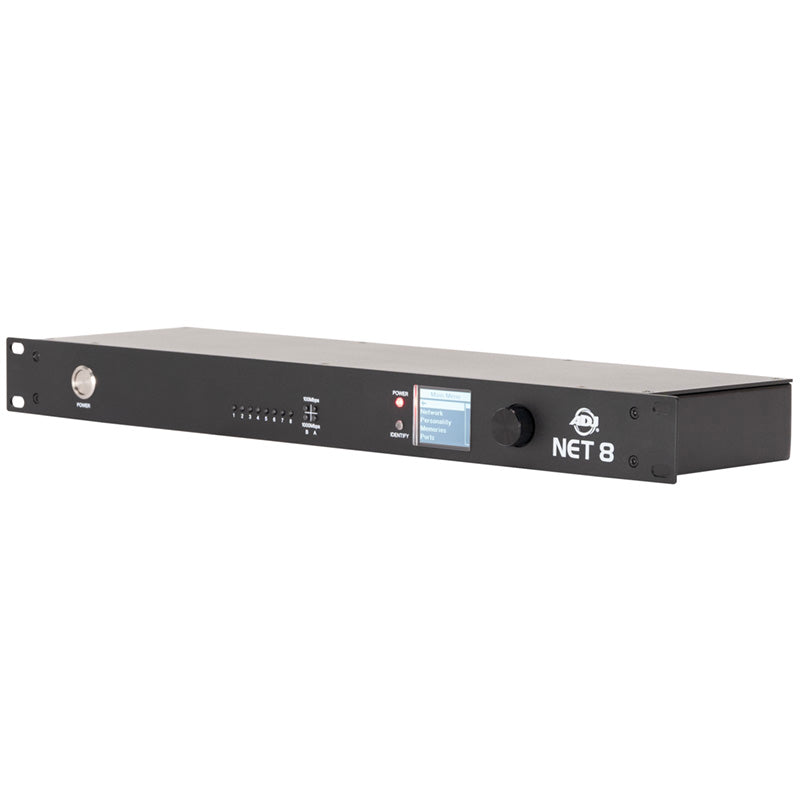

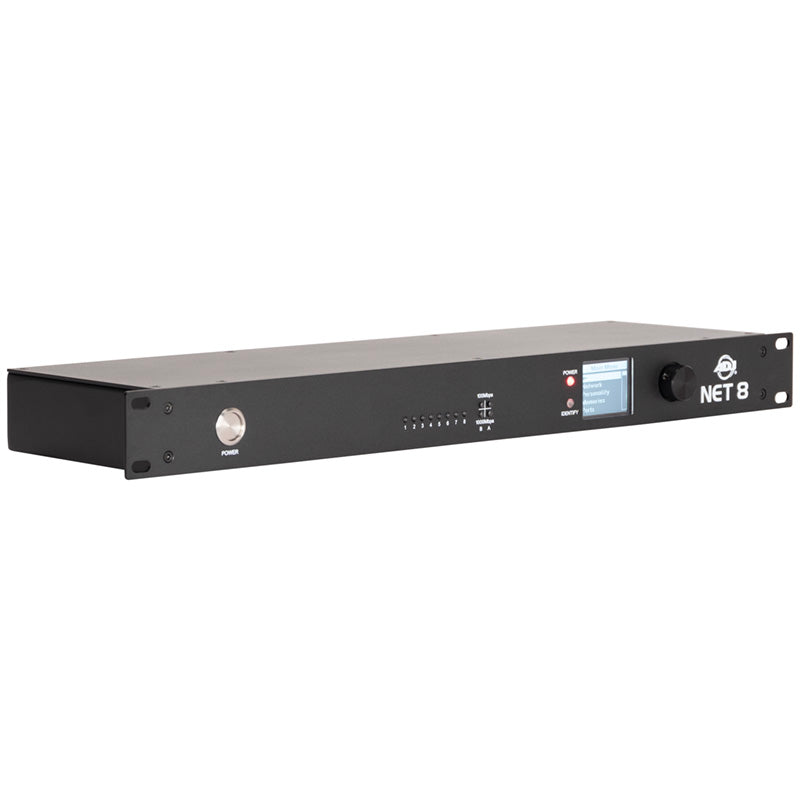

ADJ’s NET 8 is a versatile 8-port DMX over Ethernet node that can be mounted in a 19-inch rack case. It is compatible with DMX-512, RDM, Art-Net and sACN protocols, ensuring a broad spectrum of integration possibilities. The 1.7-inch LED display facilitates easy configuration, allowing you to fine-tune settings and monitor status at a glance.

Specifications

Features:

Art-Net / sACN /DMX, 8 Port Node

Line Voltage or Power over Ethernet (PoE) powered

DHCP or Static IP Address

1.7”LCD Display

Configurable from unit menu or web browser

(8) DMX Output Indicators

(4) Network Status Indicators

Protocols:

DMX512

RDM

Art-Net

sACN

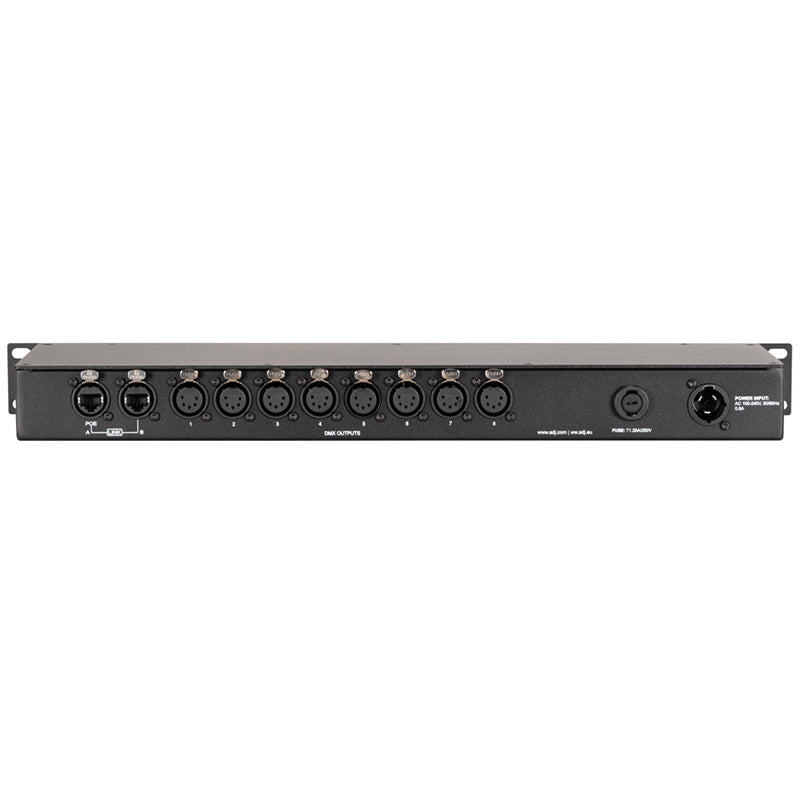

Connections:

2x Indoor RJ45 Input Output

8x 5-pin XLR Input / Output

Dimensions Weight:

Length: 5.7" (144mm)

Width: 19" (483mm)

Height: 1.7" (44mm)

Weight: 4.76lbs. (2.16kg)

Power:

AC Input 100-240V,50/60Hz

PoE 802.3af

AC Power: 15W

PoE Power: 15W

Power Consumption: 5.7W @ 120V and 5.9W @ 230V

Power Input Protection: Fuse, T1.25A/250V (5.2x20mm)

Thermal:

Ambient Operational Temperature: 32°F to 113°F (0°C to 45°C)

Humidity: <75%

Storage Temperature: 77°F (25°C)

Certifications IP Rating:

CE

cETLus (Control # 5014475)

FCC

IP20

Included Accessories:

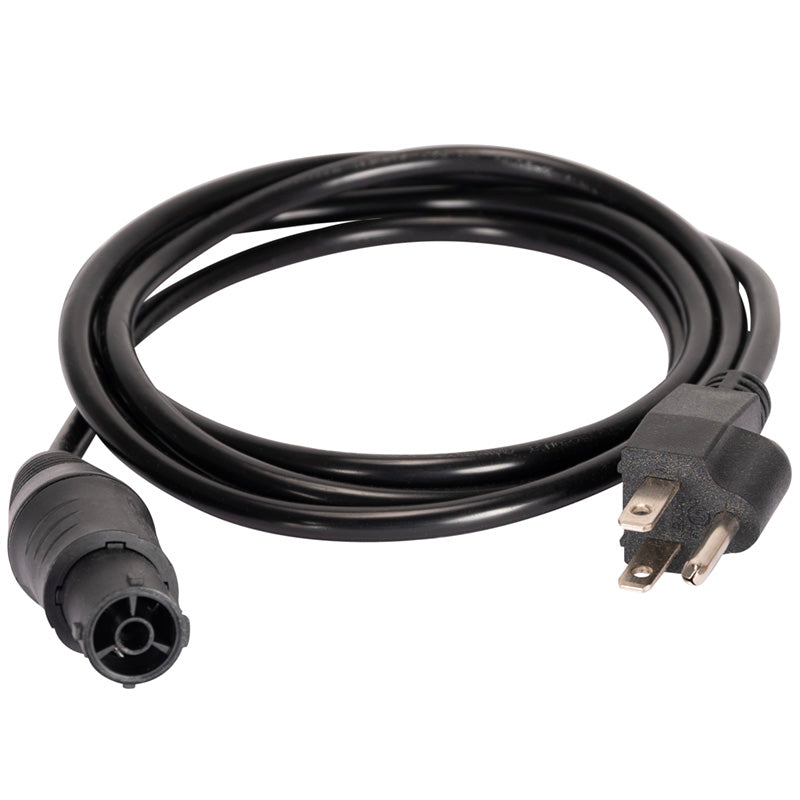

IP65-rated Locking Power Cable

Specifications subject to change without notice.
