Specifications

Features:

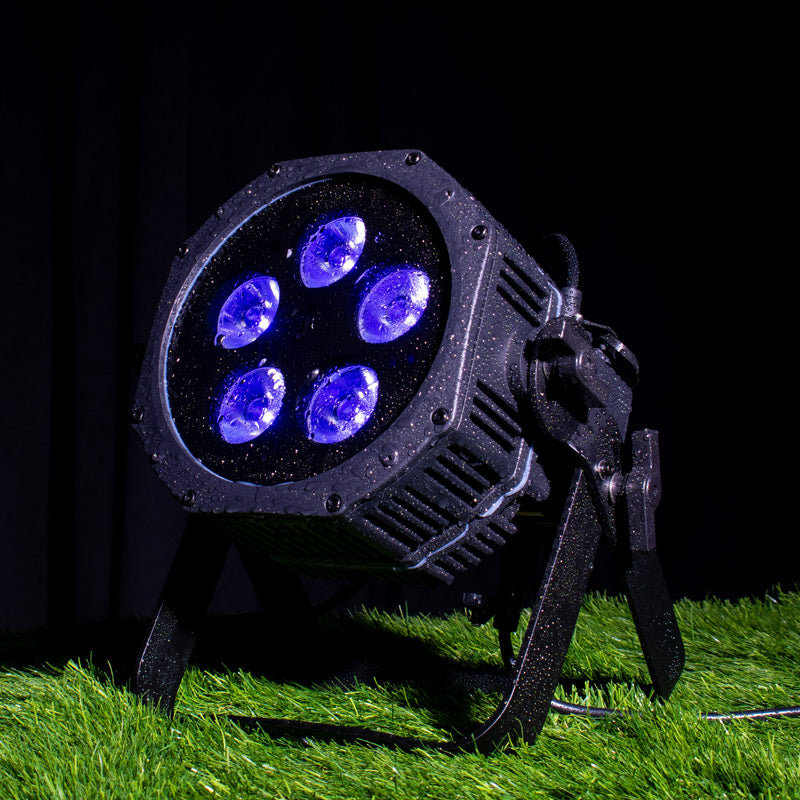

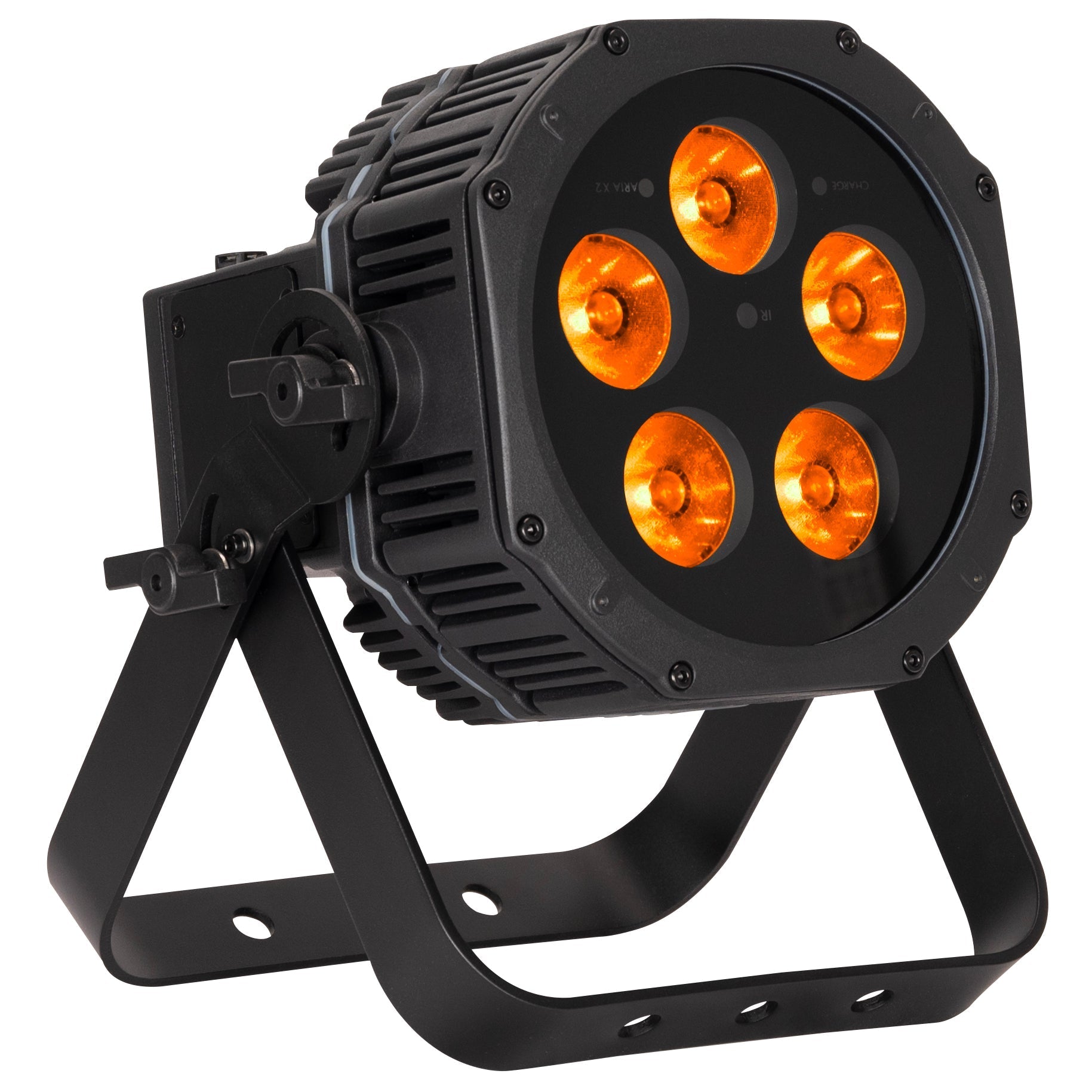

5 Pixel, Hex Color LED (RGBAL+UV) LED Par Battery or Wall Powered

Battery operation can be selected by the user for durations ranging from 5 to 20 hours

Built-In Programs

Variable White Color Temperature Control (2,700K ~ 9,900K)

User Selectable LED Refresh Rates (900Hz ~ 25K)

6 User-Selectable Dim Modes

4 User-Selectable Dim Curves

Electronic Strobe (0.3Hz ~ 11Hz)

Electronic Dimming

Source:

(5) 20W Hex Color RGBAL+UV LED's

50,000 Hour Average Life

**may vary depending on several factors, including but not limited to environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.

Optical:

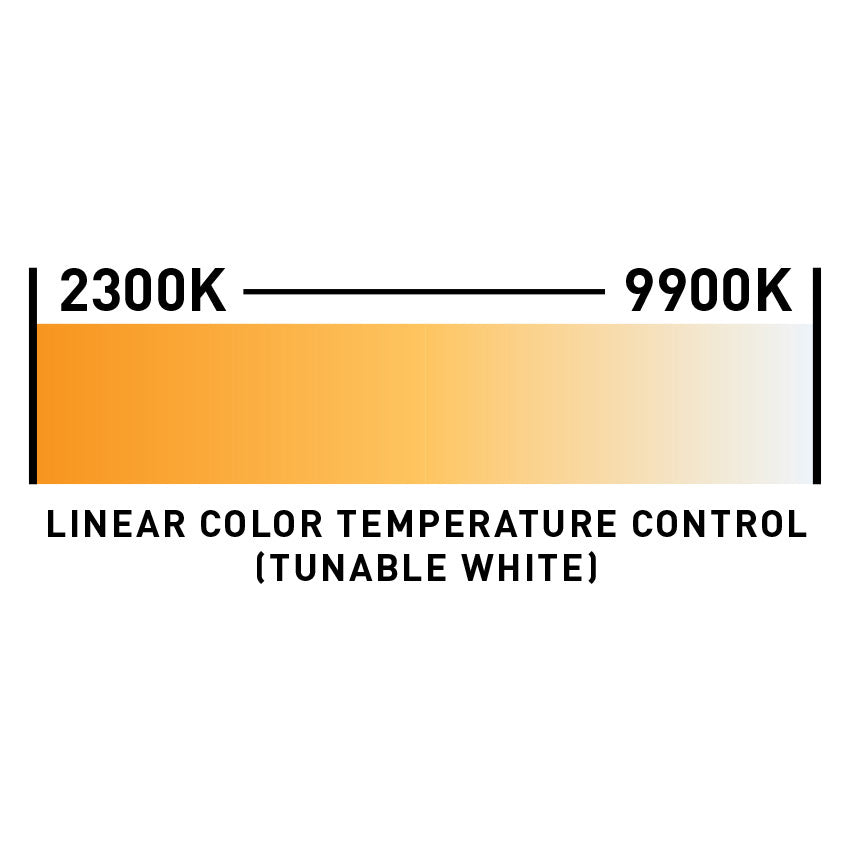

2,300K ~ 9,900K White Color Temperature Range

Beam Angle: 17°

Physical:

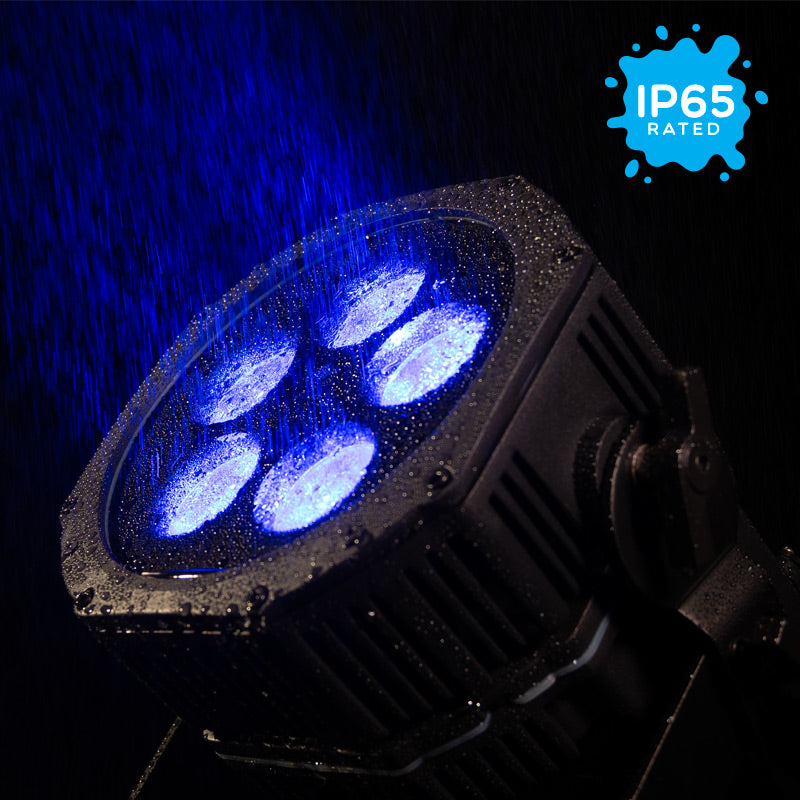

IP65 Housing

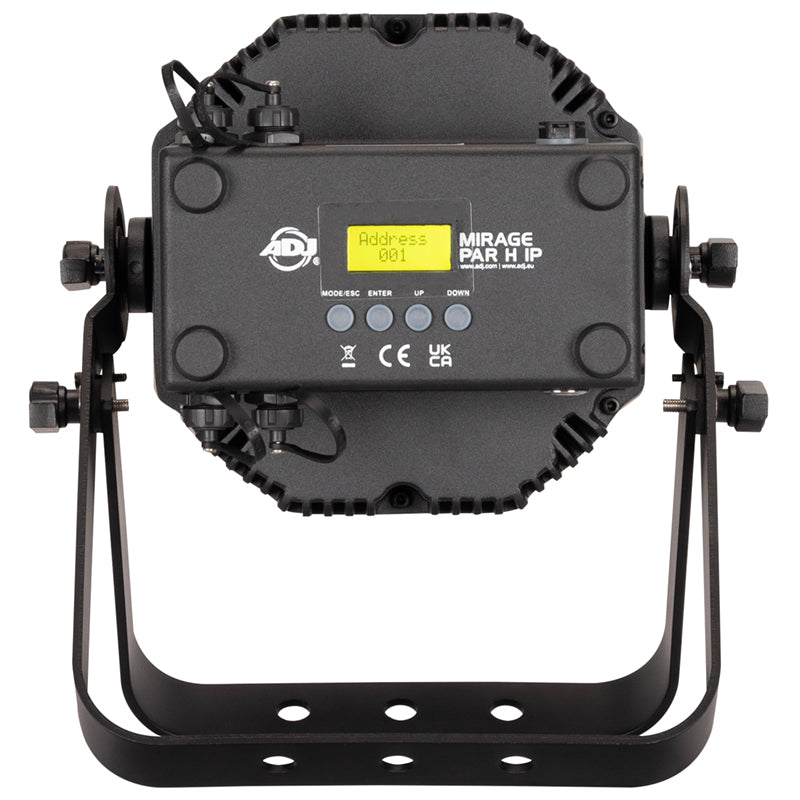

Digital display

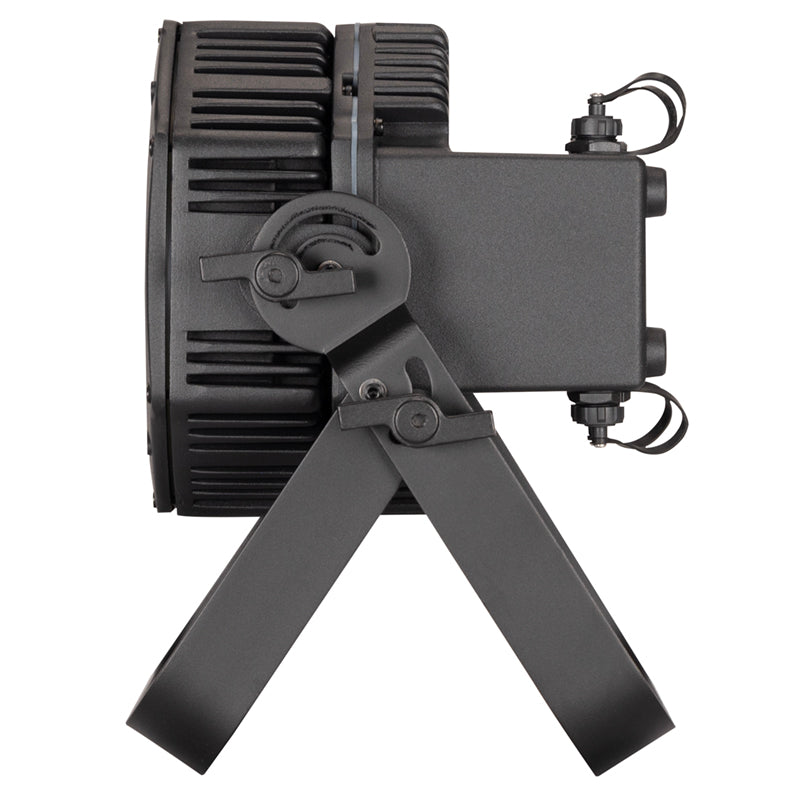

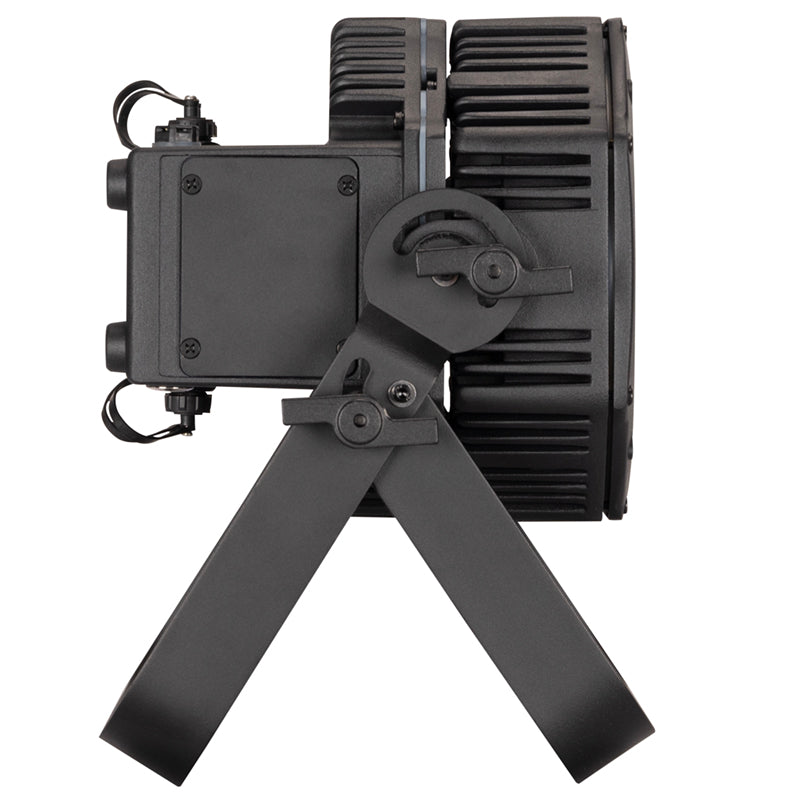

Adjustable, hanging / kickstand bracket

Control:

DMX512

Aria X2 Wireless Management / DMX System

Bluetooth

RDM and RDM Net Compatible

IR (Includes UCIR24 wireless remote)

(6) DMX Channel Modes (5, 6, 9A, 9B, 15 17 Channel modes)

On-board Manual Control Mode

Primary / Secondary Mode

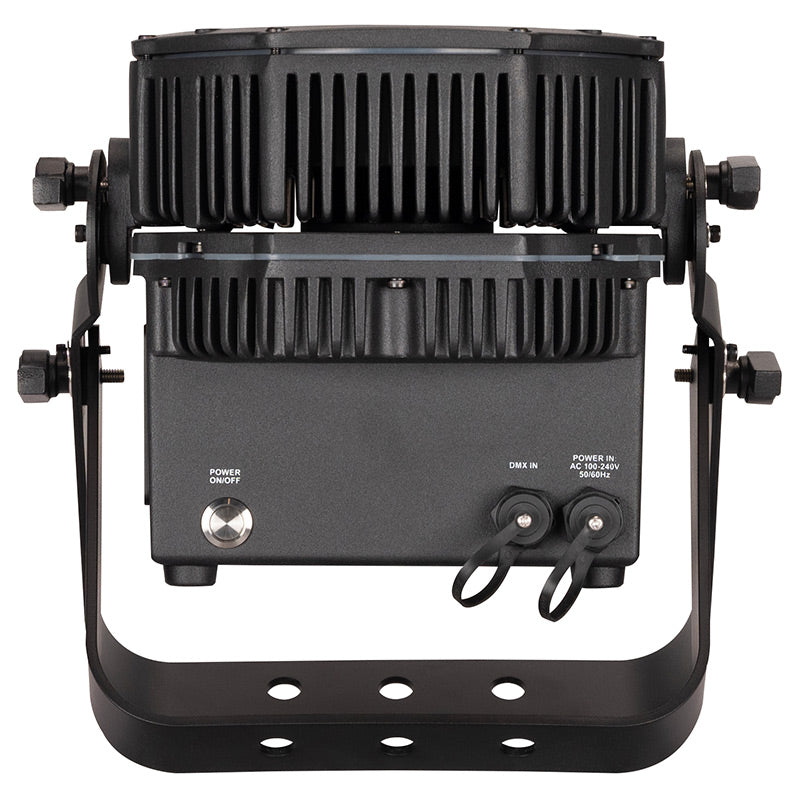

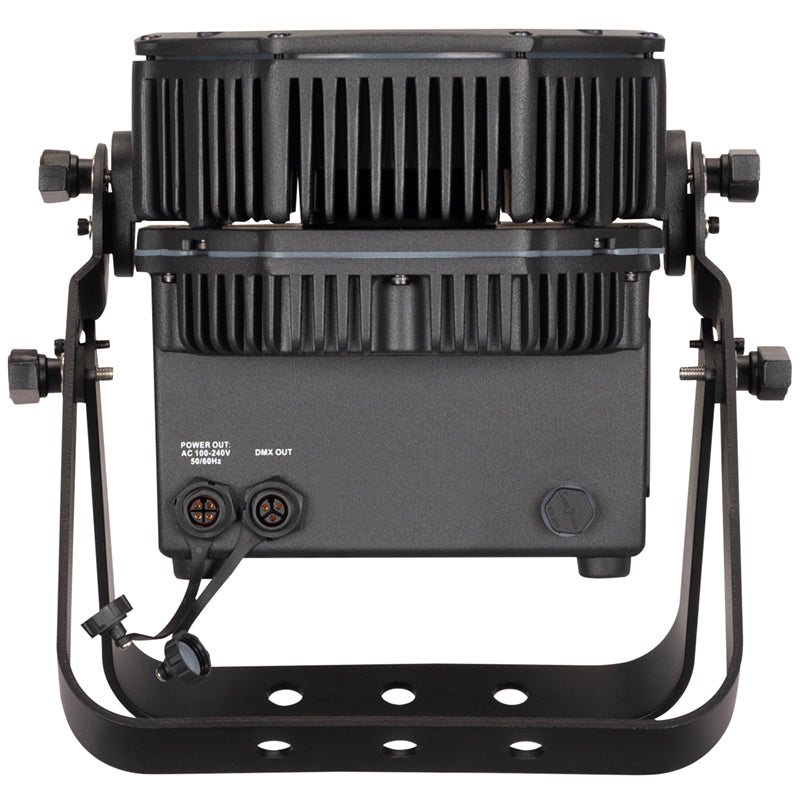

Connections:

Chogori IP65 data locking connectors

Chogori IP65 power connectors

Dimensions Weight:

Length: 11.1” (282mm) x 10.6” (269mm) x 10.4” (265mm)

Weight: 11.9 lbs. (5.4 kg)

Power:

AC100-240V/50Hz-60Hz Input

60W Power Consumption

Link 14 pieces @120VAC or 28 pieces @ 230VAC

Battery:

Rechargeable Lithium-ion

Battery Capacity: 6,600mAh

Battery Voltage: 22.2V

Charge Time: 5 Hours (To Full)

Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged

Battery Cycles: 500

Thermal:

Ambient Operational Temperature: -4°F to 104°F (-20°C to 40°C)

Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications IP Rating:

CE

cETLus (Control # 4002034)

FCC

IP65

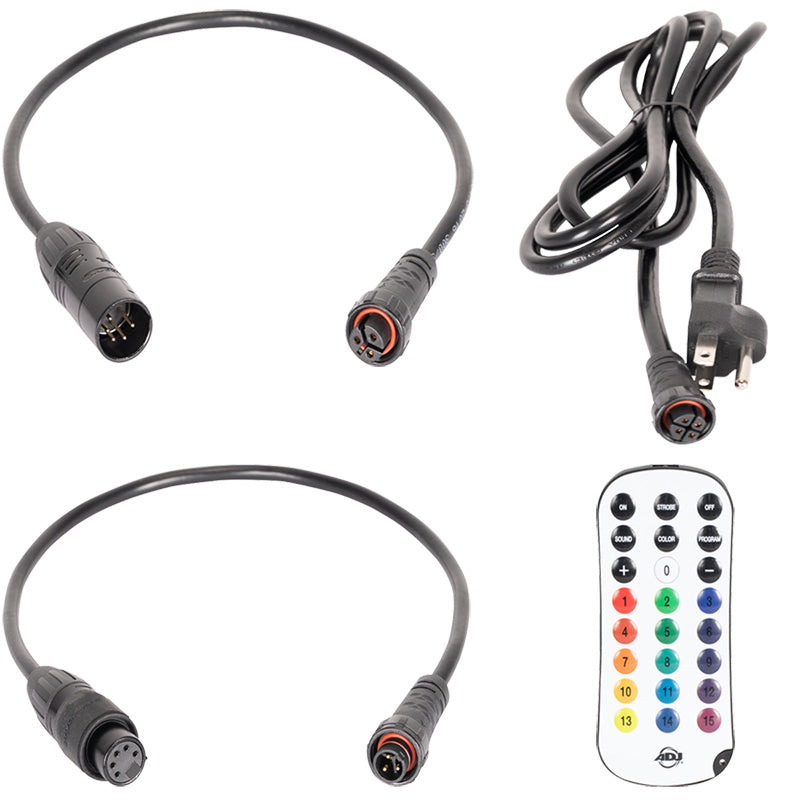

Included Accessories:

(1) WIF901-POWER CABLE (WIF901-POWER CABLE), IP65 Chogori to Edison Locking Power Cable

(1) CHS5INDMX (CHS366) - 20” Chogori locking output data connector to Seetronic 5-pin, IP65, male input XLR connector adapter cable. (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

(1) CHS5OUTDMX (CHS373) - 20” Chogori locking input data connector to Seetronic 5-pin, IP65, female output XLR connector adapter cable. (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

(1) Floor / Mounting Bracket

(1) UCIR24 Remote

Optional Accessories:

CHS5INDMX (CHS366) - Replacement 20” Chogori locking output data connector to Seetronic 5-pin, IP65, male input XLR connector adapter cable. to Seetronic 5pin IP65 XLR DMX (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

CHS5OUTDMX (CHS373) - Replacement 20” Chogori locking input data connector to Seetronic 5-pin, IP65, female output XLR connector adapter cable

CHSIP65PIN (CHS386) - 10” Chogori locking input connector to Seetronic locking IP65 output power connector cable

CHSIP65POUT (CHS399) - 10” Chogori locking output connector to Seetronic locking IP65 input power connector cable

WIF901-POWER CABLE (WIF901-POWER CABLE) - Replacement Chogori Connector to IP65 Locking Power Cable

Specifications and documentation are subject to change without notice.
