Mega Par Z Wash

Eliminator Mega Par Z Wash

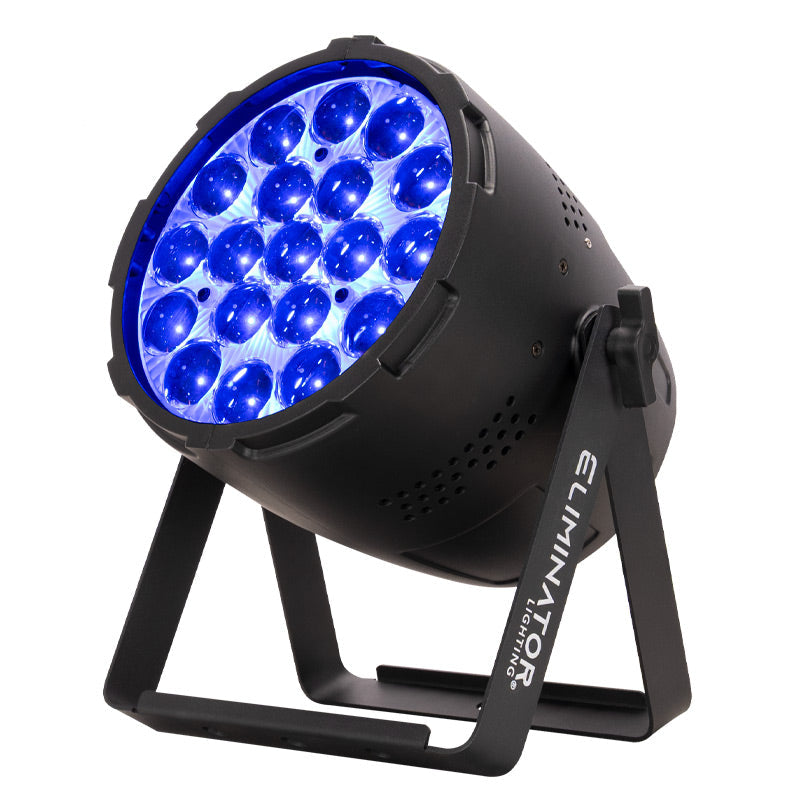

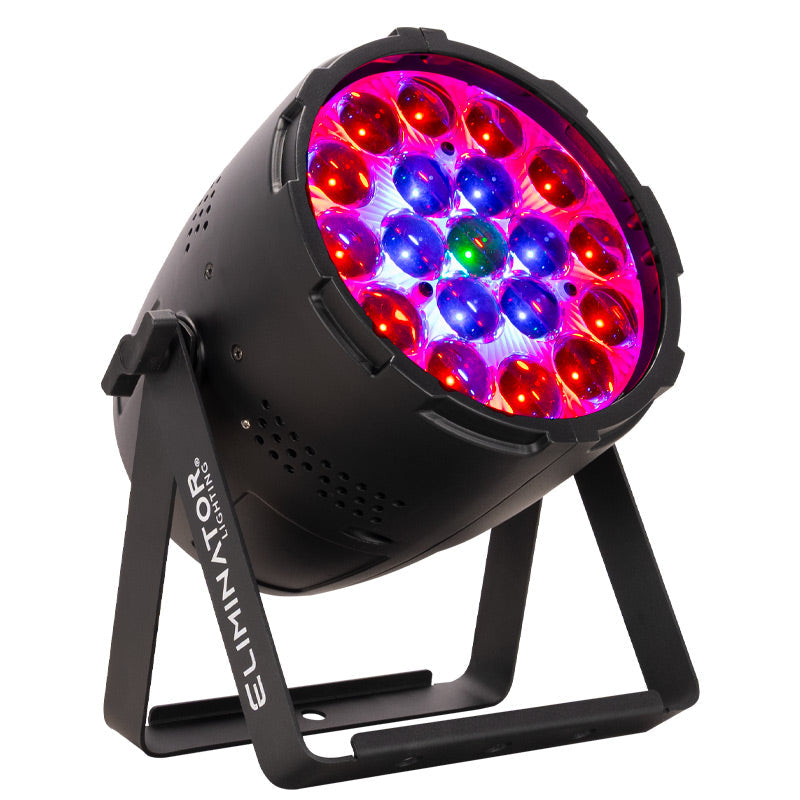

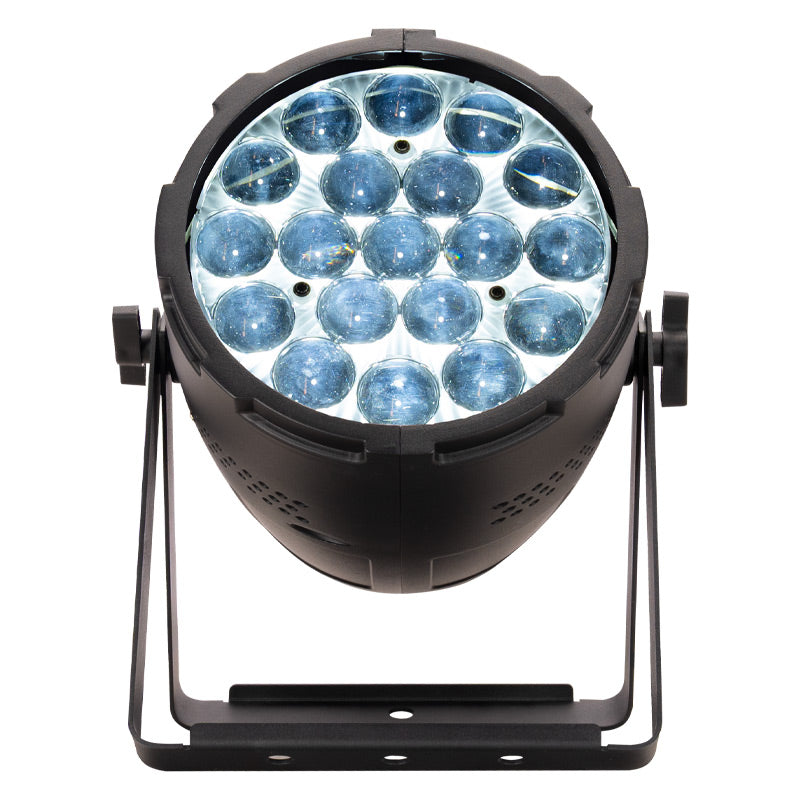

The Eliminator Mega Par Z Wash is a powerful professional LED wash fixture designed to produce bright, even color washes with exceptional flexibility. It is equipped with 19 high-output 15-watt RGBW 4-in-1 LEDs, providing rich saturated colors, smooth pastel shades and brilliant white tones.

A motorized zoom system allows the beam angle to be adjusted from a tight 10-degree beam to a wide 60-degree wash. This makes the Mega Par Z Wash suitable for stage lighting, concerts, theatrical productions, houses of worship, event venues, mobile entertainers and production companies.

Three independently controllable RGBW zones allow lighting designers to create dynamic color chases, animated effects and pixel-style looks from a single fixture. Multiple operating modes, smooth electronic dimming and flexible DMX control make the Mega Par Z Wash equally effective in programmed lighting systems or standalone applications.

Product Highlights

• Professional RGBW LED wash fixture with motorized zoom

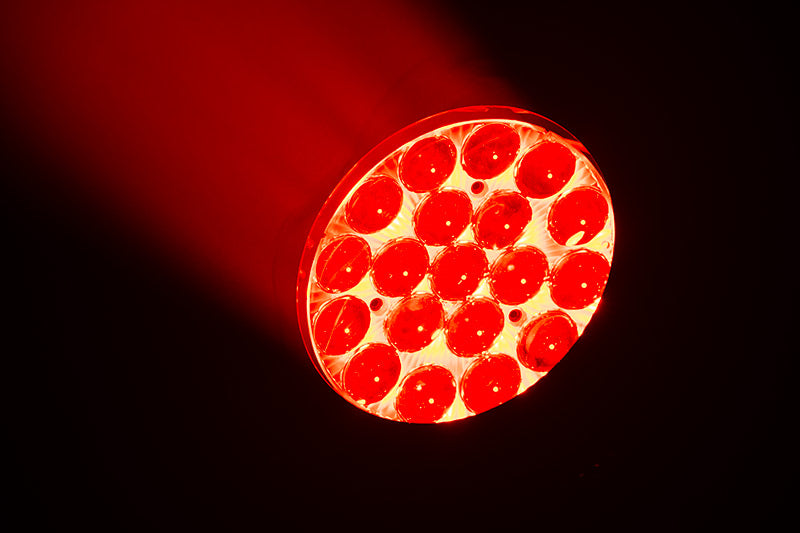

• 19 x 15-watt RGBW 4-in-1 LEDs
• Adjustable 10-degree to 60-degree motorized zoom

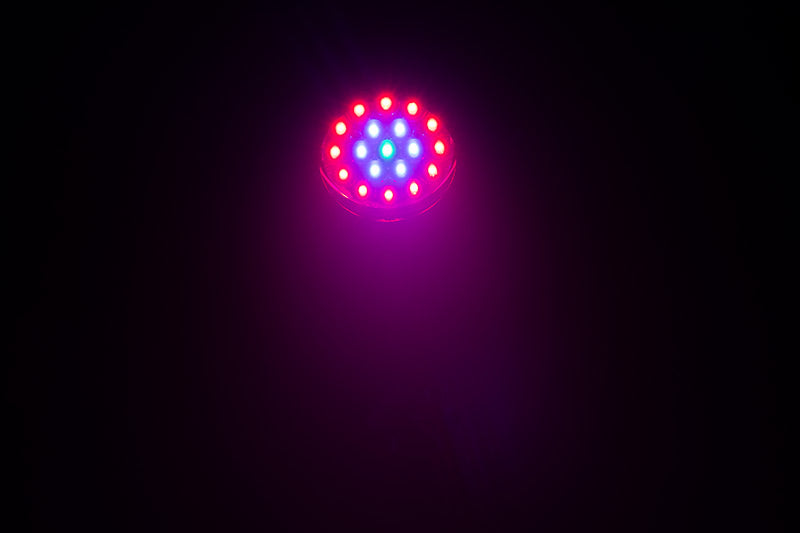

• Three independently controllable RGBW LED zones
• Rich saturated colors, smooth pastels and brilliant white output
• Creates wide stage washes or narrow beam effects
• Dynamic color chases and pixel-style animations
• Smooth 0–100% linear electronic dimming
• Static color mode for simple standalone operation
• DMX512, Auto, Sound Active and Primary-Secondary operation
• Compact and durable housing for mobile or installed applications
• Locking power input and output connections for power linking

LED Source

• LEDs: 19 x 15W RGBW 4-in-1 LEDs
• Average LED Life: Up to 50,000 hours

LED life may vary depending on environmental conditions, power and voltage, usage patterns, control settings and dimming.

Photometric and Color Data

• RGBW color mixing
• Pure color output
• Smooth and even wash output
• Rich saturated colors
• Smooth pastel shades
• Brilliant white tones
• Three independently controllable RGBW zones

Effects

• Motorized Zoom: 10 to 60 degrees
• 0–100% linear electronic dimming
• Smooth RGBW color mixing
• Static color mode
• Color chase effects
• Pixel-style animations
• Narrow beam and wide wash effects

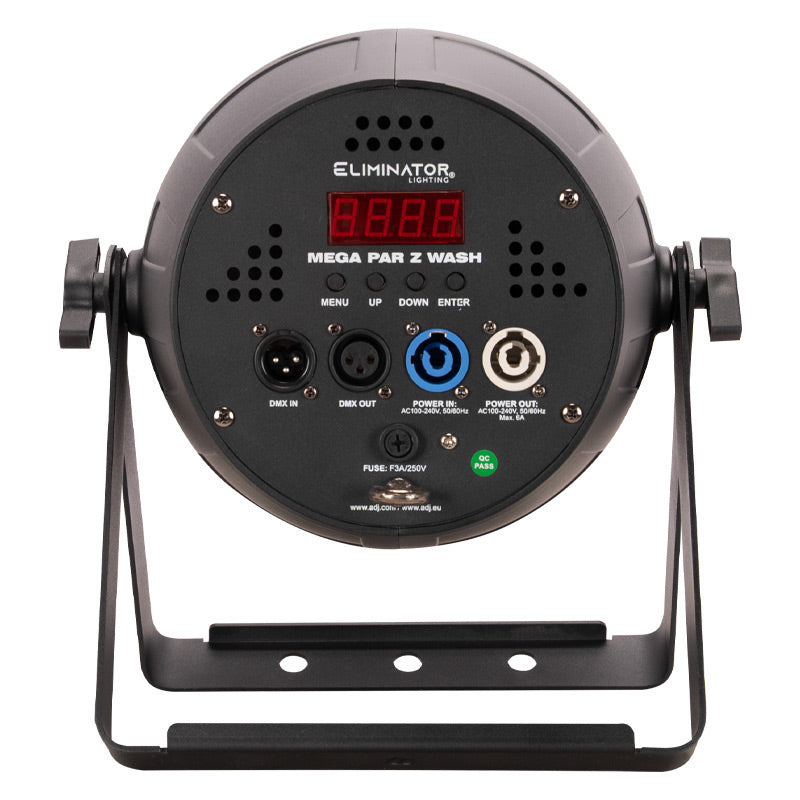

Control and Connections

• DMX Channel Modes: 10 and 18 channels
• DMX512 control
• Primary-Secondary mode
• Auto Run mode
• Sound Active mode
• Static color mode
• 4-digit, 7-segment LED display
• 3-pin XLR DMX input and output
• Indoor locking power input and output

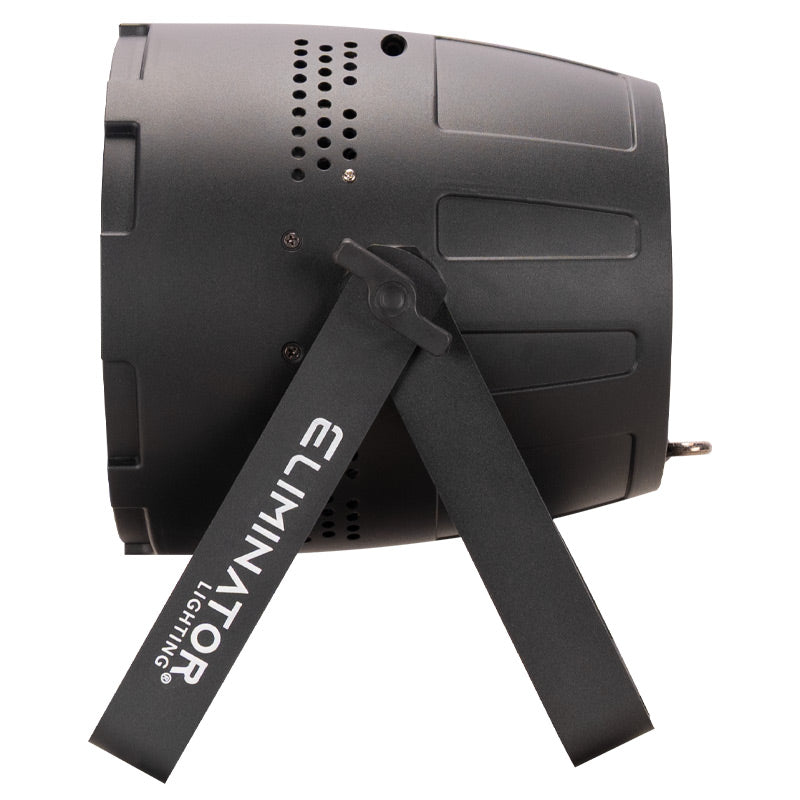

Dimensions and Weight

• Length: 8.9 inches / 225mm
• Width: 10.8 inches / 275mm
• Height: 13.3 inches / 337mm
• Weight: 9.92 pounds / 4.5kg

Electrical Specifications

• Input Voltage: AC 100-240V, 50/60Hz
• Maximum Power Consumption: 200W
• Universal auto-switching power supply

Approvals and Ratings

• Ingress Protection Rating: IP20
• Designed for indoor use only

Applications

• Concert and stage lighting
• Mobile DJs and entertainers
• Theatrical productions
• Houses of worship
• Production and rental companies
• Event venues and nightclubs
• Uplighting and decorative lighting
• Wall washing and scenic lighting
• Touring and permanent installations

UPC: 810087375577
Manufacturer SKU: MEG198

Specifications are subject to change without notice.
