Specifications

Source

Light Source: RGB 3-IN-1 LED

Visual Angle: 160°

Brightness: High Brightness

Control

Input Signal: DMX512 (3-Pin XLR)

Control Mode(s): DMX512 Console, Sound Control, Audio Control and Remote Control.

DMX Channel Mode: 3, 5, 7, 10 Channel Mode

Physical

Surface Material: Tempered Glass

Base Material: ABS

Power | Power Consumption

Input Voltage: DC 24V (Must be used with power ramp)

Max Power Consumption: 15W

Unit Dimensions | Weight

Single panel Dimensions (LxWxH): 23.62” x 23.62” x 2.76” / 600x600x70mm

Single Panel Weight: 26.57 lbs./ 12.05 Kgs

Load Bearing Capacity

Bearing Weight: 61.5 lbs./ft2 (300 kgs/m2)

Approvals

cETLus Certified (Conforms to UL Std. UL 1573,)

CSA Certified to Std. CSA C22.2 No.166.

CE Compliant

Operating / Storage Temps

Operating and Storage Temperatures: -4°F min. ~ 113°F max. (-20°C~45°C)

MDF3 Series Products and Accessories:

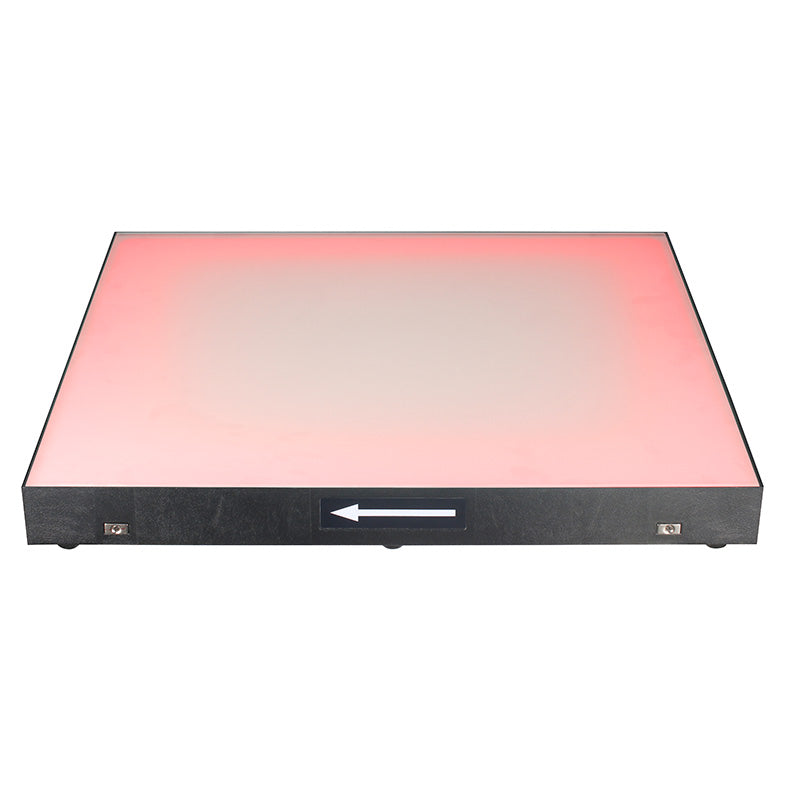

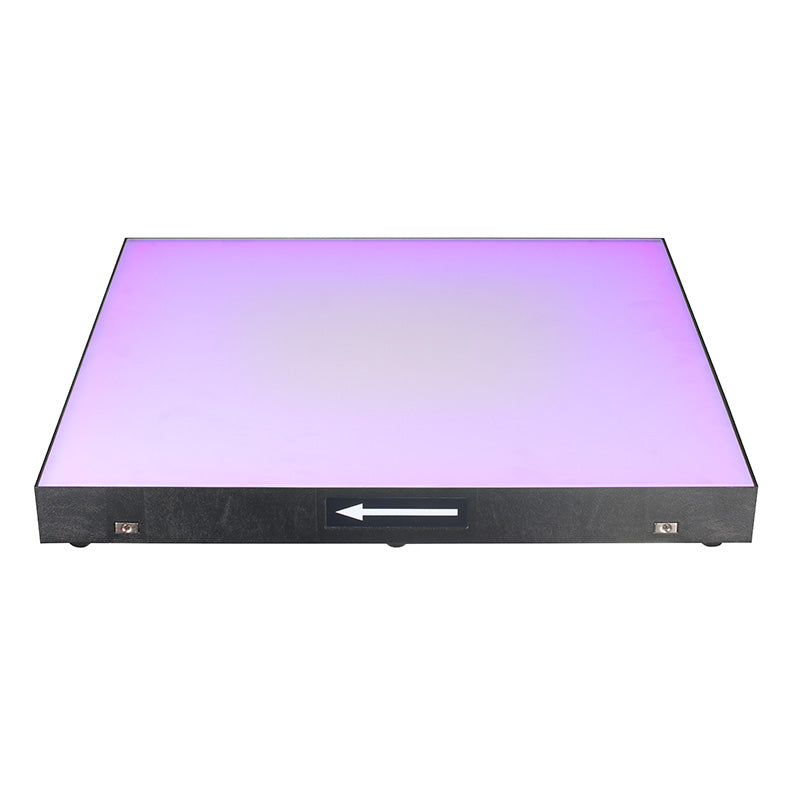

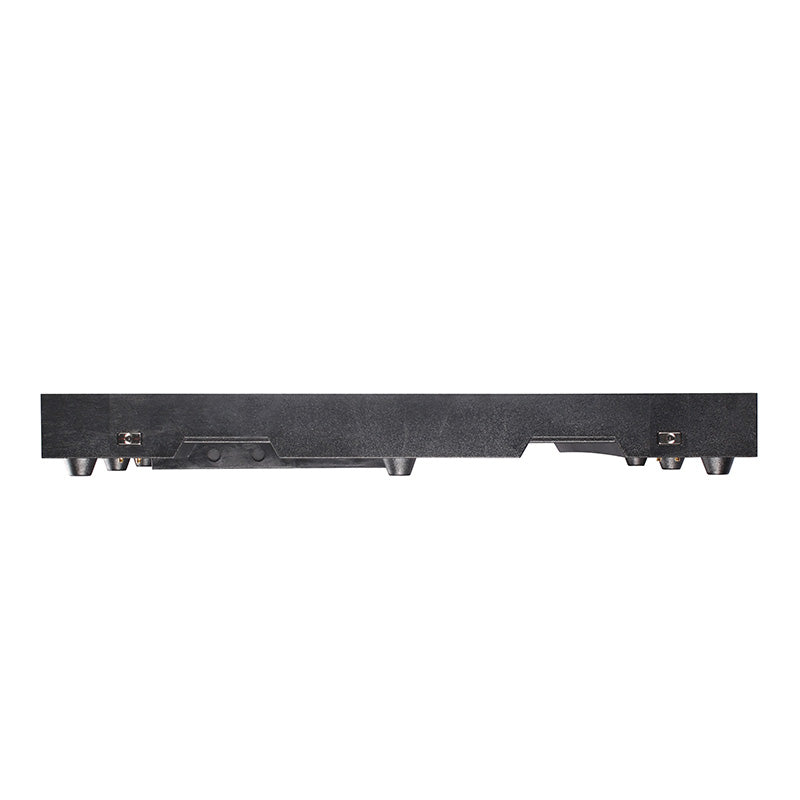

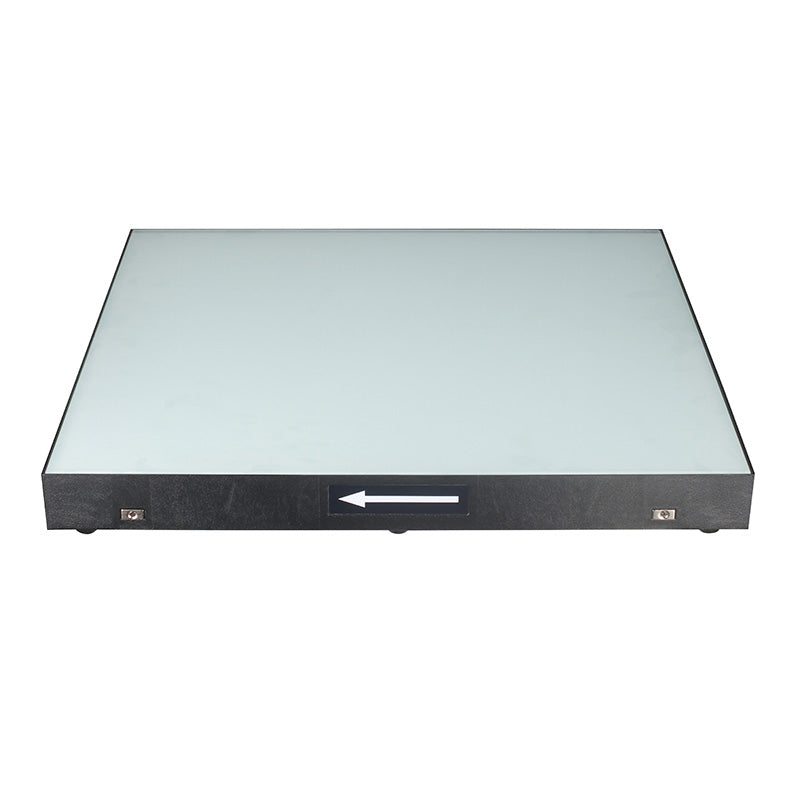

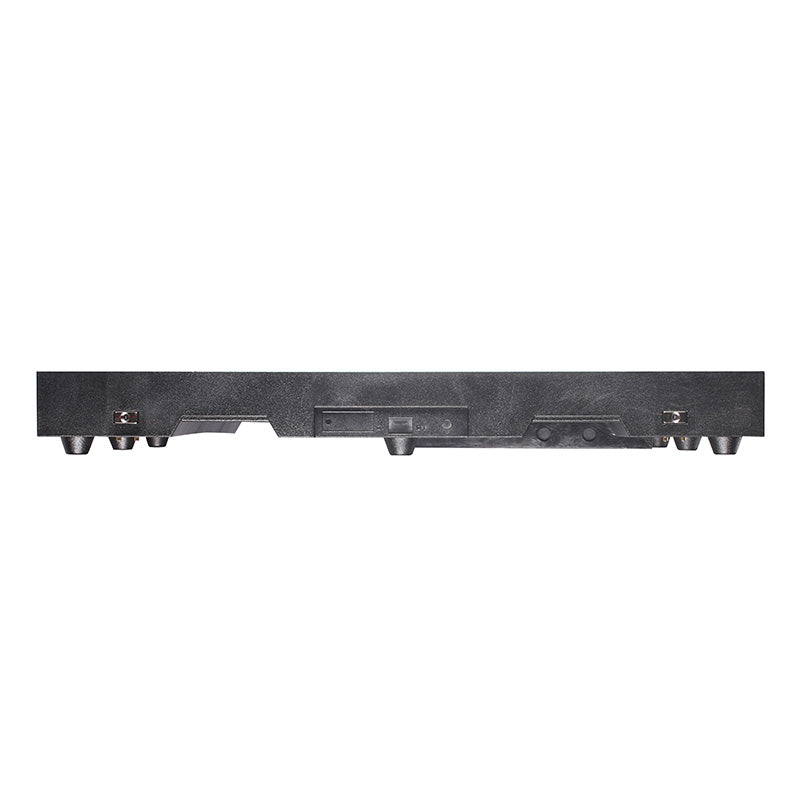

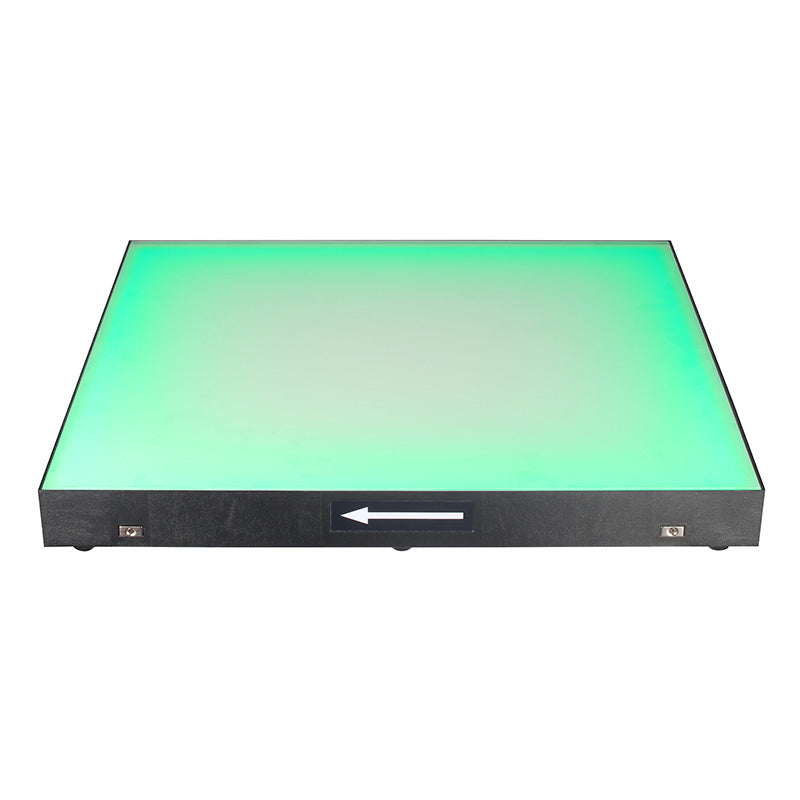

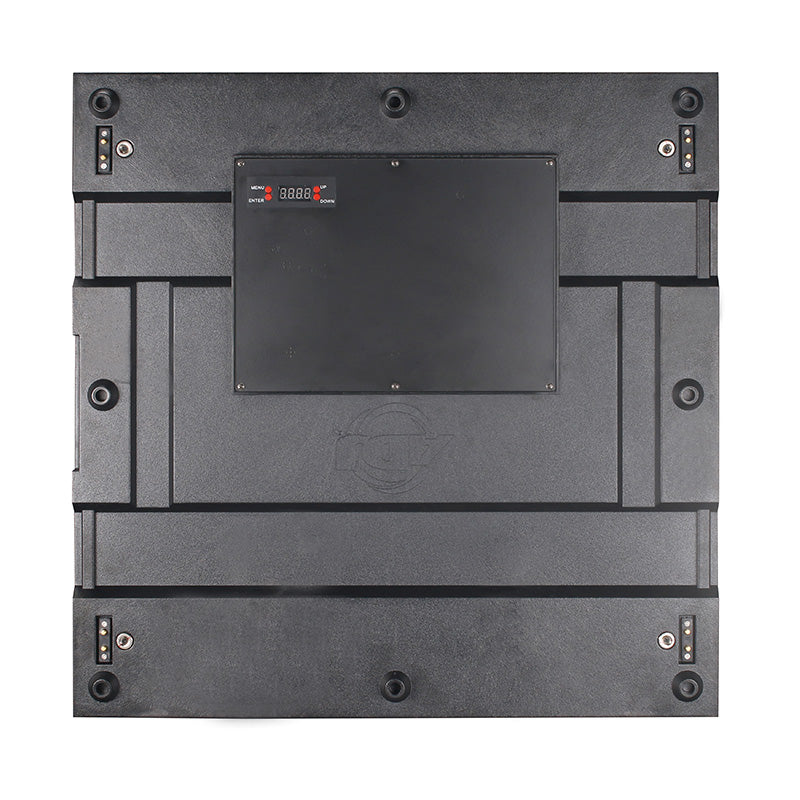

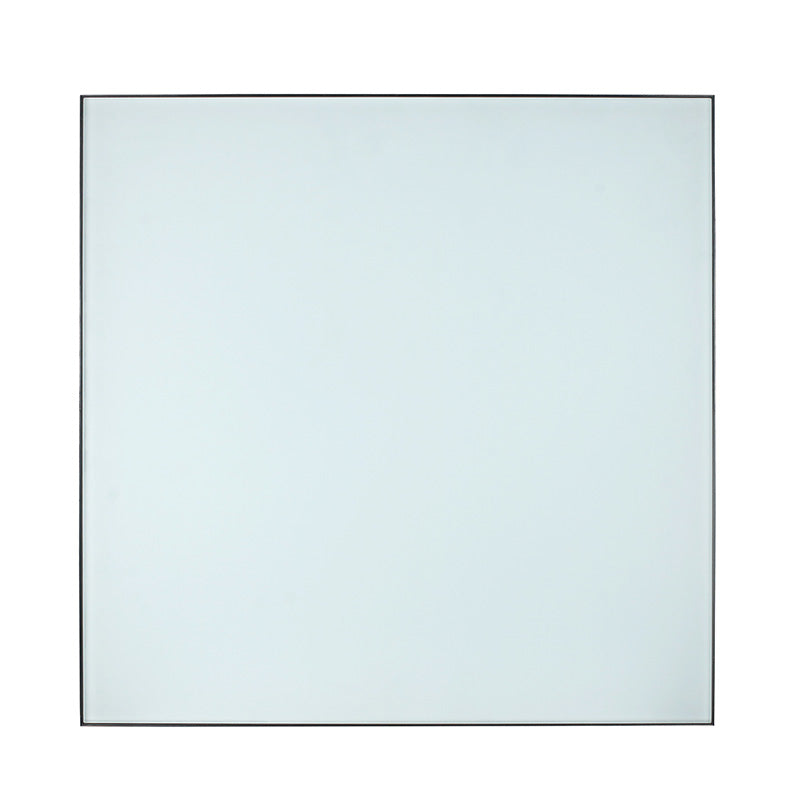

MDF300: LED Floor Panel

MDF232: Power Supply (powers up to 9 panels)

MDF248: Power Supply (powers up to 15 panels)

MDF264: Power Supply (powers up to 20 panels)

MDF281: Power Supply (powers up to 40 panels)

MDF454: Power Supply (powers up to 117 panels)

MDF477: Power Supply (powers up to 156 panels)

MDF297: Power Main Cable, 16ft

MDF313: Power Main Cable, 20ft

MDF320: Power Main Cable, 25ft

MDF336: Power Main Cable, 50ft

MDF388: Connection / Power Transfer Bracket

MDF368: Panel Removal Tool

MDF390: Power Supply Ramp

MDF401: Edging Ramp

MDF417: Corner Ramp

Specifications are subject to change without notice.
