Specifications

FEATURES:

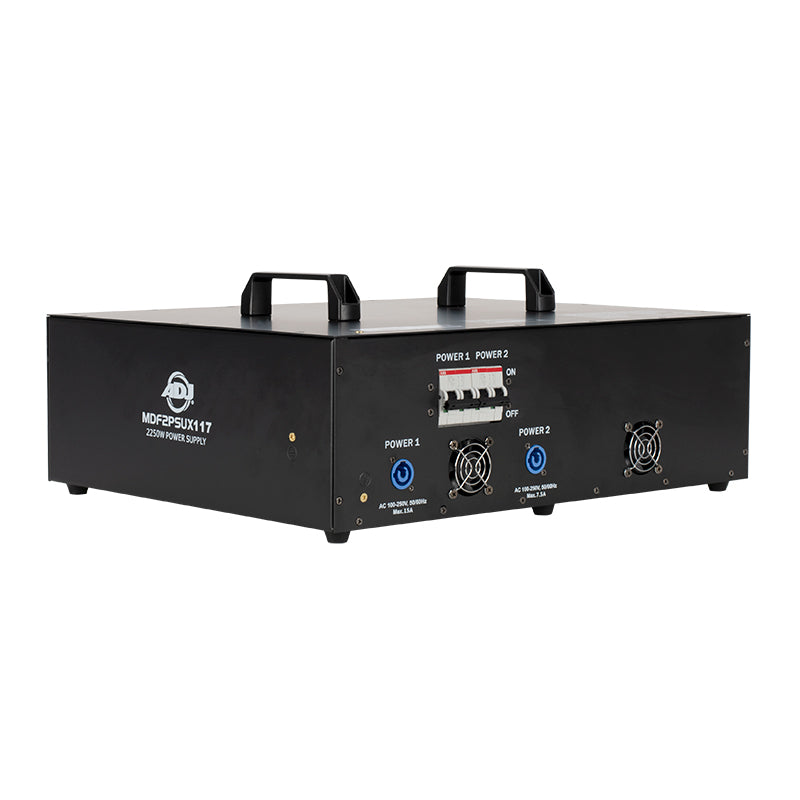

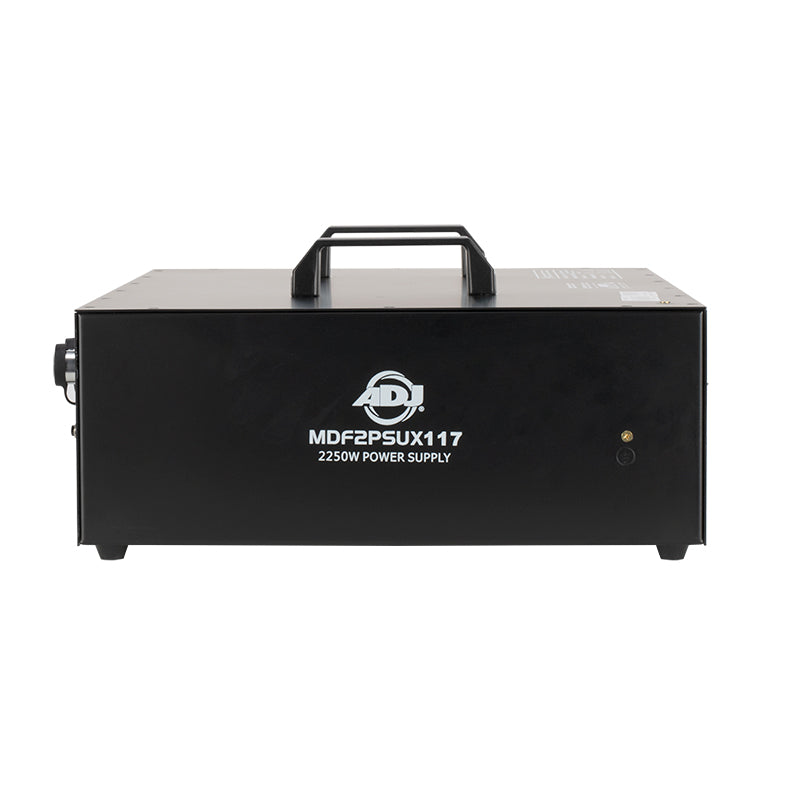

• 2250W External power supply for up to 117 ADJ MDF2 dance floor panels

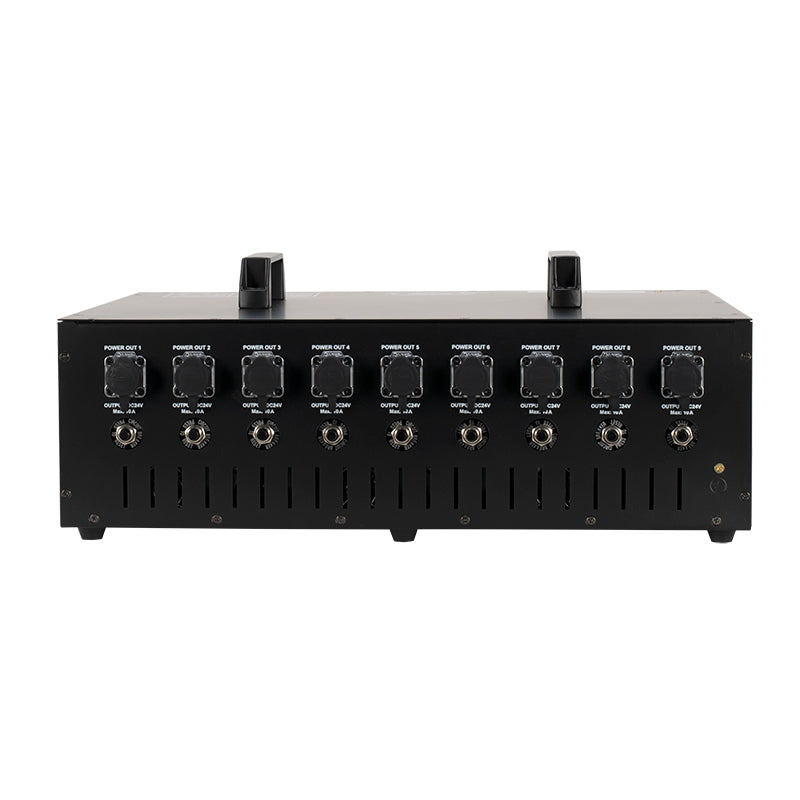

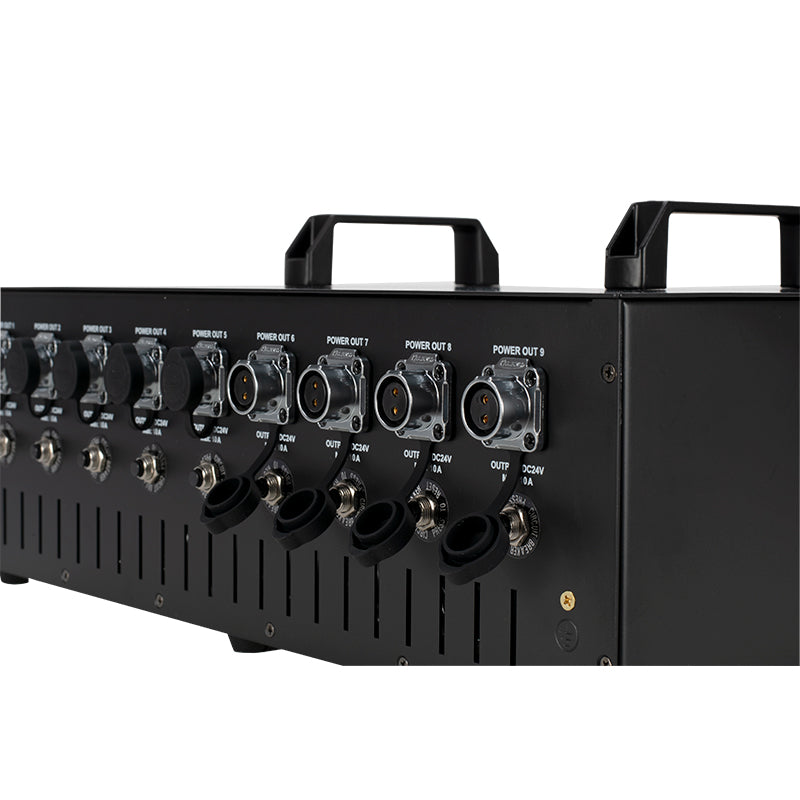

• Nine (9) 2-pin power output connectors that will power a single row up to 13 MDF2 panels
• Nine (9) resettable breakers

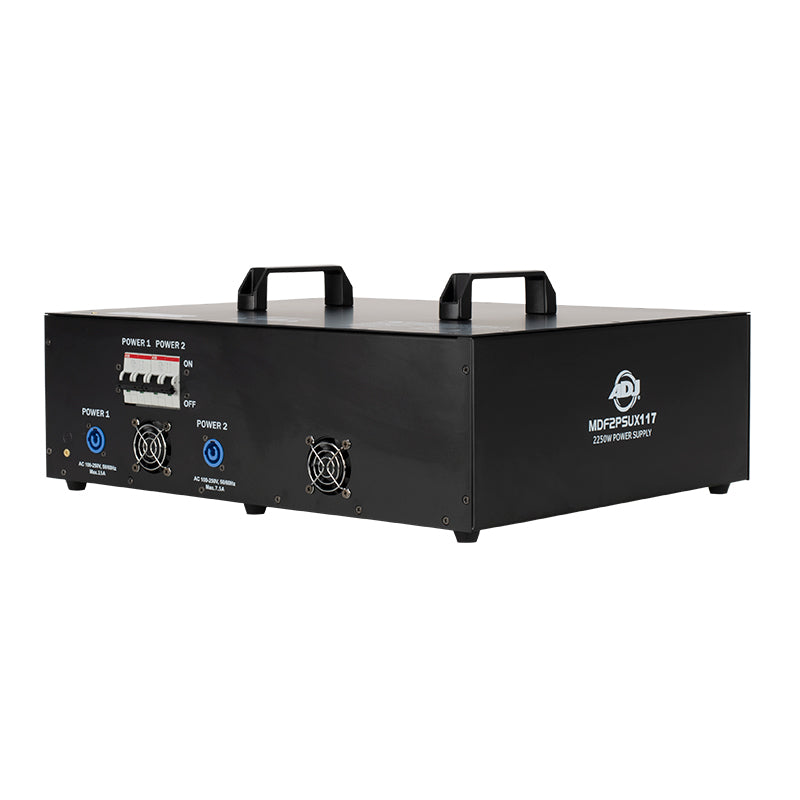

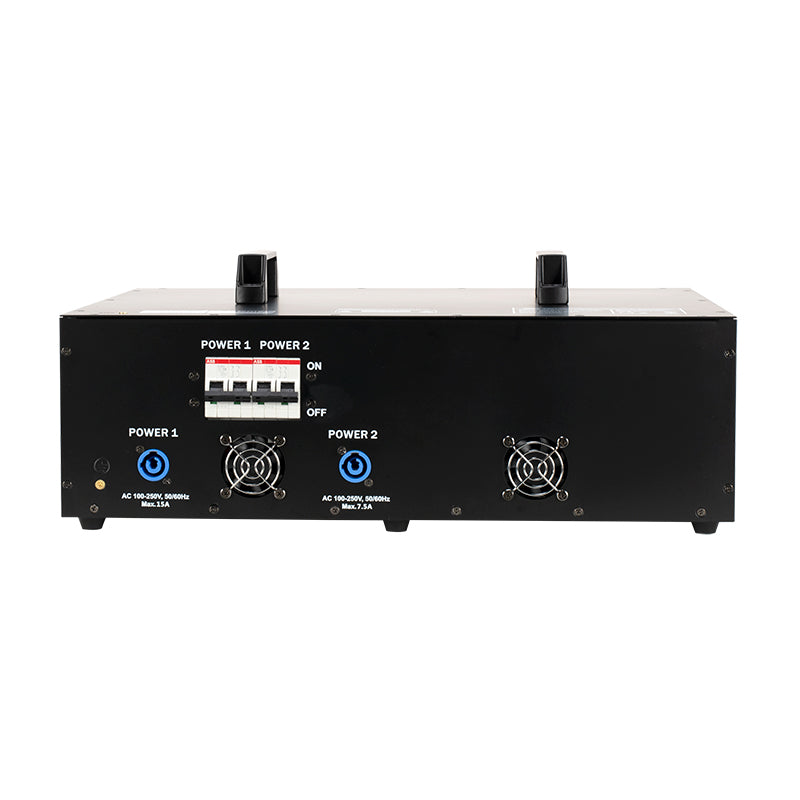

• Two (2) separate power switches
• Two (2) locking power inputs
• Two (2) carrying handle
• Rubber feet on bottom of power supply

WHAT’S INCLUDED:

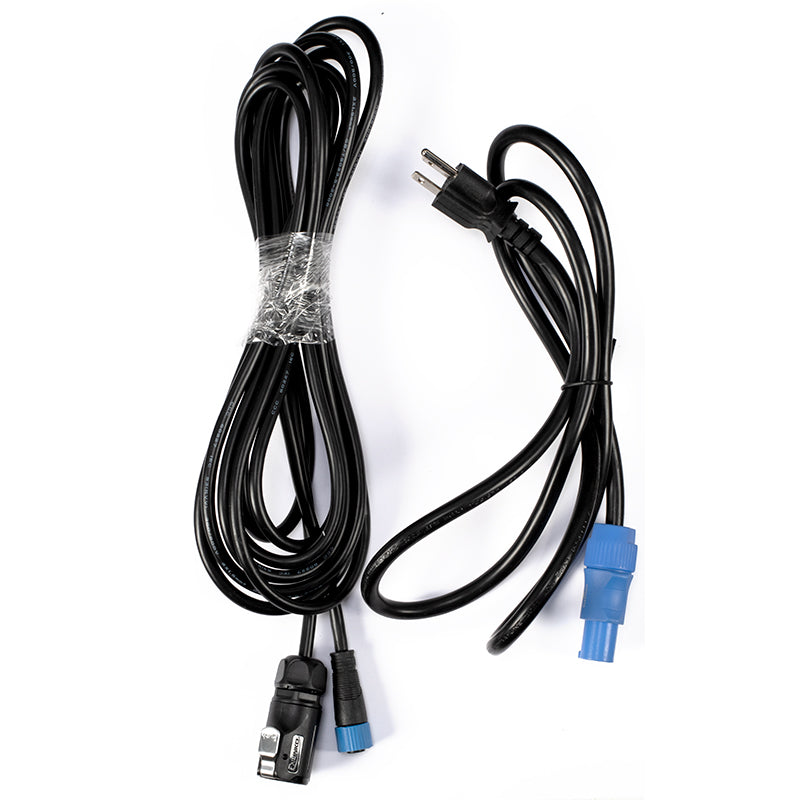

• Includes two (2) 3-foot locking power cables

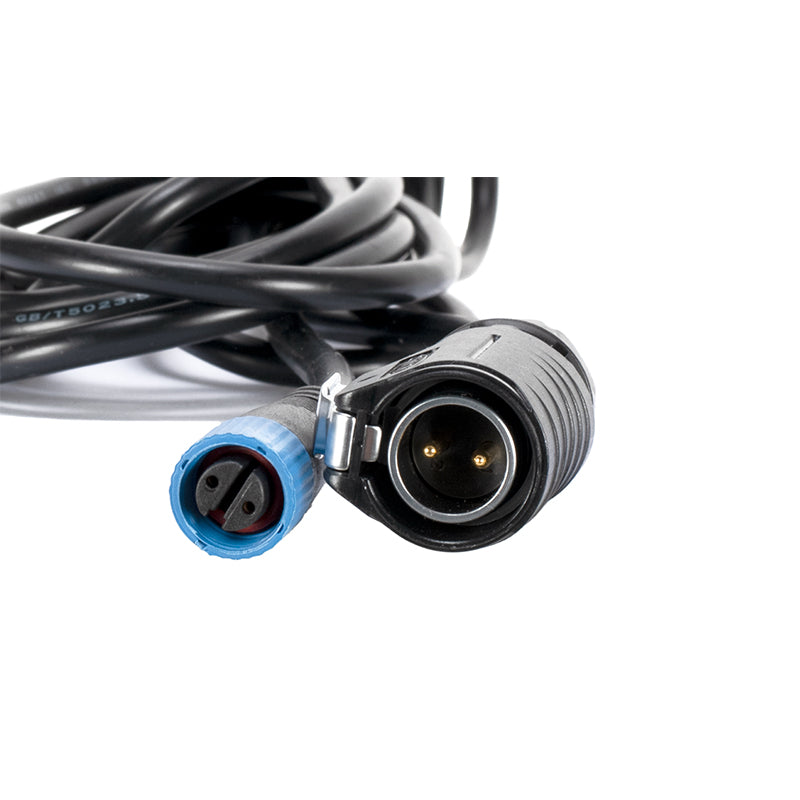

• Includes nine (9) 15-foot 2-pin power output cables to connect to MDF2 panels

ELECTRICAL:

• Input voltage: AC100-240VAC, 50/60Hz
• Output voltage: DC24V
• Maximum load power: 2250W
• Load Current: 90A
• Current Overload Protector Trip Time: Within 10A of max load: no trip; 10-15A over max load: trip within 1 hour; 15-20A over max load: trips in 5.2 to 30 second; 20-30A over max load: trips in 1.5 to 5.5 seconds
• Fan cooled

DIMENSIONS / WEIGHT:

• Dimensions (LxWxH): 19.7” x 17.0” x 8.1” (650.0mm x 433.0mm x 205.5mm)
• Weight: 30 lbs. (13.6 kg)

AMBIENT OPERATING CONDITIONS:

• Ambient Operating Temperature: -4˚ F to 158˚ F (-20˚ C to 70˚ C)
• IP Rating: IP20
