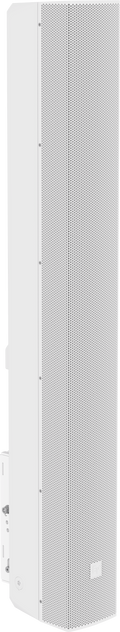

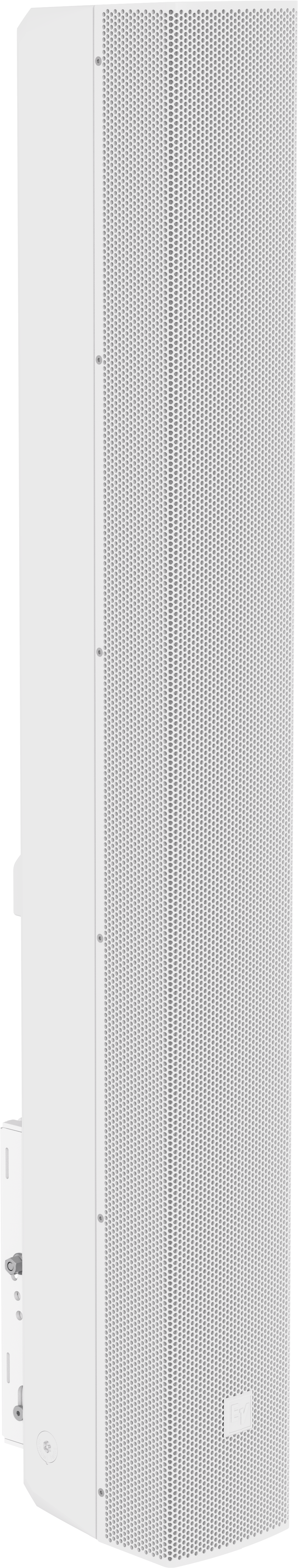

Name: Electro-Voice LRC-1100-W – Column speaker, 1m, EN54
Brand: Electro-Voice
SKU: LRC-1100-W
Price: 1159.00 USD
Availability: InStock

Electro-Voice LRC-1100-W – Column speaker, 1m, EN54

$1,159.00

$1,159.00 $1,444.00

Electro-Voice

LRC-1100-W – Column speaker, 1m, EN54

Overview

Column speaker, 1m, EN54

Highlights

✓Twelve 2.5-inch full-range drivers coupled to proprietary PaSS phase plugs produce a narrow vertical pattern and exceptional LF extension.
✓User can select a narrow or wide vertical pattern (20°/40°), with a 5° downward bias to focus energy towards the listener.
✓Weatherized for full exposure, including IP56c rating, and EN54-24 Type B certified for allweather applications.
✓SwifTilt Pan-Tilt mounting bracket (patent pending) supports most mounting situations and installs column as close to the mounting surface as possible.
✓Includes rear insert points for suspension.

Specifications

Specifications Frequency range (-10 dB) 1	65 Hz – 14,000 Hz
Maximum sound pressure level at a distance of 1 m 2	126 dB narrow 123 dB wide
Axial sensitivity 3	93 dB SPL 1W/1m narrow 91 dB SPL 1W/1m wide
Acoustic down-tilt (relative to horizontal)	-5°
Coverage angle HxV 4	130° x 20° (narrow) / 40° (wide)
Power handling (continuous) 5	200 W
Power handling (program) 6	400 W
Specifications Peak input voltage (Lo-Z)	115 V
Nominal impedance (Lo-Z)	8 Ω
Recommended high-pass	≥70 Hz Butterworth, 24 dB/oct
Transformer taps 70 V line	120 W; 60 W; 30 W; 15 W; 8 W
Transformer taps 100 V line	120 W; 60 W; 30 W; 15 W
Transducer (quantity) size	(12) 2.5 in active drivers (3) 2.5 in and 6.5 in passive radiators
Connector type	4-pin Euroblock Input + Pass through
Wire size	12AWG (maximum)
Suspension points	(2) M8
Mounting	SwifTilt Multi-angle Tilt + Pan Bracket
Maximum horizontal pan angle	+/- 80° (at all down-tilt angles)
