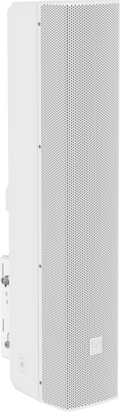

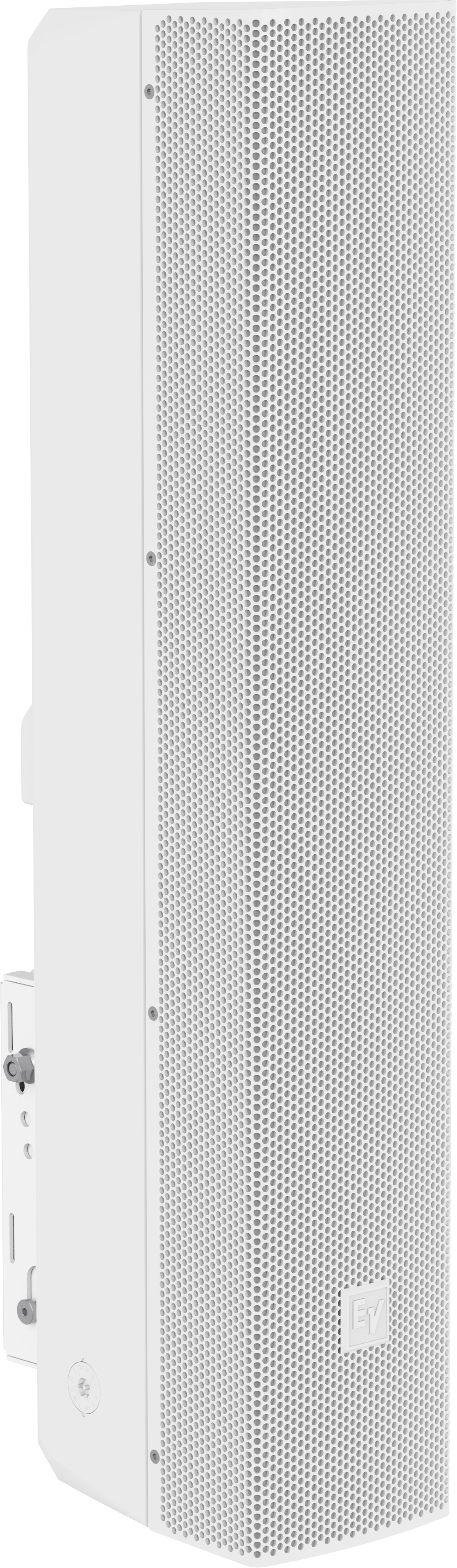

Name: Electro-Voice LRC-1060-W – Column speaker, 0.6m, EN54
Brand: Electro-Voice
SKU: LRC-1060-W
Price: 639.00 USD
Availability: InStock

Electro-Voice LRC-1060-W – Column speaker, 0.6m, EN54

$639.00

$639.00 $798.00

Electro-Voice

LRC-1060-W – Column speaker, 0.6m, EN54

Overview

Column speaker, 0.6m, EN54

Highlights

✓22.8” (580 mm) high
✓6x 2.5” (63.5 mm) full-range drivers
✓2x 2.5” (63.4 mm) passive radiators
✓20° symmetrical vertical coverage
✓130° horizontal coverage
✓75 Hz-15 kHz

Specifications

Specifications Frequency range (-10 dB) 1	70 Hz – 15,000 Hz
Maximum sound pressure level at a distance of 1 m 2	122 dB
Axial sensitivity 3	90 dB SPL 1W/1m
Coverage angle HxV 4	130° x 20°
Power handling (continuous) 5	100 W
Power handling (program) 6	200 W
Specifications Peak input voltage (Lo-Z)	80 V
Nominal impedance (Lo-Z)	8 Ω
Recommended high-pass	≥70 Hz Butterworth, 24 dB/oct
Transformer taps 70 V line	60 W; 30 W; 15 W; 8 W; 4 W
Transformer taps 100 V line	60 W; 30 W; 15 W; 8 W
Transducer (quantity) size	(6) 2.5 in active drivers (2) 2.5 in passive radiators
Connector type	4-pin Euroblock Input + Pass through
Wire size	12AWG (maximum)
Suspension points	(2) M8
Mounting	SwifTilt Multi-angle Tilt + Pan Bracket
Maximum horizontal pan angle	+/- 80° (at all down-tilt angles)
Vertical down-tilt angles 7	0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25°
