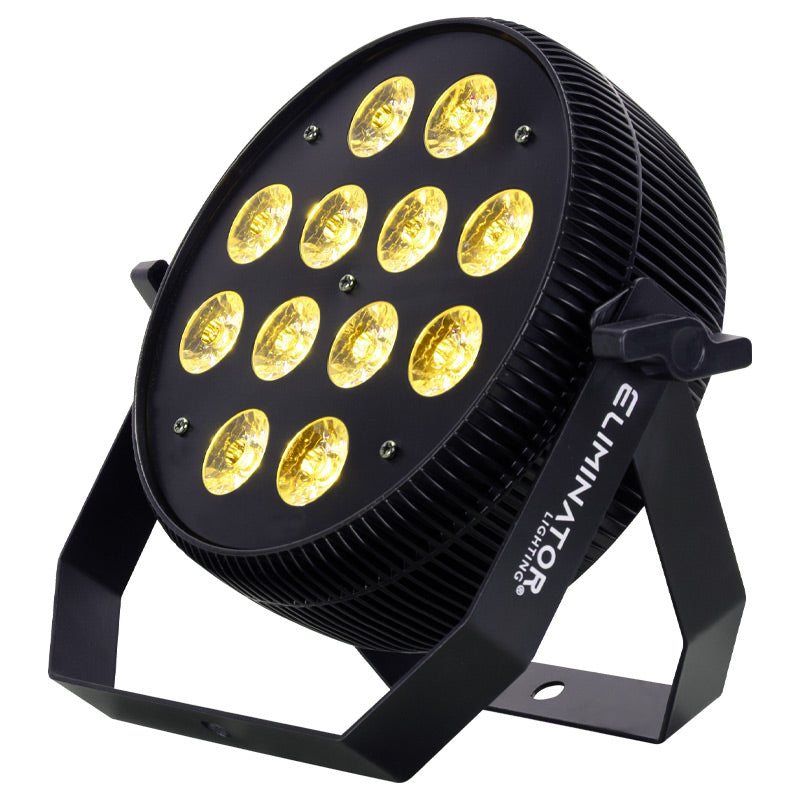

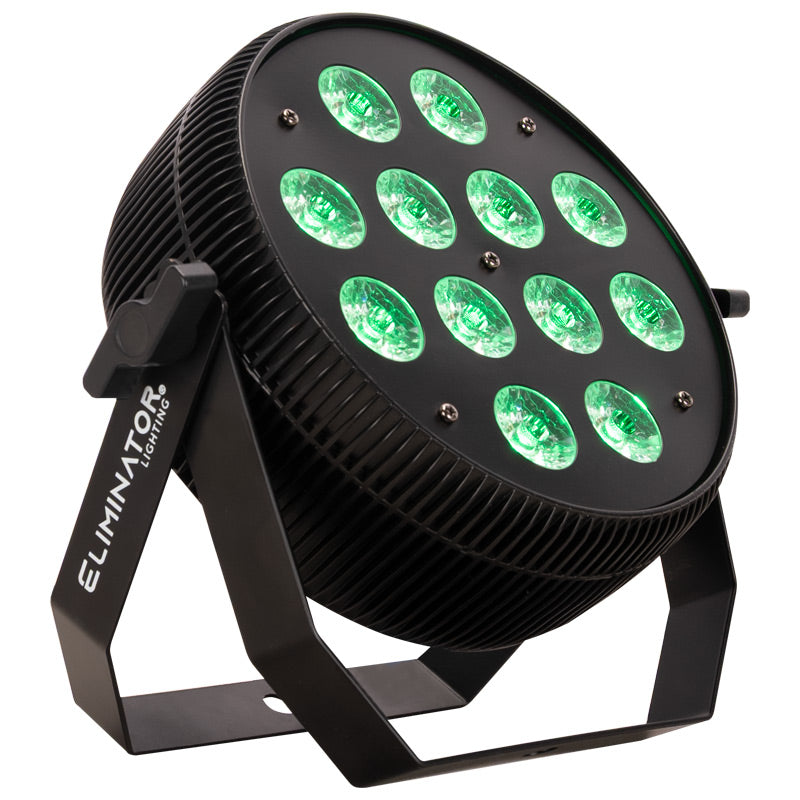

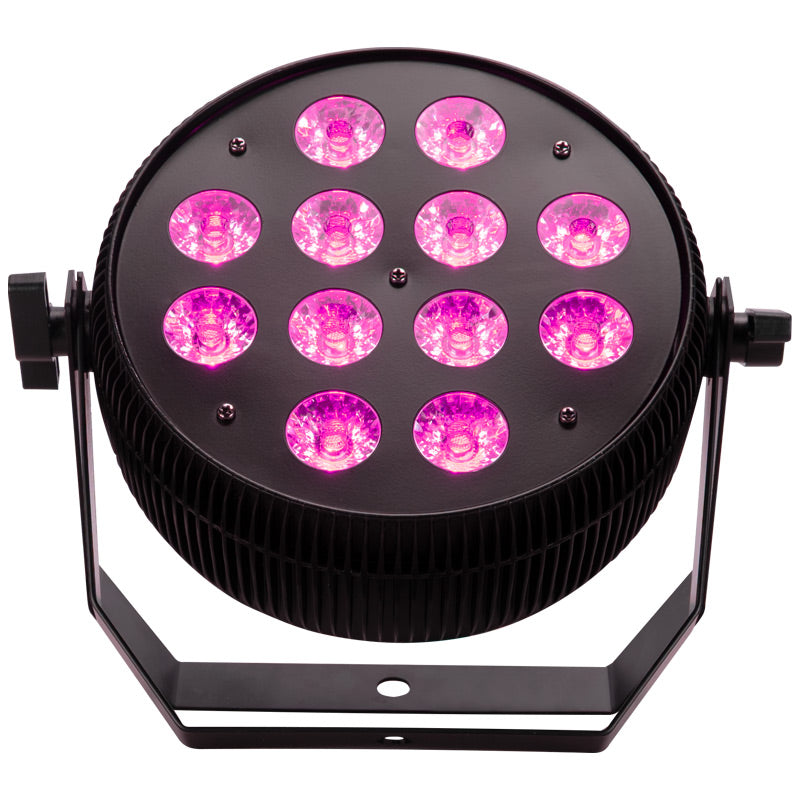

LP HEX 12 PLUS

The Eliminator LP HEX 12 PLUS is a compact, high-output LED PAR fixture designed for mobile entertainers, bands, production companies, theaters, houses of worship, event venues, and permanent installations. Twelve powerful 18-watt RGBWA+UV LEDs deliver vibrant saturated colors, smooth pastel tones, crisp white light, and rich ultraviolet effects.

A 25-degree beam angle provides smooth, even wash coverage for stage lighting, uplighting, wall washing, and special events. Flexible DMX and standalone control modes, locking power connections, a rugged metal housing, and universal power compatibility make the LP HEX 12 PLUS suitable for both portable and installed lighting systems.

Highlights

• 12 powerful 18-watt RGBWA+UV 6-in-1 LEDs
• Produces saturated colors, smooth pastel tones, crisp whites, and UV effects
• 25-degree beam angle provides smooth and even wash coverage
• Ideal for uplighting, wall washing, stages, venues, and event production
• White light balance adjustment provides consistent output across multiple fixtures
• Two DMX channel modes provide simple or expanded control
• DMX512, automatic, sound-active, and Primary-Secondary operating modes
• Smooth 0–100% linear electronic dimming
• High-speed synchronized electronic strobe
• Rugged metal housing for portable and permanent installations
• Locking power input and output connections
• Universal auto-switching power supply

Light Source

• LEDs: 12 x 18W RGBWA+UV 6-in-1 LEDs
• Color System: Red, green, blue, white, amber, and ultraviolet

Photometric Data

• Beam Angle: 25 degrees
• Pure color output
• Excellent color mixing
• Smooth and even wash output

Color and Effects

• RGBWA+UV 6-in-1 color mixing
• White light balance adjustment
• 0–100% linear electronic dimming
• High-speed synchronized electronic strobe
• Saturated colors and smooth pastel tones
• Bright white and ultraviolet output

Control and Connections

• DMX Channel Modes: 6 or 10 channels
• DMX512 control
• Primary-Secondary operation
• Automatic programs
• Sound-active operation

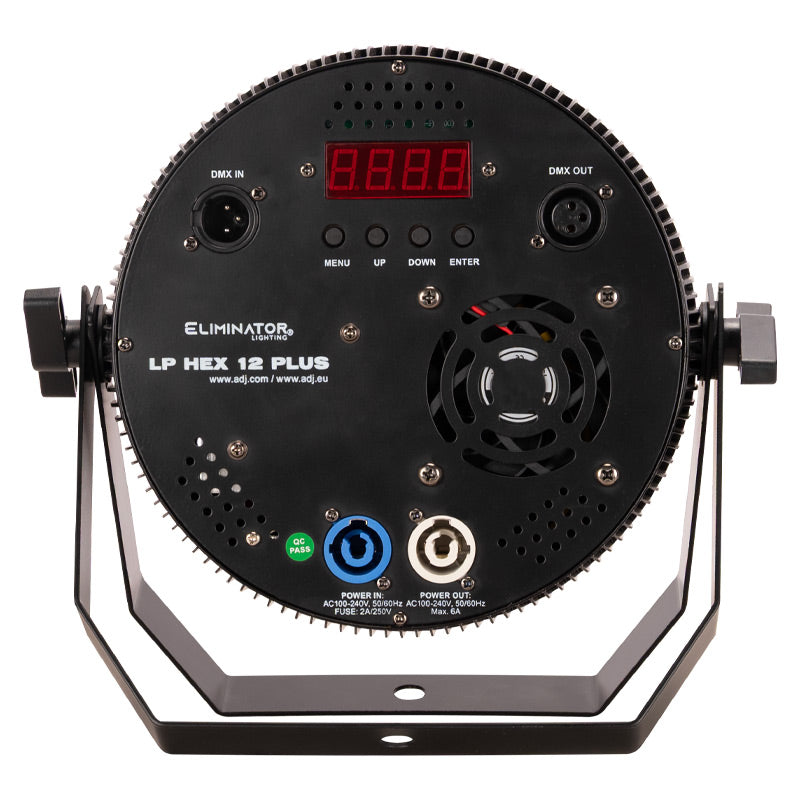

• 4-digit, 7-segment LED display
• 3-pin XLR DMX input and output
• Indoor locking power input and output

Electrical Specifications

• Input Voltage: AC 100–240V, 50/60Hz
• Maximum Power Consumption: 110W
• Universal auto-switching power supply
• Temperature-control protection
• IP Rating: IP20, indoor use only

Construction

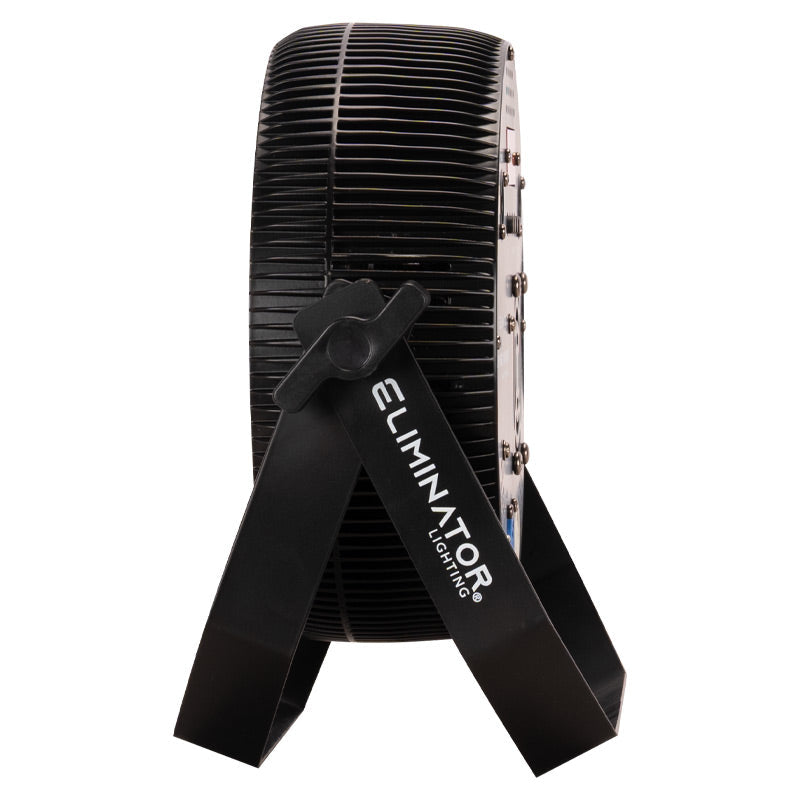

• Durable metal housing
• Compact design for mobile or permanent installations

Dimensions and Weight

• Length: 8.27 in. / 210 mm
• Width: 9.84 in. / 250 mm
• Height: 7.48 in. / 190 mm
• Weight: 5.51 lb. / 2.5 kg

Additional Information

• UPC: 810087375591
• Manufacturer SKU: HEX100
• Recommended Applications: Mobile DJs, bands, theaters, houses of worship, event venues, uplighting, wall washing, and stage production

Specifications are subject to change without notice.
