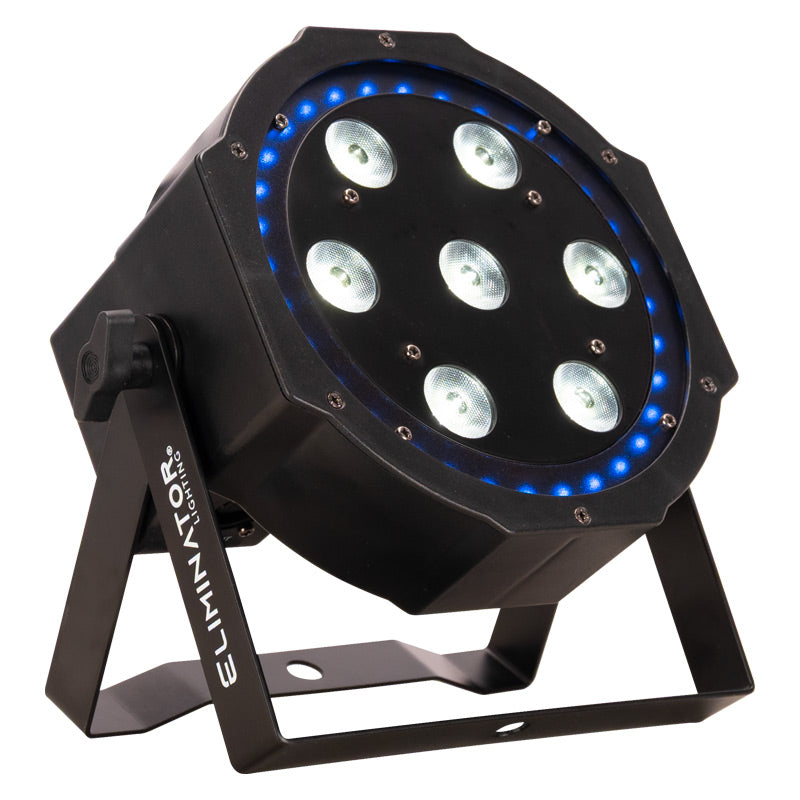

LP-8R 7x 8W Quad (RGBW) w/ RGB Ring Par

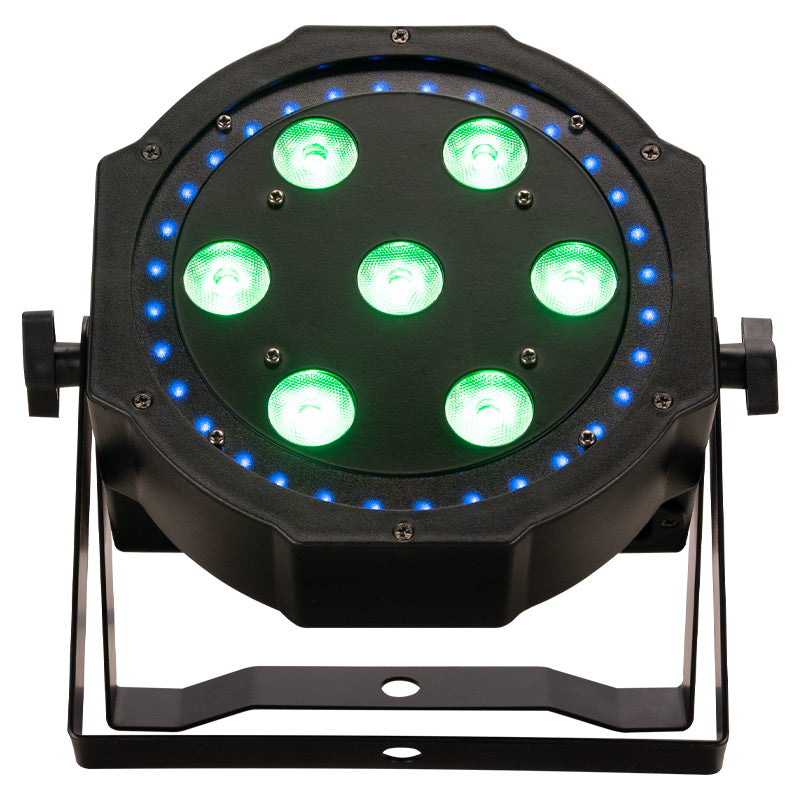

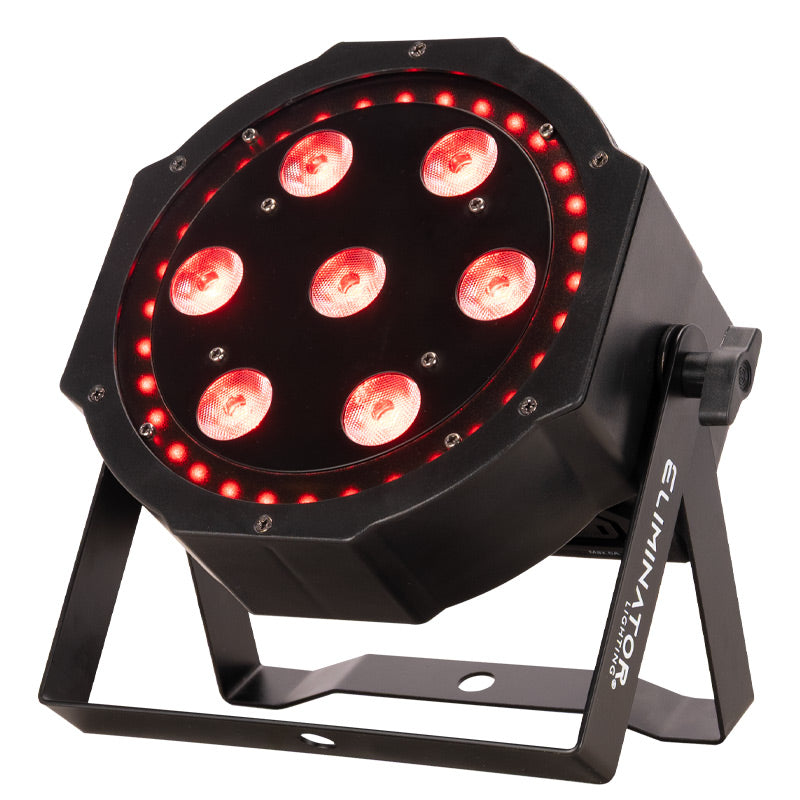

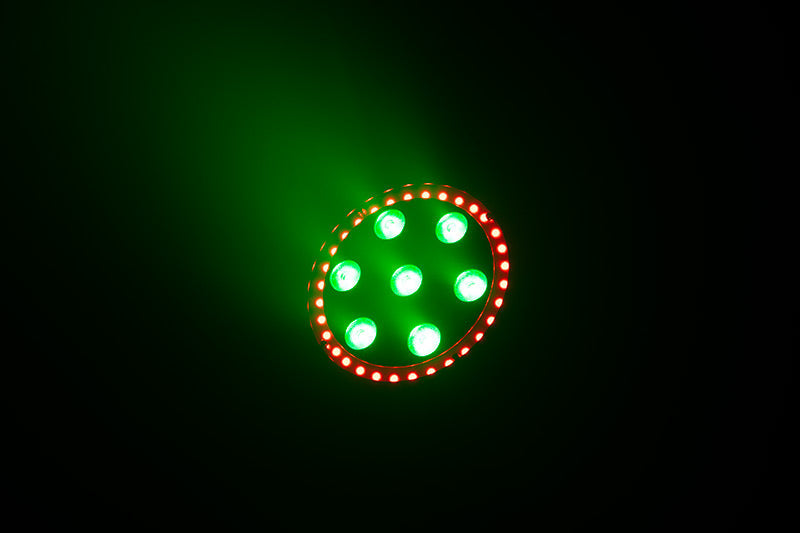

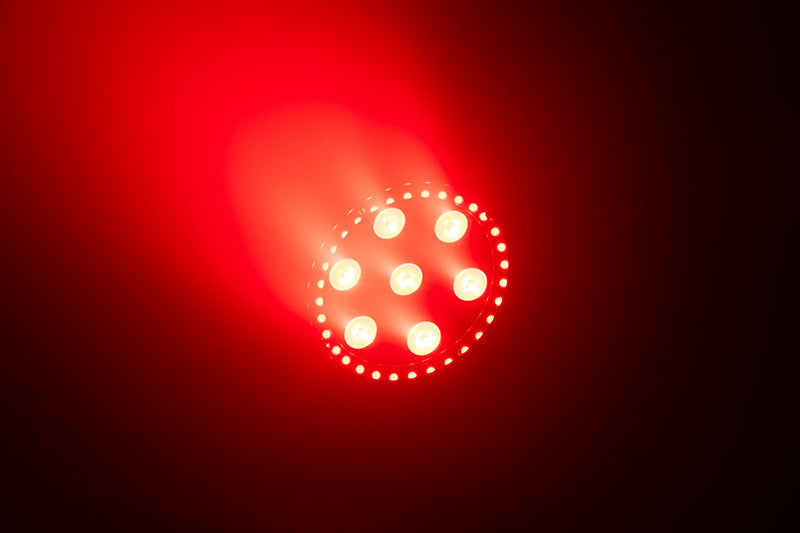

The Eliminator LP 8R is a compact LED PAR fixture that combines a powerful RGBW wash with animated RGB ring effects. Seven 8-watt RGBW center LEDs produce vibrant colors, smooth pastel tones, and crisp white light, while 32 surrounding RGB LEDs create dynamic chases, accents, and pixel-style effects.

With multiple standalone and DMX control options, the LP 8R is an excellent choice for mobile DJs, bands, event production companies, clubs, lounges, small stages, and permanent lighting installations. Its lightweight housing, included wireless remote, power-linking connections, and sound-active programs make setup fast and convenient.

Highlights

• Seven 8-watt RGBW 4-in-1 center LEDs provide bright, evenly mixed wash lighting
• 32 RGB 3-in-1 outer-ring LEDs create animated chases and eye-catching effects
• Produces saturated colors, smooth pastel tones, and crisp white light
• Four DMX channel modes provide simple or advanced programming options
• DMX512, automatic, sound-active, and Primary-Secondary operating modes
• Wireless remote control included for convenient standalone operation
• Smooth 0–100% linear electronic dimming
• High-speed synchronized electronic strobe
• Adjustable white balance setting
• IEC power input and output allow multiple fixtures to be power linked
• Compact and lightweight design is ideal for mobile applications

Light Source

• Center LEDs: 7 x 8W RGBW 4-in-1 LEDs
• Outer Ring LEDs: 32 x RGB 3-in-1 LEDs
• Average LED Life: Up to 50,000 hours

Color and Effects

• RGBW color mixing from the center LEDs
• RGB color mixing from the outer ring LEDs

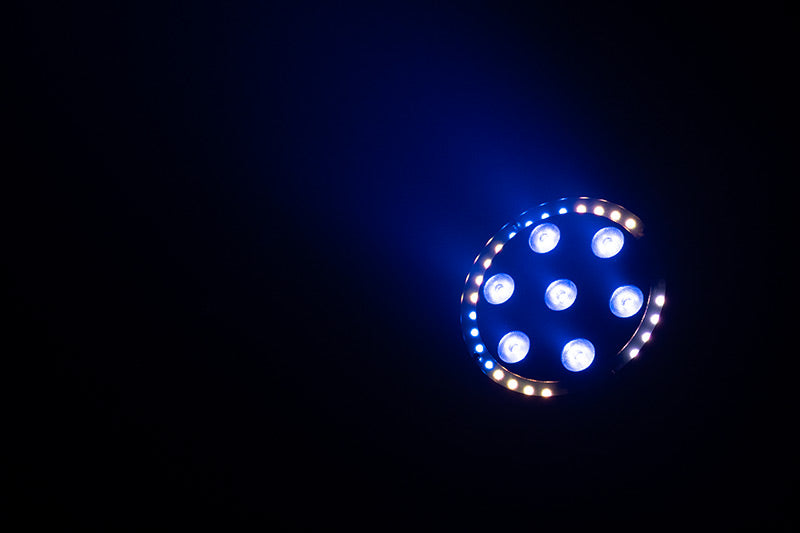

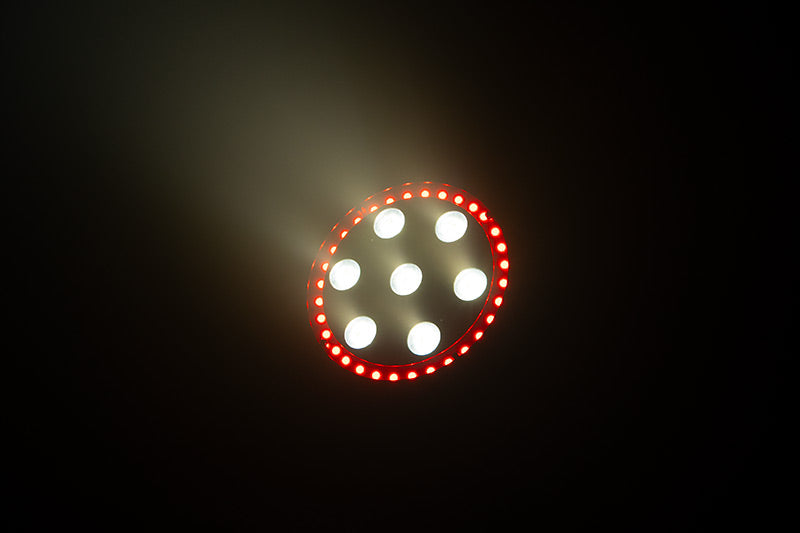

• Animated RGB ring effects
• Pure color output
• Smooth wash output
• White balance adjustment
• 0–100% linear electronic dimming
• High-speed synchronized strobe

Control and Connections

• DMX Channel Modes: 3, 6, 13, or 38 channels
• DMX512 control
• Primary-Secondary operation
• Automatic programs
• Sound-active operation

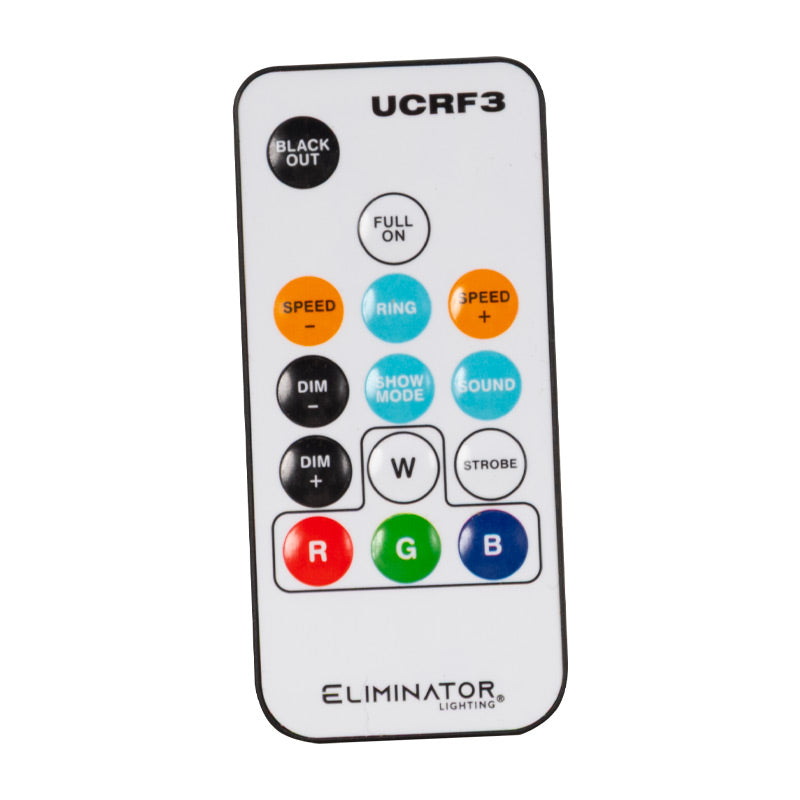

• Wireless remote control included, model UCRF3

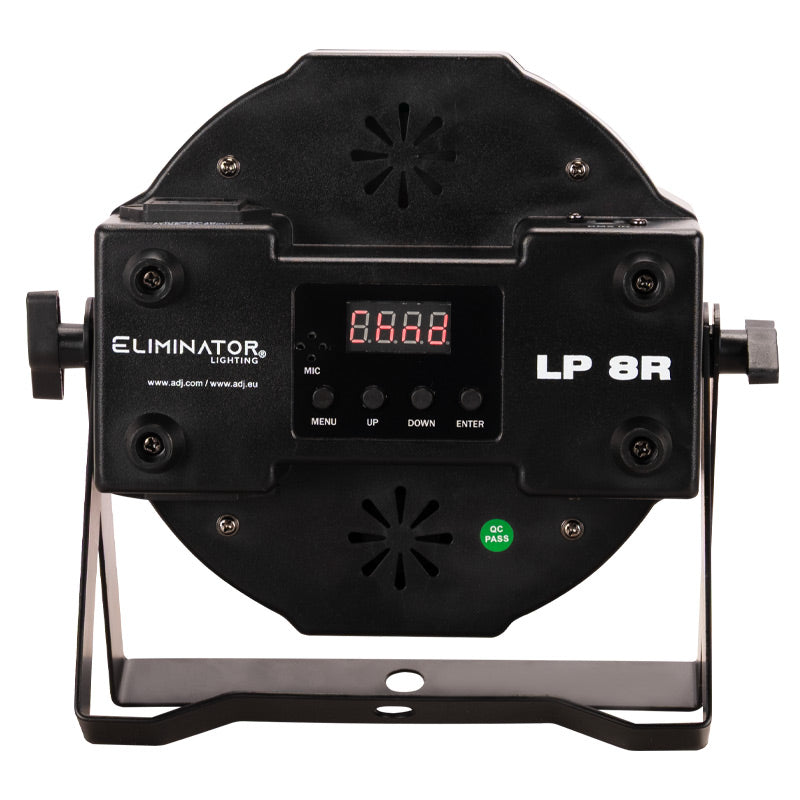

• 4-digit, 7-segment LED display

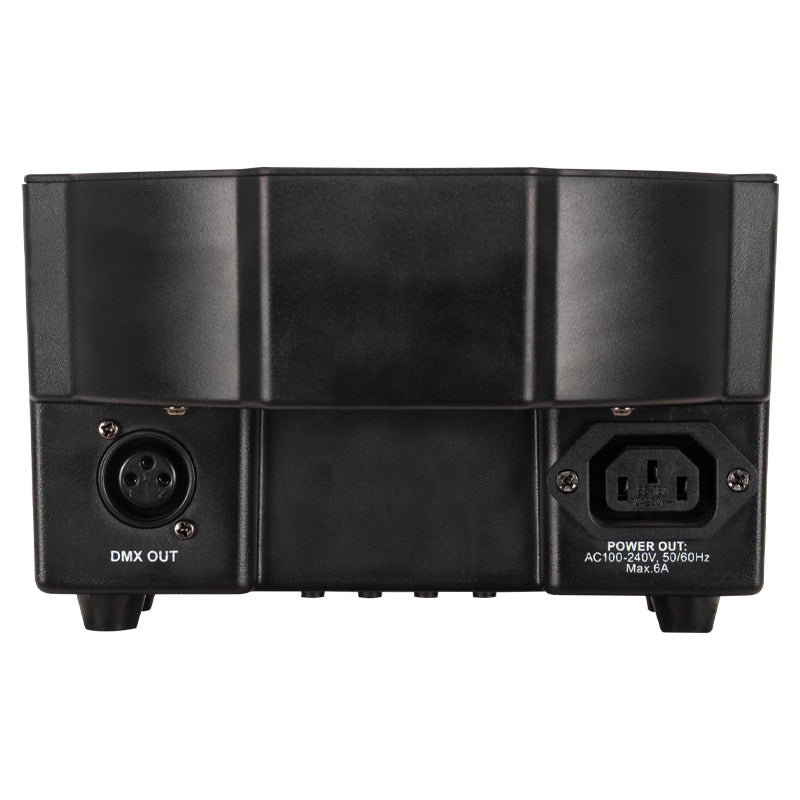

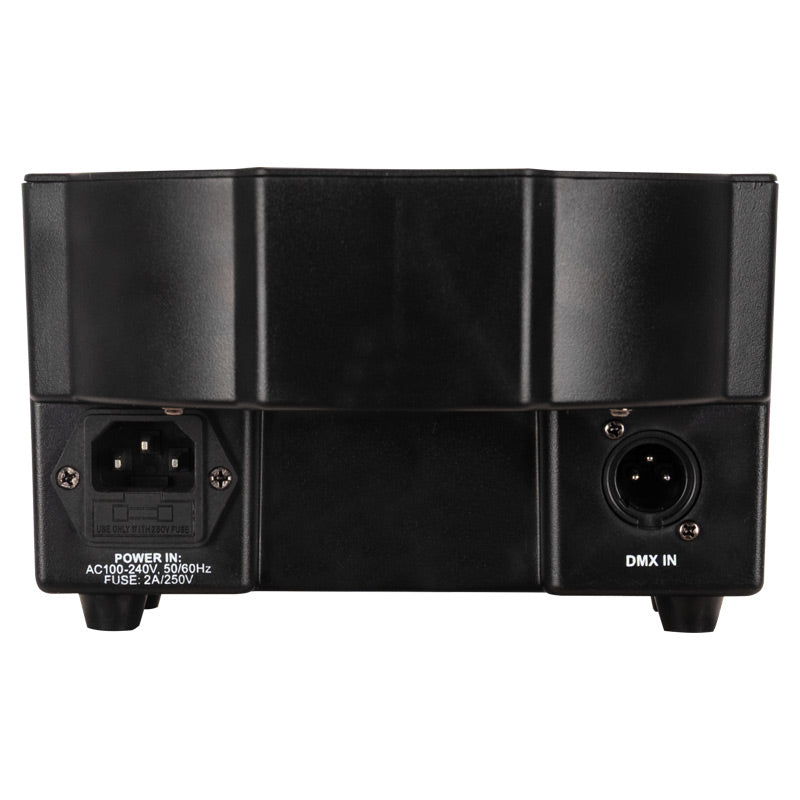

• 3-pin XLR DMX input and output
• IEC power input and output

Electrical Specifications

• Input Voltage: AC 100–240V, 50/60Hz
• Maximum Power Consumption: 60W
• Temperature-control protection
• IP Rating: IP20, indoor use only

Dimensions and Weight

• Length: 7.09 in. / 180 mm
• Width: 5.12 in. / 130 mm
• Height: 8.27 in. / 210 mm
• Weight: 1.76 lb. / 0.8 kg

Additional Information

• UPC: 810087375560
• Manufacturer SKU: LP8080
• Recommended Applications: Mobile DJs, bands, event lighting, stages, clubs, lounges, and permanent installations

Specifications are subject to change without notice.
